This item only includes a Condenser. Browse our complete Mini Split systems here.

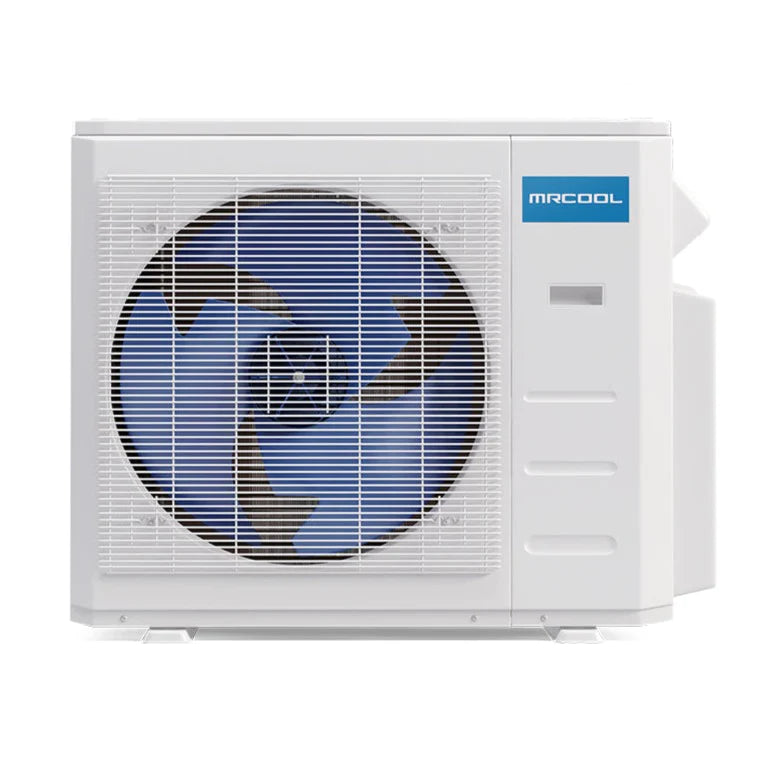

DIY 27,000 BTU 2 1/2 Ton 3-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz
If you’re in need of whole-home comfort but you don’t have ductwork, or you want the best and most efficient solution to discomfort without the stress and cost of a professional installation, then this DIY 27k BTU 2 ½ Ton 3-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser is the perfect choice for you.
This sturdy unit allows you to connect up to three DIY air handlers to it using pre-charged DIY line sets in order to cover as much space as possible in your home with clean, efficient, and comforting air. The best part about all of this is that you can install it yourself!
This condenser possesses an impressive temperature range, as it can provide you comfort from -13° to 122°F. It’s also extremely well-built with a Gold Fin® condenser coating that will protect it from rust and water damage. You’ll also be able to enjoy the peace of mind from a 5 year parts warranty and a 7 year compressor warranty when you register your unit online.
You’ll feel economic, comfortable, and handy once this DIY 27k BTU 2 ½ Ton 3-Zone Ductless Mini-Split Heat Pump Condenser is working to bring you total climate contentment.
|
Dimensions |
16.14" D x 31.89" H x 37.24" W |
|
SEER |
22 |
|
EER |
12 |
|
COP 47 |
3.8 |
|
HSPF |
10.3 |
|
Tonnage |
2 1/2 |
|
Cooling Capacity |
27000 BTU |
|
Heating Capacity |
27000 BTU |
|
Voltage |
208-230 V |
|
Phase |
1 |
|
Cycle |
60 Hz |
|
Max Fuse Breaker |
35 A |
|
Min Circuit Ampacity |
21 A |
|
Mount Type |
Condenser |
|
Color |
White |
|
Color Family |
White |
|
Max Coverage Area |
1000 sq ft |
|
Zone Capacity |
3 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
82.2 oz |
|
Decibel Rating |
63.5 dBA |
|
Decibel Rating Low |
63.5 dBA |
|
Decibel Rating High |
63.5 dBA |
|
Inverter |
Yes |
|
Min Ambient Cool |
-13 - 122 F |
|
Min Ambient Heat |
-13 - 122 F |
|
Max Lineset Length |
197ft Max |
|
Liquid Line Size |
1/4 in (x3 |
|
Suction Line Size |
3/8 in (x3 |
|
Control Type |
LED |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
UL Reconized |
No |
|
UL Listed |
No |
|
CSA Listed |
Yes |
|
CSA Certified |
Yes |
|
ETL Listed |
No |
|
ETL Certified |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
5-year Parts/7-year Compressor/1-year Remote |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU PR;VI |
|
Net Weight |
141.1 LBS |
|
Gross Depth |
19.69 |
|
Gross Height |
34.06 |
|
Gross Width |
42.91 |
|
Gross Weight |
158.7 LBS |
|
Freight Class |
100 |
| Brochure |
| Install Manual |
| Owner Manual |
| Technical Manual |
| Energy Guide |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
I would buy elsewhere. Unit works pretty well. We get phone calls every couple weeks trying to sell us a warranty. This website sold our information to them. They made a few dollars, and we pay for it every 2 weeks getting call after call trying to sell a warranty.
In the last few years I have installed four 12000 btu Mr Cool units and one of the 27000 btu units with two 12000 btu air handlers. I am happy with the performance of all of them, but if I had it to do over again, I would install two of the 12000 btu units instead of the 27000 btu unit. The price would be approximately the same, but the smaller units are much easier to deal with. The fact that the 12000 btu units require only 120 v power means that you can often make use of existing wiring rather than run a new line. The 27000 unit is quite heavy. It is much more difficult to move around . I didn't realize that fluid is pumped to both units even if only one of them is turned on. This results in confusing readings on the app and it probably results in reduced efficiency. I many cases using two smaller units rather than a large one would allow use of shorter lines. I appreciate that fact that HOD makes it easy to order units with appropriate line lengths rather than being forced to use standard sizes that may be longer than necessary.
