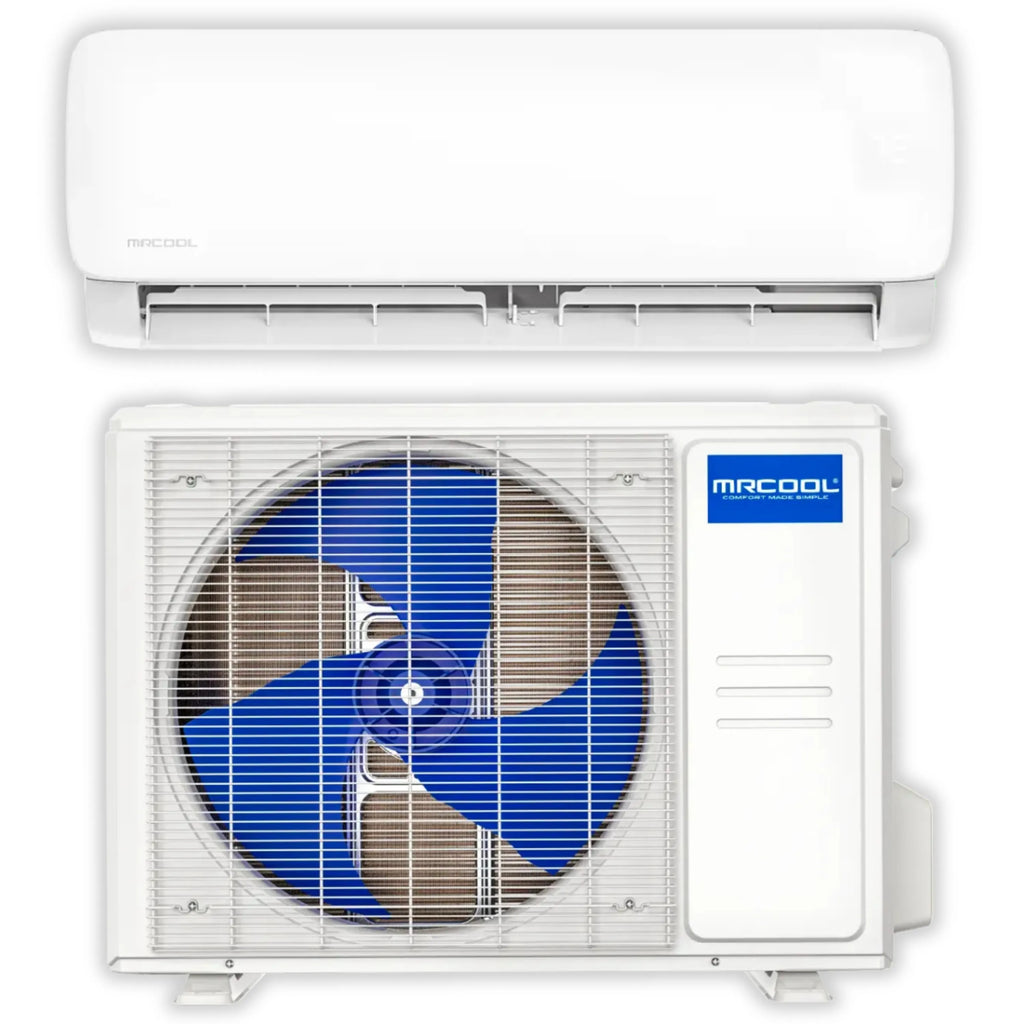

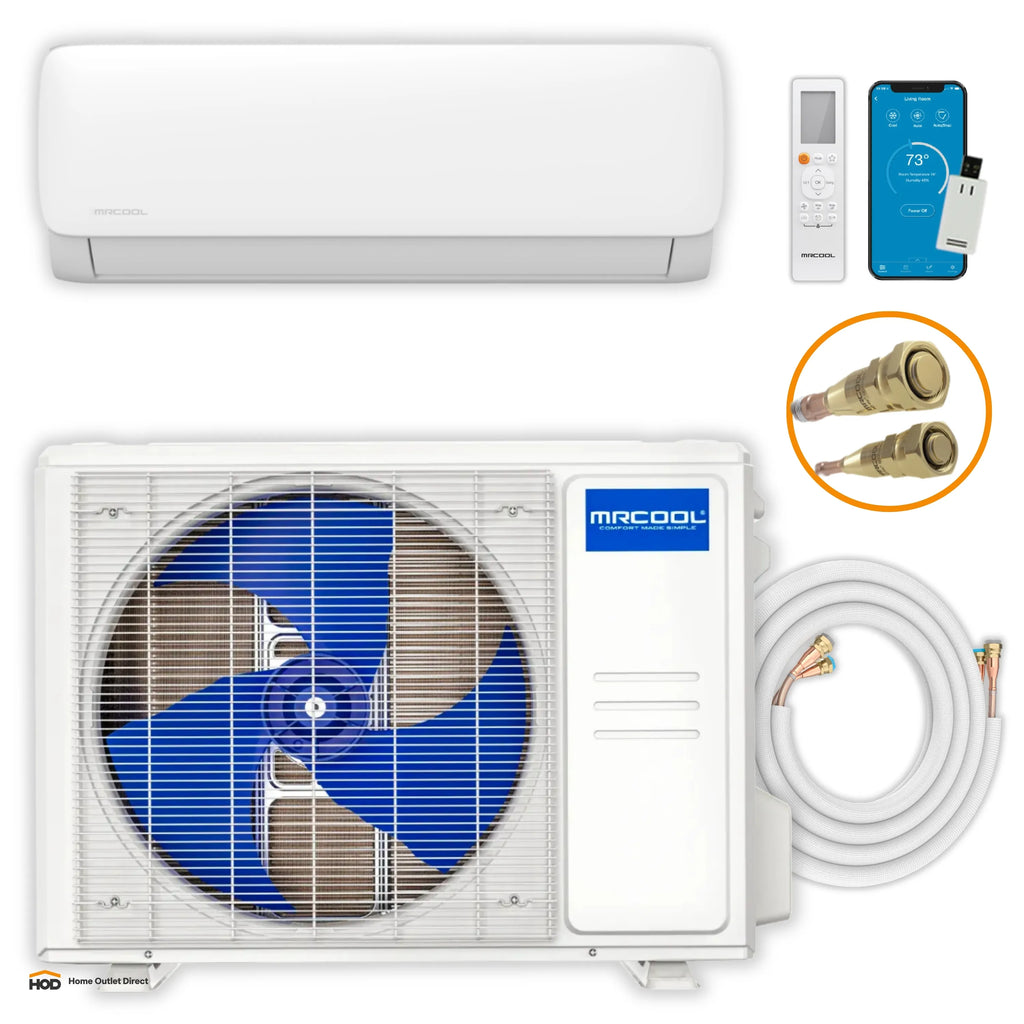

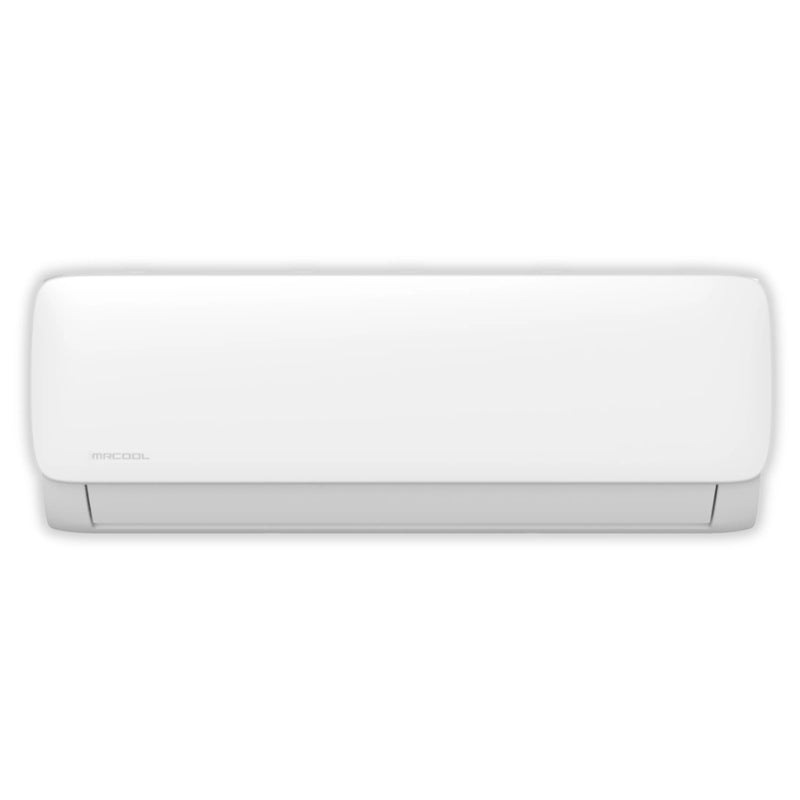

The MRCOOL® EASY PRO™ Series Mini-Split Air Handler offers a cost-effective, user-friendly solution for those who want reliable heating and cooling without breaking the bank. This DIY mini-split air handler is designed to simplify installation with its innovative, budget-friendly setup, making it the most affordable choice in MRCOOL’s lineup.
The sleek EASY PRO™ air handler is ideal for spaces up to 400 square feet, perfect for single rooms, small offices, or server rooms. It’s not just easy to install; it’s also smart. The system is WiFi connected, allowing control from your smartphone, and Active Clean Technology keeps the unit fresh, protecting indoor air quality with easy-to-clean filters.
The Auto Restart function ensures continuous comfort by automatically turning the unit back on after a power outage. Additionally, the Sleep Function saves energy overnight, adjusting temperature settings to optimize comfort and efficiency. With whisper quiet operation, this unit runs smoothly without disruption, maintaining comfort without noise. Built to operate even in extreme conditions, it provides Low Ambient Cooling to 5°F, making it perfect for applications that require year-round cooling, such as server rooms or greenhouses.
Complete with a 2-year compressor warranty and a 1-year parts warranty, the MRCOOL® EASY PRO™ is a top choice for anyone looking for a budget-friendly, quiet, and efficient air handler they can install themselves. Experience comfort made easy, anytime and anywhere!

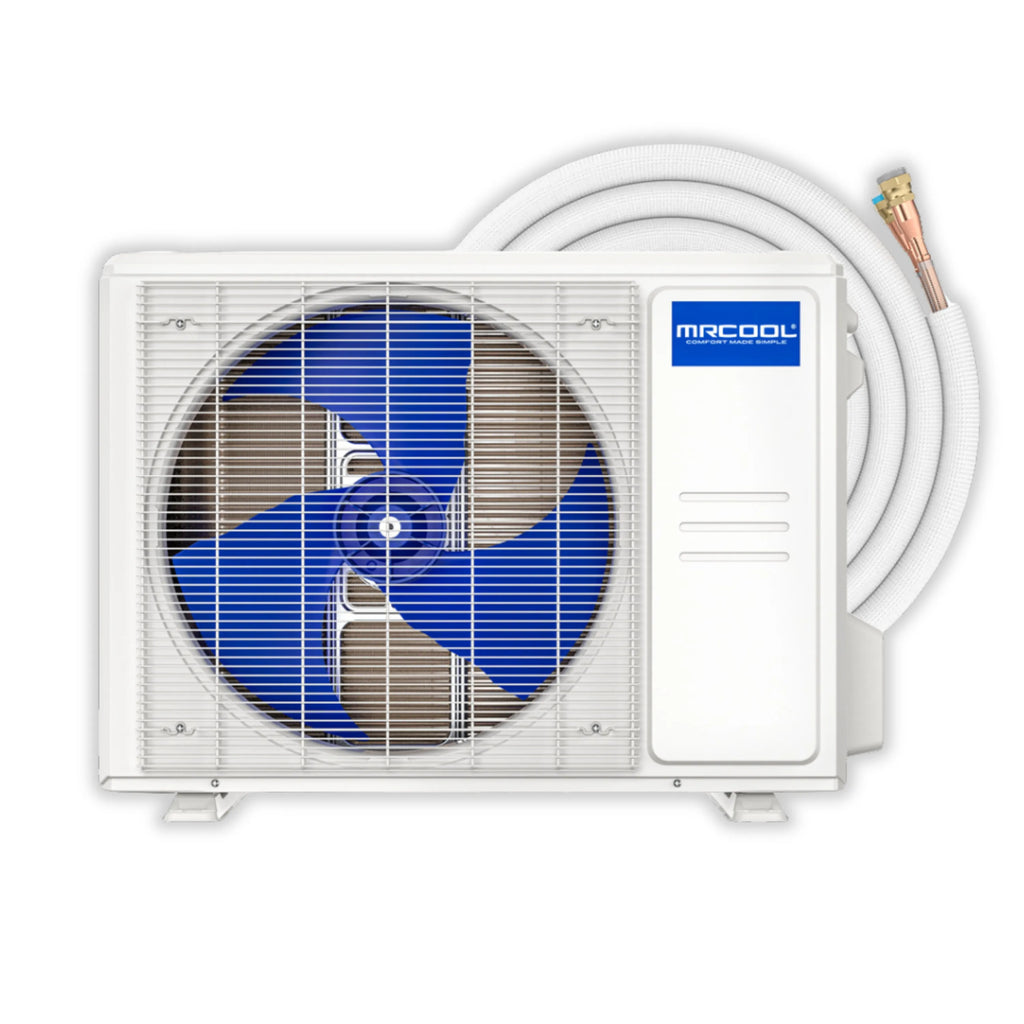

| Condenser Dimensions | 28.35 W" x 10.63 D" x 19.49 H" |
|---|---|

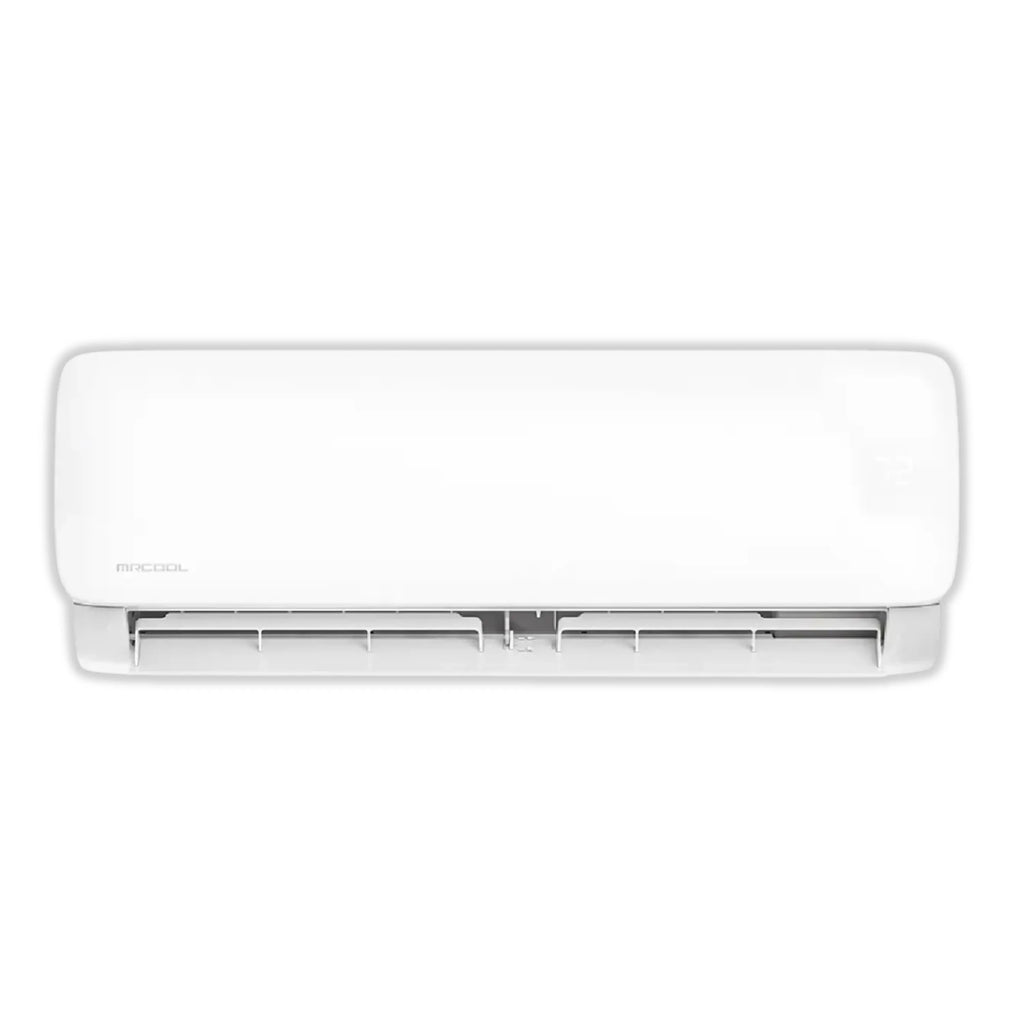

| Air Handler Dimensions | 28.7 W" x 7.87 D" x 11.5 H" |
| Condenser Weight | 54.67 lbs |
| Air Handler Weight | 23.81 lbs |
| Zone Capacity | 1 |
| Cooling Capacity | 9,000 BTU |
| EER2 | 11.3 |
| SEER2 | 20.2 |
| Heating Capacity | 10,000 BTU |
| HSPF2-4 | 9.2 |
| HSPF2-5 | 7.1 |
| Coverage Area | Up to 400 sq ft. |
| Condenser Noise Level | 54 dB(A) |
| Air Handler Noise Level (Hi/Mi/Lo) | 43.0/31.0/18.0 dB(A) |
| Condenser Operating Temperature | -13° to 122° |
| Electrical Requirements | |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 17A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 17.28 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |

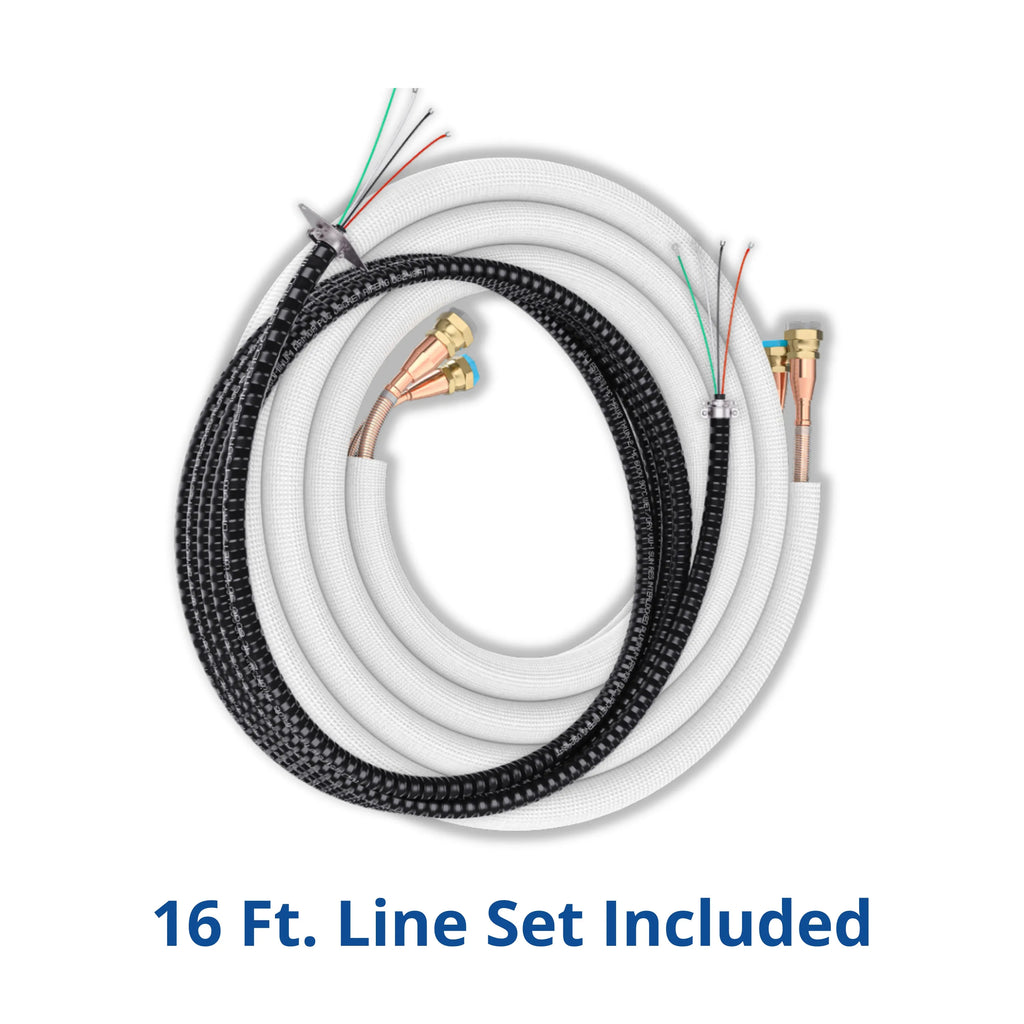

| Max Line Set Length | 82 ft. |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |

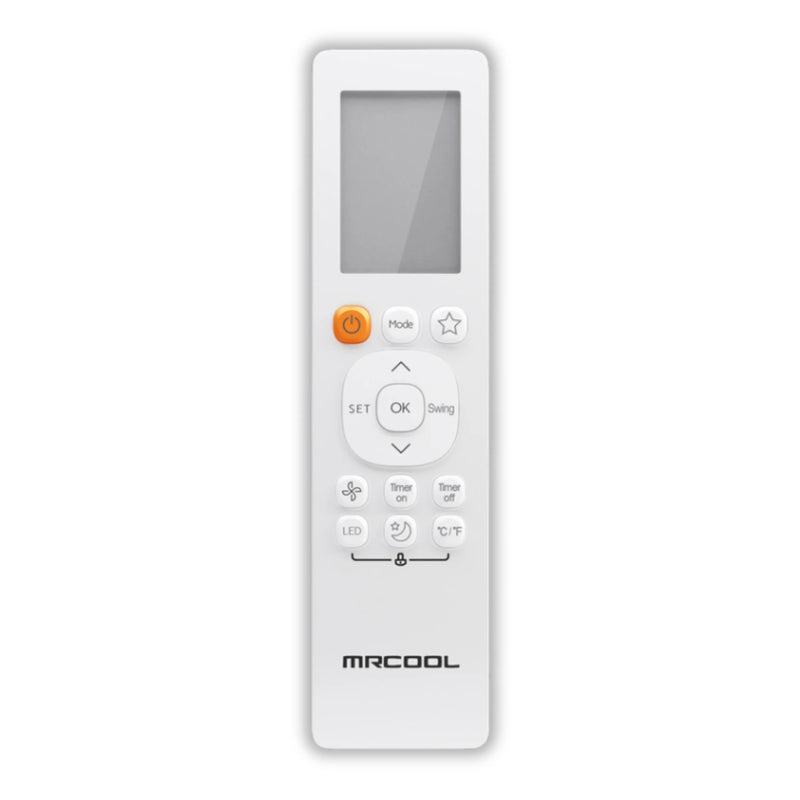

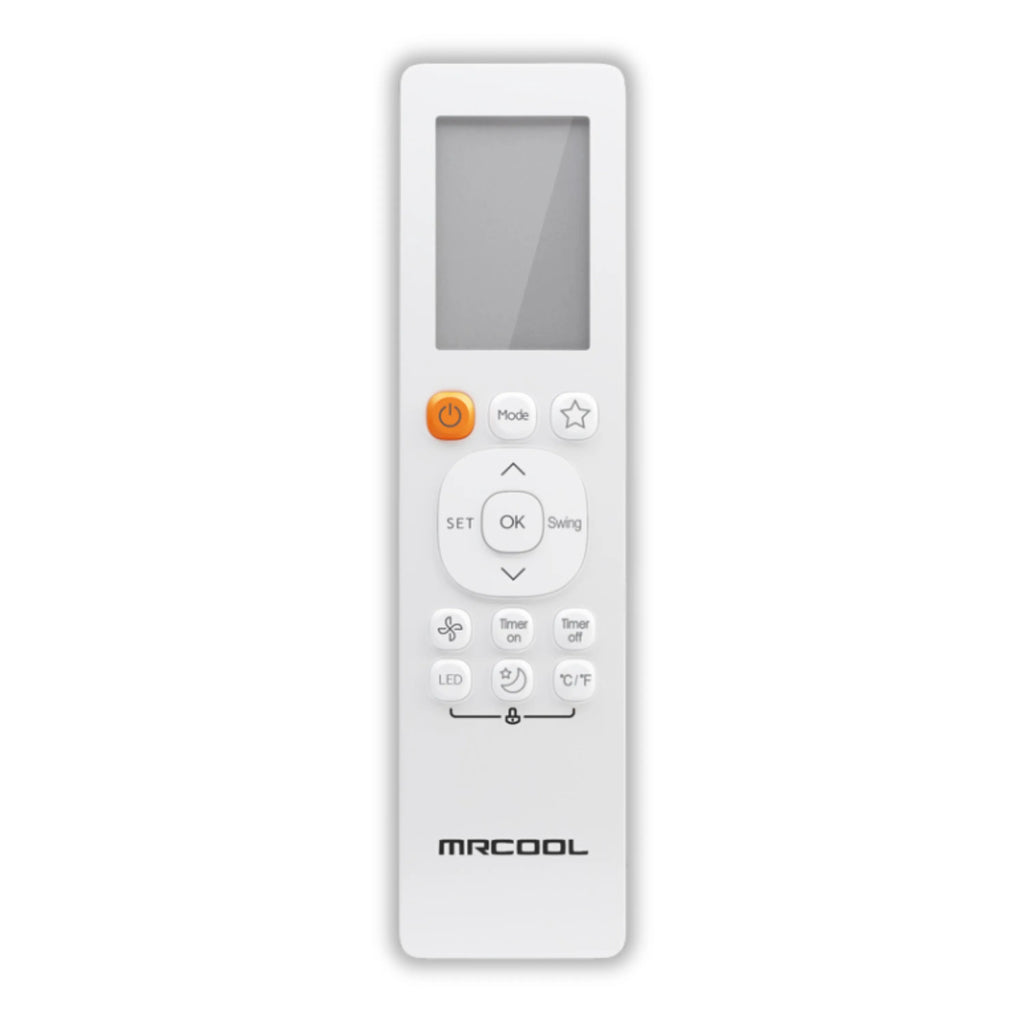

| Remote Control Included | Yes |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 2 Year Parts / 1 Year Compressor |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
