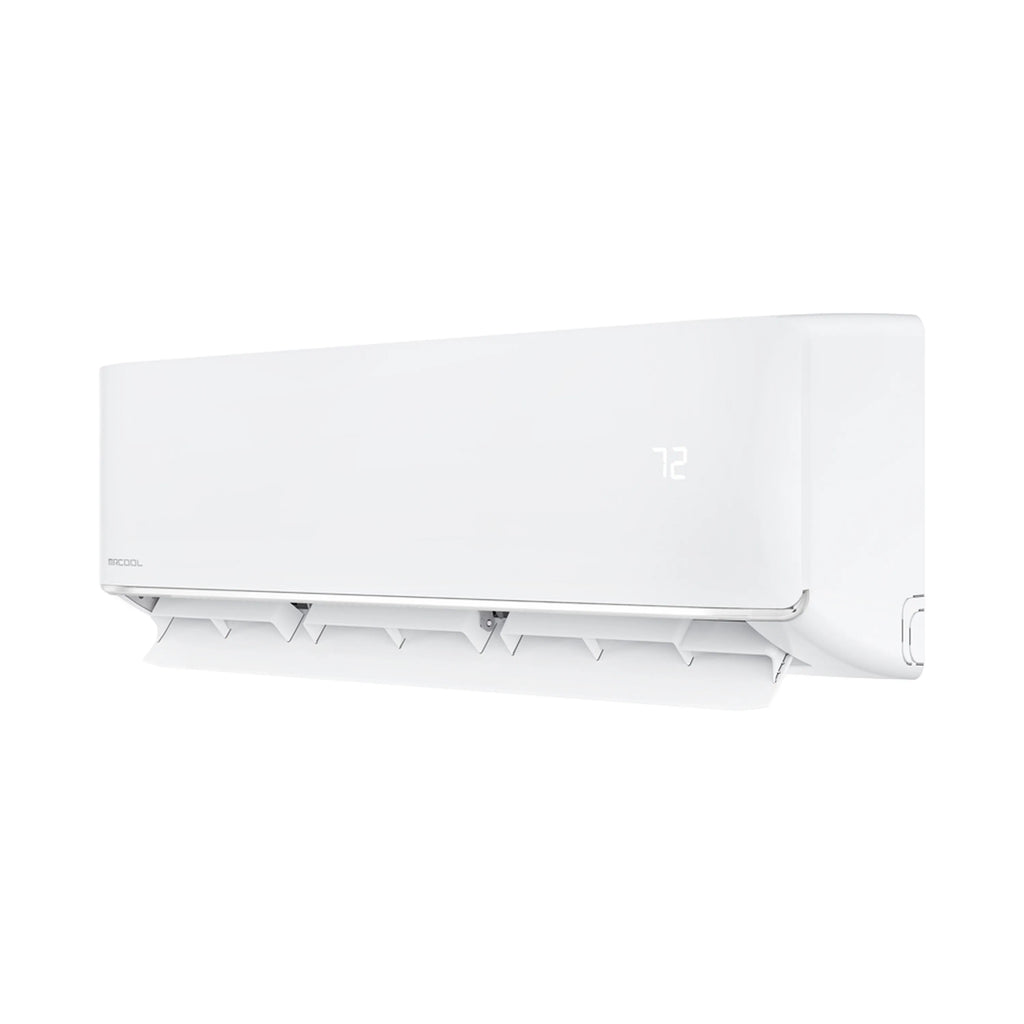

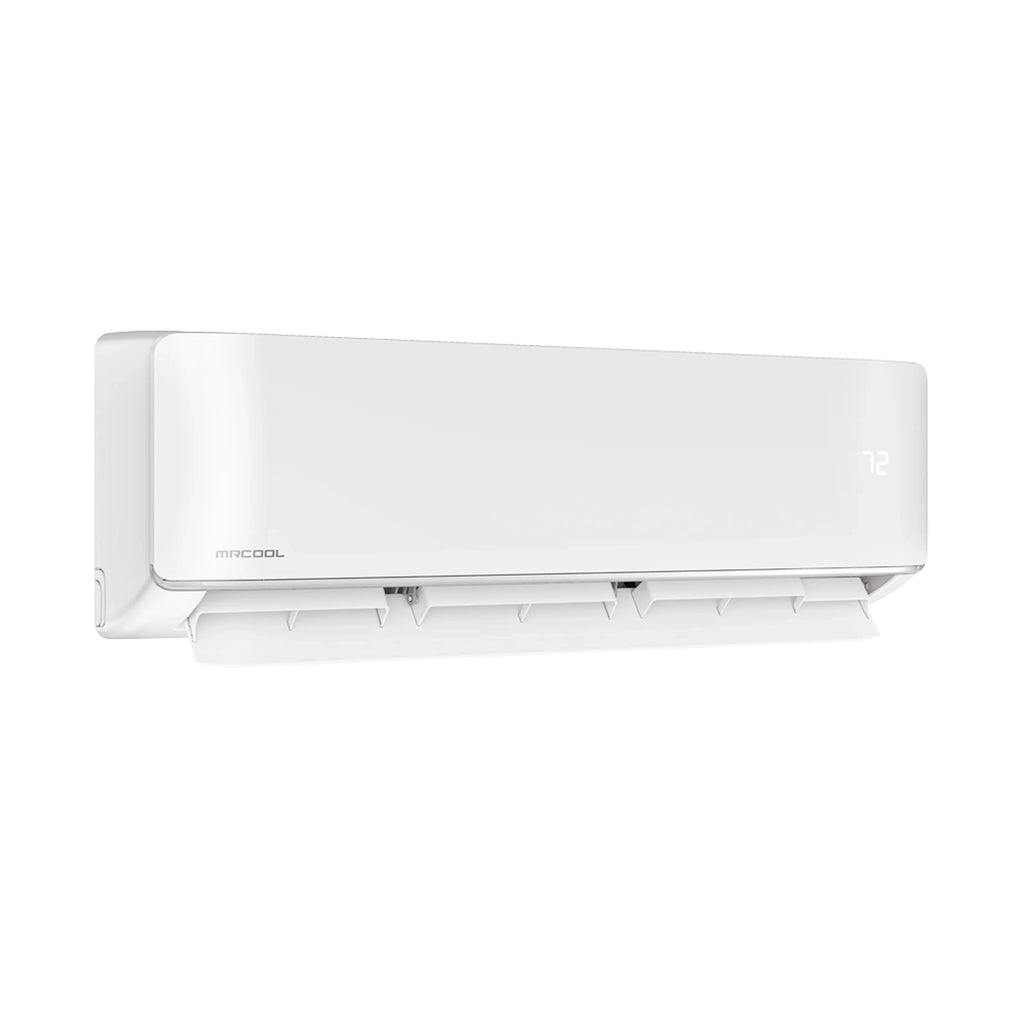

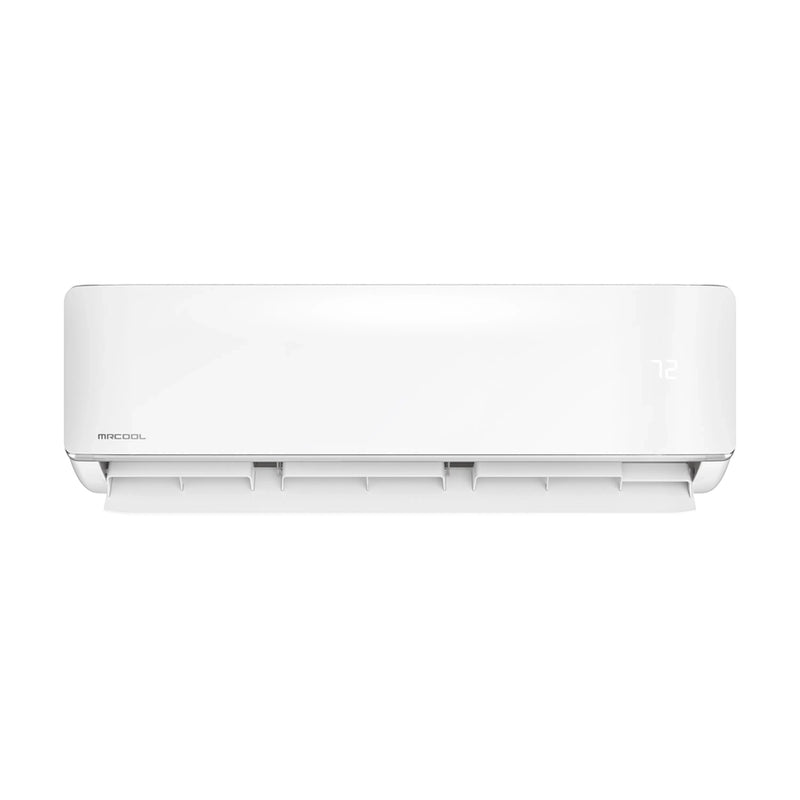

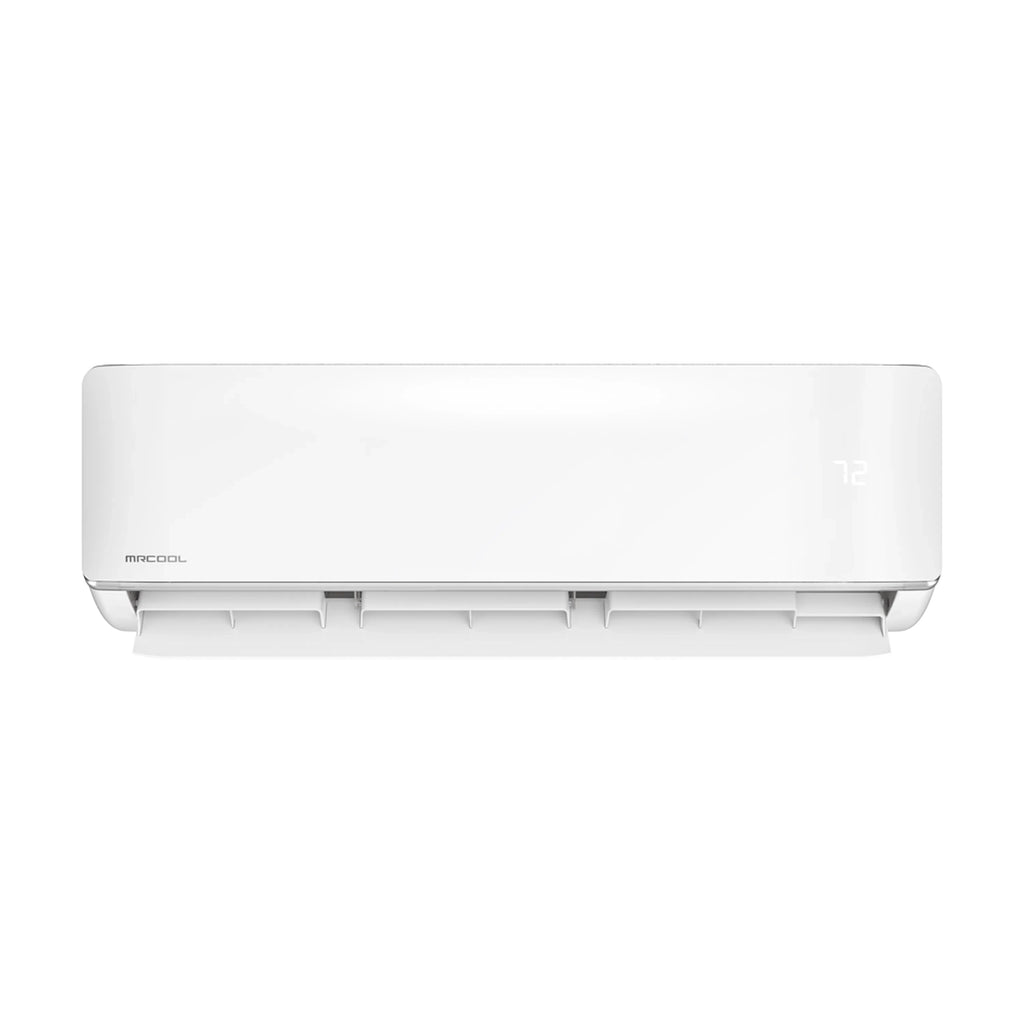

MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)

MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)

SKU: DIY-06-HP-WMAH-230D25-O

Sale price$457.00 Regular price$549.00
Save 17%


Voltage:

In Stock Estimated delivery: Oct 8th-17th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

Check out the new 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler! Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 200 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, which is pre-charged with R-454B refrigerant, eliminates the need for vacuuming, making installation faster, easier, and more cost-effective.

The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife. Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room.

Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation. Backed by an industry-leading warranty—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.

Features

  • Intertek listed 5031495
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Dimensions 7.44" D x 11.69" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

200 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Shipping & Returns

Email Quote

Customer Reviews

Based on 41 reviews
83%
(34)
12%
(5)
2%
(1)
0%
(0)
2%
(1)
A
Alan R.S. (Chicago, IL)
Not cool

Here is my absolutely fantastic, excellent review for the business Home Outlet Direct. After looking for months, I found this business. They were kind. This is a great company to buy from albeit not always cheap but good prices overall. However, I find all the charges for this nuts as the damn thing don’t work at all.
My review of the MrCool 24k btu ECM air handler:
I was and am very frustrated with this purchase. It took me months to get this in. I went through 3 line sets. I finally got all lines in right no leaks. All electrical correct. I plugged in their Wi-Fi thermostat and all seemed great! I began registering the thermostat etc. ….then nothing. It shut down. Bricked. all of it shut off. Completely. Bricked . Now, all I have is the Goodman furnace I put in the previous year. MrCool products are not cool. Very expensive and they don’t work at all. Never buying these products again. Spent thousands altogether to run this and it doesn’t do anything. Never buy Mr Cool BS products!

R
Robert W. (Marietta, GA)
Decent Company

I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.

P
Peter K. (Phoenix, AZ)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

W
Wes D. (Chicago, IL)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

C
Chris S. (Denver, CO)
Good product great customer service

Very good customer service will be buying from them again
