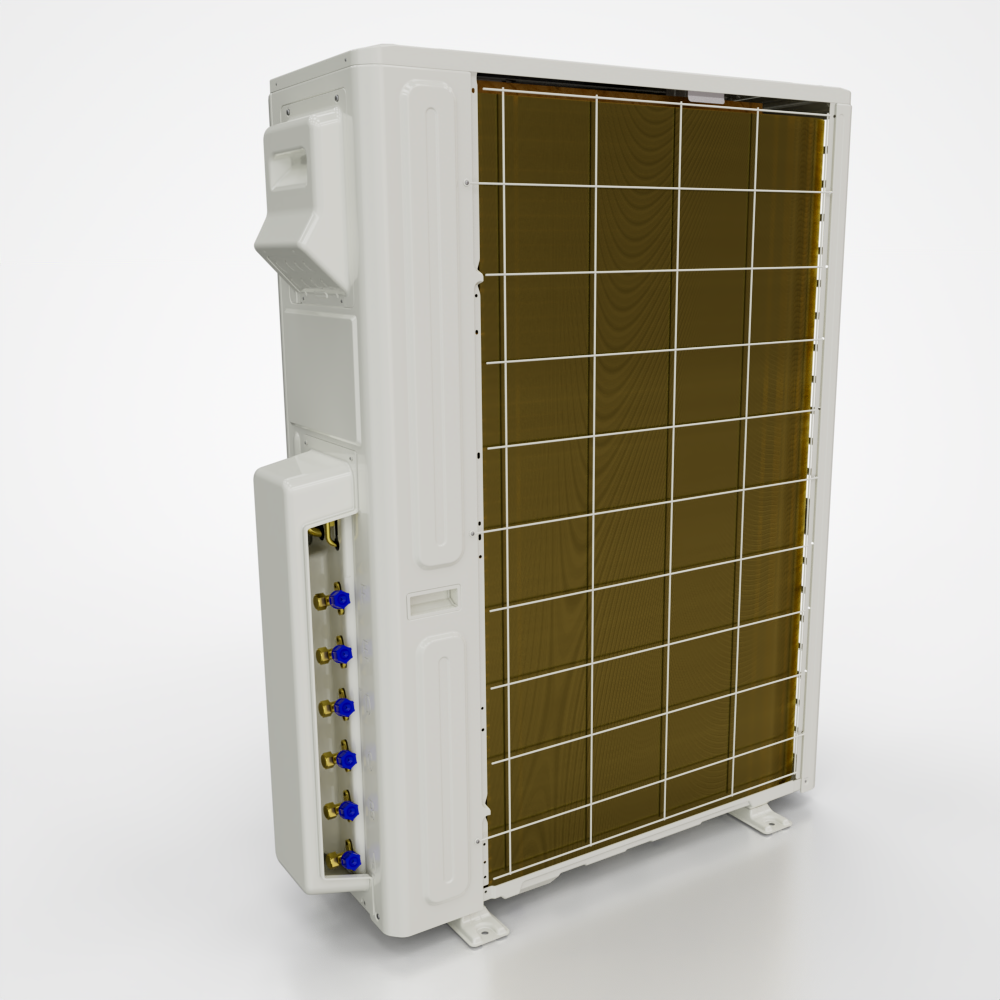

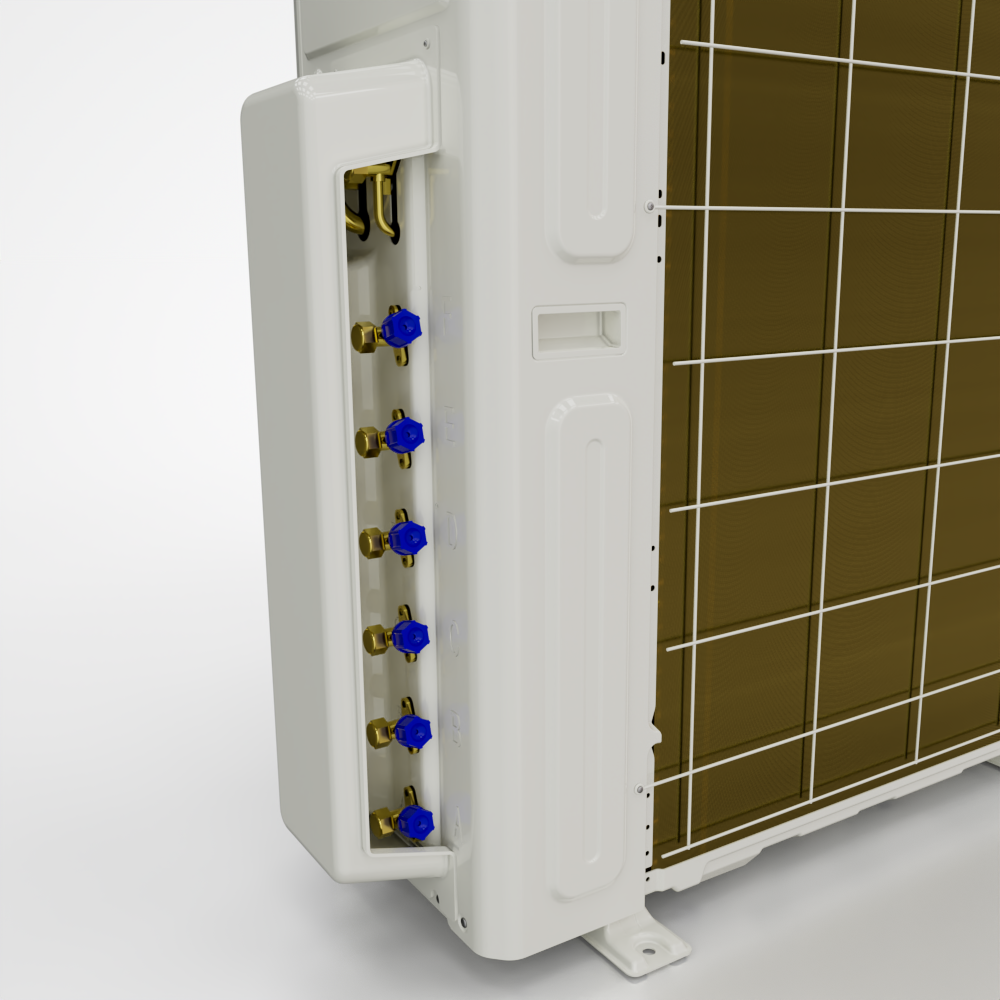

We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system.
You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button.
The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
|
SEER2 |
21.8 |
|
EER2 |
12 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
Tonnage |
4 |
|
Cooling Capacity (BTU) |
43000 |
|
Heating Capacity (BTU) |
48000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
45 |
|
Min Circuit Ampacity (A) |
40 |
|
Color |
White |
|
Zone Capacity |
6 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
148.15 |
|
Decibel Rating (DBA) |
64 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good customer service will be buying from them again
Was easy to install. Directions were easy to follow and unit is working great
