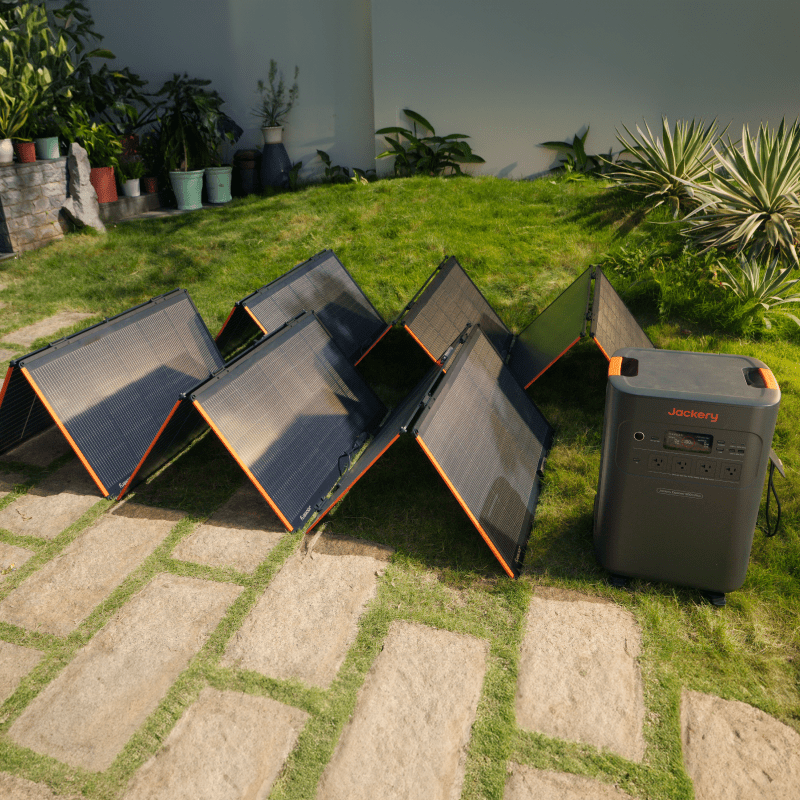

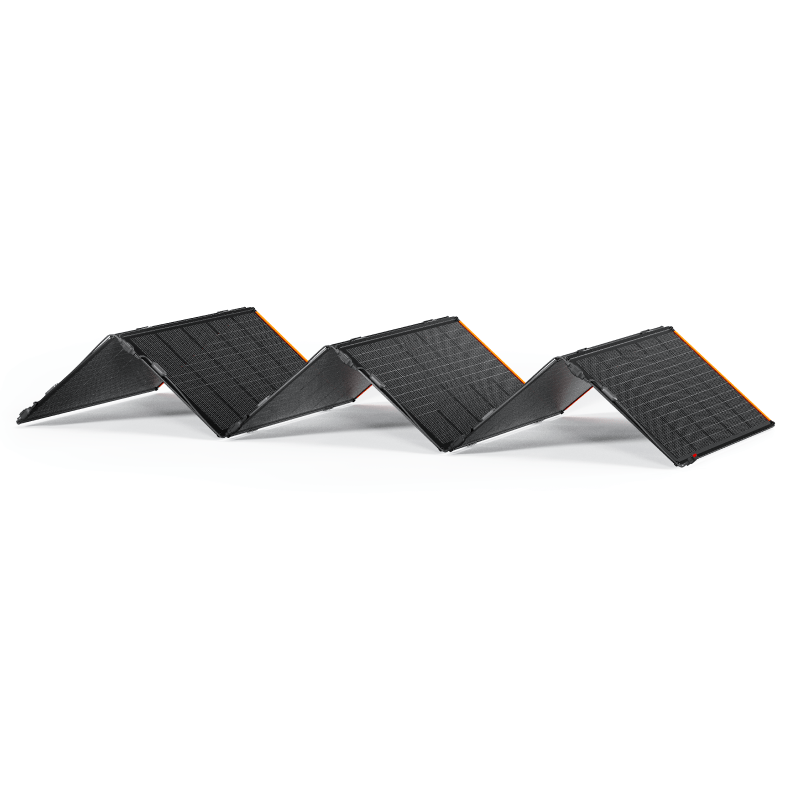

The Jackery SolarSaga 500X is a high-efficiency, modular solar panel system designed for reliable off-grid power generation. Comprising six 85W bifacial TOPCon solar panels, it delivers up to 500W of output with a 25% conversion efficiency. Its rugged, IP68-rated construction ensures durability in harsh environments, operating effectively in temperatures ranging from -40°C to 85°C. The foldable design and included accessories facilitate easy transport, setup, and secure installation, making it ideal for home backup, RVs, camping, and emergency preparedness. Compatible with Jackery power stations like the Explorer 5000 Plus, it offers a versatile and dependable solar charging solution.
Product Dimensions Folded (In.) |
39.21 × 20.71 × 3.82 in |
Product Dimensions Unfolded (In.) |
98.15 × 39.21 × 11.57 in |
Product Weight (Lbs.) |
22.05 lbs ± 2.20 lbs |
Operating Temperature Range |
-40~185℉(-40~85℃) |
Maximum System Voltage |
600V DC |
Maximum Reverse Current |
15A |
Peak Power (Pmax) |
500W±5% |
Warranty |
5 Years |
