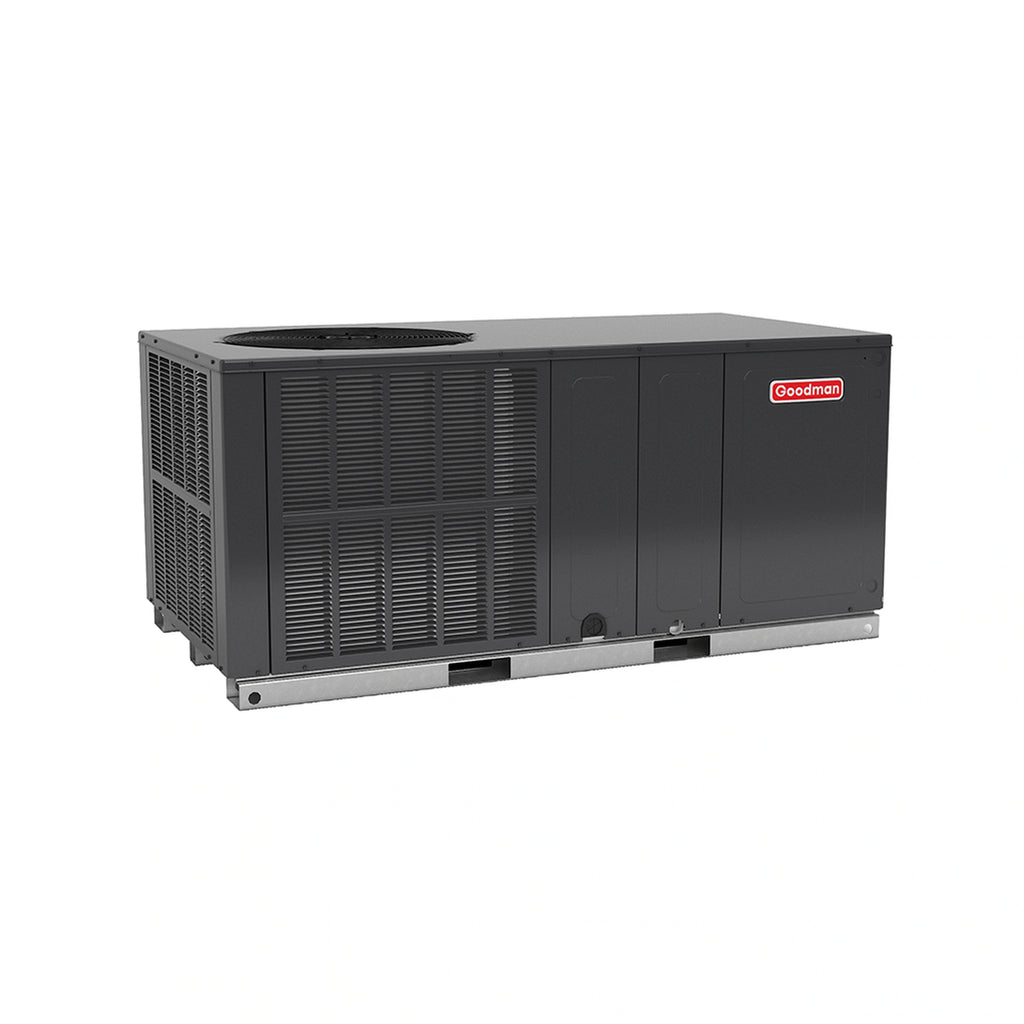

The Goodman GPHH5 delivers premium 15.2 SEER2 / 7 HSPF2 efficiency in a 2.5 Ton horizontal packaged heat pump with quiet horizontal discharge. Features a high-efficiency scroll compressor, multi-speed ECM blower motor, and all-aluminum evaporator coil with compressor sound blanket. Built in a heavy-gauge galvanized steel cabinet with Nickel Gray finish meeting strict ASHRAE air leakage standards. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| SKU | GPHH53031 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Motor & Blower | |
| Electric Backup Heat Capabilities (Optional) | 14.25 kW |
| Electrical | |
| Voltage/Phase/Hz | 208-230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30 A |
| Min. Breaker Size | 20.75 A |
| Capacity & Performance | |
| Tonnage | 2.5 |
| Cooling BTU | 27000 Btu/H |
| Heating BTU | 26000 Btu/H |
| Maximum CFM | 1050 ft³/min |
| Decibel Level (dBA) | 76 dBA |
| Efficiency Ratings | |
| SEER2 | 15.2 |
| HSPF2 | 7.0 |
| EER2 | 11.2 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 99 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 30 in |
| Width | 66 in |
| Weight | 350 lb |
| Additional Information | |
| Product Features | High-efficiency scroll compressor;Multi-speed ECM indoor blower motor;Copper tube/aluminum fin condenser coil;All-aluminum evaporator coil;Totally enclosed, permanently lubricated condenser fan motor;Fully charged system;Quiet horizontal discharge;Electric heat kit available as a field-installed option;AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
