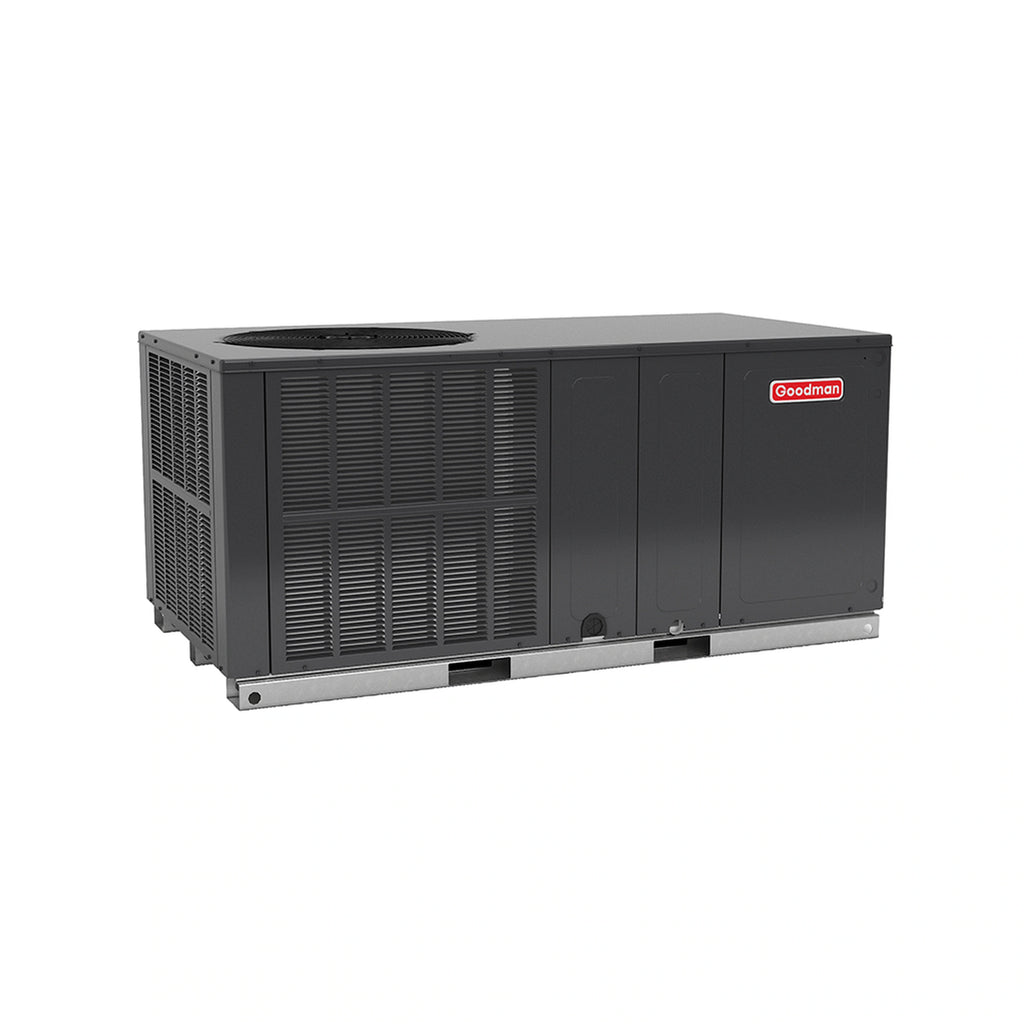

The Goodman GPHH3 delivers efficient 13.4 SEER2 performance in a 3.5 Ton horizontal packaged heat pump for year-round comfort. Features an energy-efficient compressor, ECM indoor blower motor, and quiet horizontal discharge. Ships fully charged in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. AHRI Certified and ETL Listed with optional electric heat kit available.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GPHH3 |
| SKU | GPHH34231 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Motor & Blower | |
| Electric Backup Heat Capabilities (Optional) | 19 kW |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 23.2 A |
| Capacity & Performance | |
| Tonnage | 3.5 |
| Cooling BTU | 39000 Btu/H |
| Heating BTU | 35000 Btu/H |
| Maximum CFM | 1250 ft³/min |
| Decibel Level (dBA) | 78 dBA |
| Efficiency Ratings | |
| SEER2 | 13.4 |
| HSPF2 | 6.7 |
| EER2 | 10.6 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 111 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 35 in |
| Width | 66 in |
| Weight | 390 lb |
| Additional Information | |
| Product Features | Energy-efficient compressor;ECM indoor blower motor;Quiet horizontal discharge;Copper tube/aluminum fin coil;Totaly enoclosed, permanently lubricated condenser fan motor;Fully charged system;Eletric heat kit available as a field-installed option;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
