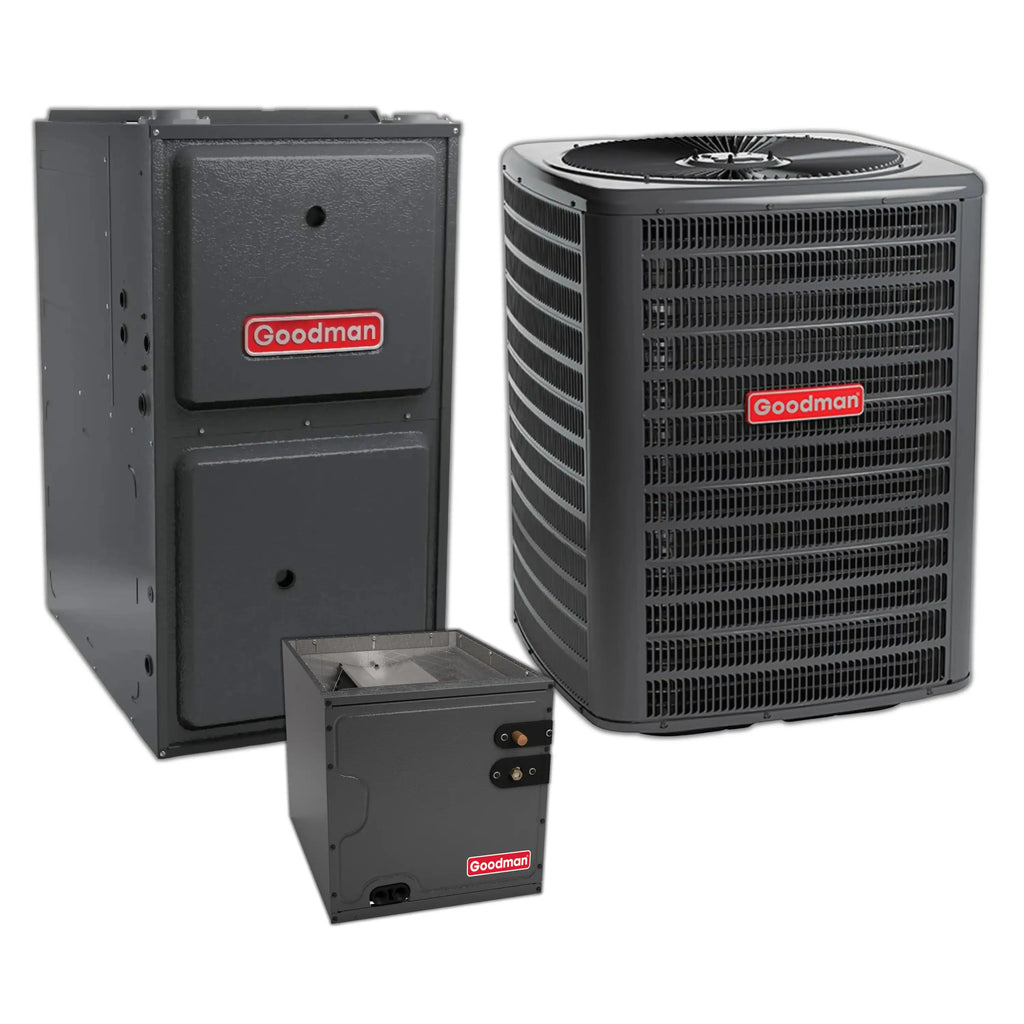

The Goodman GLXS4B Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLXS4B |
| SKU | GLXS4BA3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/240 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30 A |
| Min. Breaker Size | 17.75 A |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Cooling BTU | 34600 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Decibel Level (dBA) | 67 dBA |
| Efficiency Ratings | |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 69 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 39.5 in |
| Width | 29 in |
| Depth | 29 in |
| Weight | 67 lb |
| Additional Information | |
| Product Features | Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |

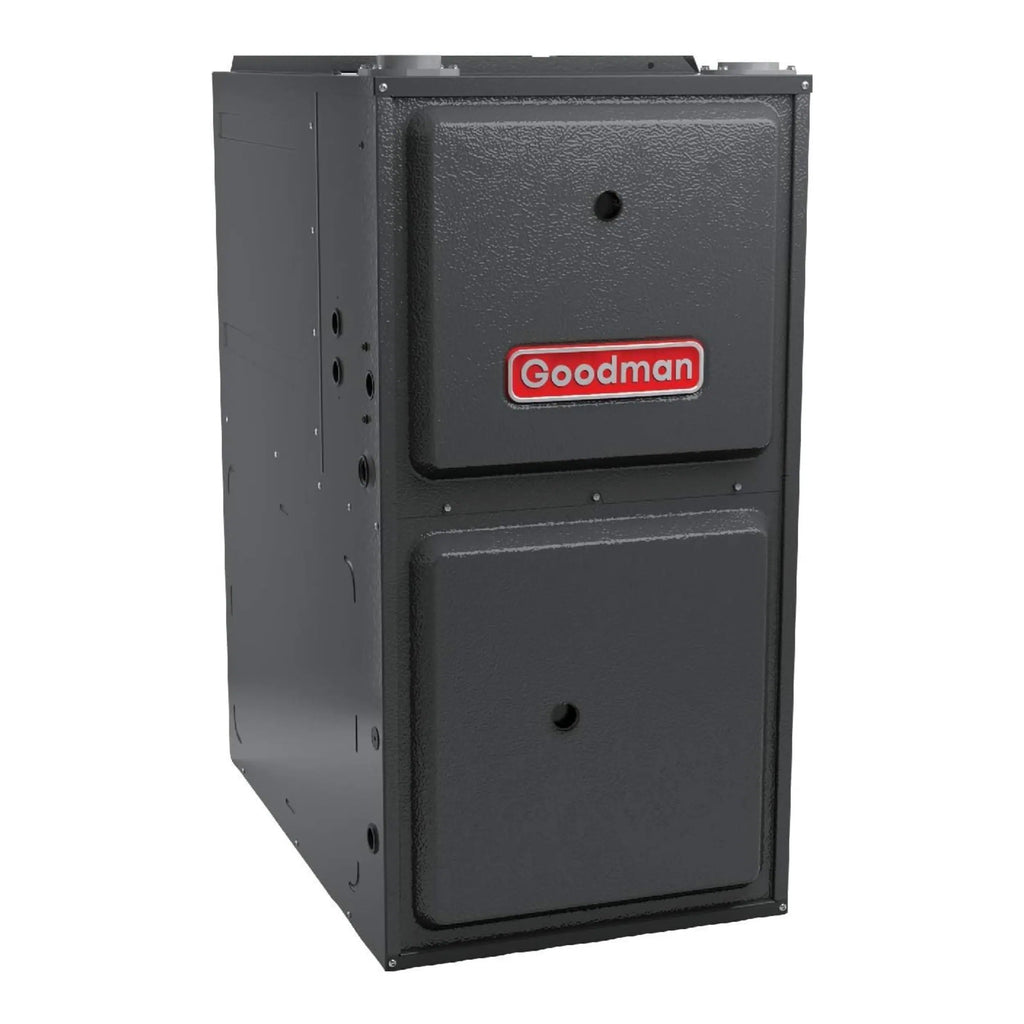

The Goodman GDVT96 Gas Furnace delivers 96% AFUE efficiency with a variable-speed ECM blower and two-stage gas valve for quiet, consistent heating at 40,000 BTUH. Features ComfortBridge™ communicating technology with CoolCloud™ Bluetooth diagnostics. Multi-position downflow/horizontal installation. Fully insulated heat exchanger and blower section.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GDVT96 |
| SKU | GDVT960403BN |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Motor & Blower | |
| Blower Motor | 1250 r/min |
| Electrical | |
| Voltage/Phase/Hz | 115 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 7.6 A |
| Efficiency Ratings | |
| AFUE | 96 % |
| ENERGY STAR® Certified | Yes |
| Dimensions & Weight | |
| Height | 34-1/2 in |
| Width | 17-1/2 in |
| Depth | 28-7/8 in |
| Weight | 116 lb |
| Additional Information | |
| Product Features | 1. Heavy-dutyluminized-steel tubular heat exchanger;2. Efficientnd quiet variable-speed Blower;3. Integrated communicating ComfortBridge™ technology;4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication;5. Stainless-steel sloped secondary heat exchanger;6. Silicon Nitride igniter;7. Dual 7-segment display;8. Color-coded low-voltage terminal;9. Two-Stage gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified, ETL Listed;12. Energy Star;13. Two-stage gas valve;14. Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers |
| Warranty | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| Proposition 65 Warning | Yes |
The Goodman CAPTA AlumaFin7 evaporator coil is a 3 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | CAPTA AlumaFin7™ |
| SKU | CAPTA3626B3 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Dimensions & Weight | |
| Height | 26 in |
| Width | 17-1/2 in |
| Depth | 21 in |
| Additional Information | |
| Product Features | All-Aluminum evaporator coil ;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil;Factory-installed thermal expansion valves for cooling and heat pump applications;Standardized copper suction tube stub length;Check flowrator for cooling and heat pump applications;Vertical application;21" depth for easier attic access;Single front access panel;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Galvanized, leather grain-embossed finish;Rust resistant, thermoplastic drain pan featuring a low water-retention design;DecaBDE-free thermoplastic drain pan with secondary drain connections;Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity;UV-resistant drain pan;AHRI certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
