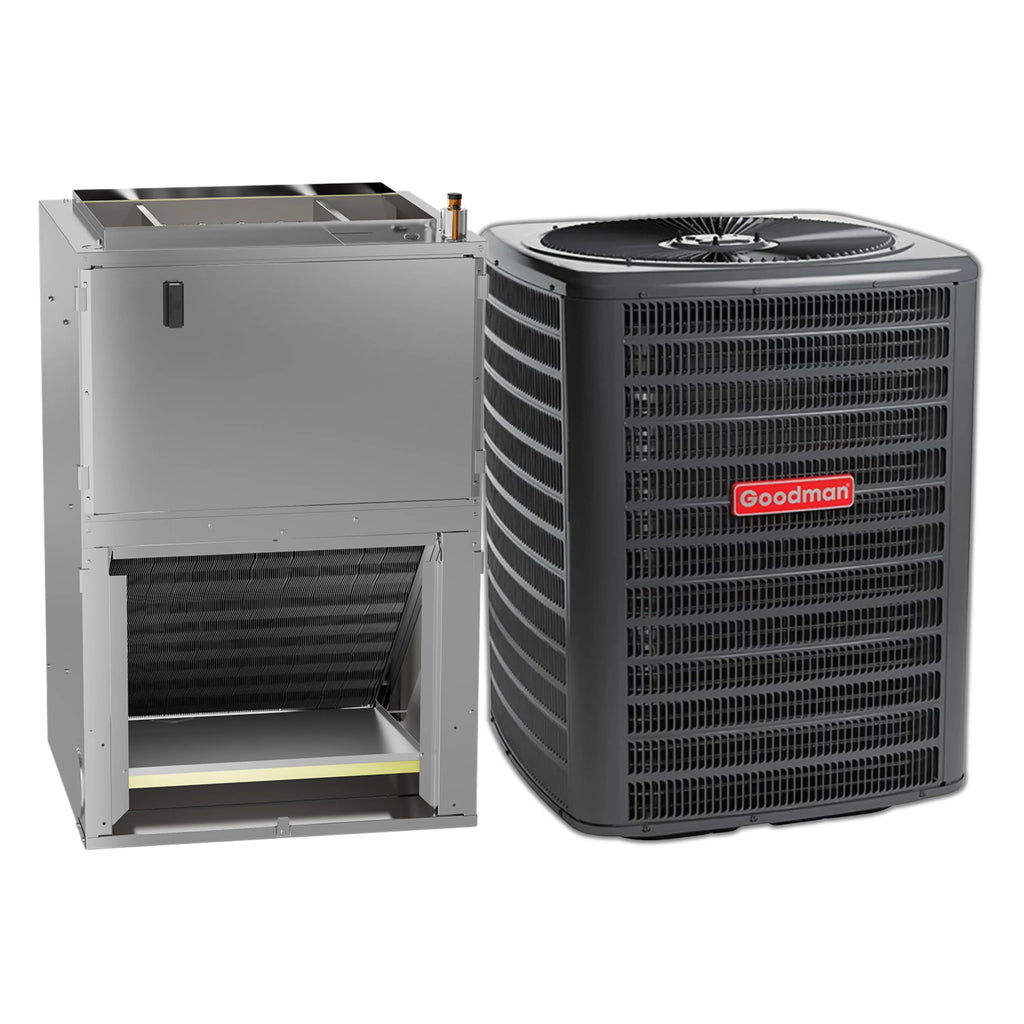

The Goodman GLZS5B is a 2 Ton split system heat pump delivering 15.2 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency scroll compressor, enhanced aluminum fin coils, and factory-installed components. Ships fully charged and includes single-speed PSC condenser fan motor. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLZS5B |
| SKU | GLZS5BA2410 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 15.2 A |
| Capacity & Performance | |
| Tonnage | 2.0 |
| Heating BTU | 23000 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Heating Operating Range | -20 °F to 70 °F |
| Decibel Level (dBA) | 73 dBA |
| Efficiency Ratings | |
| SEER2 | 15.2 |
| HSPF2 | 7.8 |
| EER2 | 12.5 |
| ENERGY STAR® Certified | Yes |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 83 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 39.5 in |
| Width | 29 in |
| Depth | 29 in |
| Weight | 171 lb |
| Additional Information | |
| Product Features | High-efficiency scroll compressor;SmartShift® technology to ensure quiet reliable defrost;Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T;Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton;Single-speed PSC condenser fan motor;Factory-installed suction-line accumulator;Factory-installed compressor crankcase heater;Factory-installed high-capacity muffler;High- and low-pressure switches;Service valves with sweat connections and easy access to gauge ports;Fully charged for 15’ of tubing length;Fully enclosed contactor;Ground lug connection;Capacitor with extended life; AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |
The Goodman AWST wall-mounted mini-split air handler provides quiet, ductless climate control for single-zone applications. Features a sleek, compact design perfect for individual room comfort. Designed for easy installation and operation with a wireless remote control. Compatible with Goodman mini-split outdoor units for efficient heating and cooling.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | AWST |
| SKU | AWST30LU1305 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30/30 A |
| Min. Breaker Size | 26.4/29.8 A |
| Capacity & Performance | |
| Tonnage | 2.5 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 0.5 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 36 in |
| Width | 24 in |
| Depth | 21 in |
| Weight | 109 lb |
| Additional Information | |
| Product Features | AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
