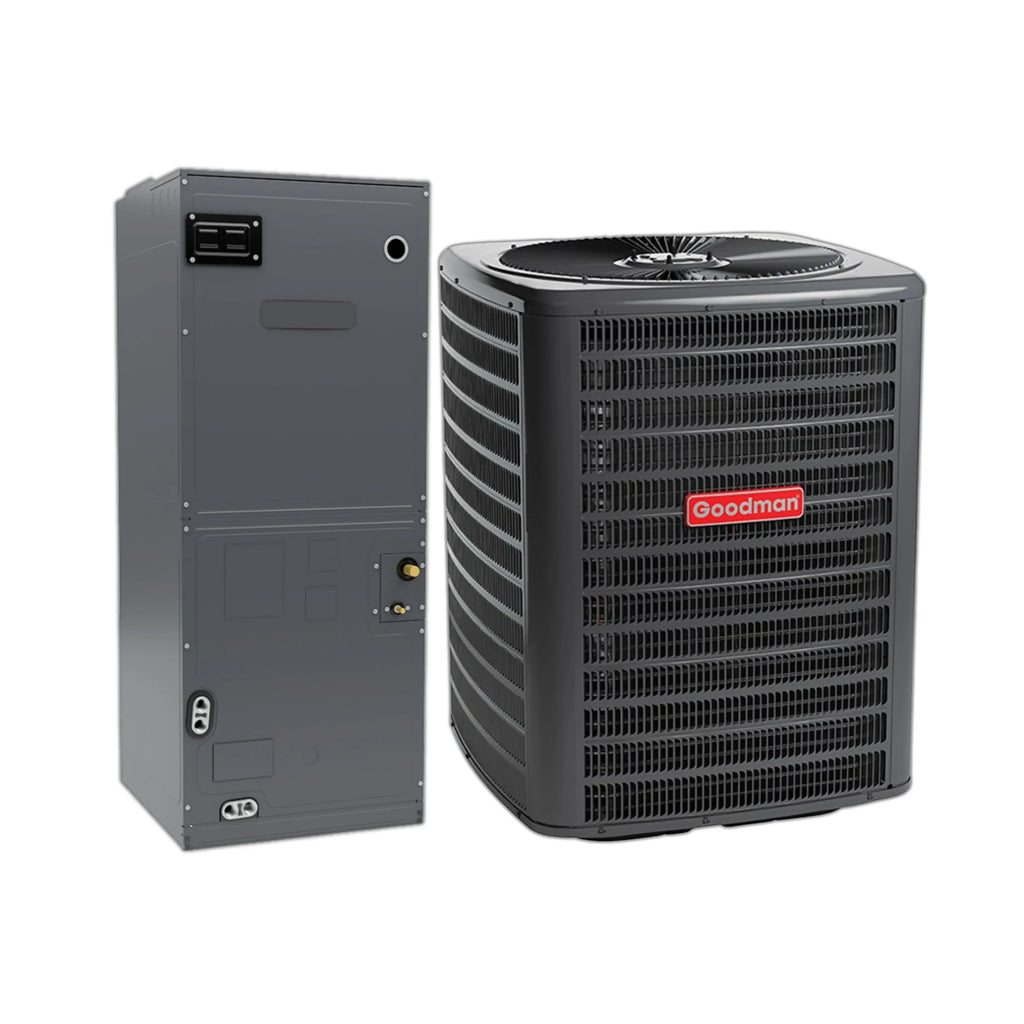

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Click on image to zoom Click on image to zoom
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler

SKU: GLXS3BN1810AMVT30BP1300
$3,591.00 $4,668.00

In Stock Estimated delivery: Jun 11th-25th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioning System | Air Handler | R-32 Refrigerant | Covers 600-1,000 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 18K BTU (1.5 Ton)
  • Energy Efficiency: 13.4 SEER2
  • Recommended Coverage Area: 600-1,000 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/230 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Air Handler: Multi-Speed ECM Motor
  • AHRI Certified & ETL Listed

Package Includes:

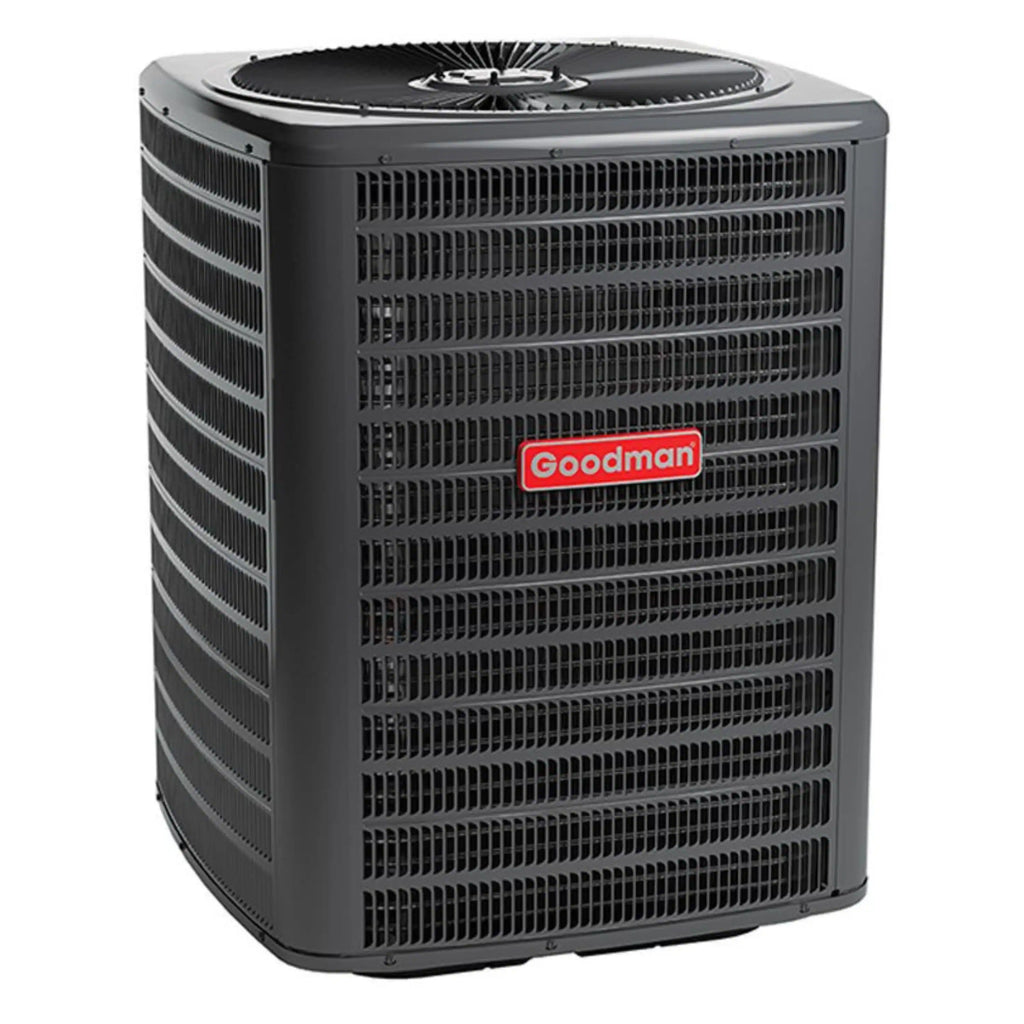

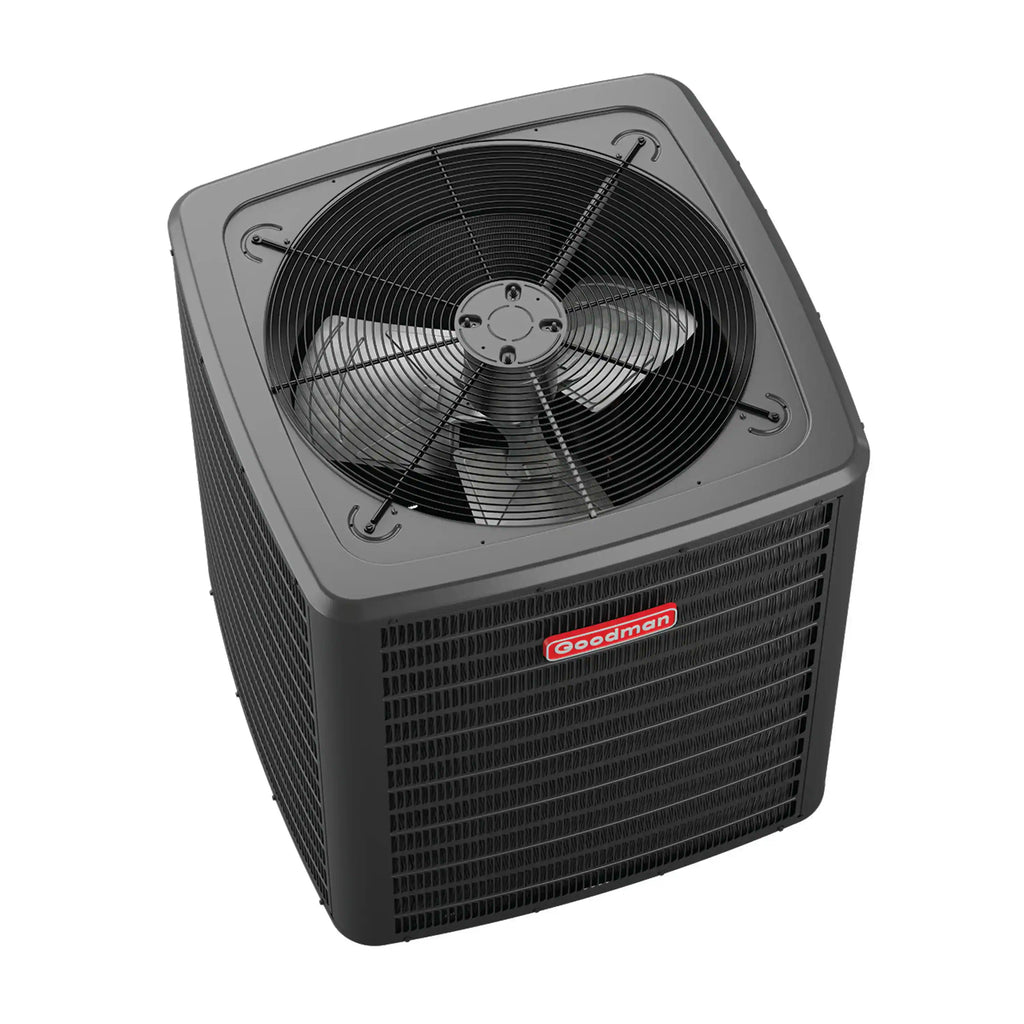

Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN1810)
Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN1810)
In Stock Estimated delivery: Jun 11th-25th
Description
Product Specs
Manuals & Guides

The Goodman GLXS3B Split System Air Conditioner delivers 13.4 SEER2 efficiency with R-32 refrigerant at 1.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
General Information
Brand Goodman
Series GLXS3B
SKU GLXS3BN1810
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 15 A
Min. Breaker Size 10.9 A
Capacity & Performance
Tonnage 1.5
Cooling BTU 18000 Btu/H
Cooling Operating Range 55 °F to 115 °F
Decibel Level (dBA) 74 dBA
Efficiency Ratings
SEER2 13.4
EER2 11.2
ENERGY STAR® Certified No
Compressor & Refrigerant
Compressor Type Rotary
Compressor Stages Single Stage
Refrigerant R-32
Factory Refrigerant Charge 53 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Max Line Set Length 150 ft
Dimensions & Weight
Height 27.5 in
Width 26 in
Depth 26 in
Weight 114 lb
Additional Information
Product Features Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes

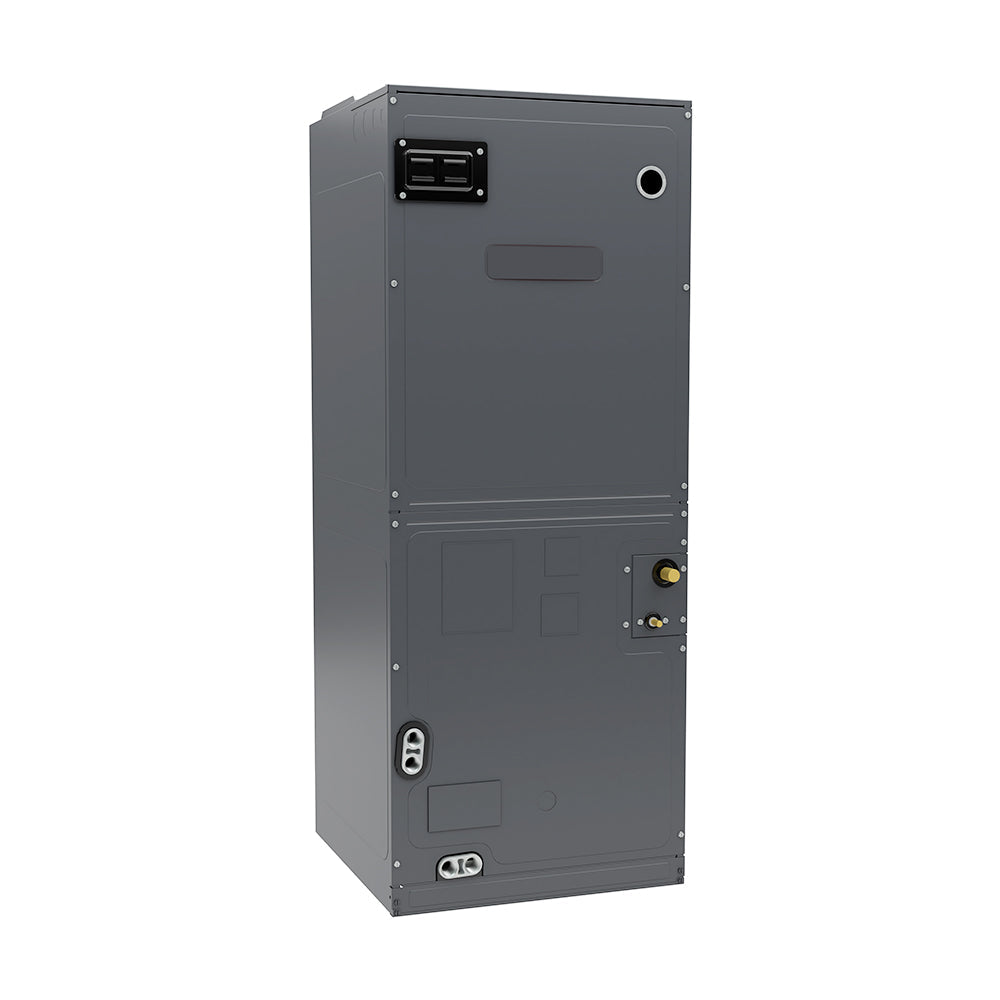

Goodman R-32 AMVT Air Handler 2.5 Ton R-32 Variable-Speed (AMVT30BP1300)
Goodman R-32 AMVT Air Handler 2.5 Ton R-32 Variable-Speed (AMVT30BP1300)
In Stock Estimated delivery: Jun 11th-25th
Description
Product Specs
Manuals & Guides

The Goodman AMVT multi-position air handler is designed for ducted mini-split applications with variable-speed technology. Features flexible multi-position installation options for versatile applications. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow with enhanced comfort control.

Features
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • 10. Improved humidity and comfort control
  • 1Built-in compatibility with multi-stage heat pump and cooling applications
  • 1Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features
  • Rigid SmartFrame™ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • 10 .Glue-less cabinet insulation retention
General Information
Brand Goodman
Series R-32 AMVT
SKU AMVT30BP1300
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/240 V / 1 Ph / 60 Hz
Max Breaker Size 50/60 A
Min. Breaker Size 4.9/4.9 A
Capacity & Performance
Tonnage 2.5
Compressor & Refrigerant
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Dimensions & Weight
Height 53-7/16 in
Width 17-9/16 in
Depth 21 in
Weight 134 lb
Additional Information
Product Features 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications;2. Variable-speed ECM blower motor;3. Integrated communicating ComfortBridge Technology;4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application. ;5. Auto configuration of the airflow and tonnage in communicating mode;6. Provides constant CFM over a wide range of static pressure conditions independent of duct system;7. CFM indicator;8. Fault recall of six most recent faults;9. Provides adjustable low CFM for efficient fan-only operation;10. Improved humidity and comfort control;11. Built-in compatibility with multi-stage heat pump and cooling applications;12. Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes
