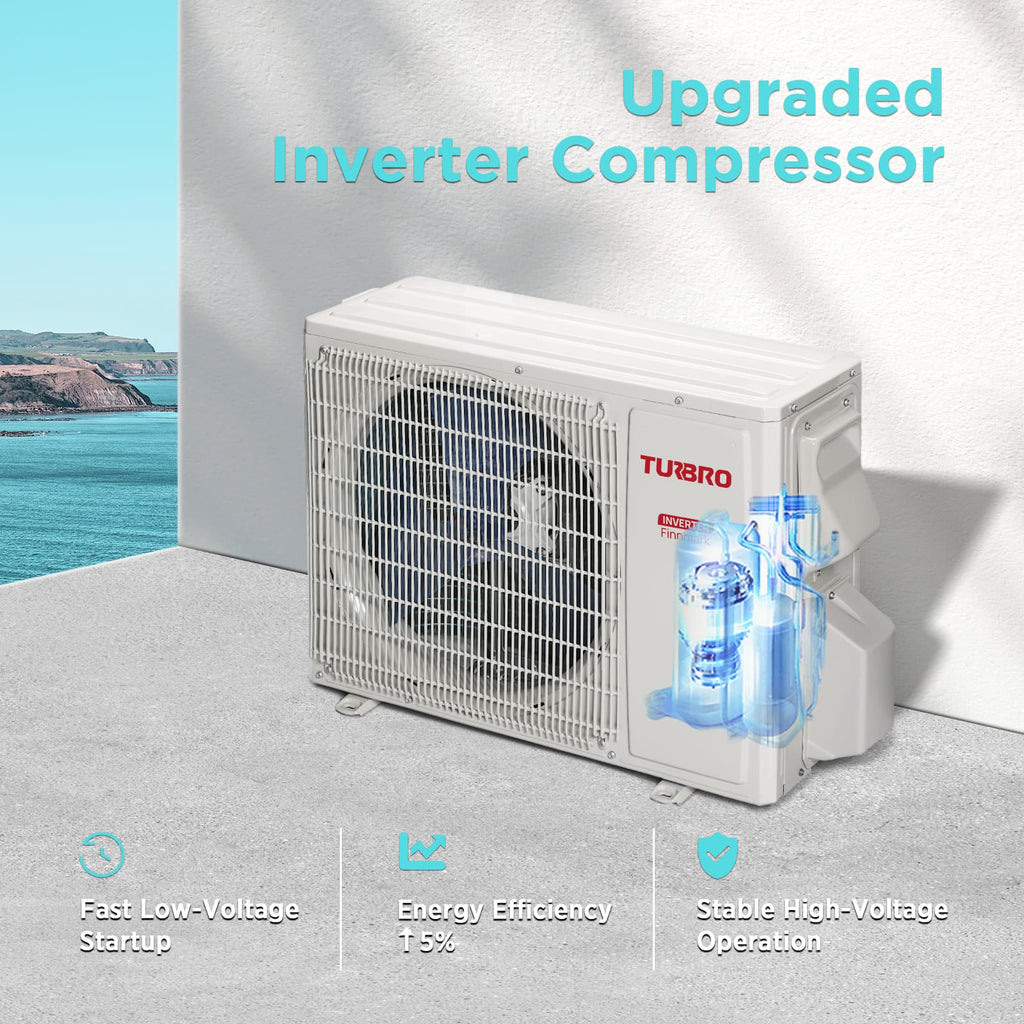

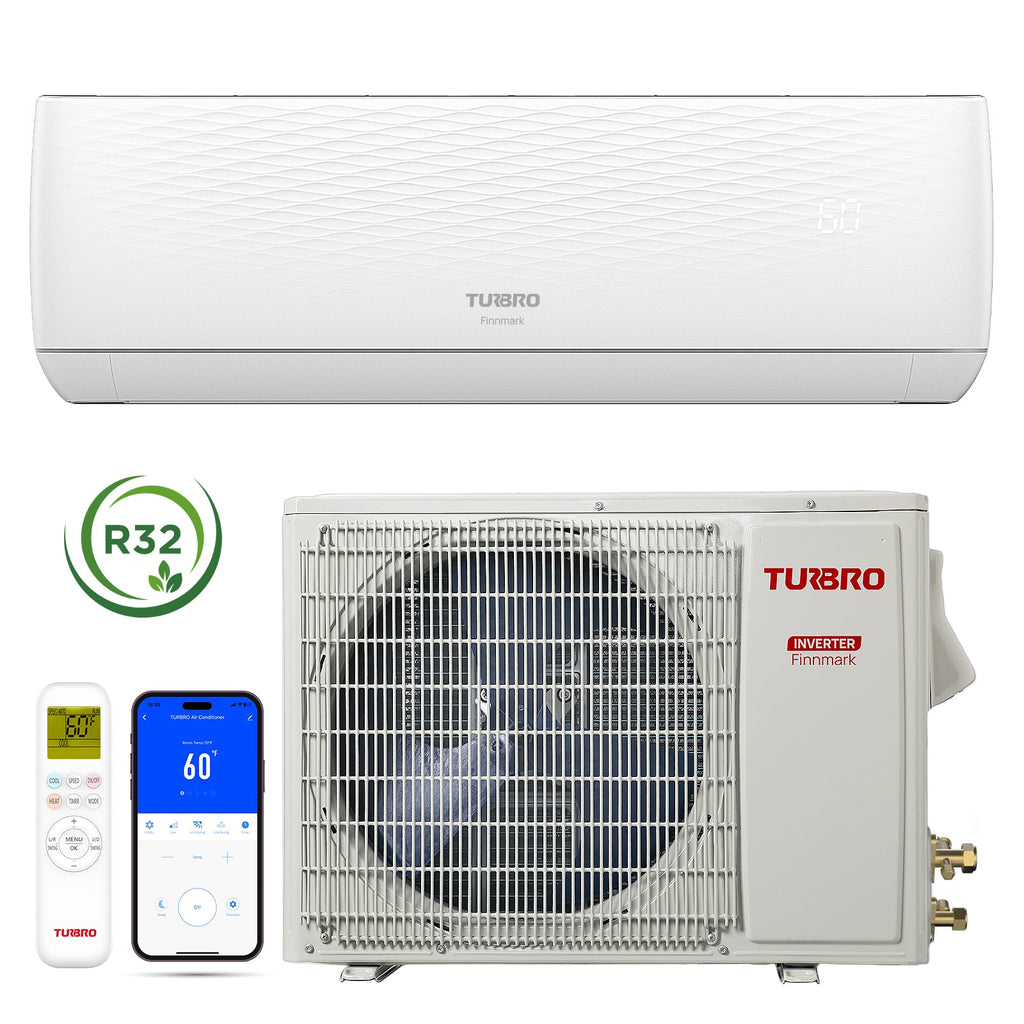

The TURBRO Finnmark mini split unit AC provides powerful, efficient, and comfortable cooling and heating all year round! With super strong inverter technology, this air conditioner can cool in extreme outdoor temps up to 131°F and heat at -13°F. The turbo function provides quick cooling and heating, while the SEER2 rating of 19 (DOE New Efficiency Standard of 2023) can lower electricity bills. Enjoy comfortable cooling and heating with easy installation with labeled wiring, an installation positioning board, and an indoor unit support bracket. Control the temperature with a mobile phone app, Alexa, Google Assistant, or the included remote control.
Box 1
Box 2
*Note: The item will be shipped in two separate packages with two tracking numbers.

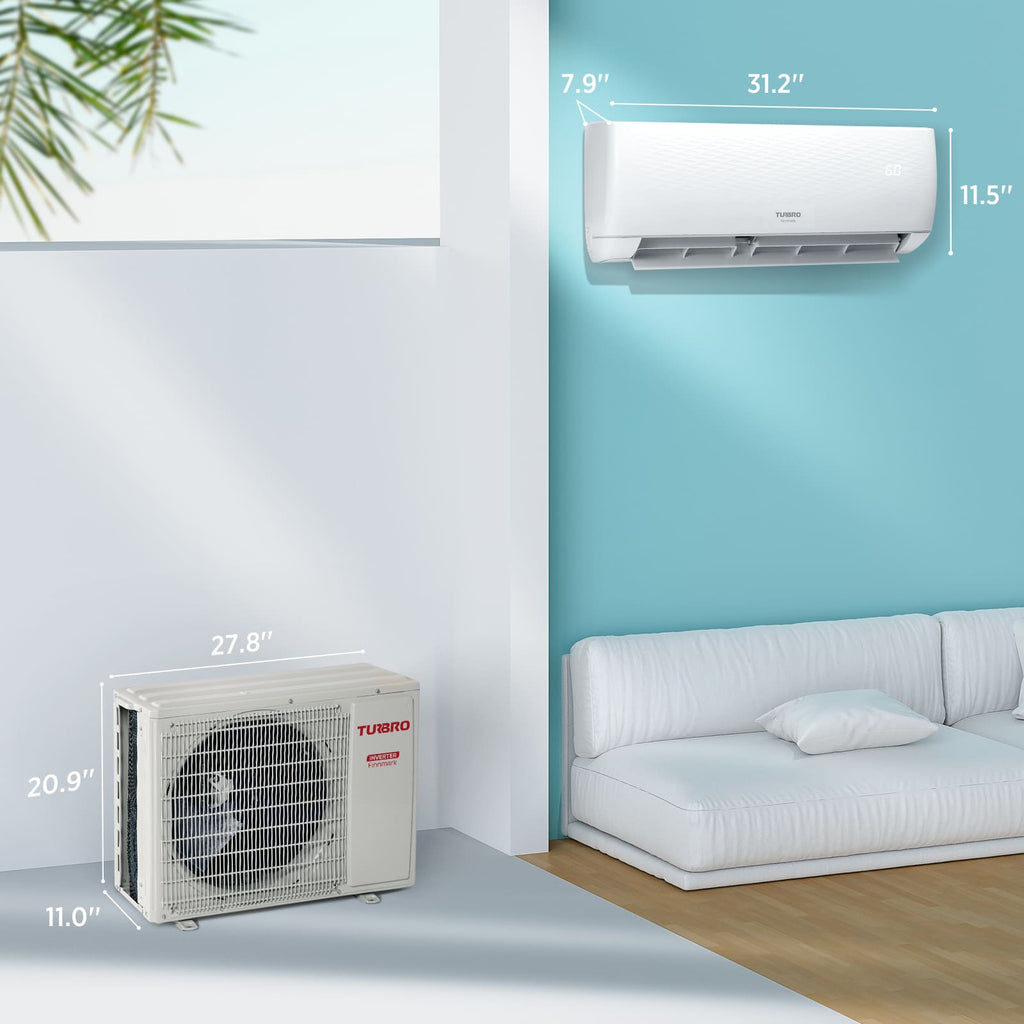

Air Handler Size (inches) | 31.2″ x 11.5″ x 7.9″ |
Air Handler Weight (lbs) | 18.74 |
Condenser Weight (lbs) - 115V | 52.91 |
Condenser Weight (lbs) - 230V | 47.4 |
Power Supply (FM12K115) | 115V |
Power Supply (FM12K230) | 230V |
SEER2 (DOE New Efficiency Standard of 2023) for 115V | 20 SEER2 |
SEER2 (DOE New Efficiency Standard of 2023) for 230V | 17 SEER2 |
Cooling Capacity (Btu/h) | 12,000 |
Heating Capacity (Btu/h) for 115V | 12,300 |
Heating Capacity (Btu/h) for 230V | 12,000 |
Rated Input Consumption (W) for 115V | 1400 |
Rated Input Consumption (W) for 230V | 1900 |
Rated Current (A) for 115V | 11 |
Rated Current (A) for 230V | 9.5 |
Min. Circuit Ampacity | 14 |
Noise Level | 41 |
COP Heating for 115V | 3.38 |
COP Heating for 230V | 3.26 |
Suitable Area (Sq. Ft.) | Up to 750 |

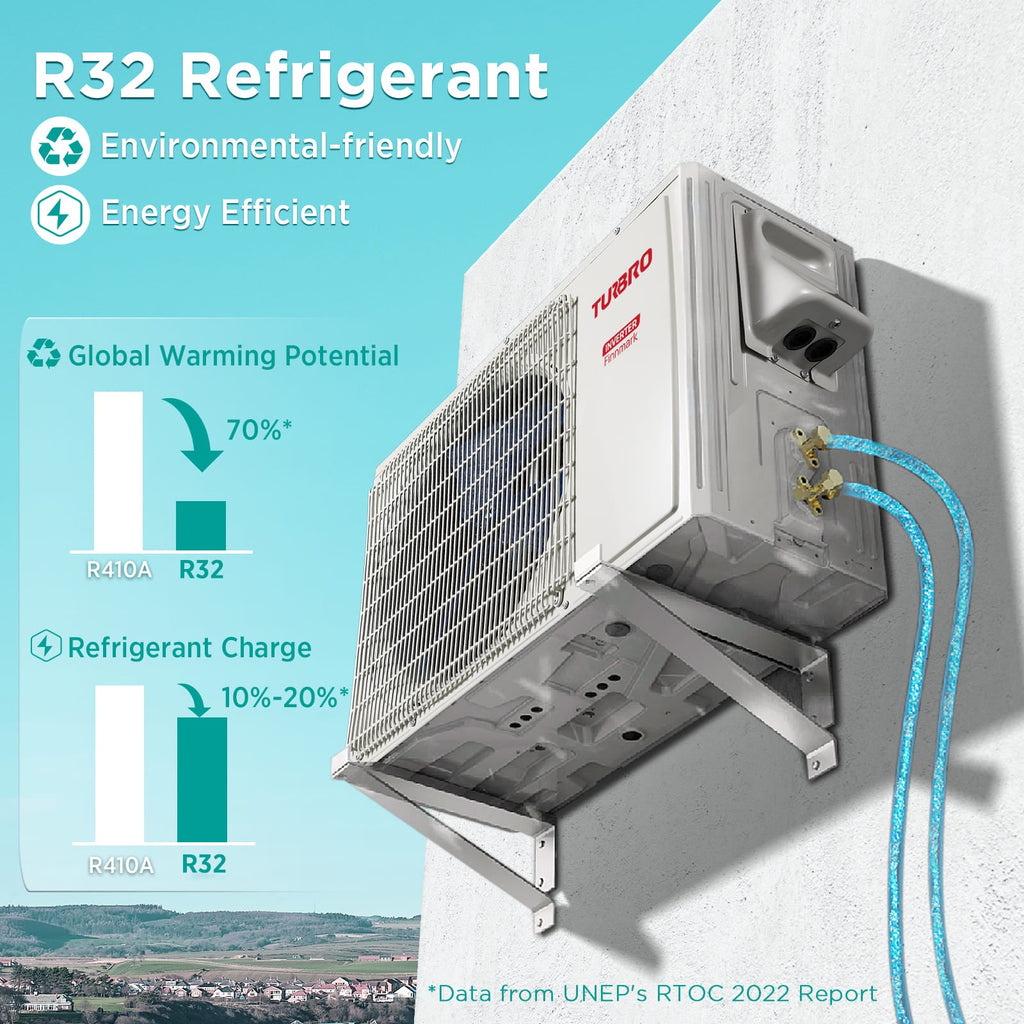

Refrigerant for 115V | R32/17.6 oz |
Refrigerant for 230V | R32/19.8 oz |
Gas Connecting Pipe | 3/8 |
Liquid Connecting Pipe | 1/4 |
Recommended Wire Gauge | 16 |
Recommended Breaker Size |
115V 30-Amp 230V 20-Amp Double Pole |
Line Set Length |
16 FT. |
What BTU rating should I choose for my air handler?
Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
6K |
Up to 200 Sq. Ft.
|
9K |
Up to 375 Sq. Ft.
|
12K | Up to 500 Sq. Ft. |
18K | Up to 750 Sq. Ft. |
24k | Up to 1,000 Sq. Ft. |
36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
