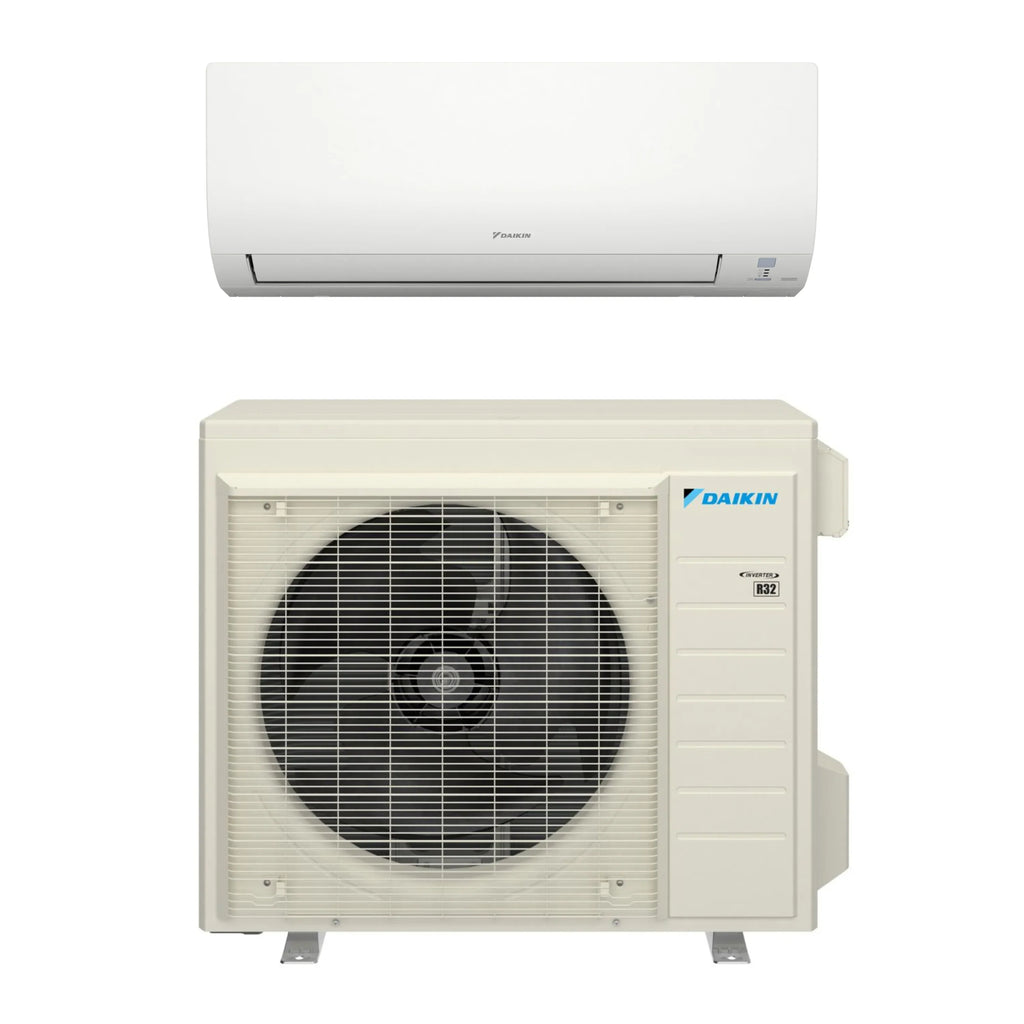

Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Click on image to zoom Click on image to zoom
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler
Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler

Daikin Oterra 18K BTU Single Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 18K Wall Mount Air Handler

SKU: RXF18BVJU9/FTXF18BVJU9
$2,990.00 $3,888.00

BTUs

Choose Line Set Lengths:

Air Handler 18K Air Handler Line Set:

In Stock Estimated delivery: Jun 26th-10th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

This Daikin Oterra single-zone ductless mini split bundle pairs the RXF18BVJU9 inverter heat pump condenser with the FTXF18BVJU9 wall-mount air handler to deliver efficient heating and cooling for a room of up to about 850 sq ft. The latest-generation Oterra series brings premium Daikin comfort with improved Wi-Fi smart controls and exceptional energy efficiency.

Key Features

  • Condenser BTU: 18,000 BTU — Total cooling/heating capacity of the outdoor condenser; higher BTU covers a larger area.
  • Condenser Tonnage: 1.5 Ton — Industry sizing equivalent (1 ton = 12,000 BTU) for matching system capacity to your space.
  • Zones: 1-Zone — Number of indoor air handlers the condenser supports, each with independent temperature control.
  • SEER2: 21 — Seasonal Energy Efficiency Ratio 2; higher numbers mean lower cooling-season operating costs.
  • Installation: Professional Required — Must be installed and refrigerant-charged by a licensed HVAC technician.

Package Includes:

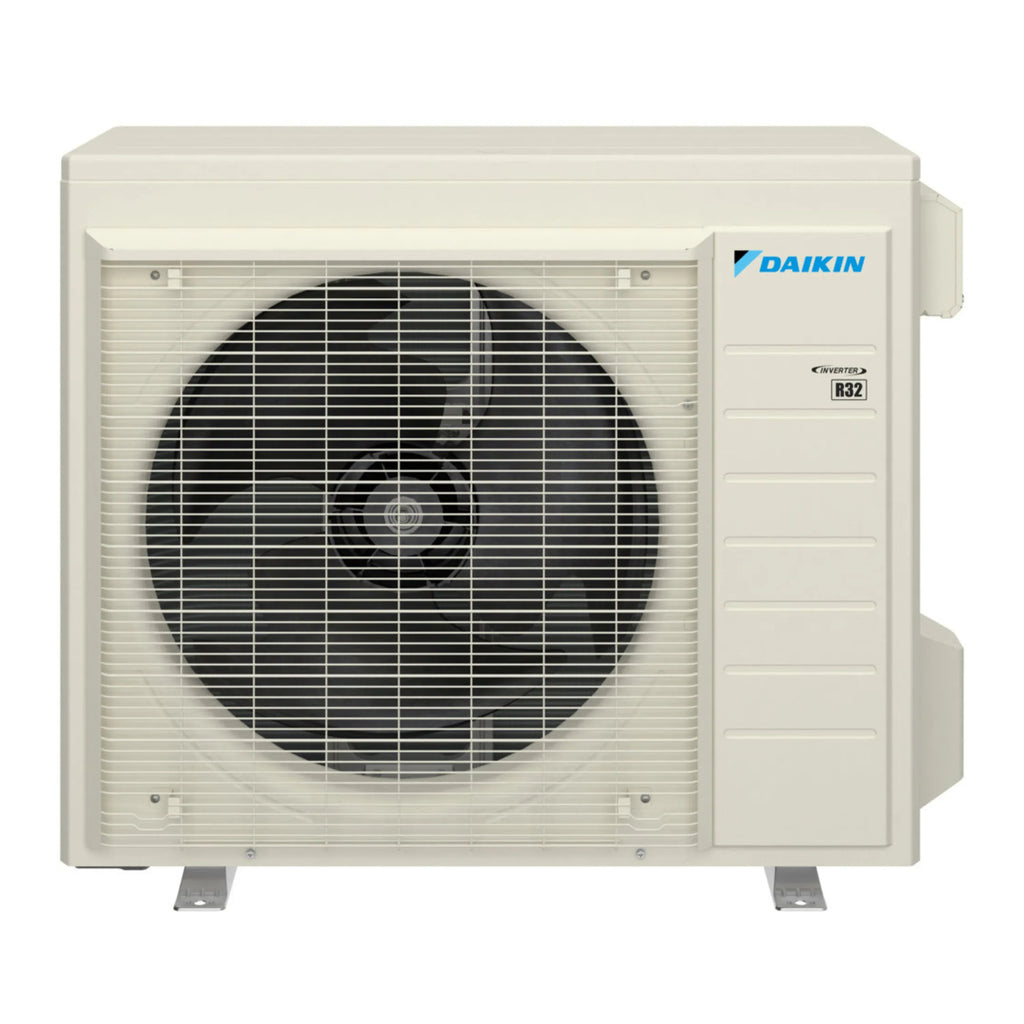

Daikin Oterra 18K BTU 1.5 Ton Ductless Mini Split Heat Pump Condenser, R-32 (RXF18BVJU9)
Daikin Oterra 18K BTU 1.5 Ton Ductless Mini Split Heat Pump Condenser, R-32 (RXF18BVJU9)
In Stock Estimated delivery: Jun 26th-10th
Description
Product Specs
Manuals & Guides

The Daikin Oterra Series is a premium 1.5 ton single-zone ductless mini split heat pump delivering up to 21 SEER2 high-efficiency performance with built-in Wi-Fi smart controls. The Oterra outdoor condenser uses inverter variable-speed technology to maintain precise comfort while minimizing energy use, paired with a matched FTKF or FTXF wall-mount air handler.

Features

  • Up to 21 SEER2 / Up to 9.6 HSPF2 / Up to 12 EER2 for efficient cooling and heating operation
  • Cooling Capacity: 18,000 BTU/h
  • Heating Capacity: 21,600 BTU/h
  • Cooling Range: 50°F to 122°F
  • Heating Range: 5°F to 65°F
  • Variable-speed inverter compressor for precise temperature control and lower energy use
  • Low-GWP R-32 refrigerant (Factory Charge: 2.45 lbs)
  • Outdoor Sound Pressure as low as 54 dB(A)
  • 208/230V, 1-Phase, 60 Hz power supply
  • Min. Circuit Amps: 21.4 A | Max Overcurrent Protection: 25 A
  • ENERGY STAR® Certified
  • 12-Year Parts Limited Warranty with online registration
Dimensions & Weight
Unit Dimensions 34-1/4 W" x 12-5/8 D" x 29-1/2 H"
Unit Weight 113 lbs
General Information
Brand Daikin
Product Family RXF_BVJU9
Family Description 0.75 - 2 Ton 21 Series Heat Pump Up to 21 SEER2 / 10.2 HSPF2
Unit Type Outdoor
Product Class Mini-Split Heat Pump
Tonnage 1.5
Vendor Daikin Comfort Tech
Pallet Qty 6
Product Benefits 12 Year Limited Parts Warranty with Online Registration
Standard Features Operating Range - Cooling (50° - 122°)
Capacity & Performance
Cooling Capacity (Rated) 18,000 Btu/H
Heating Capacity (Rated) 21,600 Btu/H
Airflow Rate High (Cooling) 2,327 ft³/min
Airflow Rate High (Heating) 2,327 ft³/min
Energy Star Certified Yes
Compressor
Compressor Type Swing
Compressor Stages Inverter
Electrical Requirements
Power Voltage 208-230 V
Power Phase 1 Ph
Power Frequency 60 Hz
Min. Circuit Amps 21.4
Refrigerant & Piping
Refrigerant Type R-32
Pipe Size Gas 1/2 in
Pipe Size Liquid 1/4 in
Certifications & Warranty
Registered Parts Warranty - Residential All Parts - 12 Years
Registered Parts Warranty - Multi-Family All Parts - 12 Years
Registered Parts Warranty - Commercial All Parts - 5 Years
Standard Parts Warranty - Residential All Parts - 5 Years
Standard Parts Warranty - Multi-Family All Parts - 5 Years
Standard Parts Warranty - Commercial All Parts - 5 Years

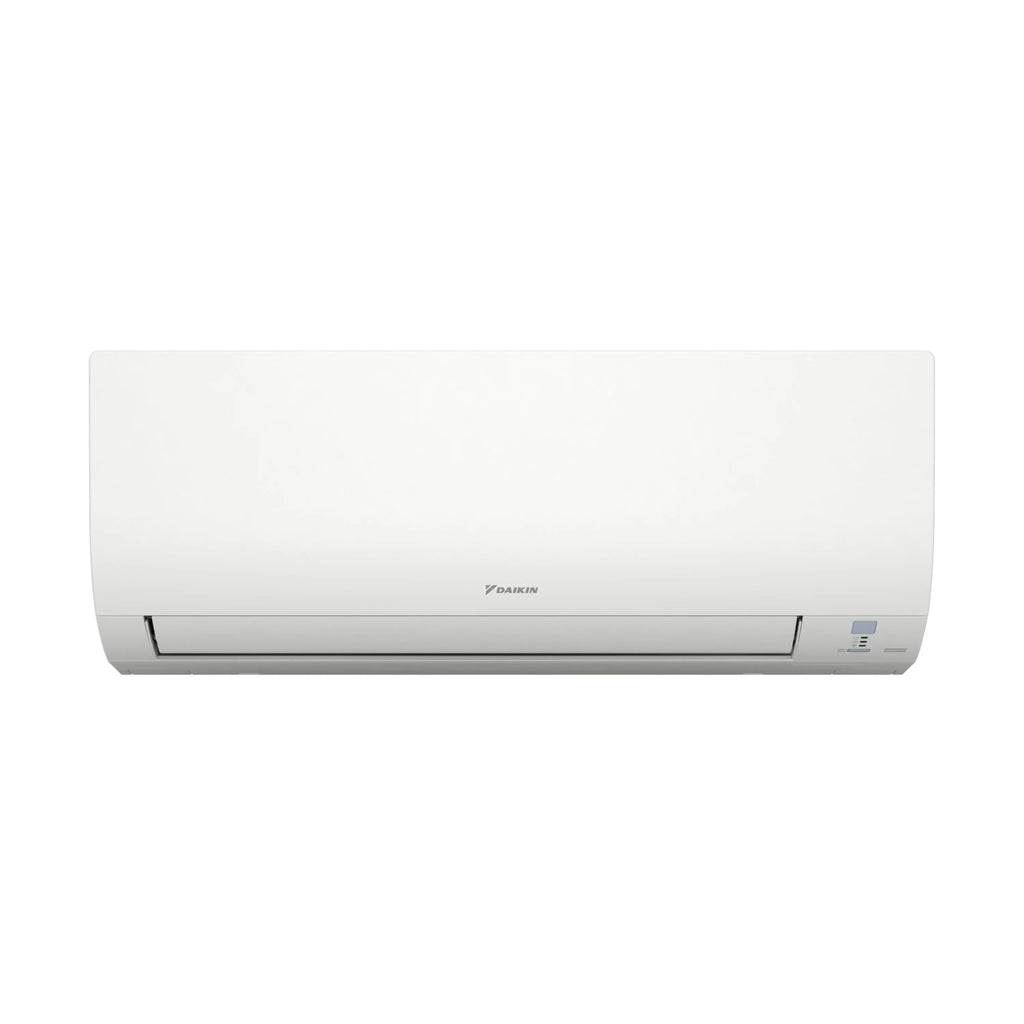

Daikin OTERRA 18,000 BTU Mini Split Wall Mount Air Handler (FTXF18BVJU9)
Daikin OTERRA 18,000 BTU Mini Split Wall Mount Air Handler (FTXF18BVJU9)
In Stock Estimated delivery: Jun 26th-10th
Description
Product Specs
Manuals & Guides

The Daikin Oterra FTXF18 wall-mount indoor air handler delivers high-efficiency cooling and heating with built-in Wi-Fi smart controls, a washable Titanium Apatite Photocatalytic air-purifying filter, and ultra-quiet operation. Pairs with a matching Oterra outdoor condenser for a complete inverter system.

Features

  • Cooling Capacity: 18,000 BTU/h
  • Heating Capacity: 21,600 BTU/h
  • Airflow up to 565 CFM (High)
  • Indoor Sound Pressure as low as 33 dB(A) on Silent mode
  • Fan Speed Steps: 3 Steps, Auto, Quiet, Turbo
  • Air Filter: Removable, Washable
  • Wi-Fi: Built-in
  • Refrigerant: R-32 (low GWP)
  • Streamlined wall-mount design
  • Power Supply: 208/230V, 1-Phase, 60 Hz
  • Unit Weight: 28 lbs
  • 12-Year Parts Limited Warranty with online registration
Dimensions & Weight
Unit Dimensions 39-3/8 W" x 10-3/4 D" x 11-5/8 H"
Unit Weight 28 lbs
General Information
Brand Daikin
Product Family FTXF_BVJU9
Family Description 0.75 - 2 Ton 21 Series Wall Mount Air Handler
Unit Type Indoor
Product Class Mini-Split Wall Mount Air Handler
Tonnage 1.5
Vendor Daikin Comfort Tech
Pallet Qty 12
Product Benefits 12 Year Limited Parts Warranty with Online Registration
Standard Features Sound Pressure as low as 33 dB(A)
Wi-Fi Built-in
Capacity & Performance
Cooling Capacity (Rated) 18,000 Btu/H
Heating Capacity (Rated) 21,600 Btu/H
Airflow Rate High (Cooling) 565 ft³/min
Airflow Rate High (Heating) 565 ft³/min
Sound Pressure (High) 48 dB(A)
Sound Pressure (Silent) 33 dB(A)
Electrical Requirements
Power Voltage 208-230 V
Power Phase 1 Ph
Power Frequency 60 Hz
Refrigerant & Piping
Refrigerant Type R-32
Pipe Size Gas 1/2 in
Pipe Size Liquid 1/4 in
Certifications & Warranty
Registered Parts Warranty - Residential All Parts - 12 Years
Registered Parts Warranty - Multi-Family All Parts - 12 Years
Registered Parts Warranty - Commercial All Parts - 5 Years
Standard Parts Warranty - Residential All Parts - 5 Years
Standard Parts Warranty - Multi-Family All Parts - 5 Years
Standard Parts Warranty - Commercial All Parts - 5 Years

Mini Split FAQ



What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq. Ft.)*
6K
Up to 200 Sq. Ft.
9K
Up to 375 Sq. Ft.
12K Up to 500 Sq. Ft.
18K Up to 750 Sq. Ft.
24k Up to 1,000 Sq. Ft.
36k Up to 1,500 Sq. Ft.



*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
