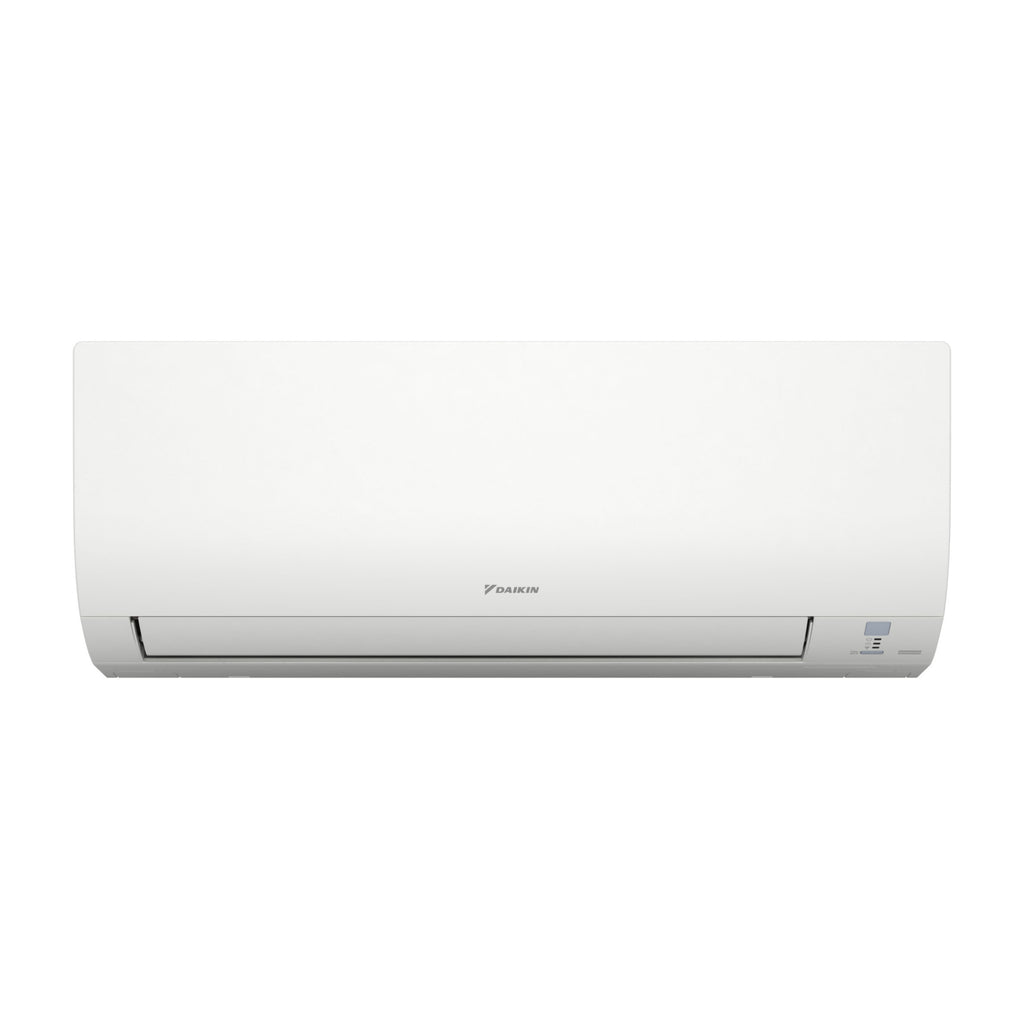

The Daikin Oterra FTKF24 wall-mount indoor air handler delivers high-efficiency cooling and heating with built-in Wi-Fi smart controls, a washable Titanium Apatite Photocatalytic air-purifying filter, and ultra-quiet operation. Pairs with a matching Oterra outdoor condenser for a complete inverter system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 39-3/8 W" x 10-3/8 D" x 11-5/8 H" |
| Unit Weight | 28 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTKF_BVJU9 |
| Family Description | 0.75 - 2 Ton 21 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 1.8666666666666667 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 12 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 34 dB(A) |
| Wi-Fi | Built-in |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 22,400 Btu/H |
| Heating Capacity (Rated) | N/A |
| Airflow Rate High (Cooling) | 629 ft³/min |
| Airflow Rate High (Heating) | 629 ft³/min |
| Sound Pressure (High) | 52 dB(A) |
| Sound Pressure (Silent) | 34 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 5/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
