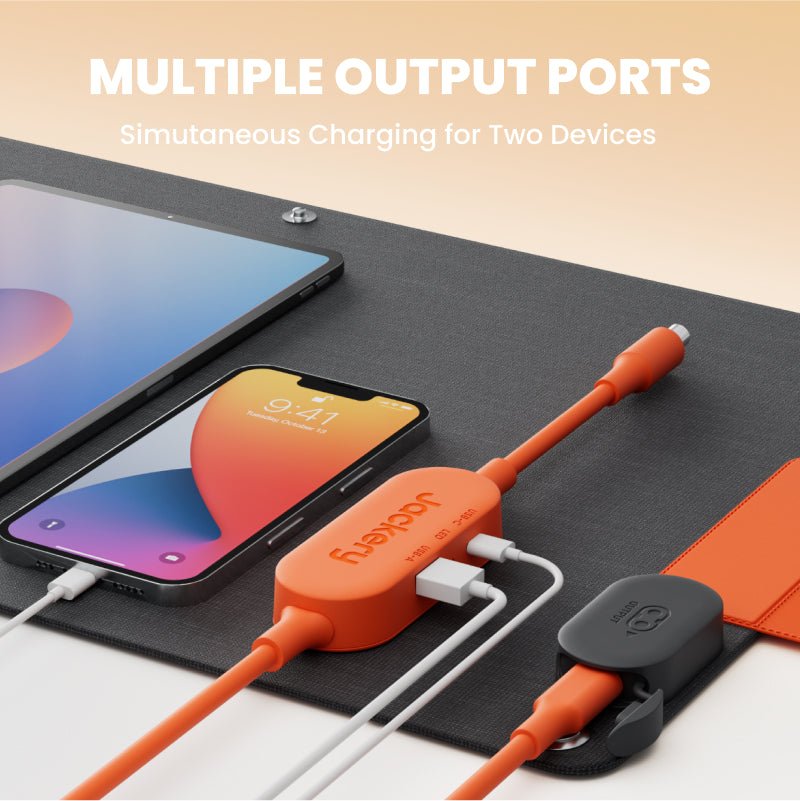

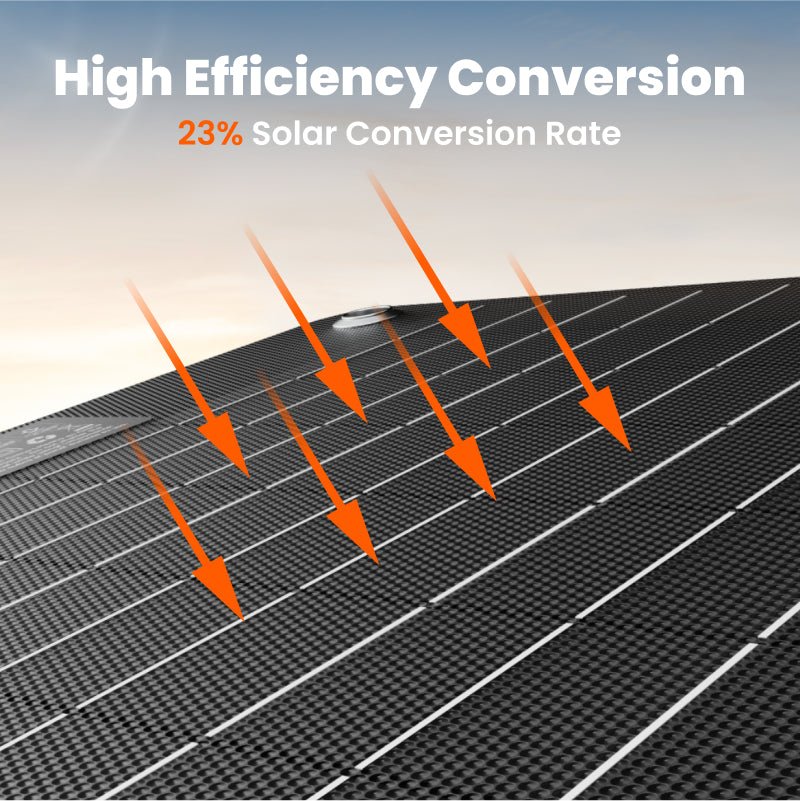

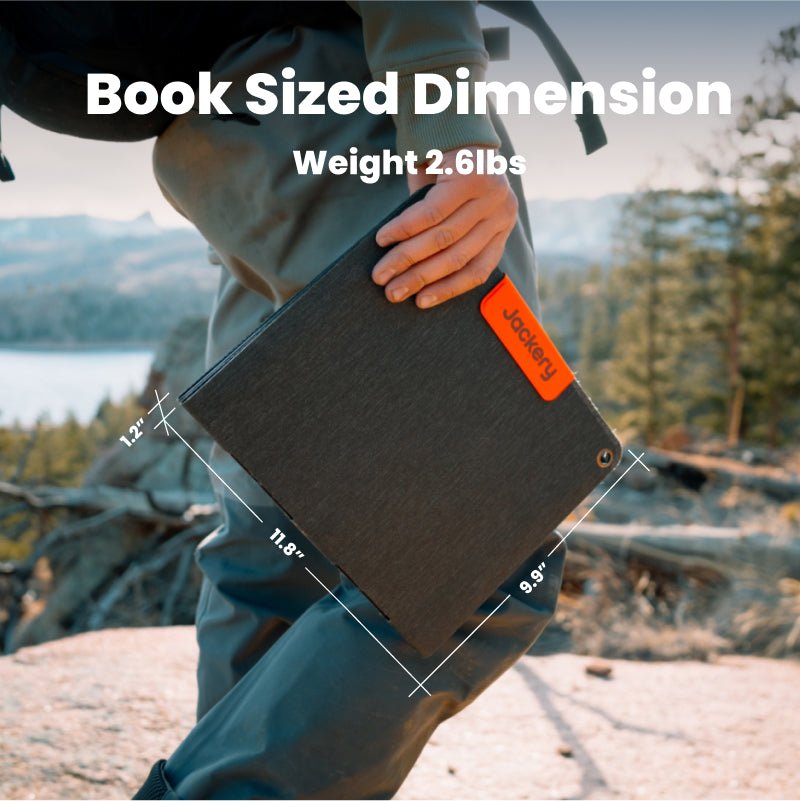

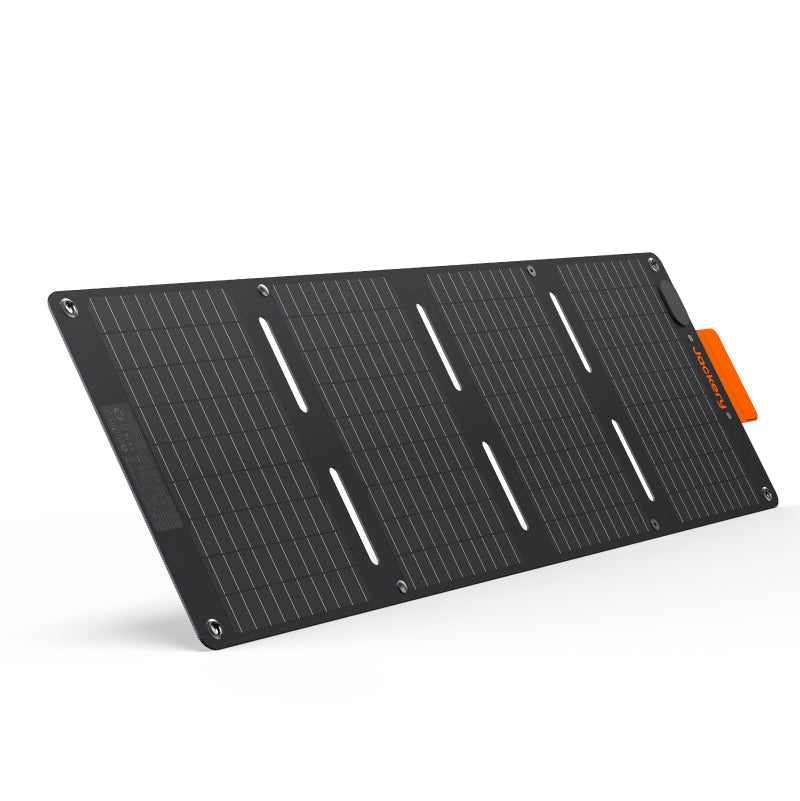

Take solar power anywhere with the Jackery SolarSaga 40W Mini Solar Panel — an ultra-lightweight panel weighing just 2.6 lbs with a four-fold compact design that's lighter than a laptop and easy to pack on the go. Featuring a 23% solar conversion rate for efficient energy capture and direct device charging through USB-C, USB-A, and DC8020 ports, it's the perfect companion for Jackery Explorer 100 Plus, 240 v2, and 300 Plus power stations (a DC8020 to DC7909 adapter is required for older models).

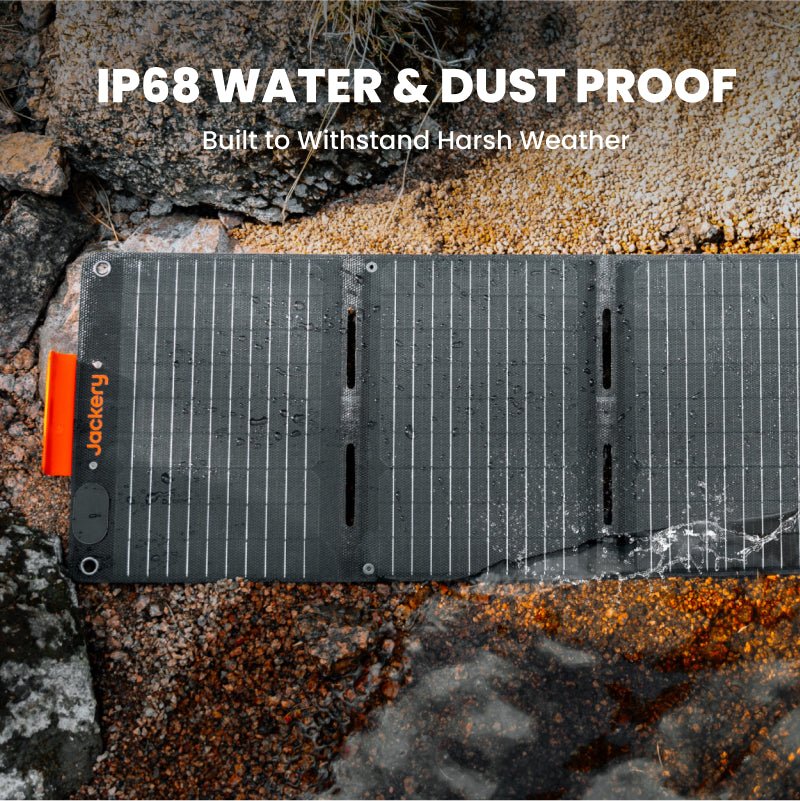

Built tough with an IP68 waterproof rating and verified through 8 IEC tests, it stands up to extreme temperatures and harsh conditions. Backed by a 5-year warranty (3-year standard + 2-year extended), it's a reliable, versatile solar solution for outdoor adventures, emergencies, and everyday use.
| SolarSaga 40W Mini Solar Panel | |
|---|---|
| Ports | |
| USB-A Output | 5V=2.4A |
| USB-C Output | 5V=3A |
| Solar | |
| Maximum System Voltage | 30V |
| Maximum Reverse Current | 6A |
| Voltage Temperature Coefficient | -0.3%/°C |
| Power Temperature Coefficient | -0.39%/°C |
| General | |
| Weight | 2.6±0.5 lbs (1.2kg±0.2kg) |
| Protection Class Against Electric Shock | Class III |
| Waterproof | IP68 |
| Operating Temperature Range | -4~149 °F (-20°C~65°C) |
| Warranty | 3+2 years |
| STC (1000W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 40W±5% |
| Open Circuit Voltage (VOC) | 25V±5% |
| Short Circuit Current (Isc) | 2.07A±5% |
| Power Voltage (Vmp) | 20.9V±5% |
| Power Current (Imp) | 1.91A±5% |
| Dimensions | |
| Folded | 9.9 × 11.8 × 1.2 in (252 × 300 × 30mm) |
| Unfolded | 40.1 × 11.8 × 0.7 in (1020 × 300 × 18.5mm) |
