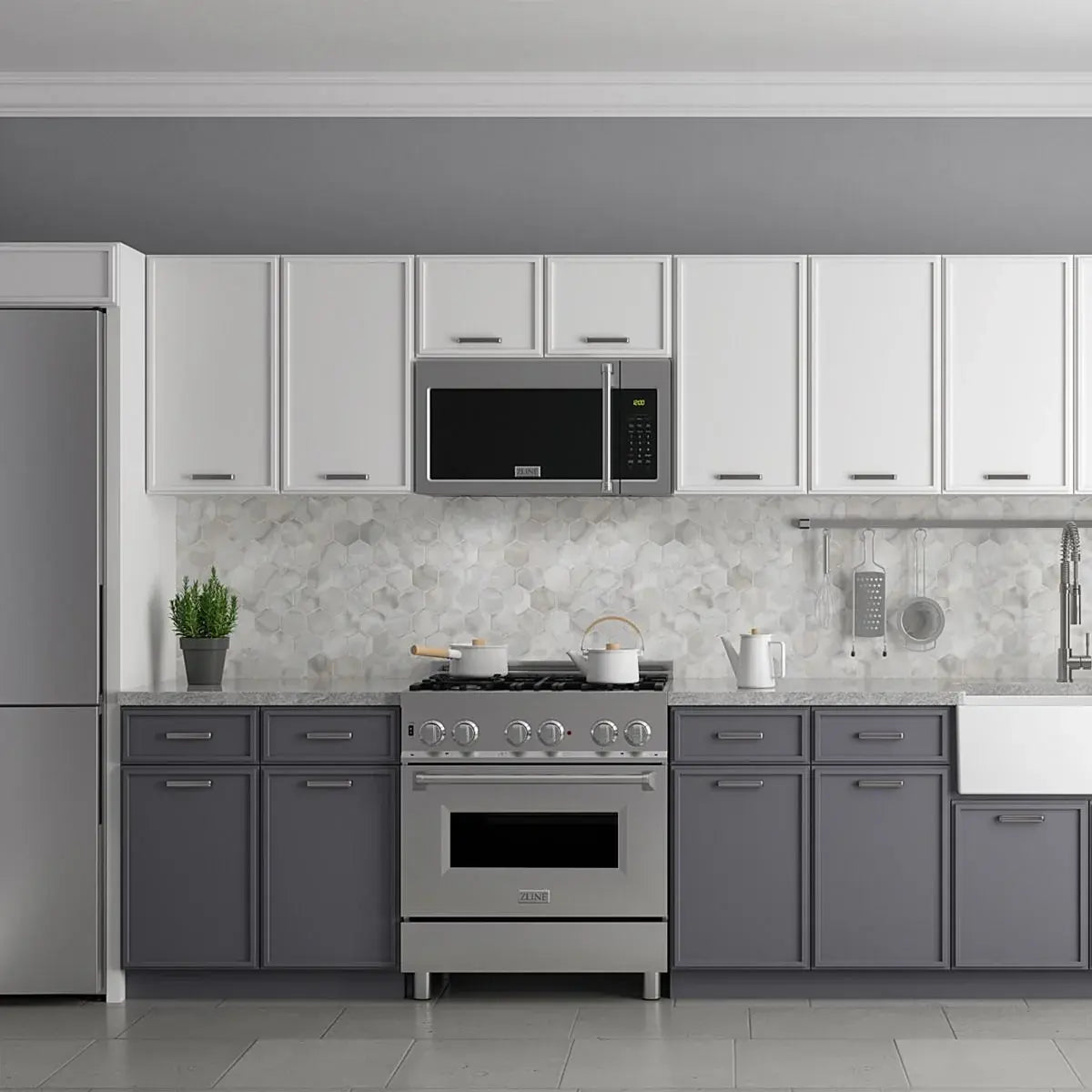

Installing or replacing an over-the-range microwave is a popular kitchen upgrade for good reason. These appliances save valuable counter space while delivering a clean, built-in look that pairs seamlessly with modern ranges and cooktops. Beyond convenience, they also serve an important functional role by helping manage heat, steam, and cooking odors through integrated ventilation.
Unlike simple countertop microwaves, over-the-range units are designed to operate above an active heat source. That means they function as both a cooking appliance and a ventilation system, which makes proper installation far more critical. When installed incorrectly, issues like inadequate venting, electrical shorts, or even fire hazards can occur.
That’s why appliance experts at Home Outlet Direct stress the importance of following manufacturer instructions and adhering to National Electrical Code (NEC) and International Residential Code (IRC) requirements.
This guide breaks down what homeowners need to know to install an over-the-range microwave correctly and avoid the common mistakes that can compromise safety and performance. And when you’re ready, you can explore Home Outlet Direct’s full collection of microwaves that will make your kitchen perfect.
What You MUST Do Before You Start (Measurements, Safety and Prep)
Before lifting a drill or unpacking your new microwave, a little preparation goes a long way. Over-the-range microwaves are heavier and more complex than countertop models, and skipping these checks is one of the most common reasons installations fail.
Confirm Required Clearance Measurements
Clearance matters for both safety and performance. Installing the microwave too low can create heat issues, while installing it too high can make it awkward to use.
Before you begin, verify:
-
The distance from the cooktop to the bottom of the microwave meets manufacturer requirements, typically around 30 inches
-
The upper cabinet provides enough space for mounting bolts and the power cord
-
The cabinet width matches the microwave’s required opening
Check Electrical Outlet Requirements
Over-the-range microwaves require a dedicated electrical outlet located inside the upper cabinet.
Make sure:
-
The outlet meets required amperage specifications
-
The outlet is properly grounded
-
The power cord can reach without tension
Extension cords should never be used.
Verify Venting System Compatibility
Confirm whether your kitchen supports ducted venting or recirculating airflow. Check that the microwave model supports your chosen venting method and that the blower can be configured correctly.
Locate Wall Studs and Confirm Weight Support
Use a stud finder to locate wall studs behind the range. At least one side of the mounting bracket must be secured into a stud. Drywall alone should never support the full weight of an over-the-range microwave.
Evaluate Existing Ductwork
If replacing an older unit, confirm that existing ductwork aligns with the new microwave’s vent location and size. Misaligned or damaged ducts may need modification before installation.
Tools and Materials Checklist (With Images)
Having the right tools ready before you start helps the installation move smoothly and safely.
Essential Tools
-
Drill and drill bits
-
Stud finder
-
Measuring tape
-
Level
-
Screwdrivers and socket wrench set
Installation Aids
-
Manufacturer installation template
-
Cardboard spacers or filler blocks
-
Helper for lifting
Safety Items
-
Personal protective equipment such as gloves and safety glasses
-
Drop cloth or cardboard to protect the cooktop
How to Remove an Existing Over-the-Range Microwave (If Replacing One)
Removing an existing microwave requires care due to its weight and electrical connections. Follow the steps below to ensure your microwave is not just safely removed, but also you’re protected from potential injury or home damage in the process.
Step 1: Shut Off Power and Prep Area
Turn off power at the circuit breaker. Protect the cooktop below with a drop cloth or other protective cover.
Step 2: Disconnect the Power Cord
Unplug the microwave from the upper cabinet and confirm it no longer powers on.
Step 3: Remove Upper Cabinet Mounting Screws
Support the microwave while loosening screws. If screws are stripped, use locking pliers or a screw extractor.
Step 4: Detach the Vent Exhaust
Carefully remove foil tape and disconnect the duct without damaging it.
Step 5: Lift the Microwave Off the Bracket
With two people, tilt the unit forward and lift it off the bracket.
Step 6: Remove the Old Mounting Bracket (If Needed)
Remove the bracket if it doesn’t match the new unit and repair the wall surface if necessary.
Step-by-Step Guide to Installing Your New Over-the-Range Microwave
Once prep work is complete, installation will be a breeze.
Step 1: Install or Replace the Mounting Bracket
Center the bracket, secure it into studs when possible, and use toggle bolts as approved. Use filler blocks if walls are uneven and confirm the bracket is level.
Step 2: Prepare the Microwave
Configure venting direction, attach mounting components, remove protective materials, and confirm fan orientation.
Step 3: Lift and Hang the Microwave
With two people, hook the microwave onto the bracket and rotate it upward. Stop and reassess if alignment issues occur.
Step 4: Anchor the Microwave to the Upper Cabinet
Start bolts by hand, tighten evenly, and avoid overtightening to prevent cabinet or panel damage.
Step 5: Connect Electrical and Venting
Plug into the dedicated outlet. Seal duct connections with HVAC foil tape or confirm charcoal filter placement for ductless setups. Test airflow.
Testing the Installation (Safety, Venting, Leveling)
Once your microwave is installed, it’s time to test it out to make sure everything works as it should. Restore power and run a short heating test with a cup of water. Test the exhaust fan on low and high. Check airflow direction, seal any air leaks, and gently test for wobble or movement. The unit should feel solid and level.
Why Over-the-Range Microwaves Are Worth Upgrading
Over-the-range microwaves offer everyday convenience and a streamlined kitchen layout.
Key benefits include:
-
Space-saving design
-
Integrated ventilation
-
Modern, built-in appearance
Replacing your microwave makes sense if you notice:
-
Excessive noise
-
Poor ventilation
-
Uneven heating or failure
-
Outdated or missing features
Installation Differences by Brand
You’ll notice that Home Outlet Direct offers a wide variety of over-the-range microwaves for you to explore. Here are some things to note about a few of the brands we carry that may impact your choices.
ZLINE
-
Wider mounting patterns
-
Heavier construction requiring stud support
-
Precise cabinet alignment for a flush look
Whirlpool
-
Installer-friendly templates
-
Flexible venting options
-
Common choice for replacements
GE
-
Bracket designs vary by model generation
-
Vent openings may differ from older units
-
Cabinet depth and outlet placement should be verified
Troubleshooting Common Installation Problems and How to Fix Them
-
Microwave tilting or leaning: Recheck bracket level and mounting bolts
-
Vent not lining up: Confirm blower orientation and duct alignment
-
Bracket holes don’t match studs: Use approved toggle bolts with stud attachment
-
Cabinet too shallow: Verify depth requirements or consider a different model
-
Fan not exhausting air: Check vent configuration and duct obstructions
-
Electrical cord won’t reach: Do not use extensions, install a proper outlet
When You Should Call a Professional
While many people choose to DIY their installations, there are some things that should be left to the experts. Consider professional installation if you encounter:
-
Electrical issues or missing outlets
-
Old or damaged walls
-
Gas ranges requiring extra clearance
-
Lack of wall studs in required locations
Finishing Touches (Cleaning, Sealing, and Kitchen Reset)
Seal small gaps with appliance-safe caulk, organize the power cord inside the cabinet, and replace or clean vent filters as needed. For help finding replacement filters, compatible parts, or a new microwave, Home Outlet Direct is a trusted resource for expert guidance and product selection.
Maintenance Tips for Long-Term Use
-
Replace charcoal filters every 6 to 12 months
-
Clean grease filters regularly with warm, soapy water
-
Replace the microwave if you notice declining performance, excessive noise, or frequent issues
Your New Over-the-Range Microwave Is Ready to Go!
Installing or replacing an over-the-range microwave may seem challenging at first, but with the right tools and a clear process, it’s a manageable kitchen upgrade. Following these steps helps ensure safe installation and reliable performance.
Shop Over-the-Range Microwaves
Frequently Asked Questions on Installing Over-the-Range Microwaves
Can I install an over-the-range microwave myself?
Yes, many homeowners can, especially for replacements, but proper support, venting, and electrical setup are essential.
Do all microwaves use the same mounting bracket?
No, brackets vary by brand and model and are not interchangeable.
How much space do I need between my stove and microwave?
Typically around 30 inches, but always check manufacturer requirements.
How long does installation take?
One to two hours for straightforward replacements, longer for new installs or modifications.
Do over-the-range microwaves need a dedicated circuit?
Yes, most require a dedicated, grounded circuit.
Are over-the-range microwaves a universal size?
Most fit 30-inch cabinets, but depth and mounting requirements vary.
