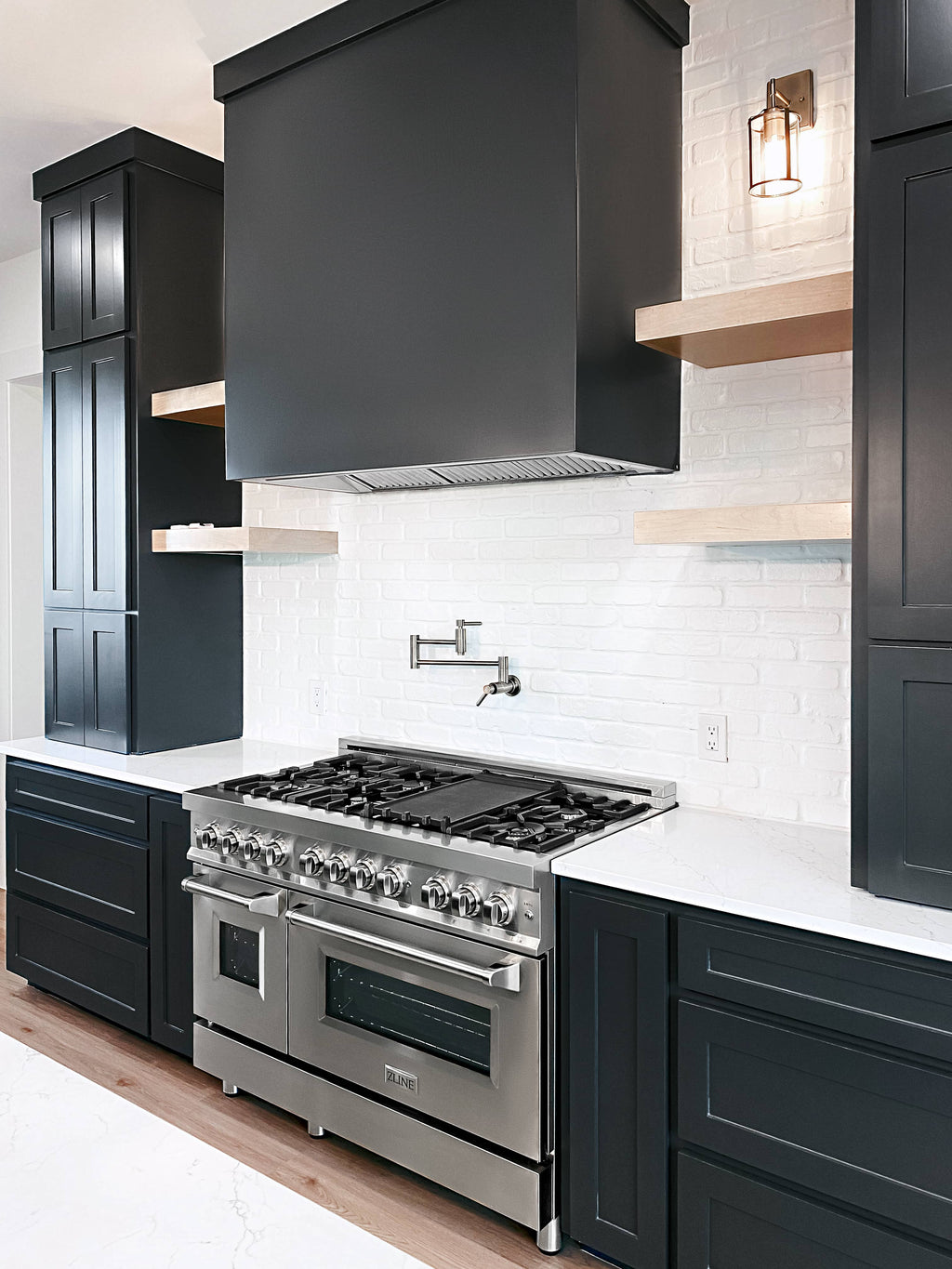

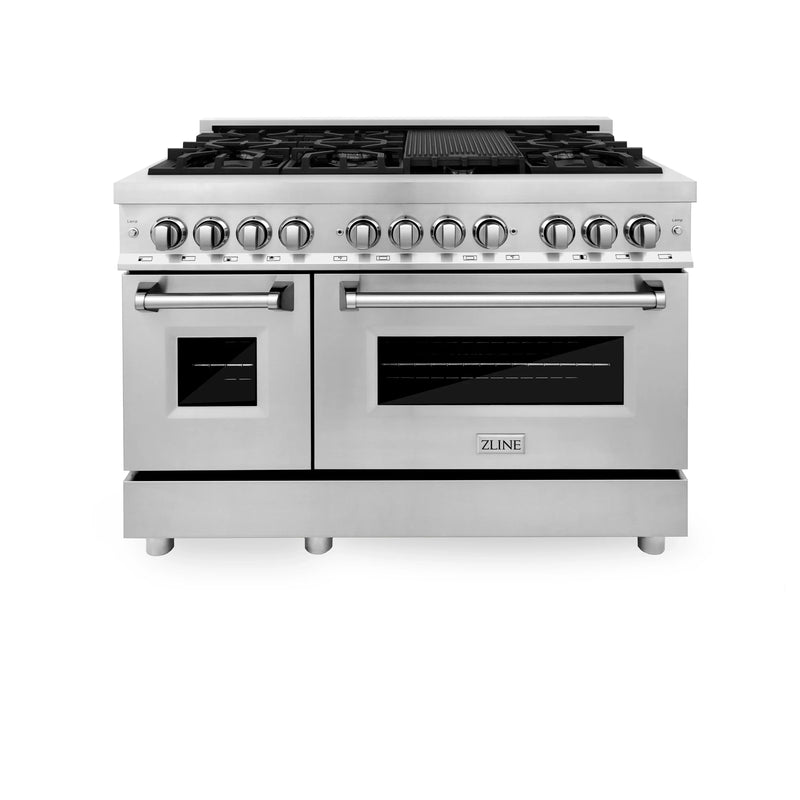

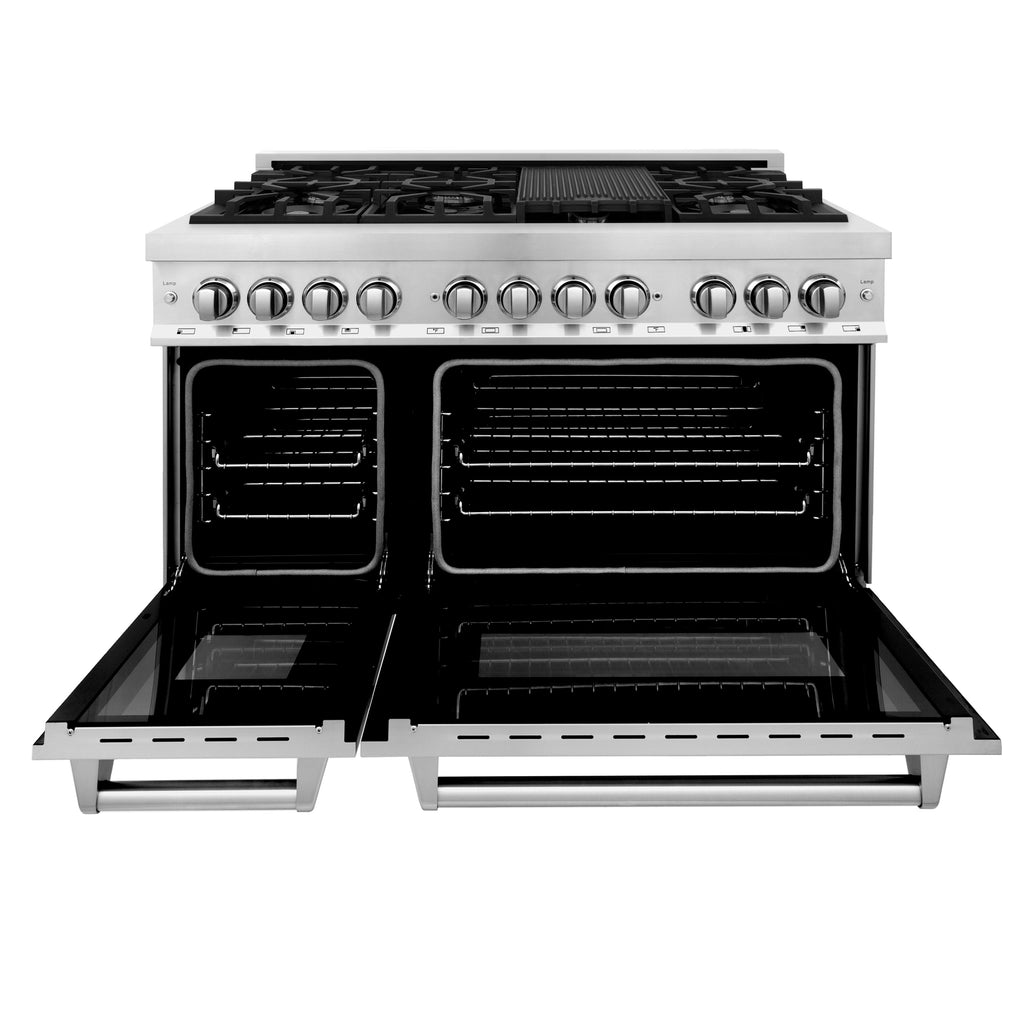

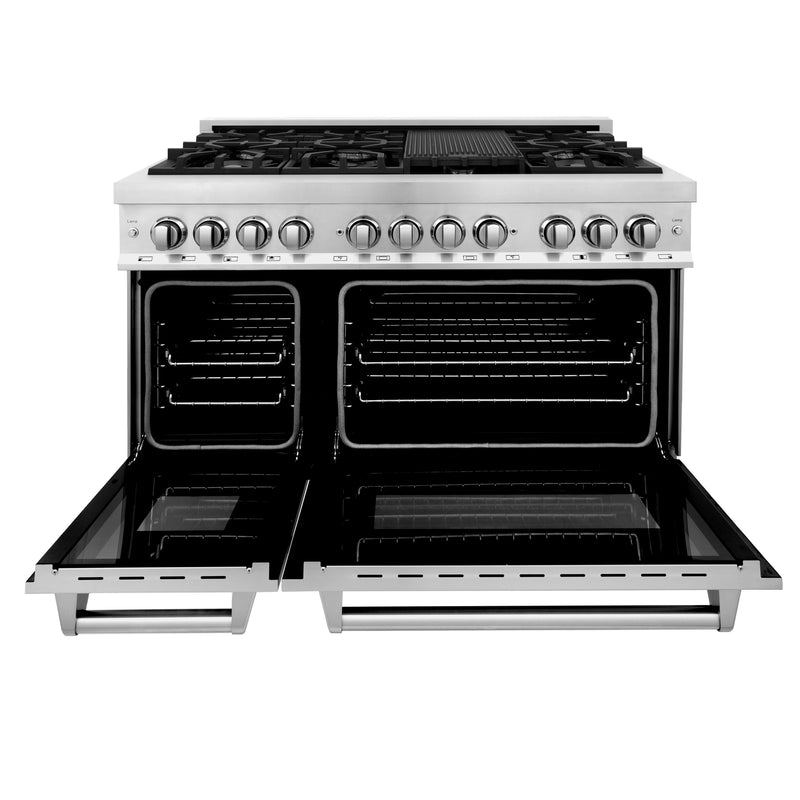

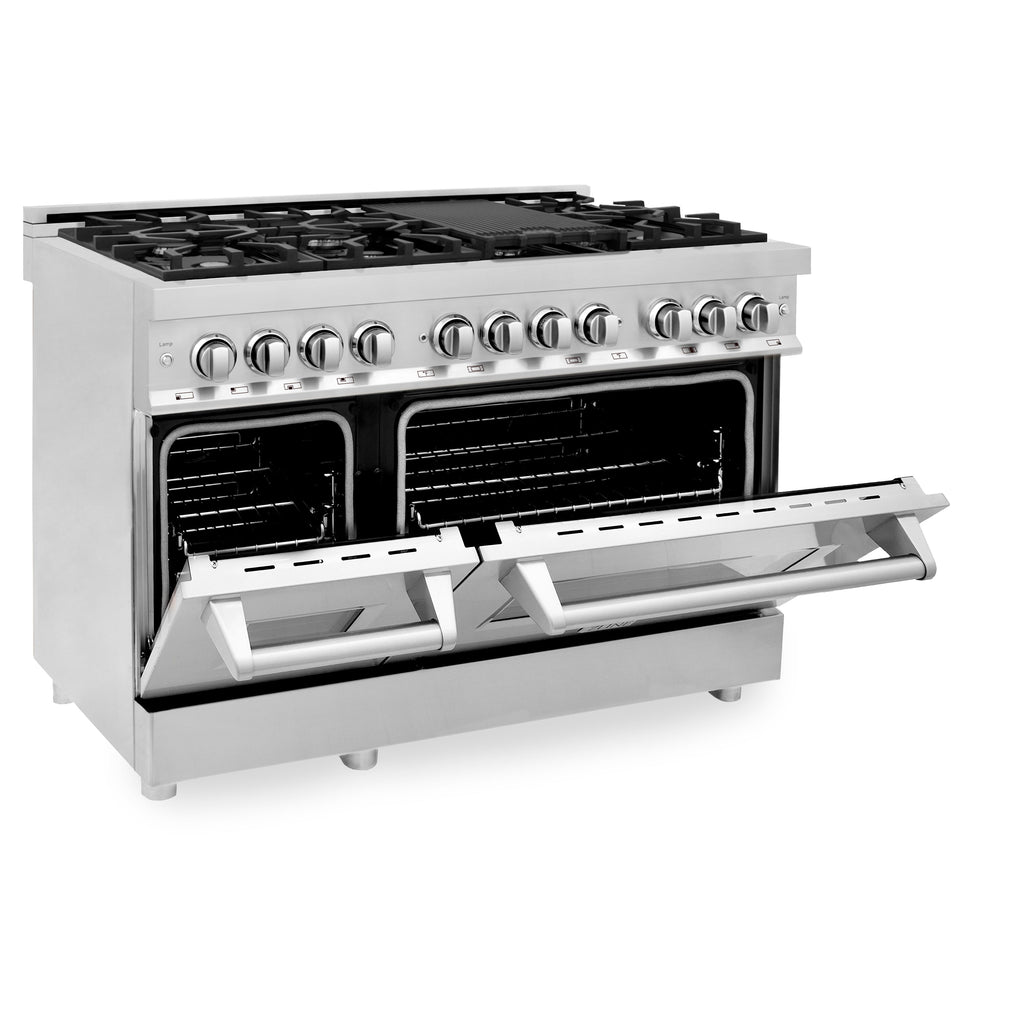

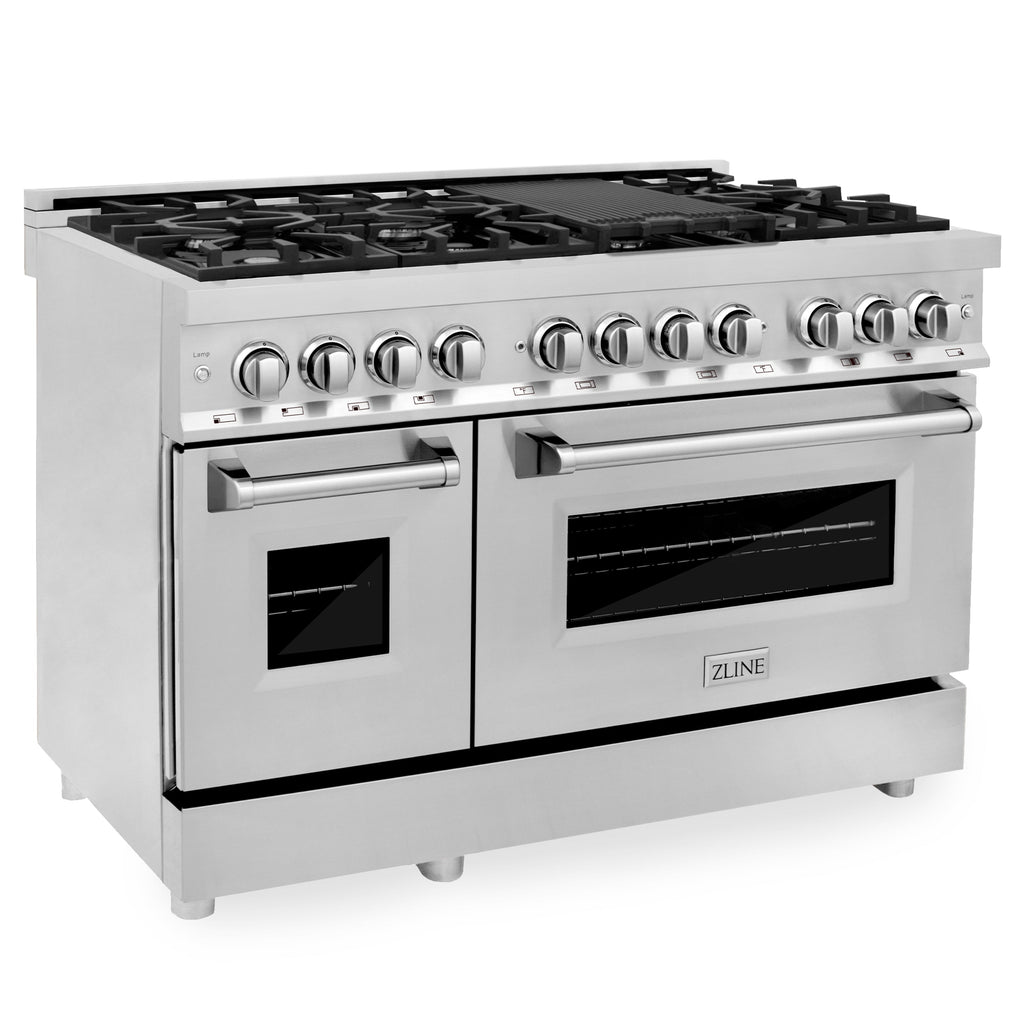

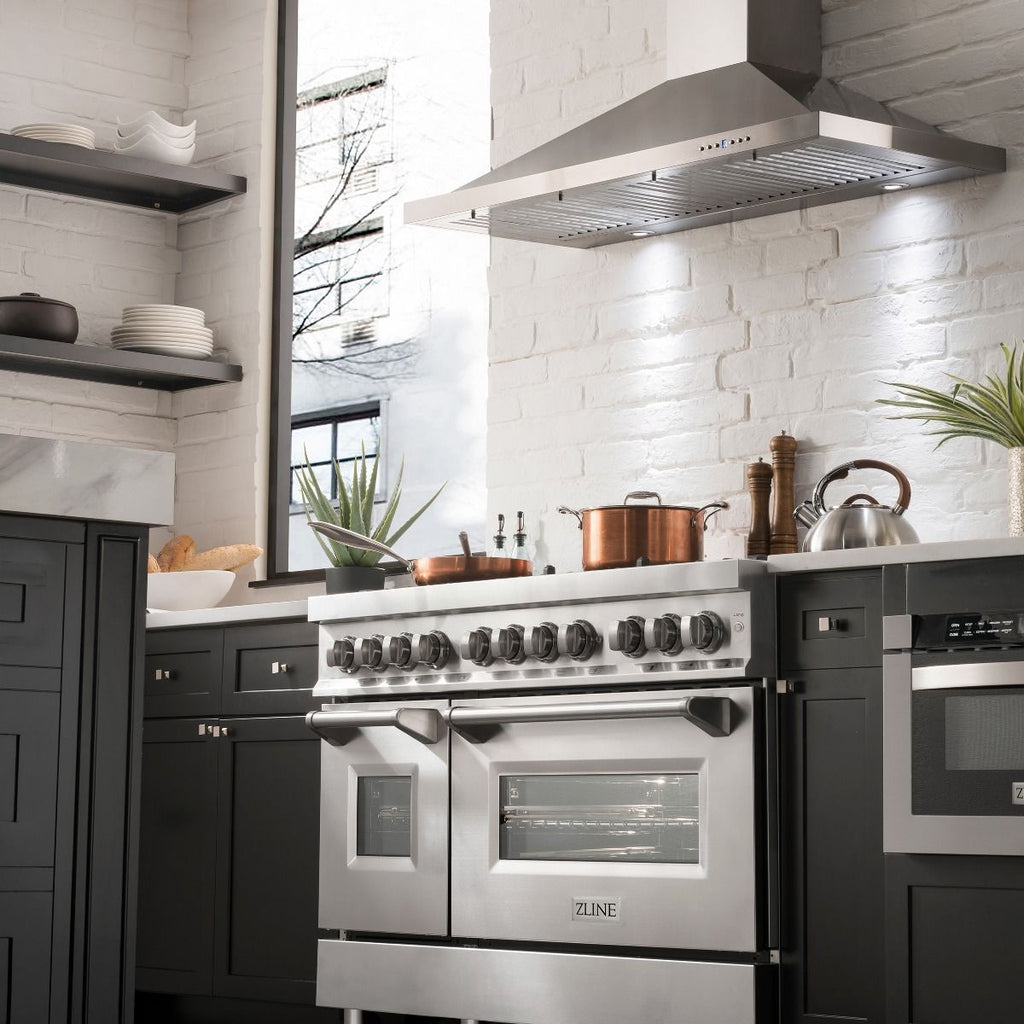

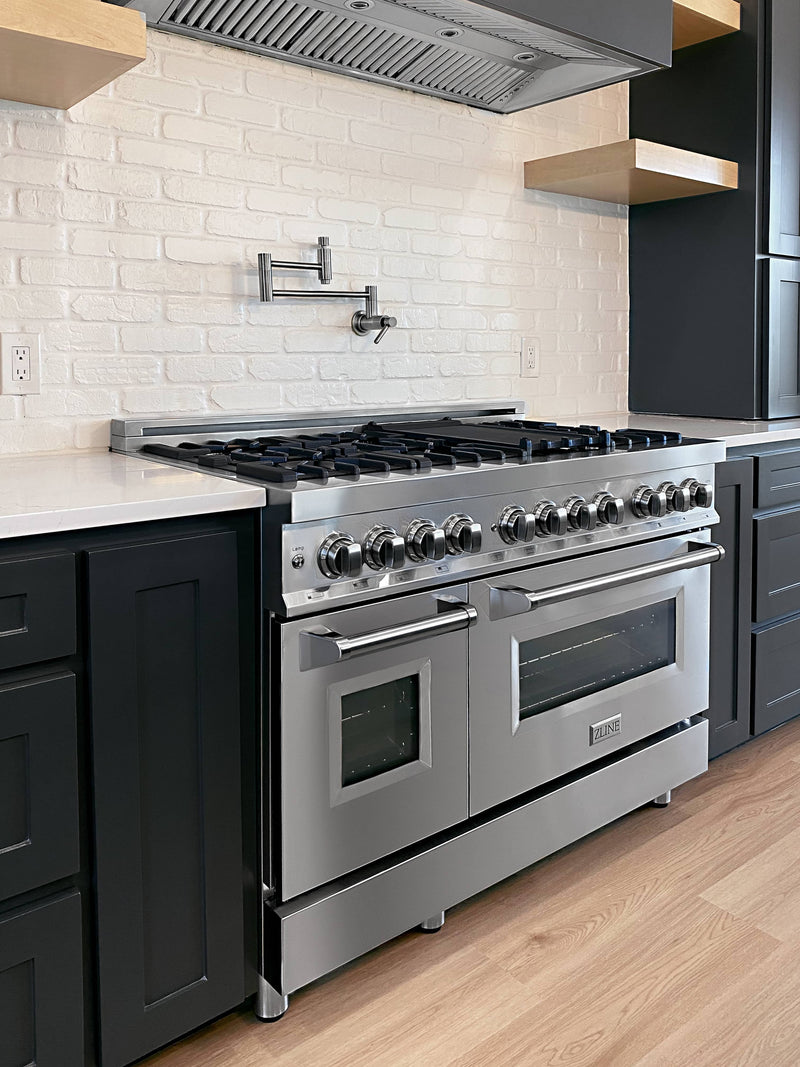

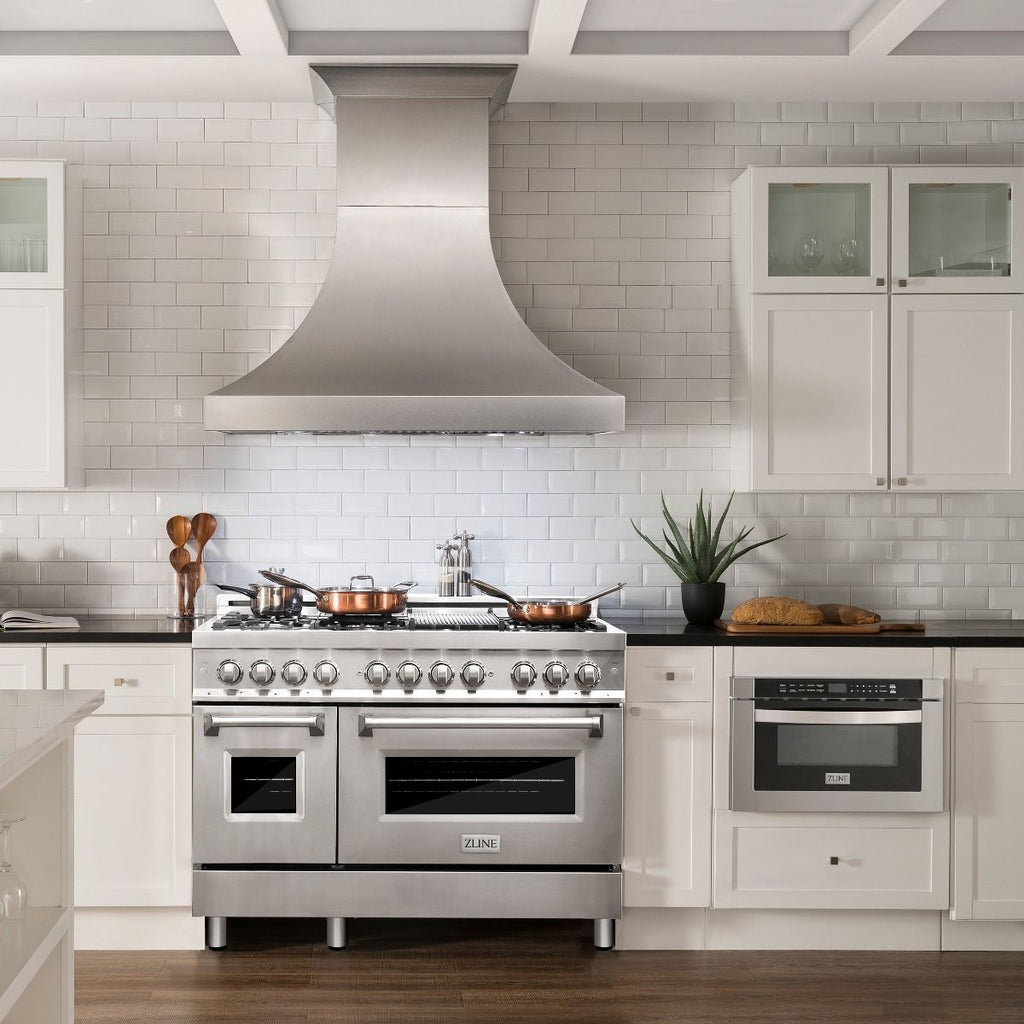

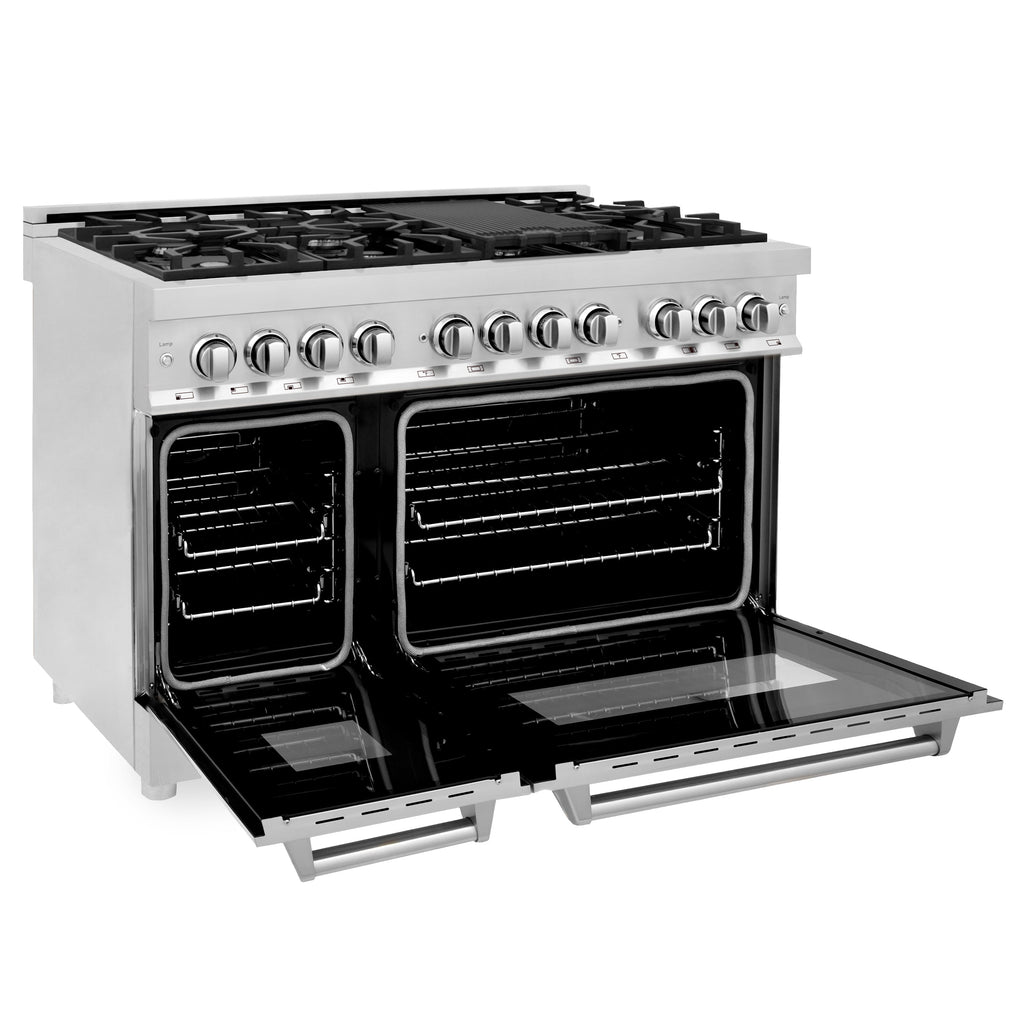

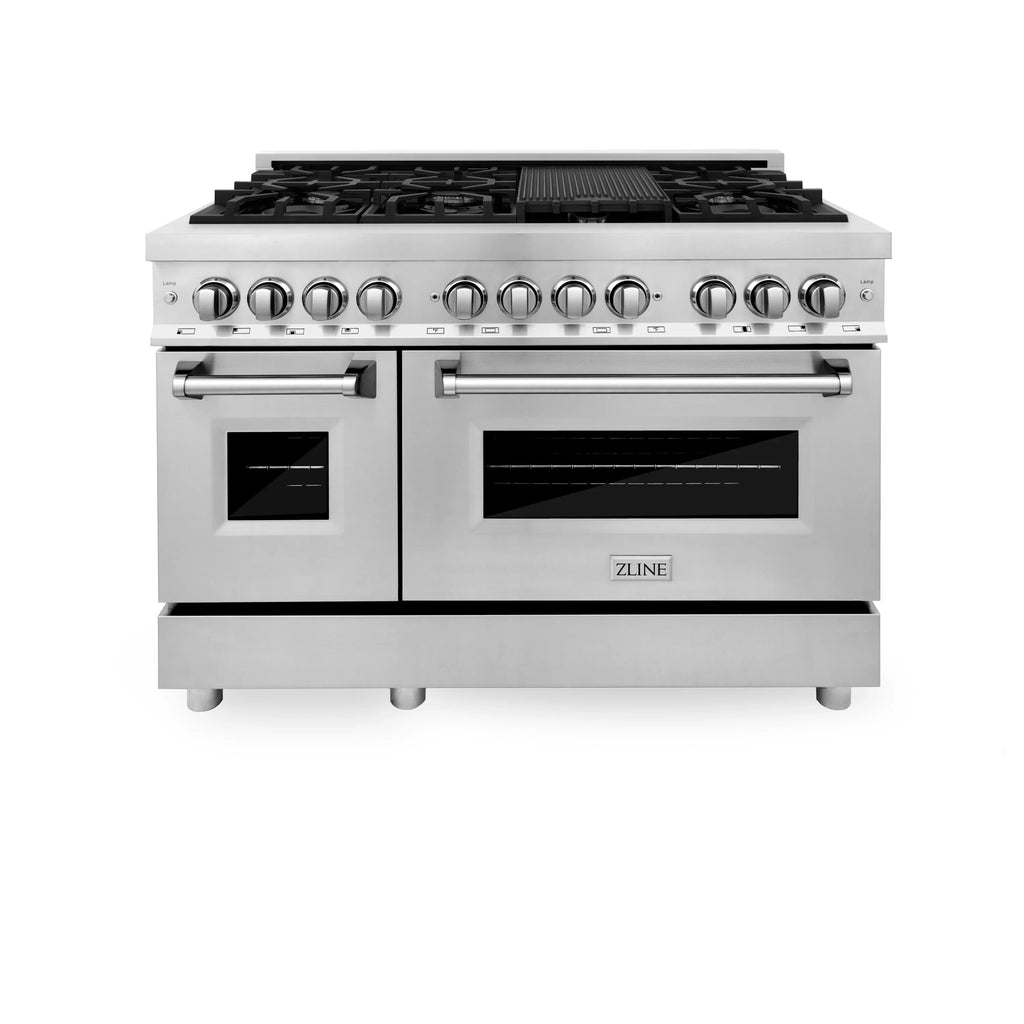

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

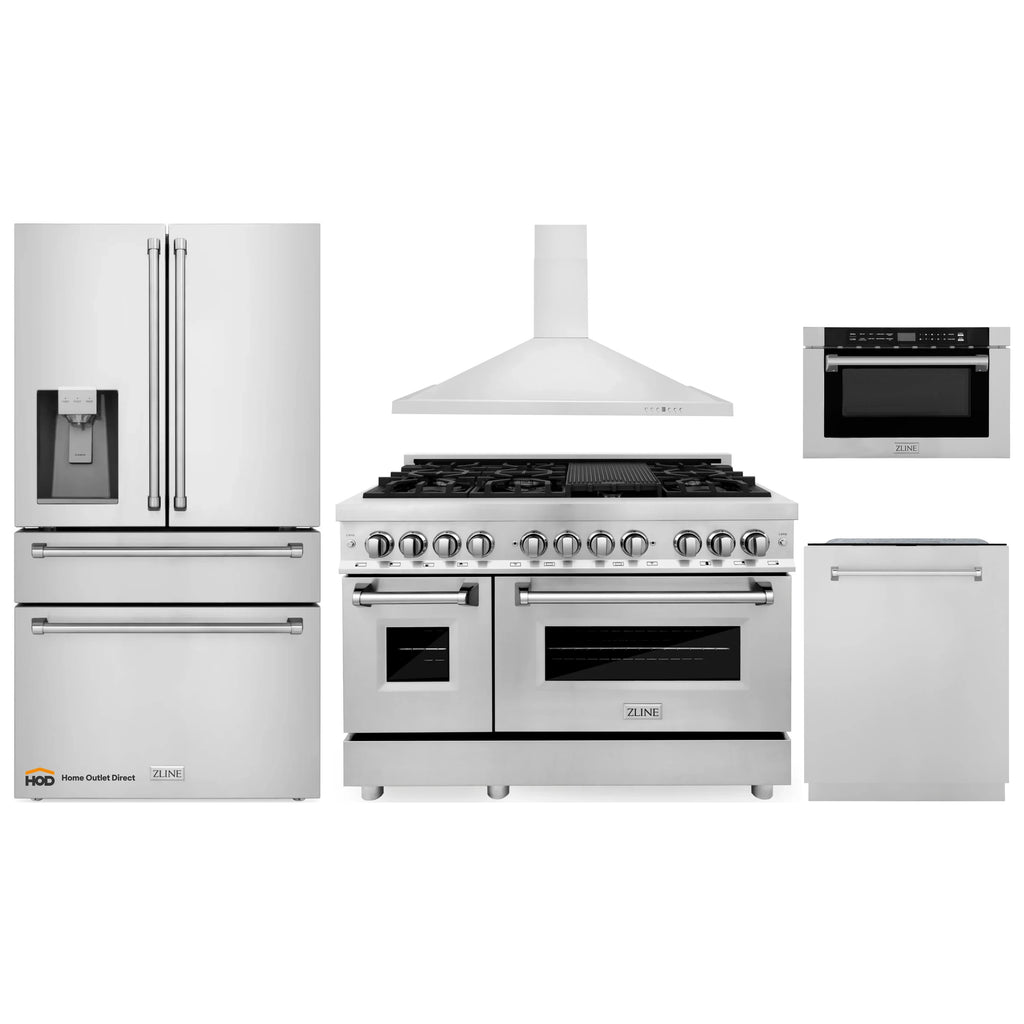

Build your dream kitchen with the ZLINE Dual Fuel Range
Brand: |
|

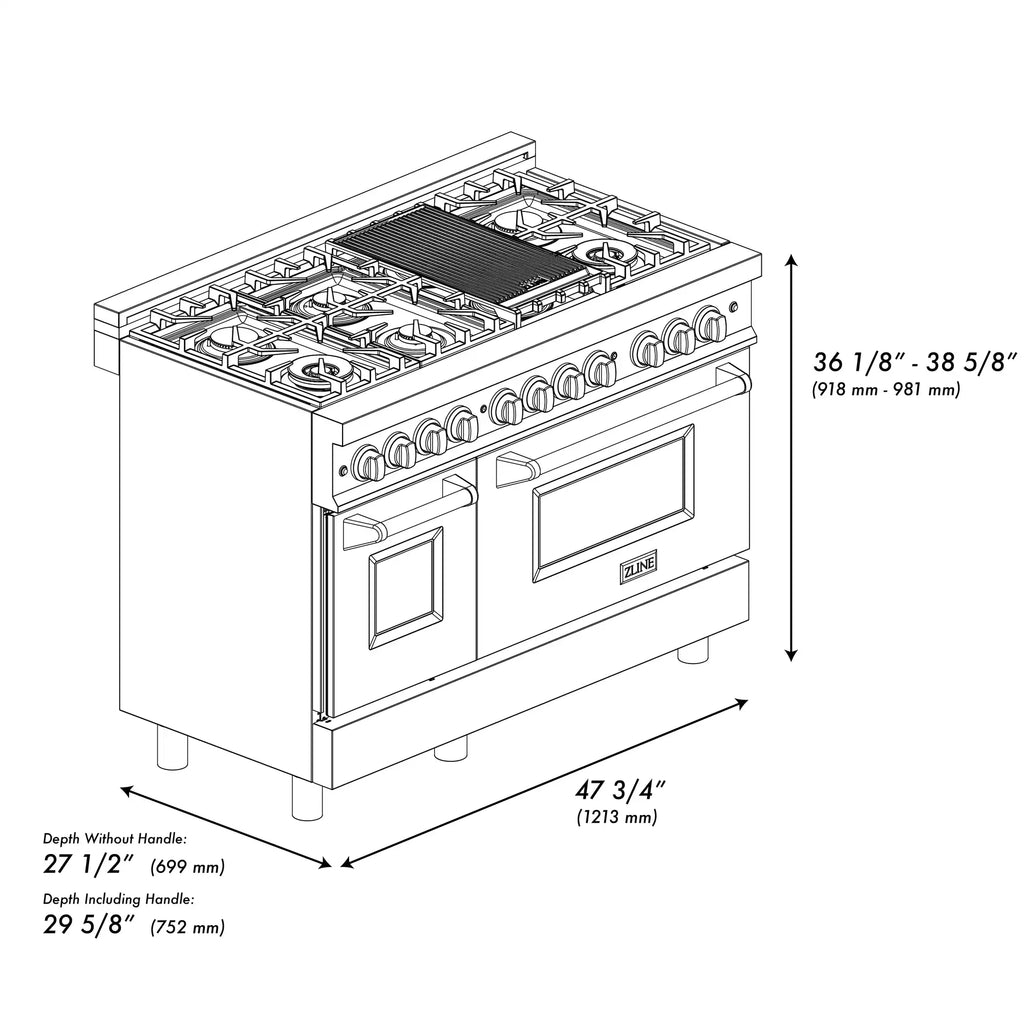

Dimension: | 47.75" W x 27.5" D x 36.13" H |
Dimensions with Handle: | 47.75" W x 29.63" D x 36.13" H |
Open Door Depth: | 41.8" |
Oven Dimensions:
|
Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14" H |
Lighting: | Dual Lighting, controlled by light switch on front control panel |
Voltage:
|
240V/60Hz/40A
|
Mount Type:
|
Free Standing
|

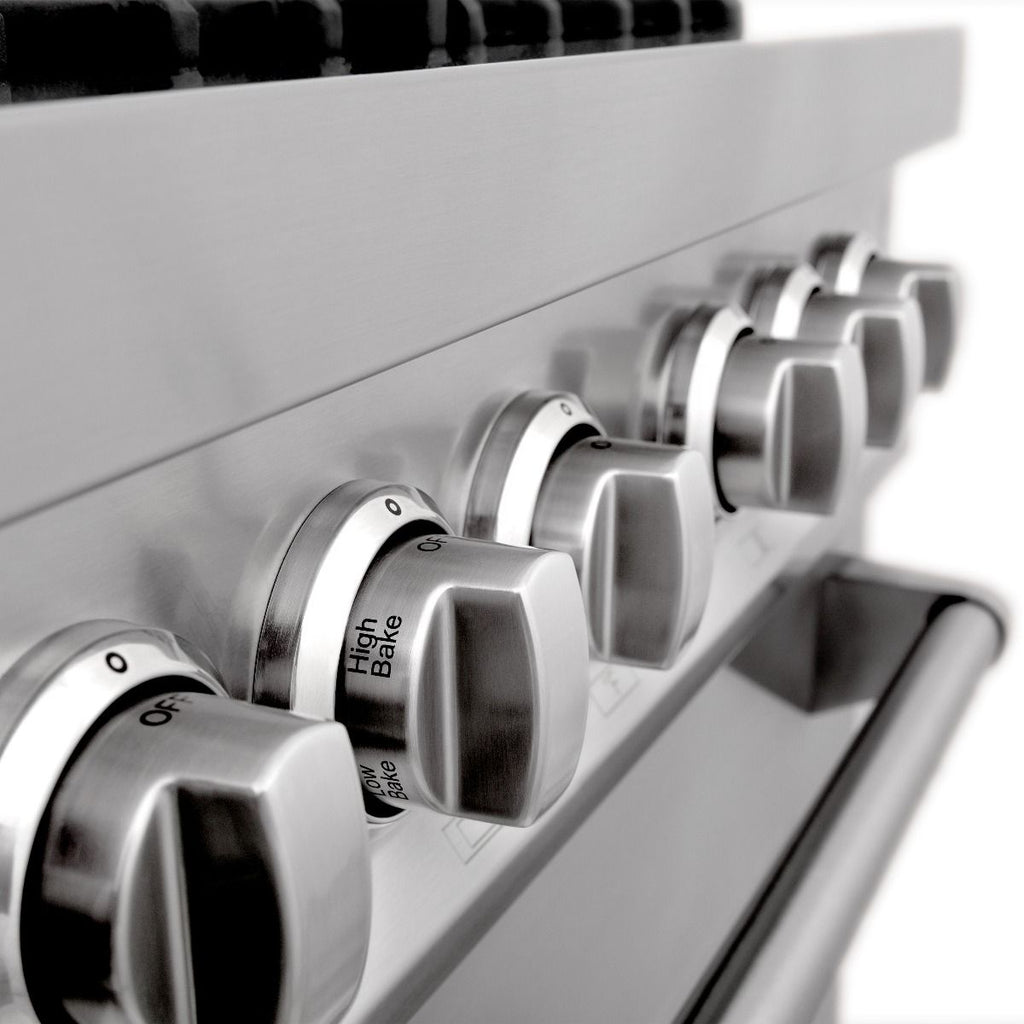

Control Type:
|
Front Control
|
Material:
|
Stainless Steel frame with 1 Piece Porcelain Top- Italian made hinges and burners-Manual Clean
Red indicator light shuts off to let you know when oven has gotten to temperature |
Warranty:
|
1 Year Warranty
|
Features
|
Manufactured by ZLINE Kitchen and Bath
Model No. RA48 |
UPC:
|
817299022879
|
Certifications:
|
ETL Certified
|
Product Weight:
|
331 lbs.
|
Cooktop:
|

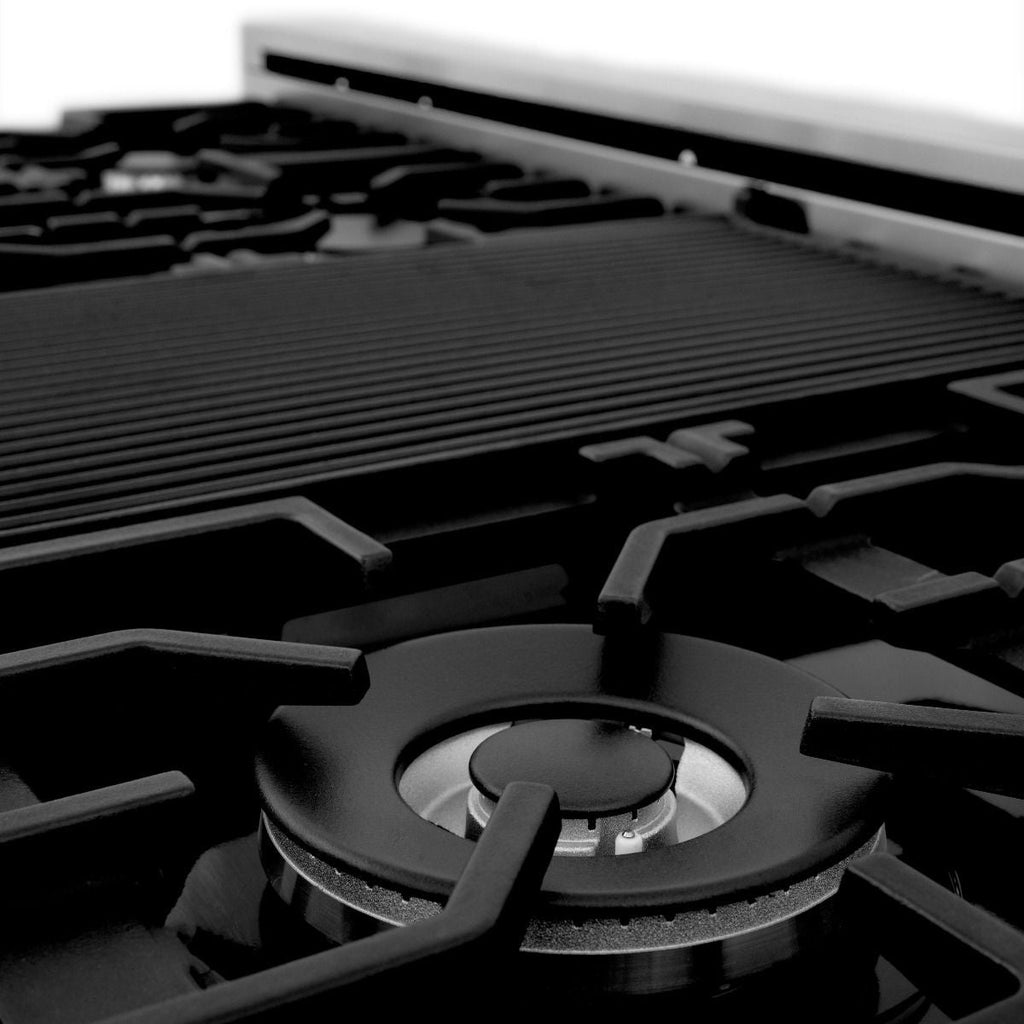

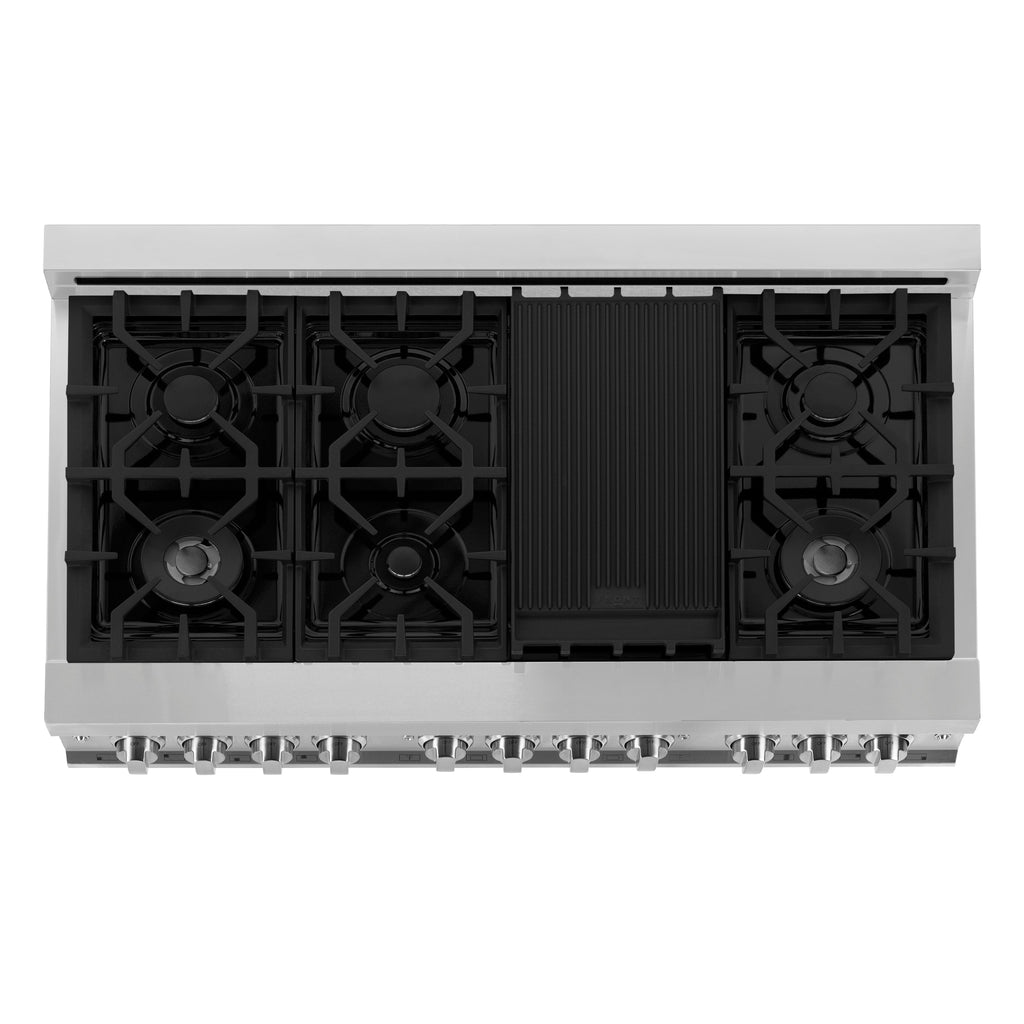

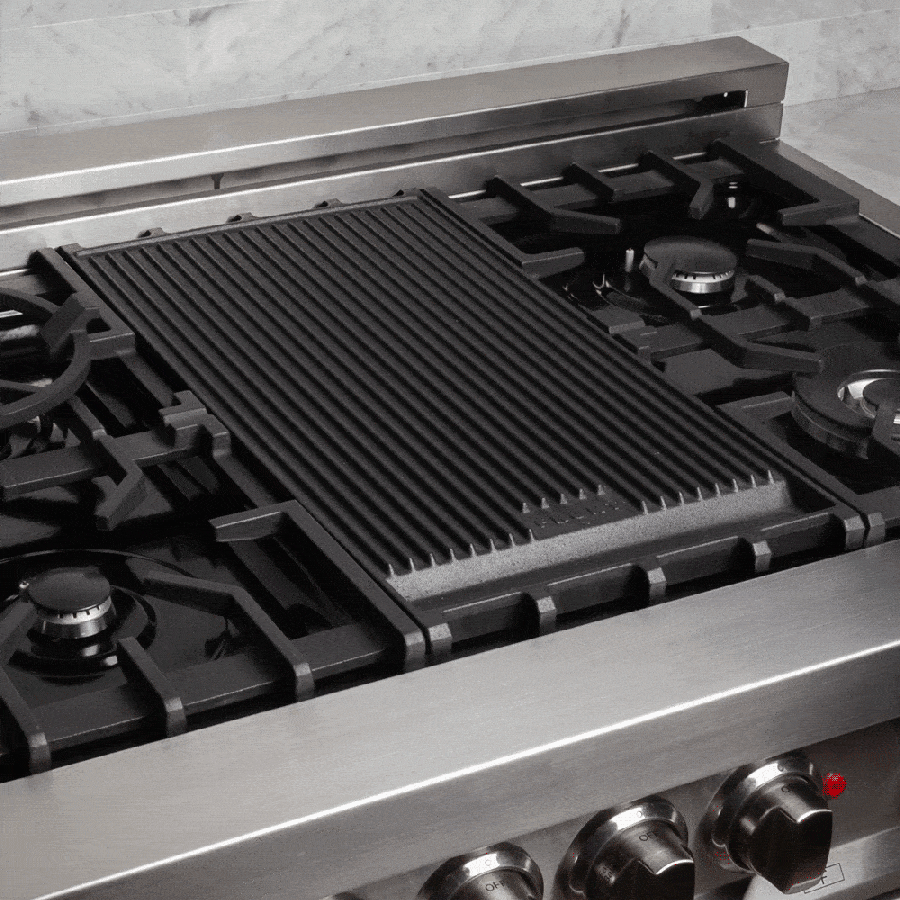

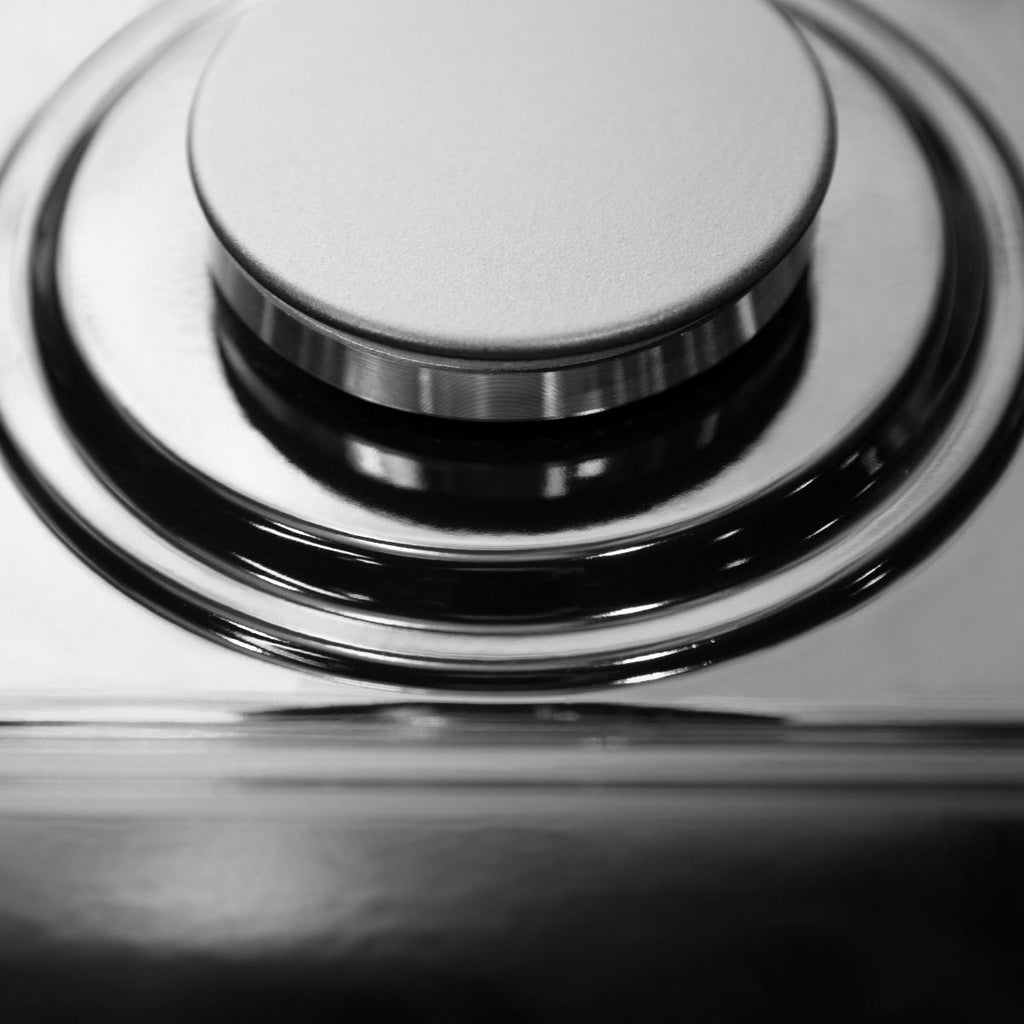

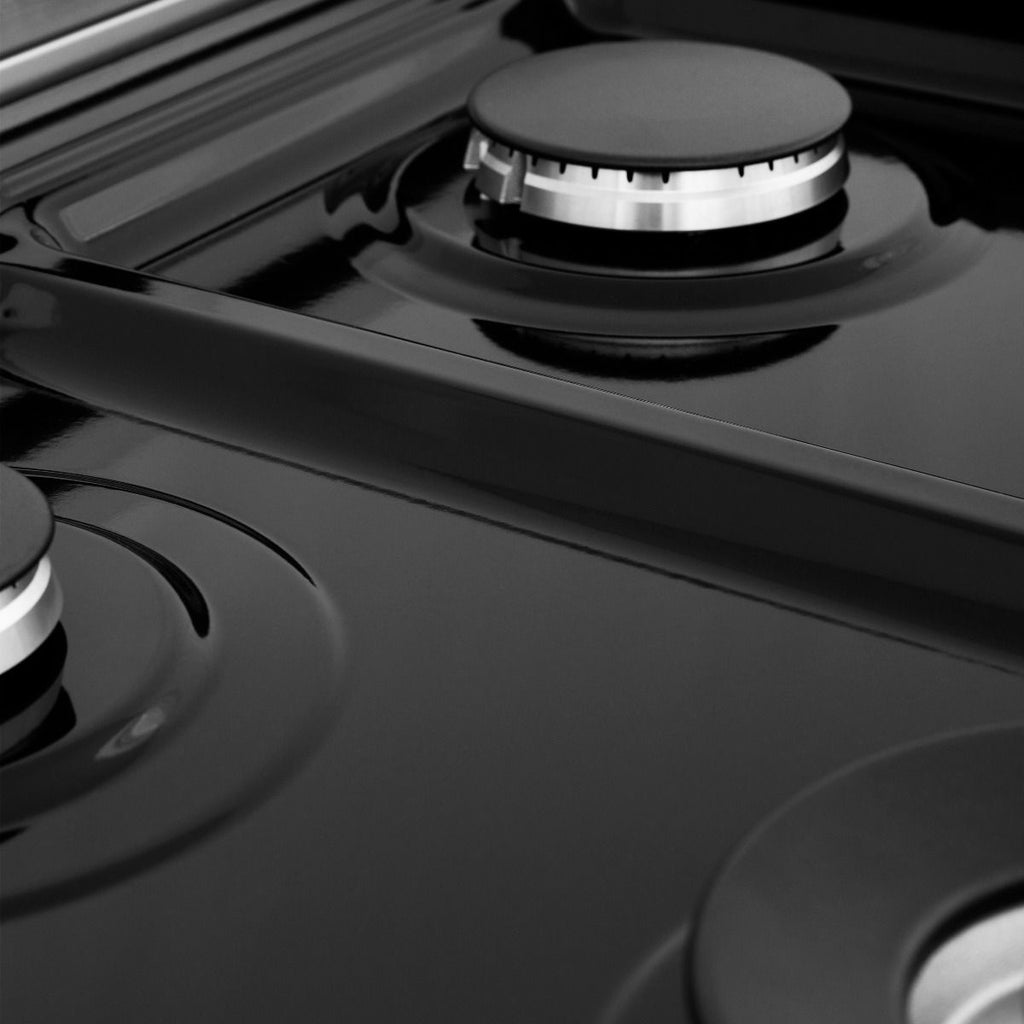

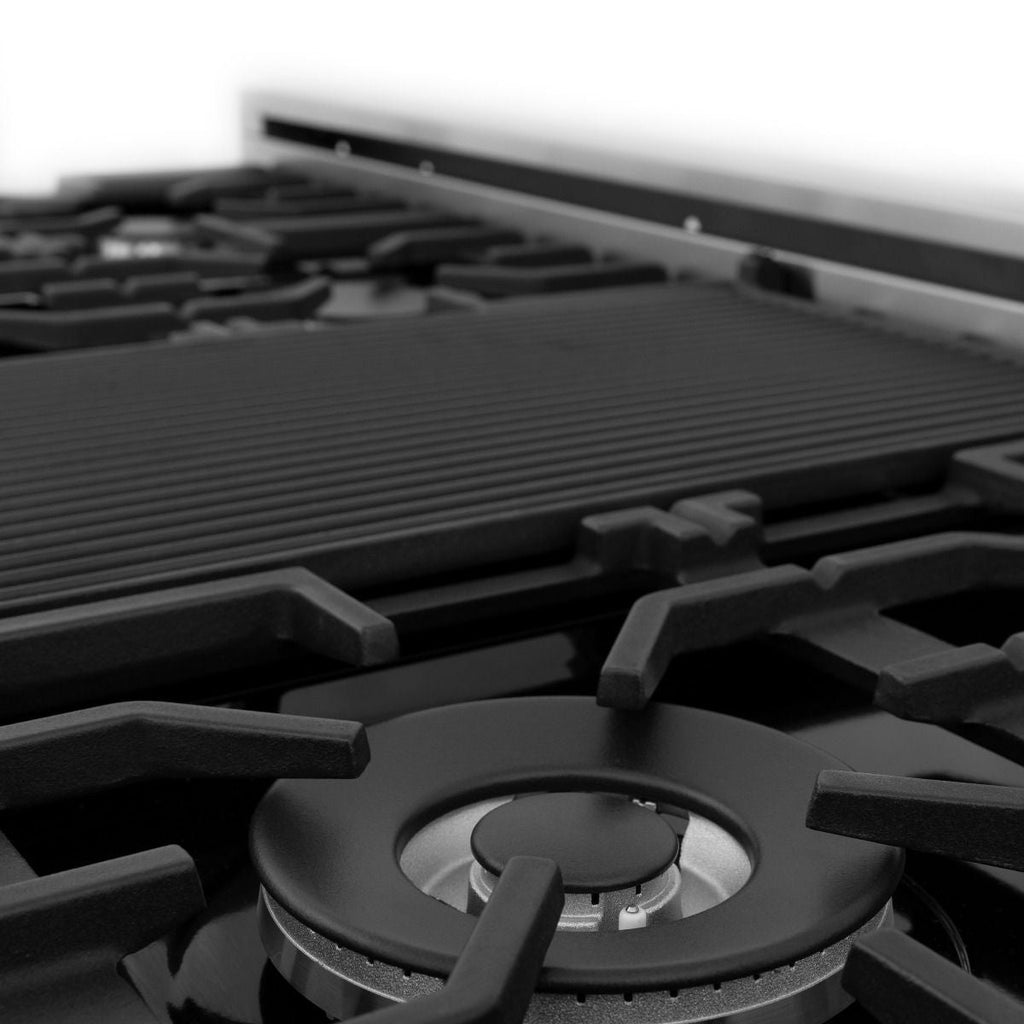

(7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
|
Gas Type: | Natural Gas or Liquid Propane via conversion kit |
Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |

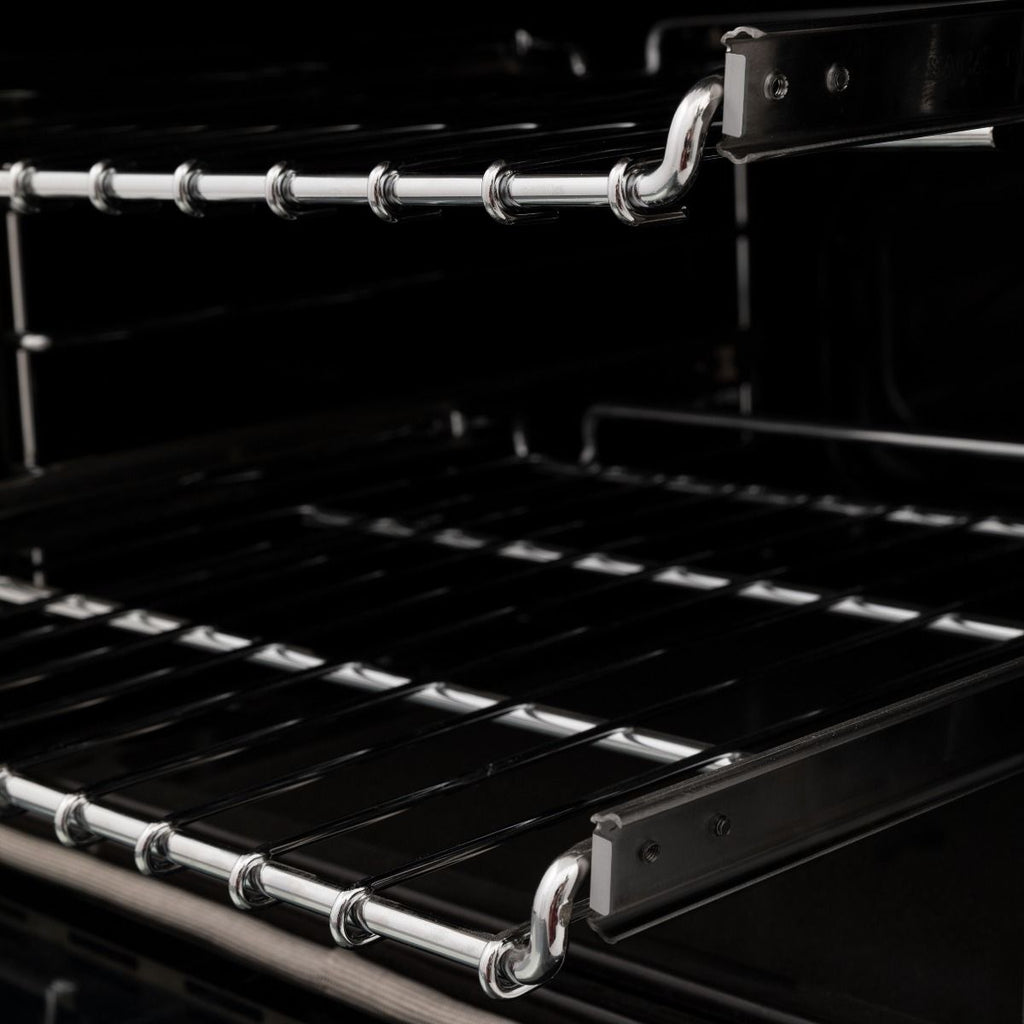

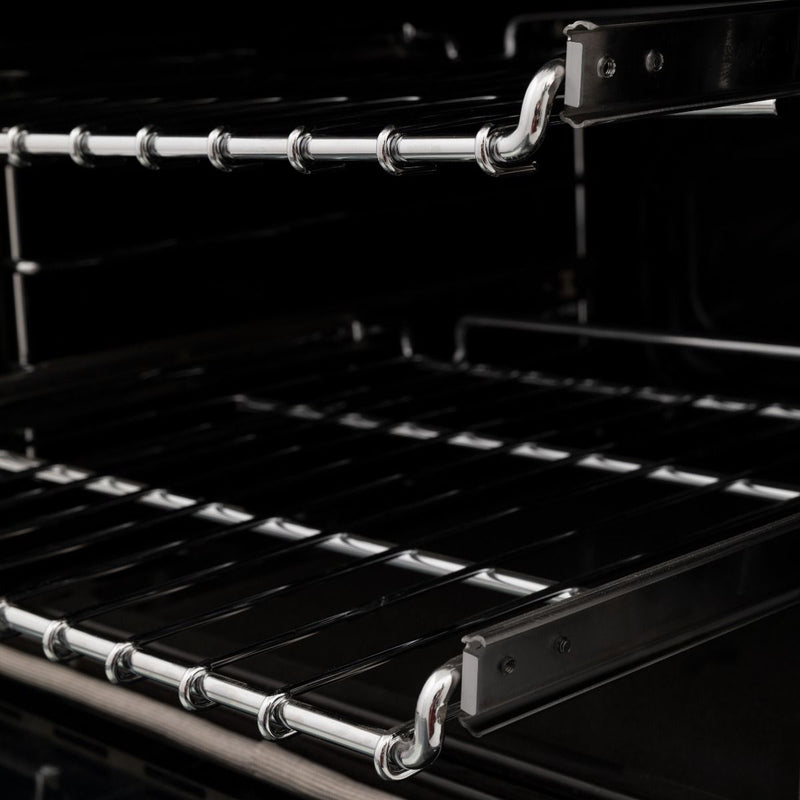

Oven : | Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
BTU Rating:
|
Dual Burner(x2) - 18,000 BTU

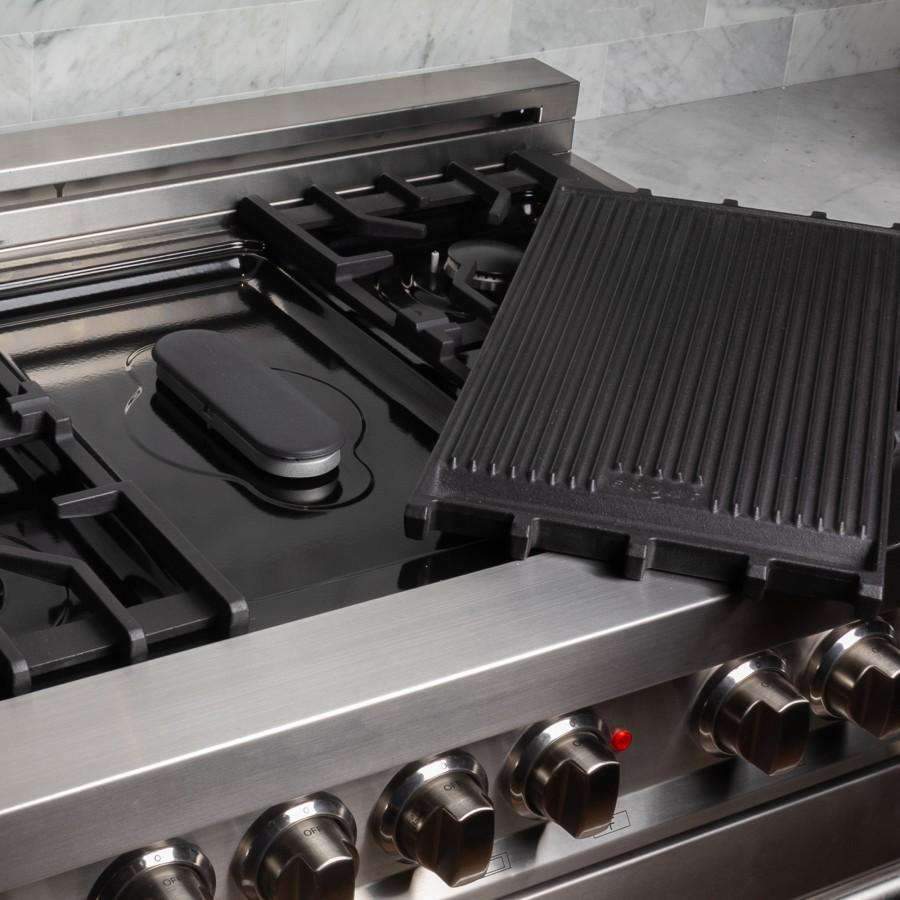

Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU |
Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional |
Fuel Type:
|
Convection Oven - Gas Cooktop
|

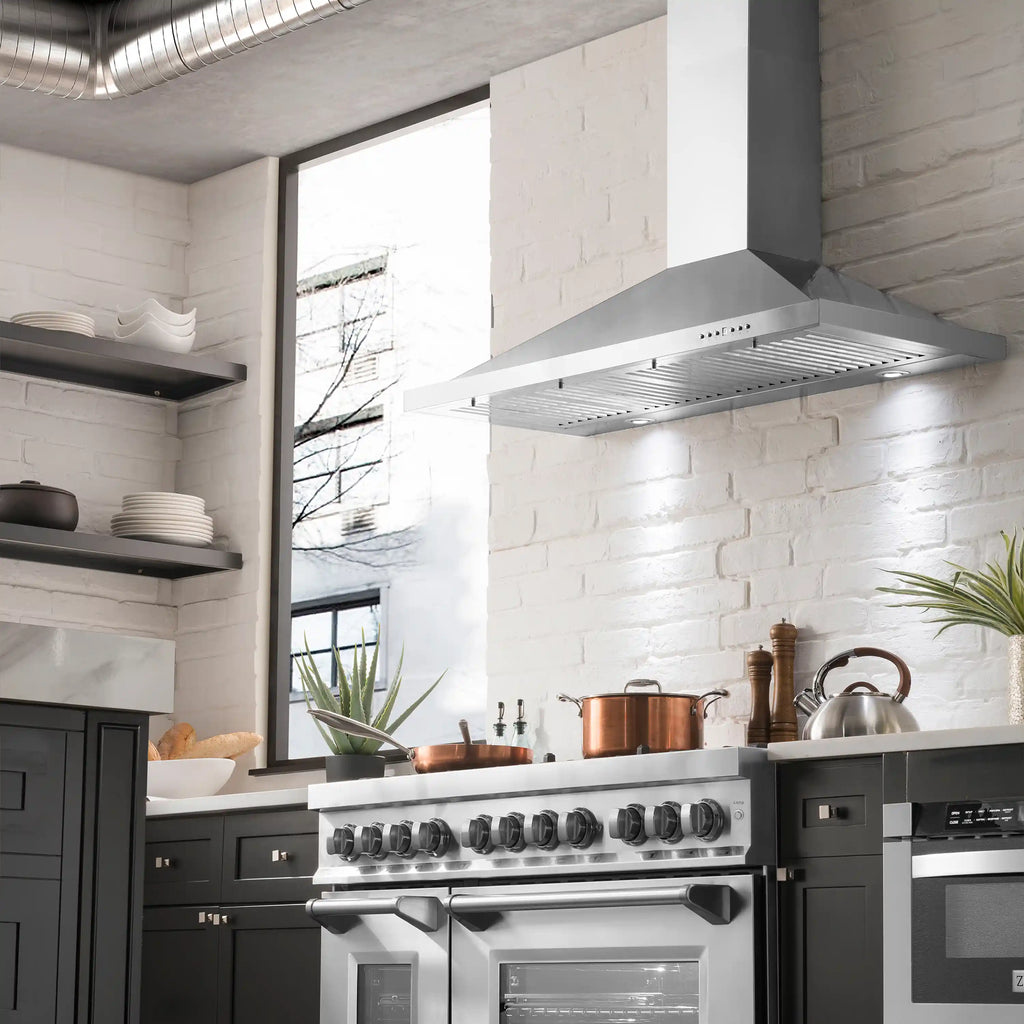

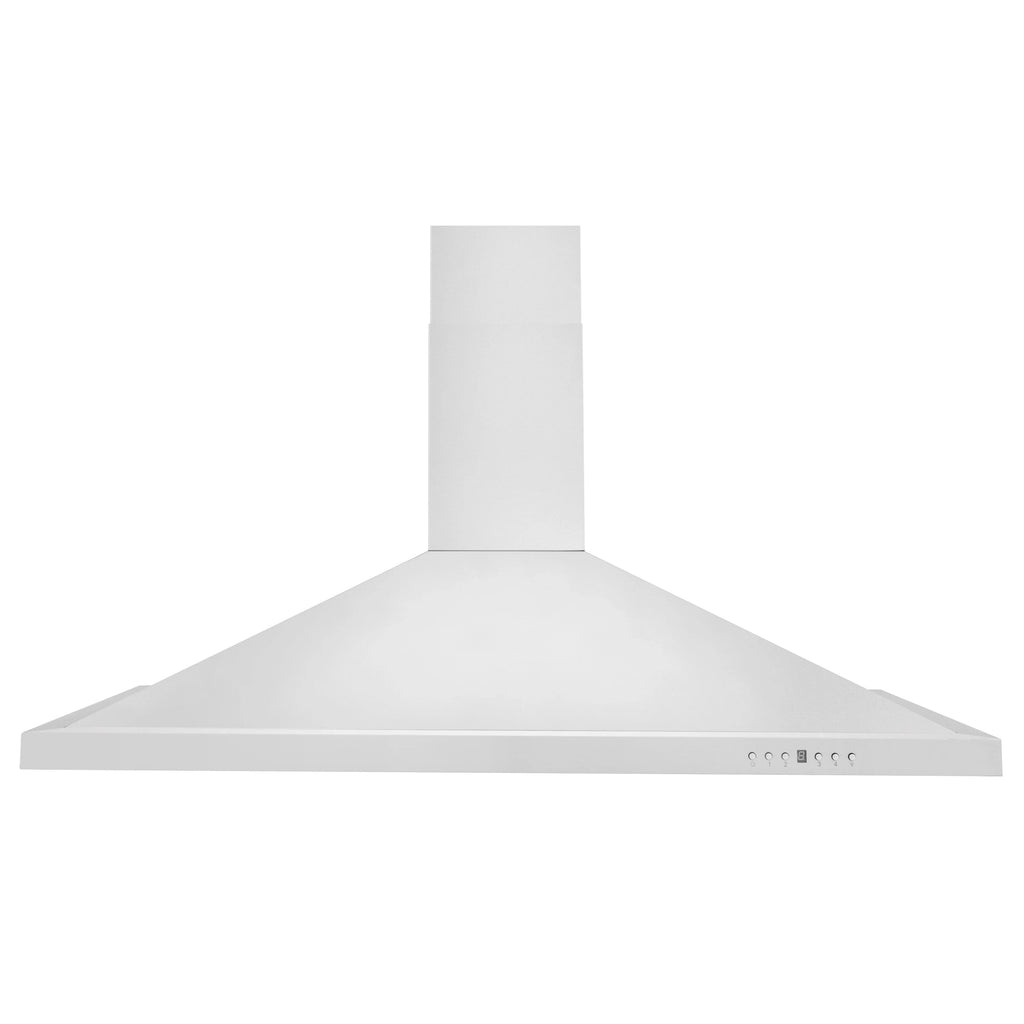

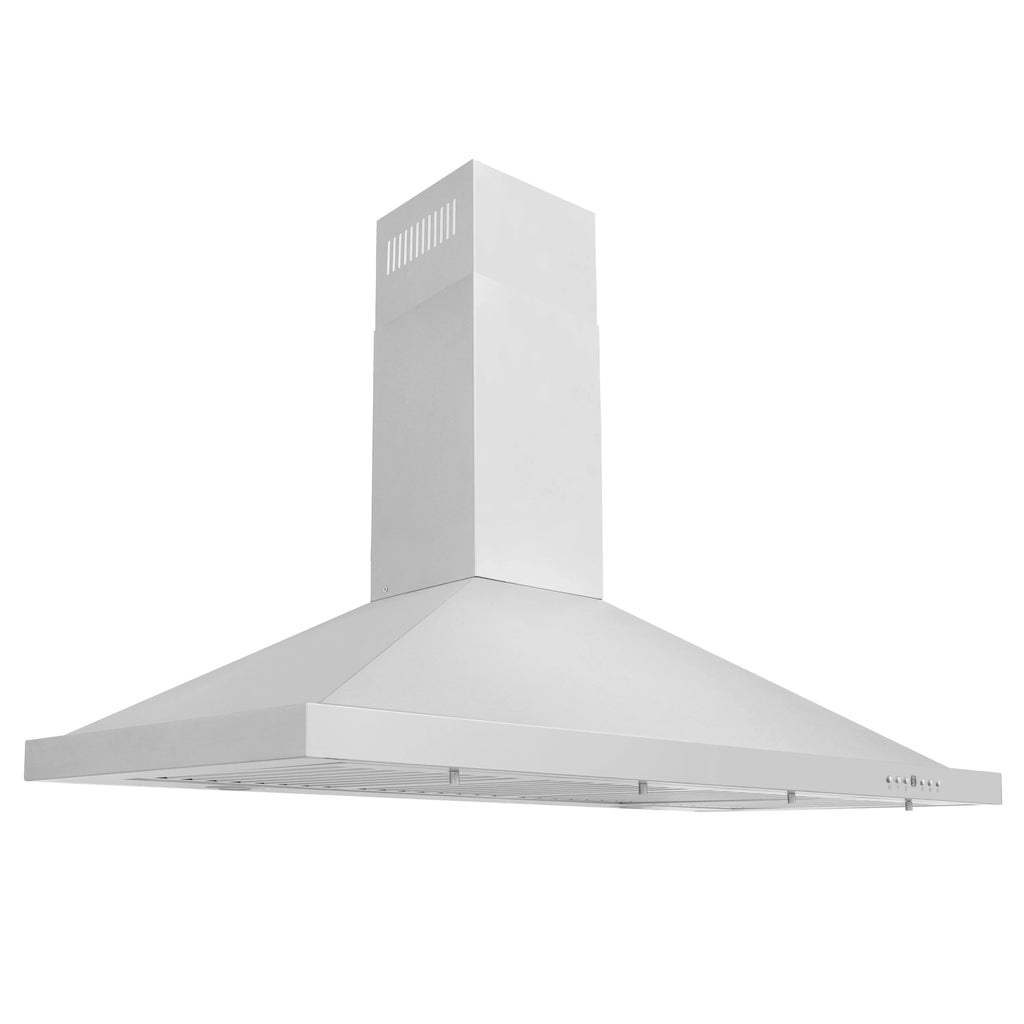

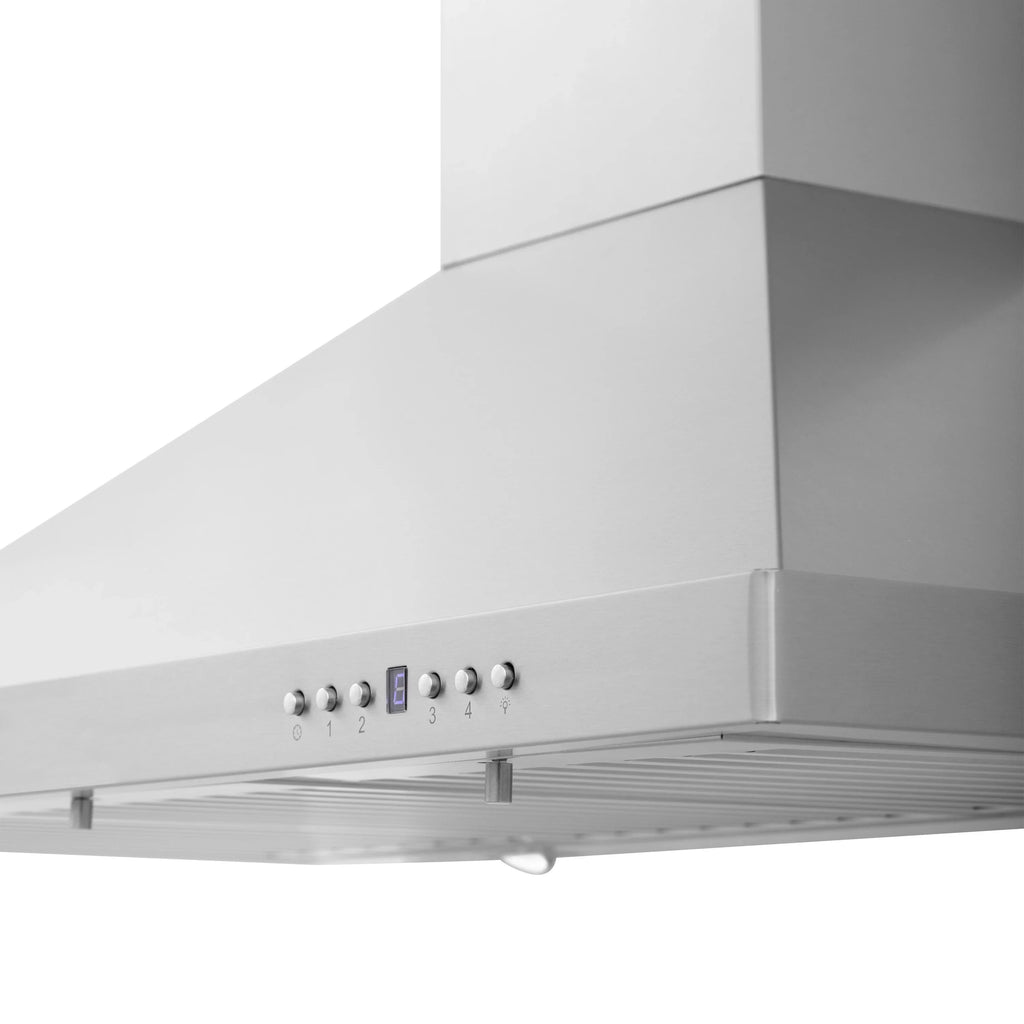

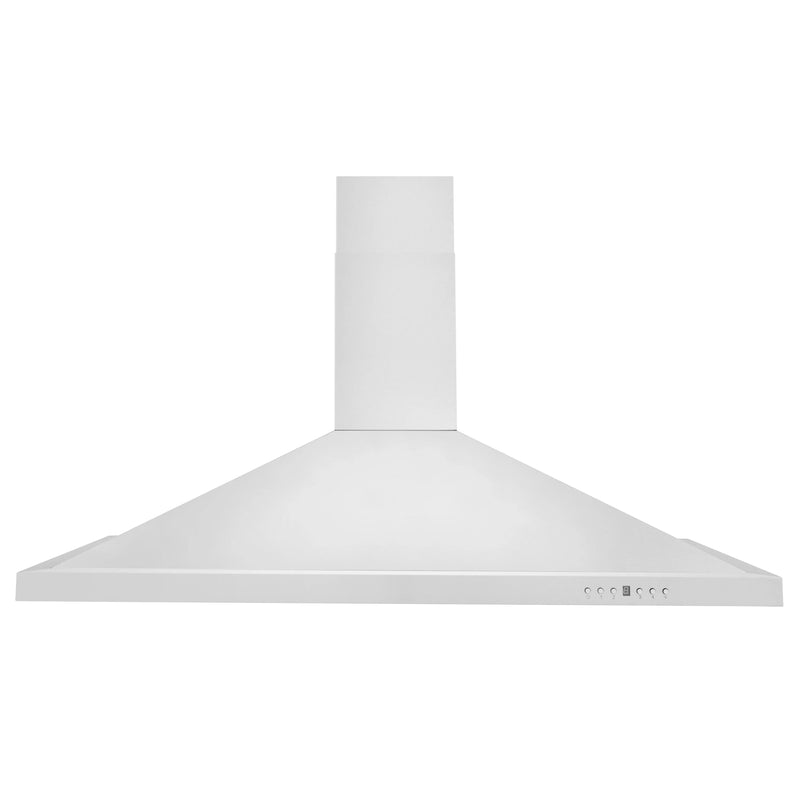

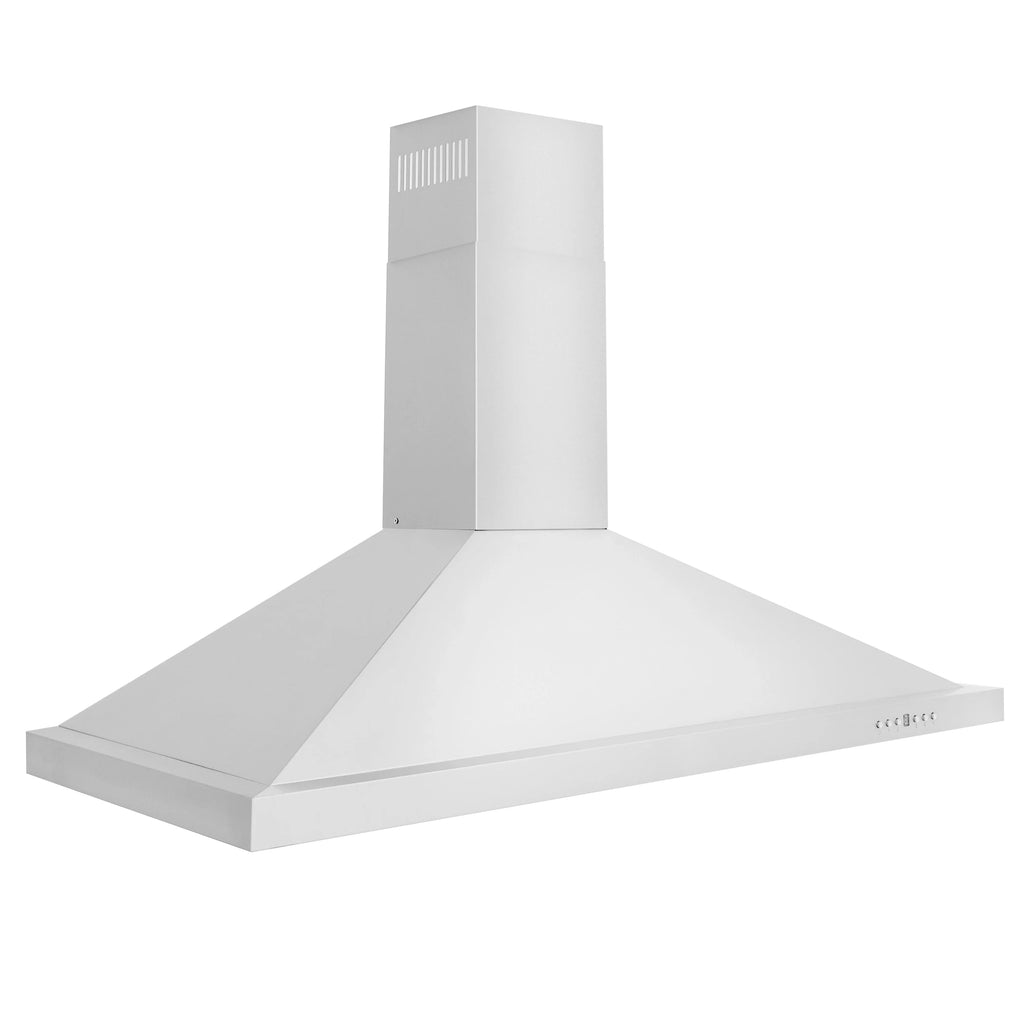

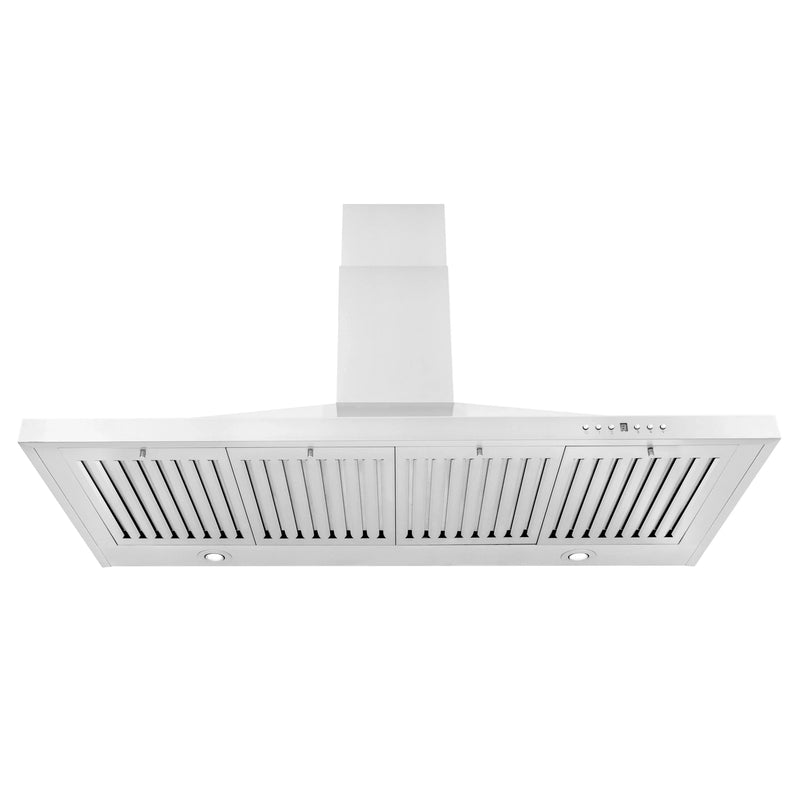

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:

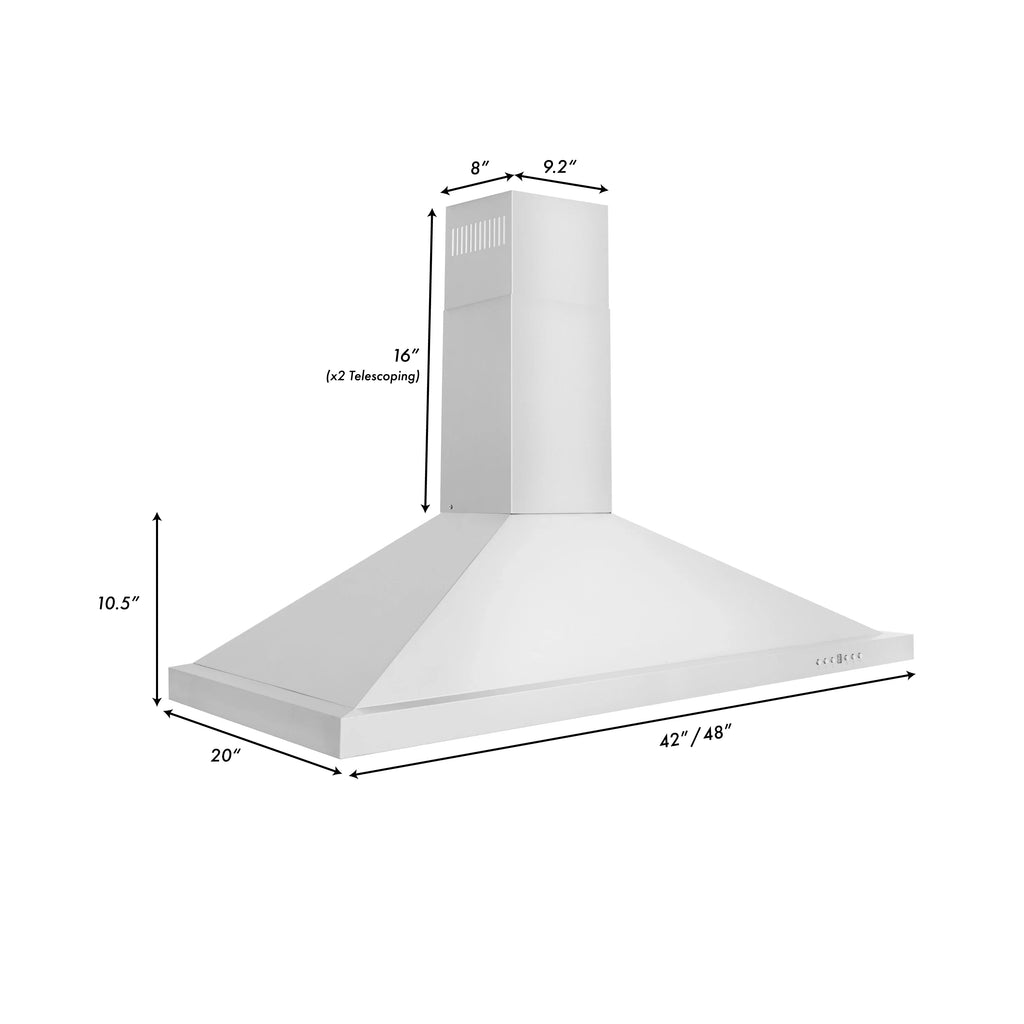

Dimension: |
48" W x 19.7" D x 10.5" H
|
Chimney (Dimension): |
9.2" W x 8" D x 16" H (x2) (Telescoping)
|
Venting Size: |
6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option. |
Airflow (Q/L/M/H): |
120/240/320/400
|
Lighting: |

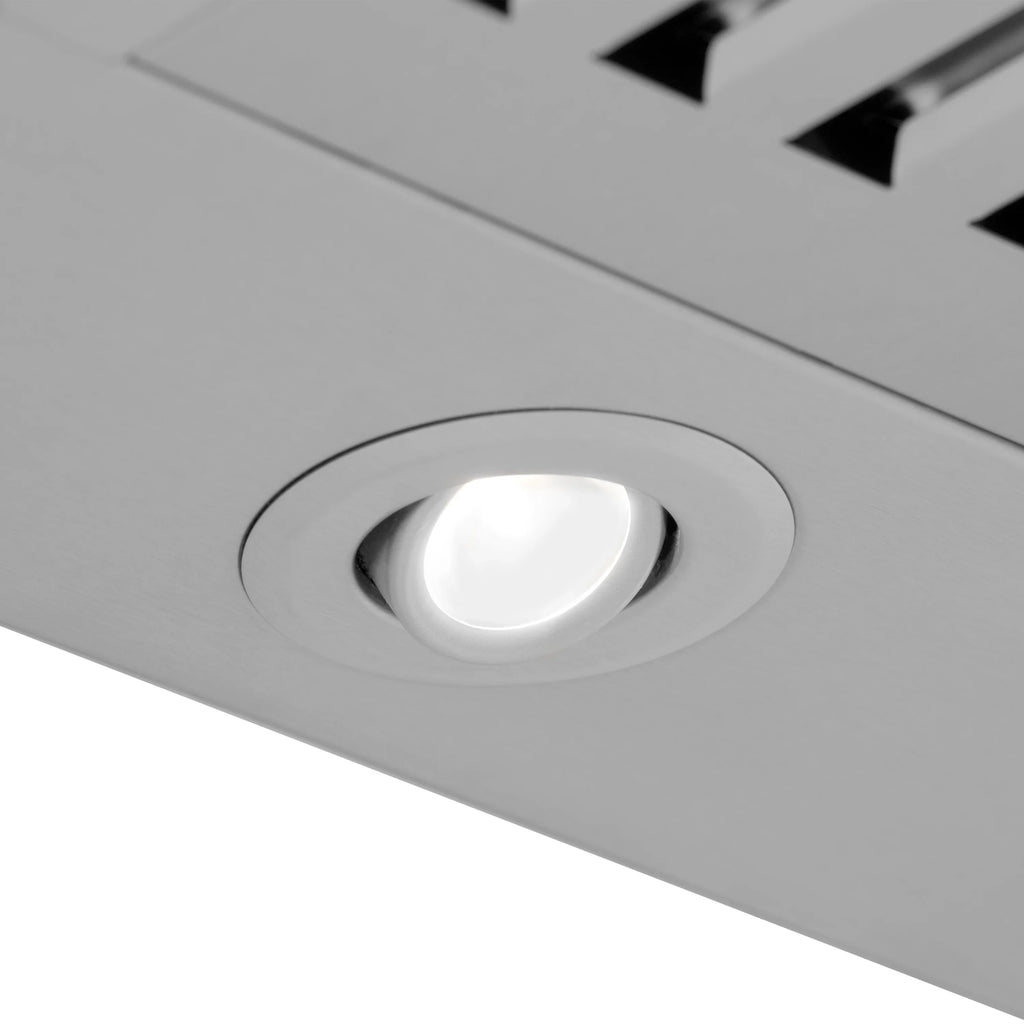

2 Directional LED Lights (3-Watt)
|
Noise Level: |
20/29/34/41
|
Voltage: |
110V/60HZ
|
Motor: |
High Performance 400 CFM/4-Speed Motor
|
Mount Type: |
Wall Mounted
|
Speeds: |
4 Speeds
|
Control Type: |

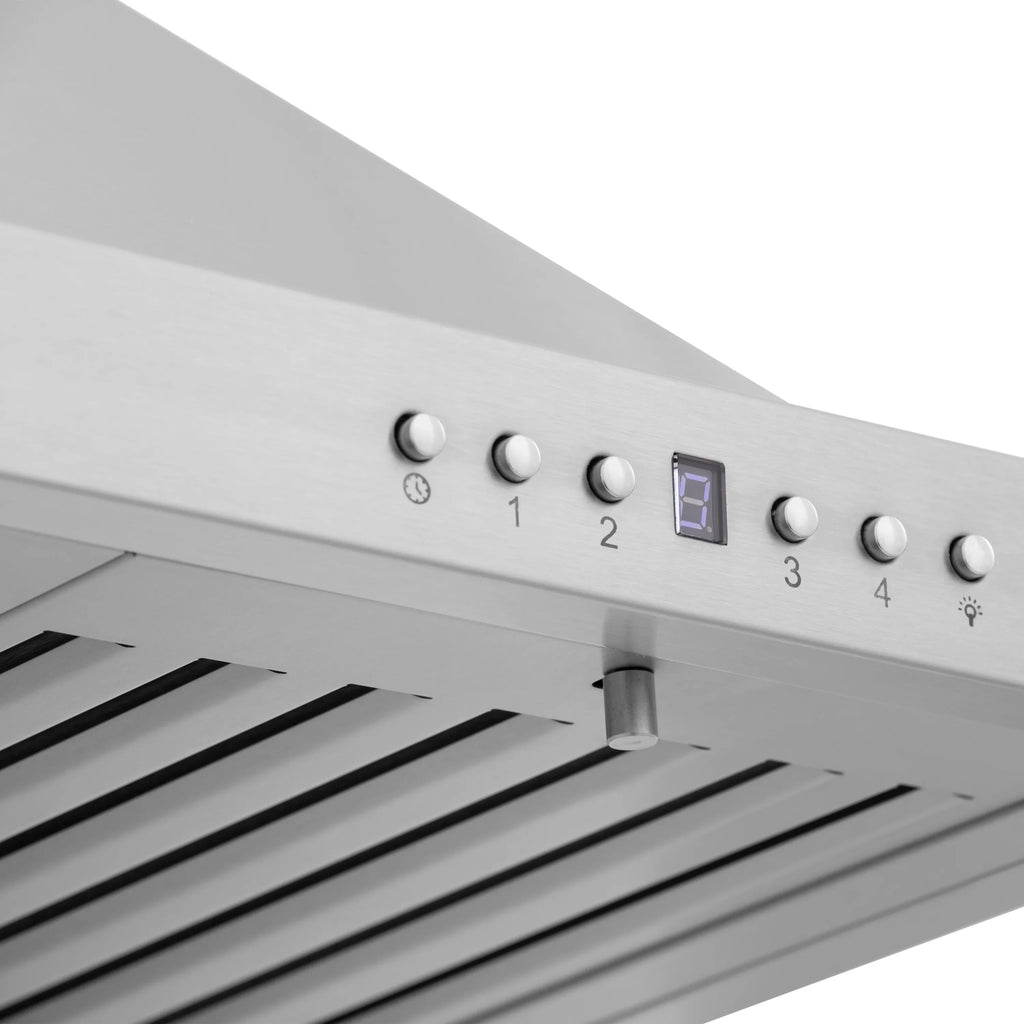

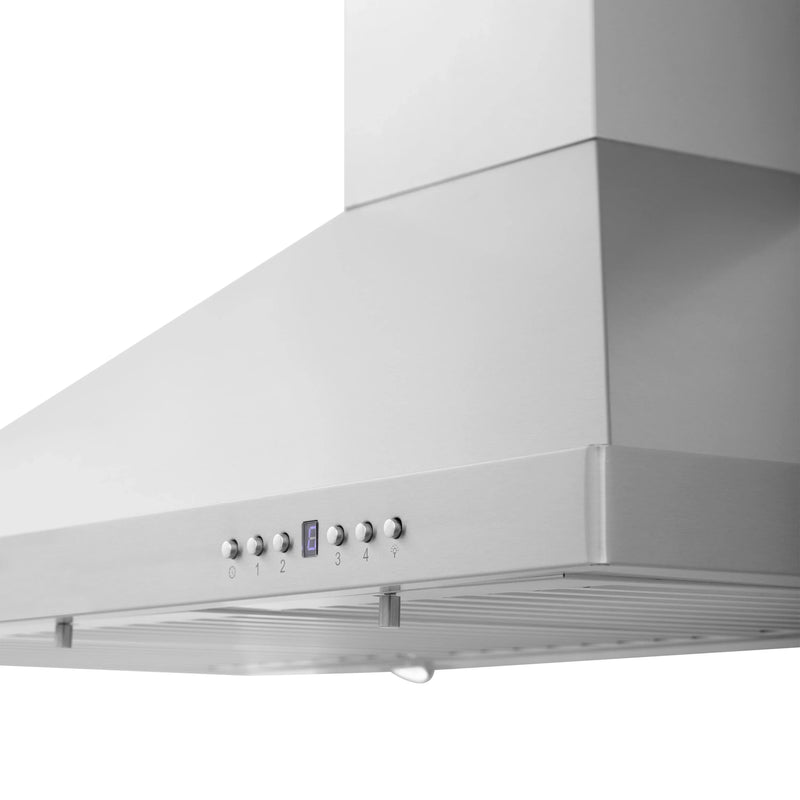

Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
|
Filters: |
Stainless Steel Baffle Filters (Dishwasher Safe)
|
Material: |
21g #430 Stainless Steel
|
Warranty: |
3 Year Parts Warranty
|
Features: |
Model No. KB-48 (ETL Listed) |
UPC: |
855187005429
|
Certifications: |
ETL Certified
|

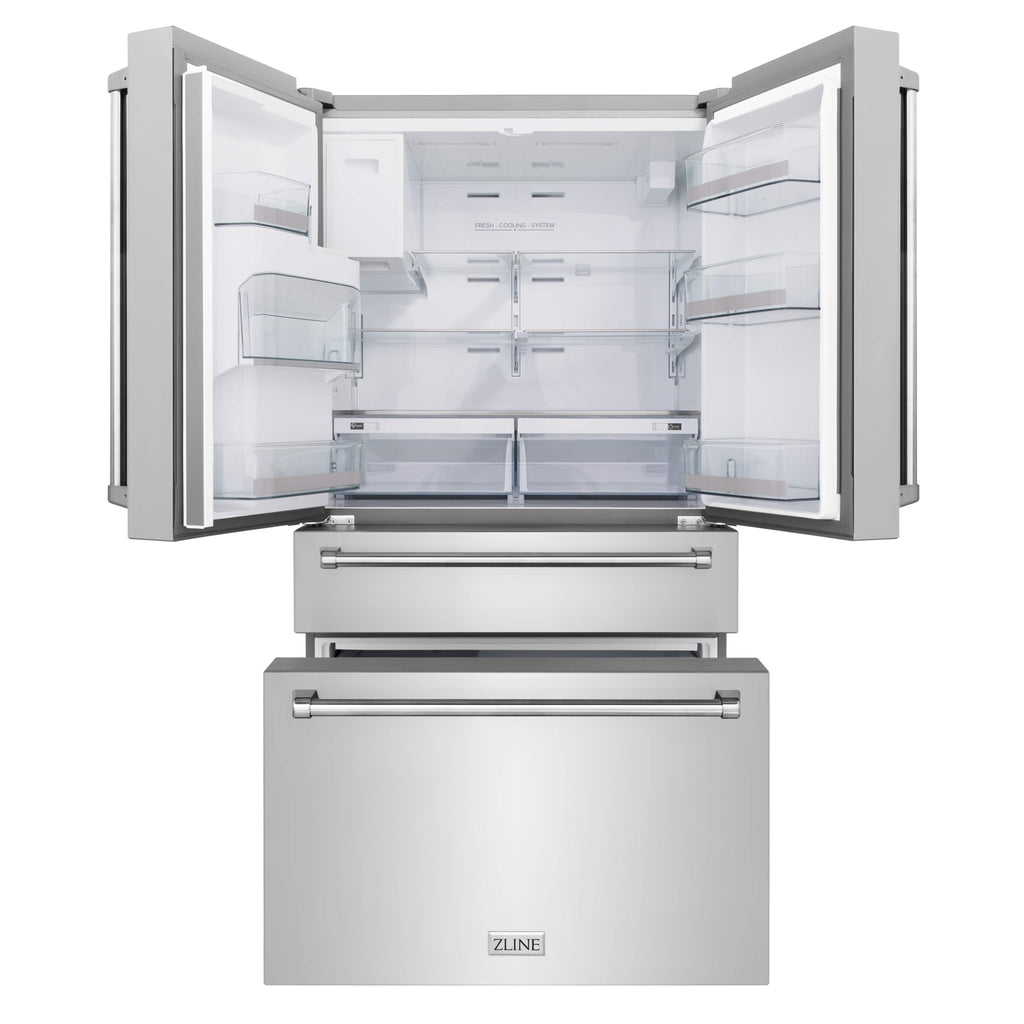

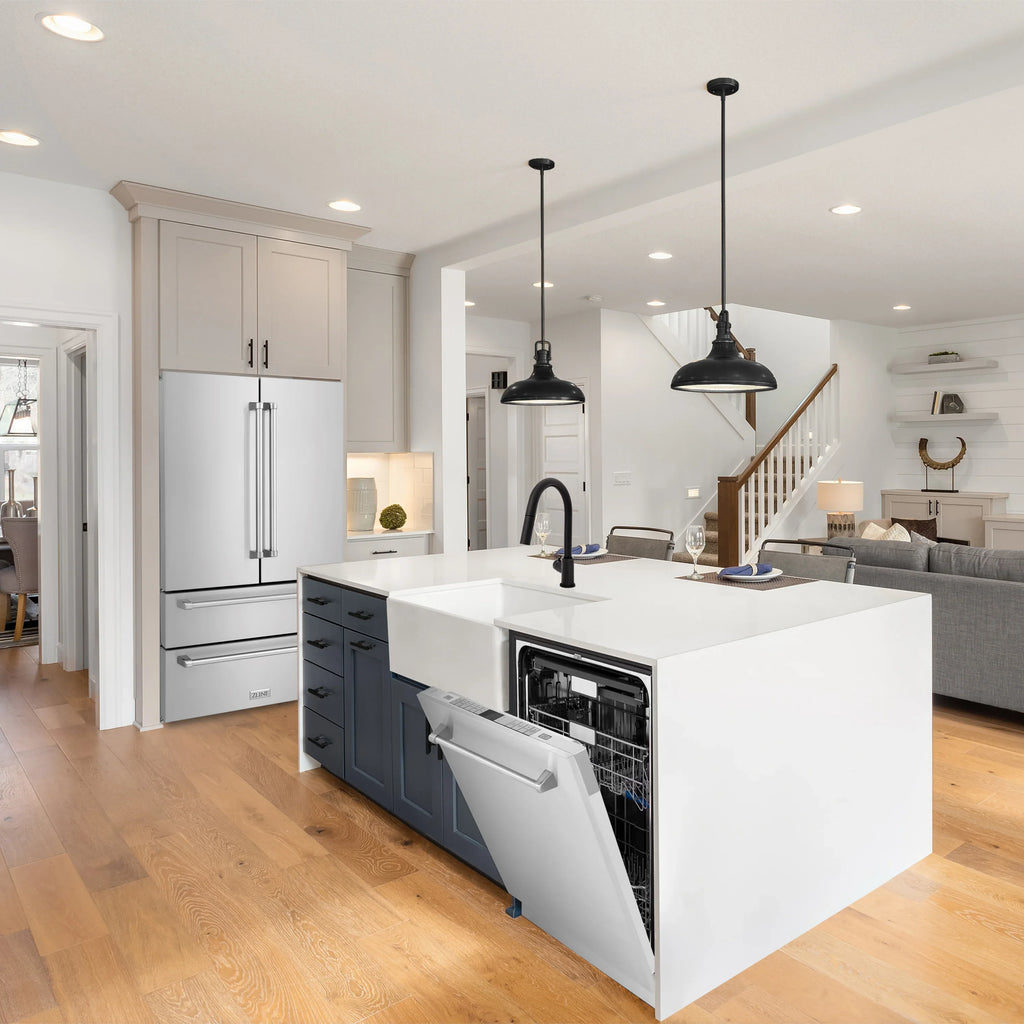

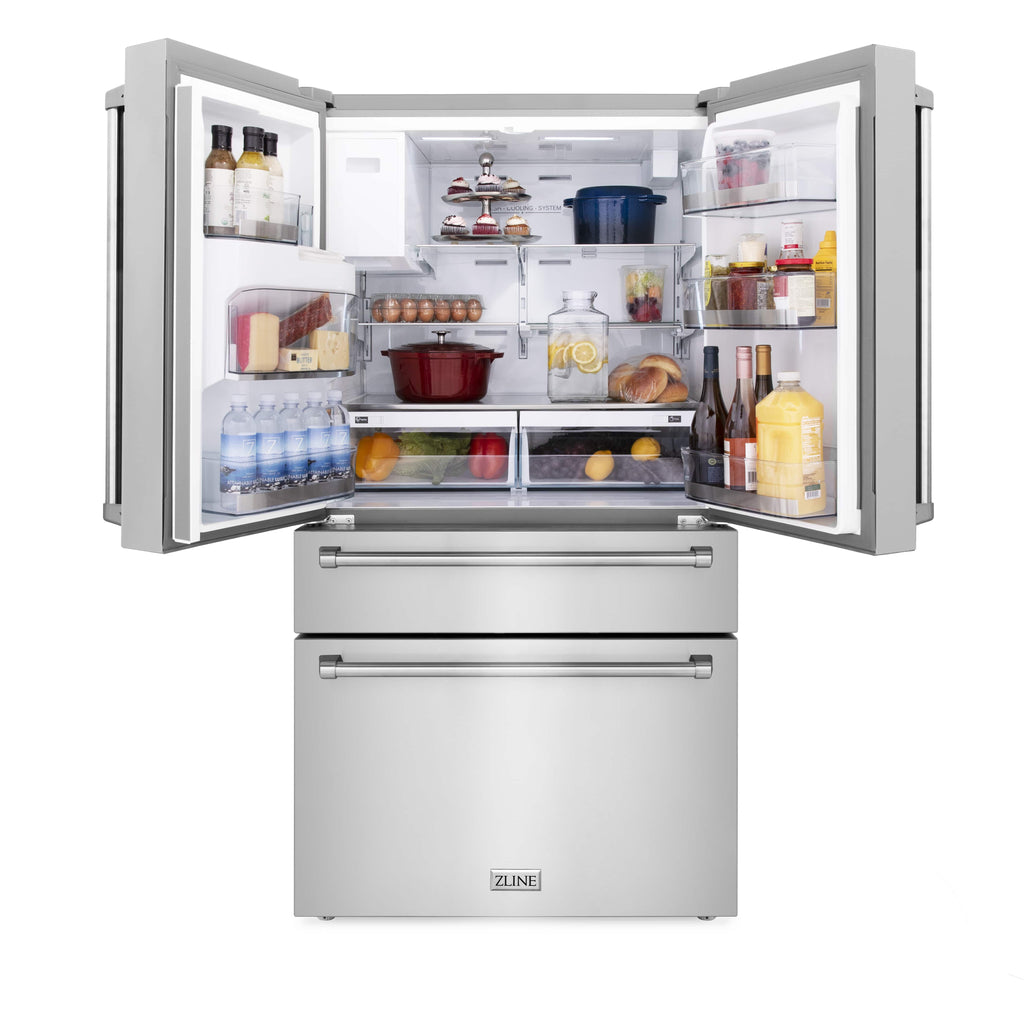

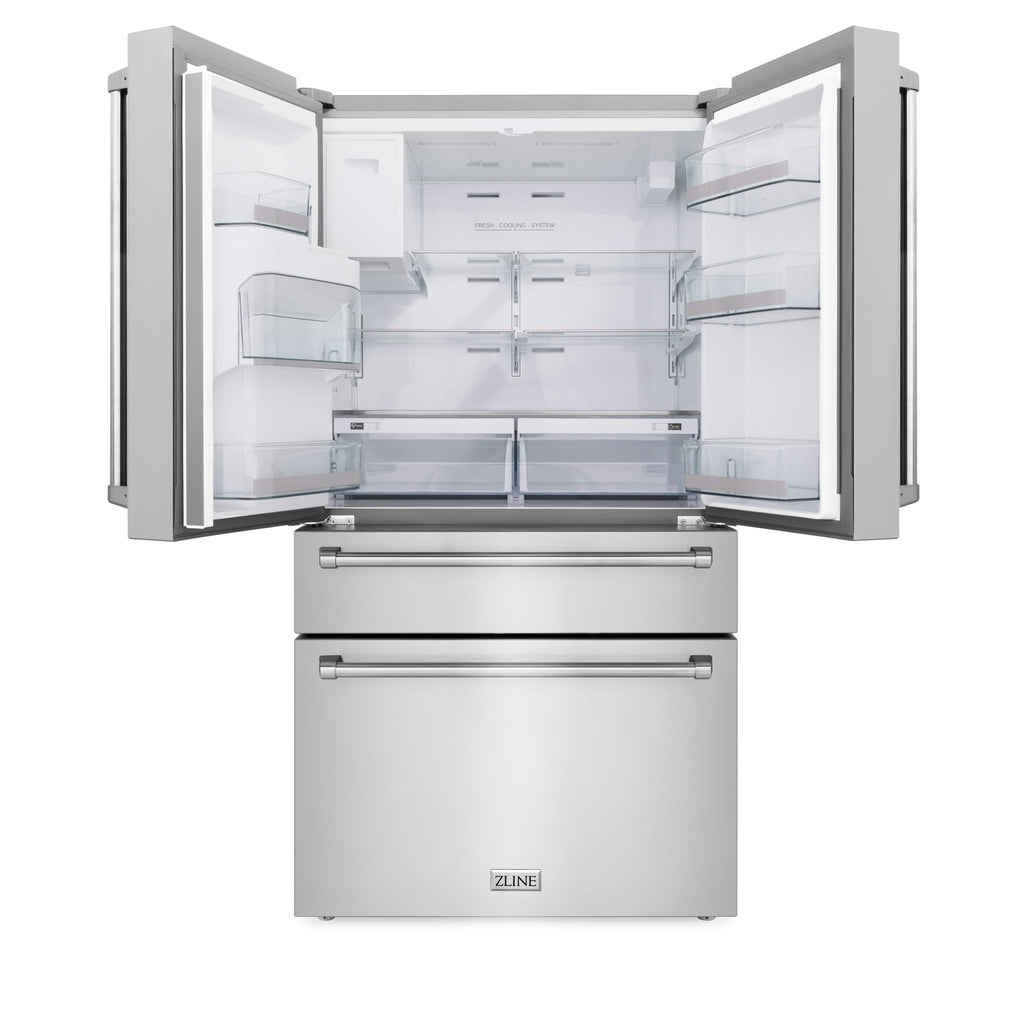

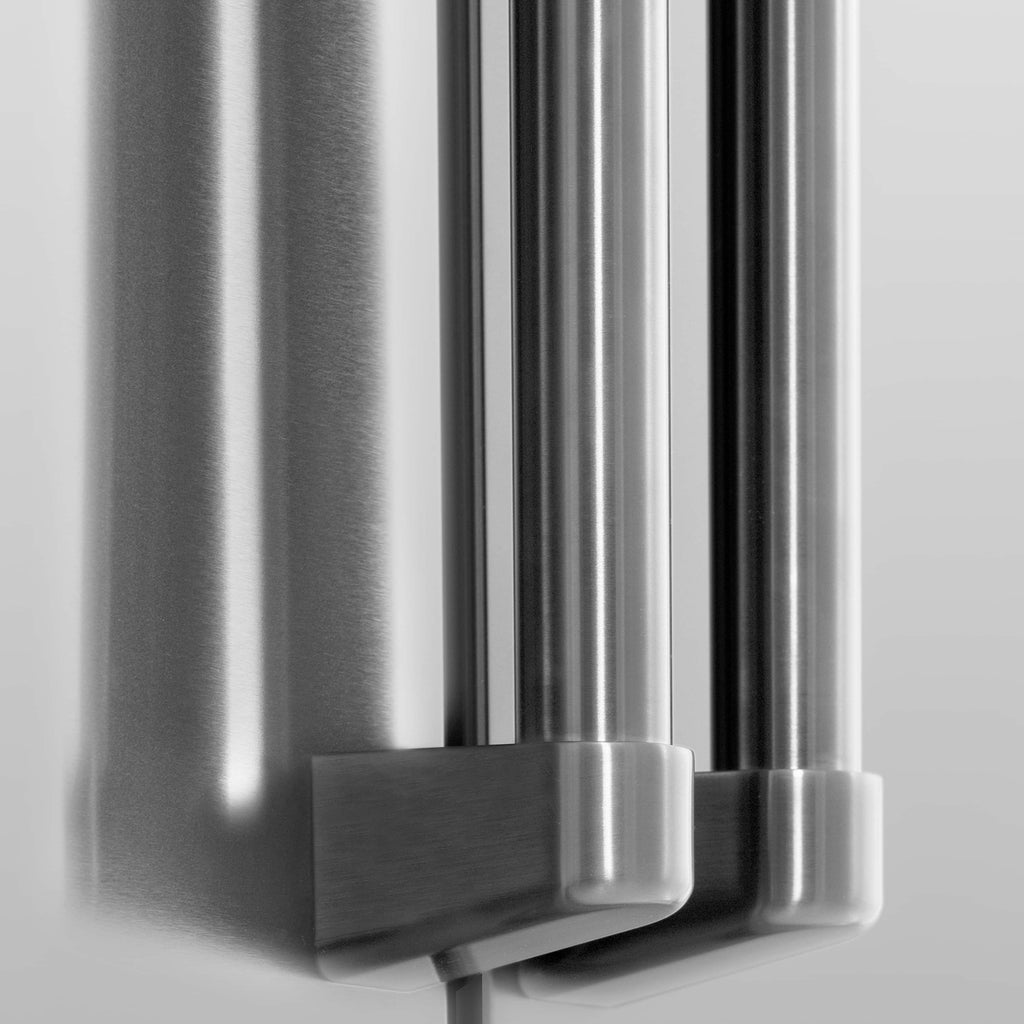

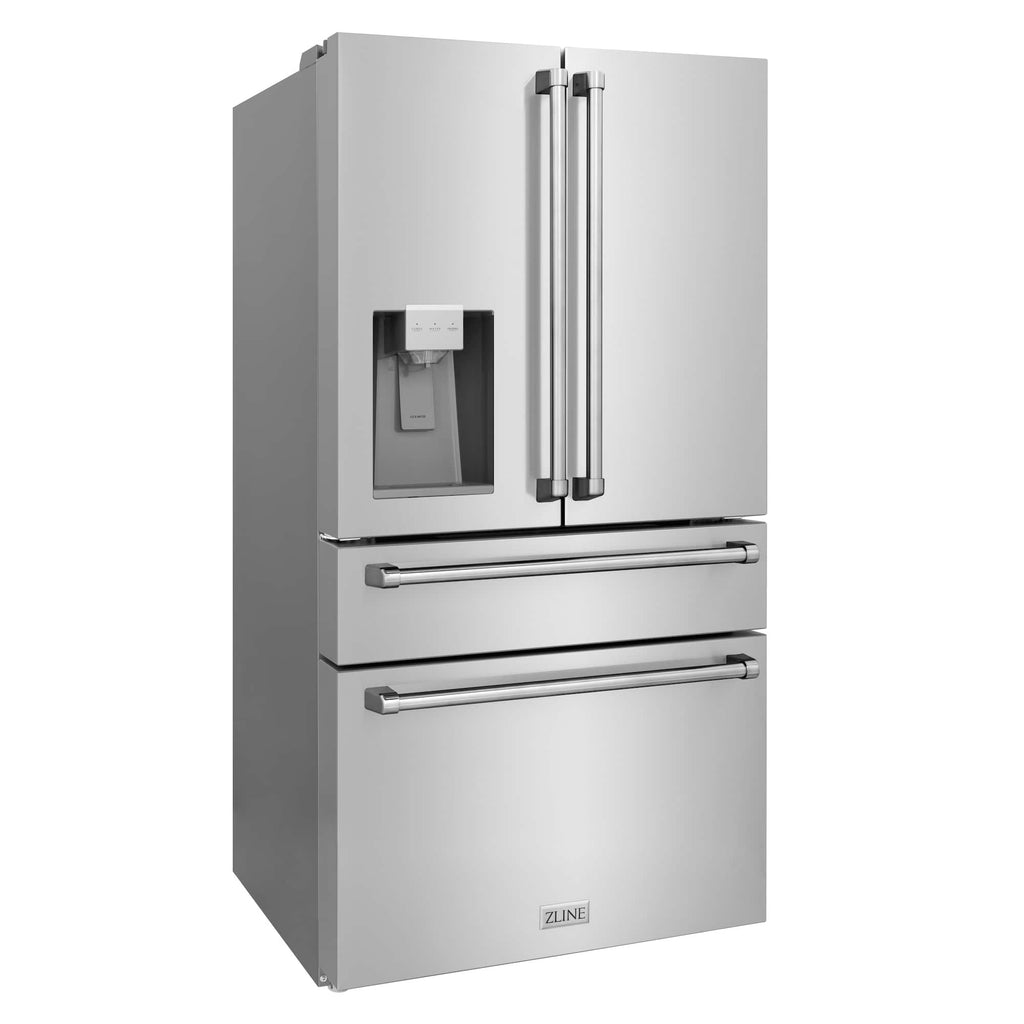

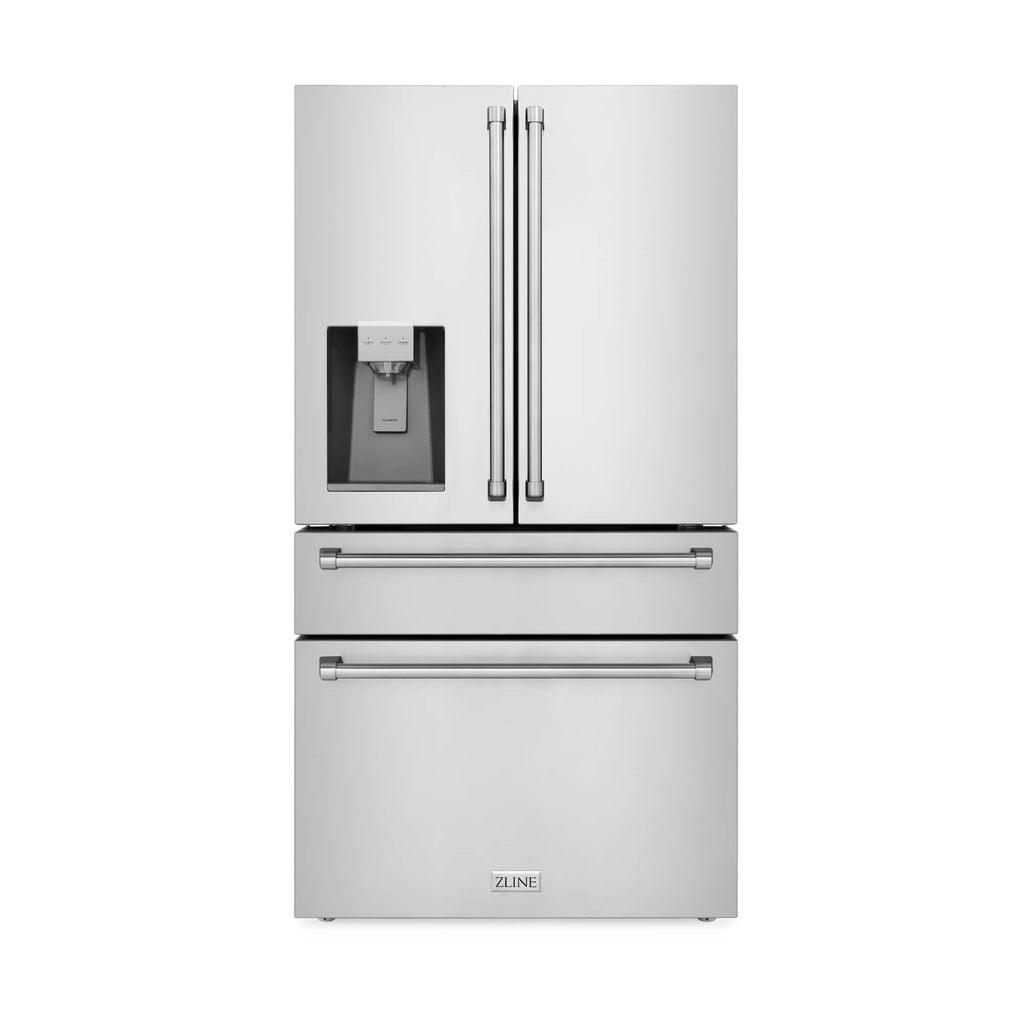

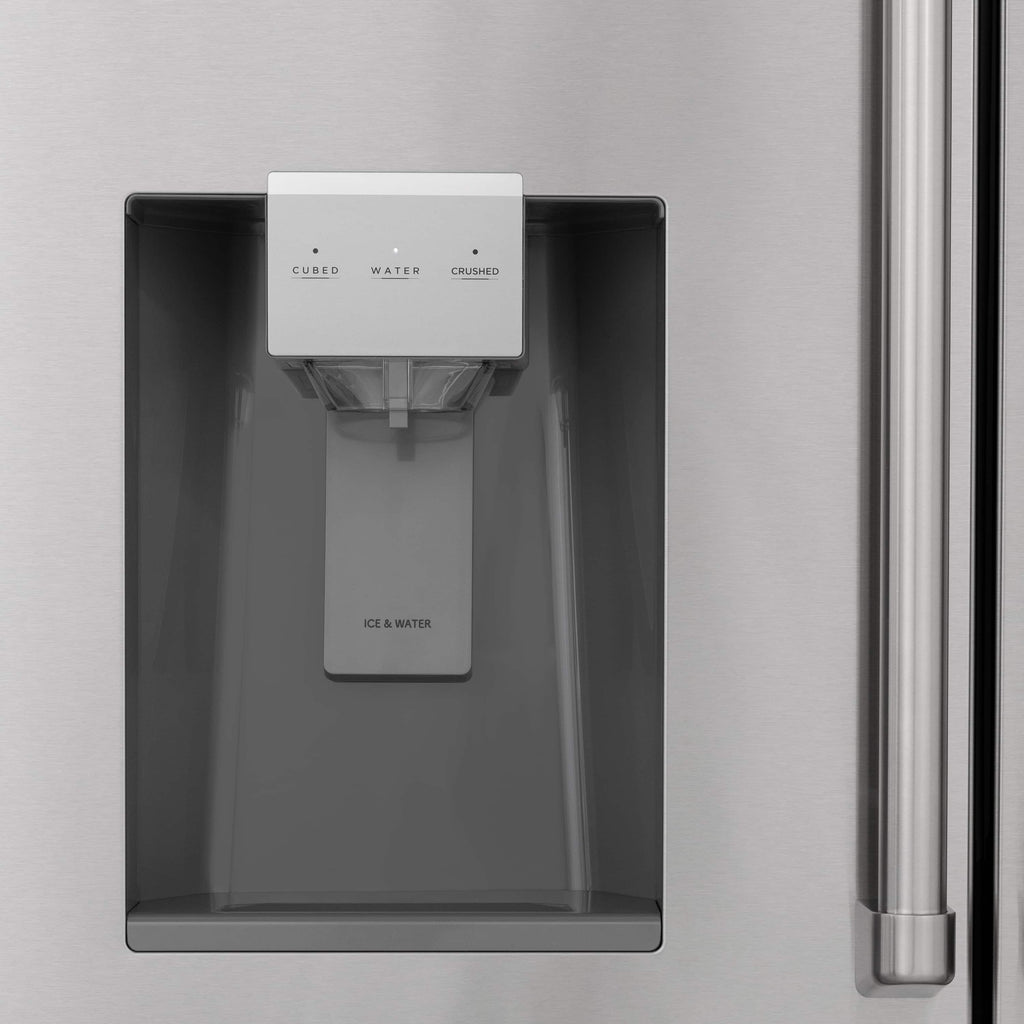

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel (RFM-W-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

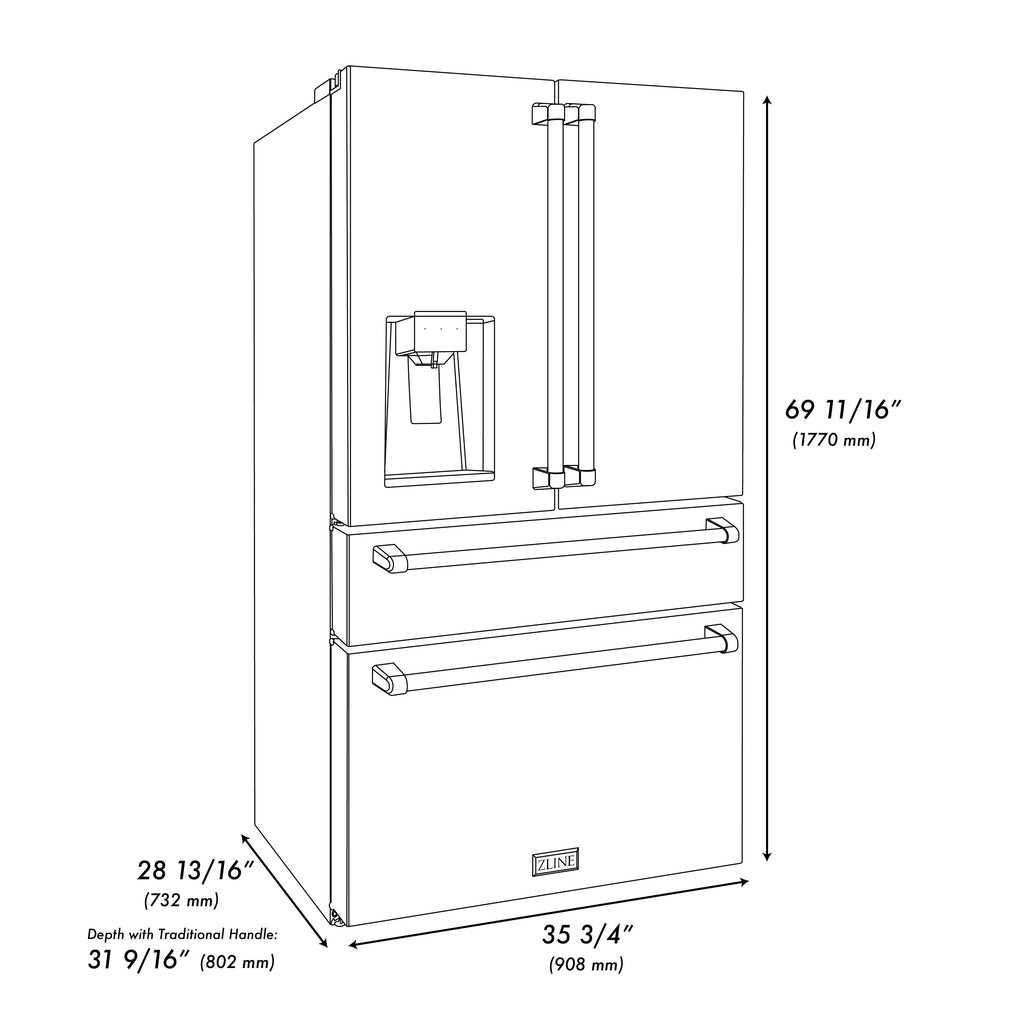

Dimensions: | 35.75 in. W x 28.8125 in. D x 69.6875 in. H |
Total Capacity: | 21.6 cu. ft |
Fridge Capacity: | 15.04 cu. ft |
Freezer Capacity: | 6.6 cu. ft |
Flex Drawer Capacity: | 2.6 |

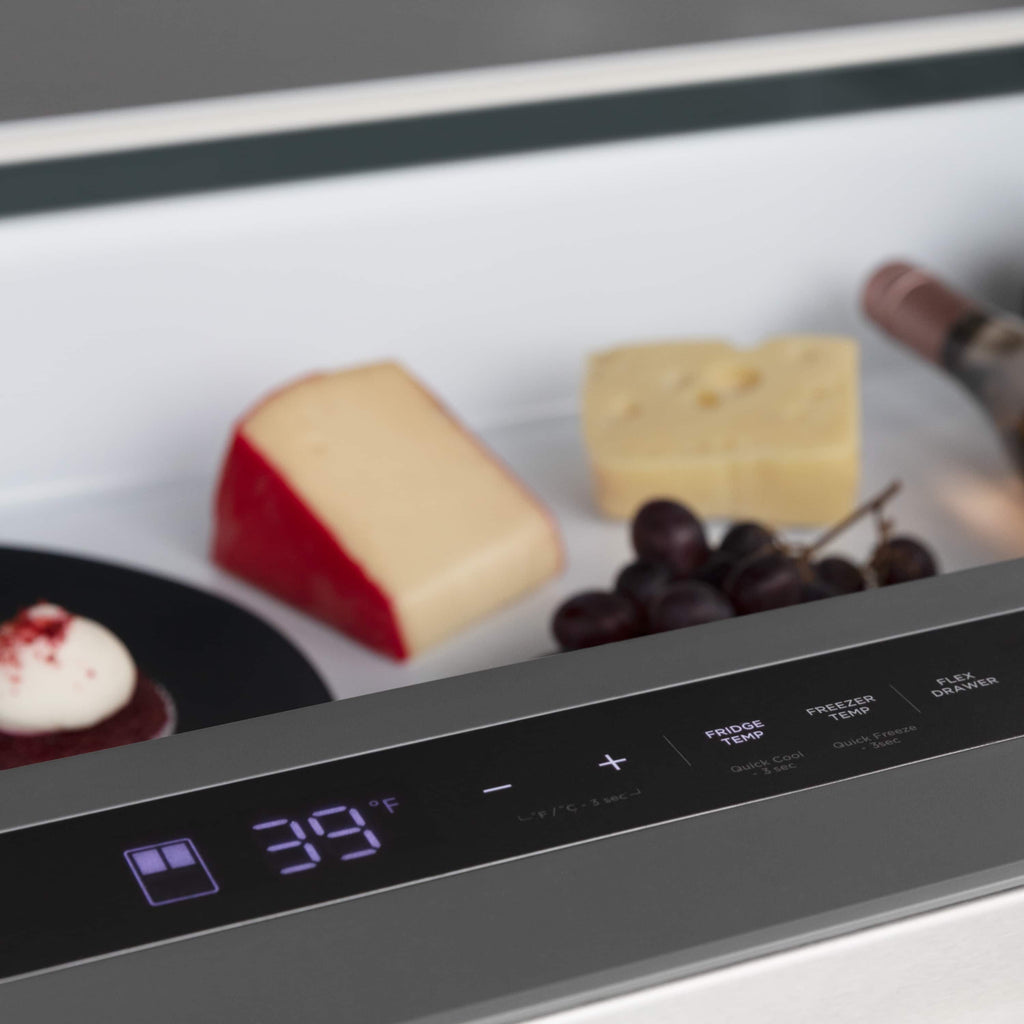

Flex Drawer Temp Controls: | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
Installation Depth: | 29 in. D |
Depth with Door Open: | 43 in. |
Ice Maker: | Yes |
Ice Maker Types: | Single Ice Maker |
Ice Amount Per Day: | 4.85 lbs |
Ice Tray Storage: | N/A |
Water Dispenser: | Yes |
Flow rate for Water Dispenser: | .5 GPM |
Fridge Lights: | 4 |

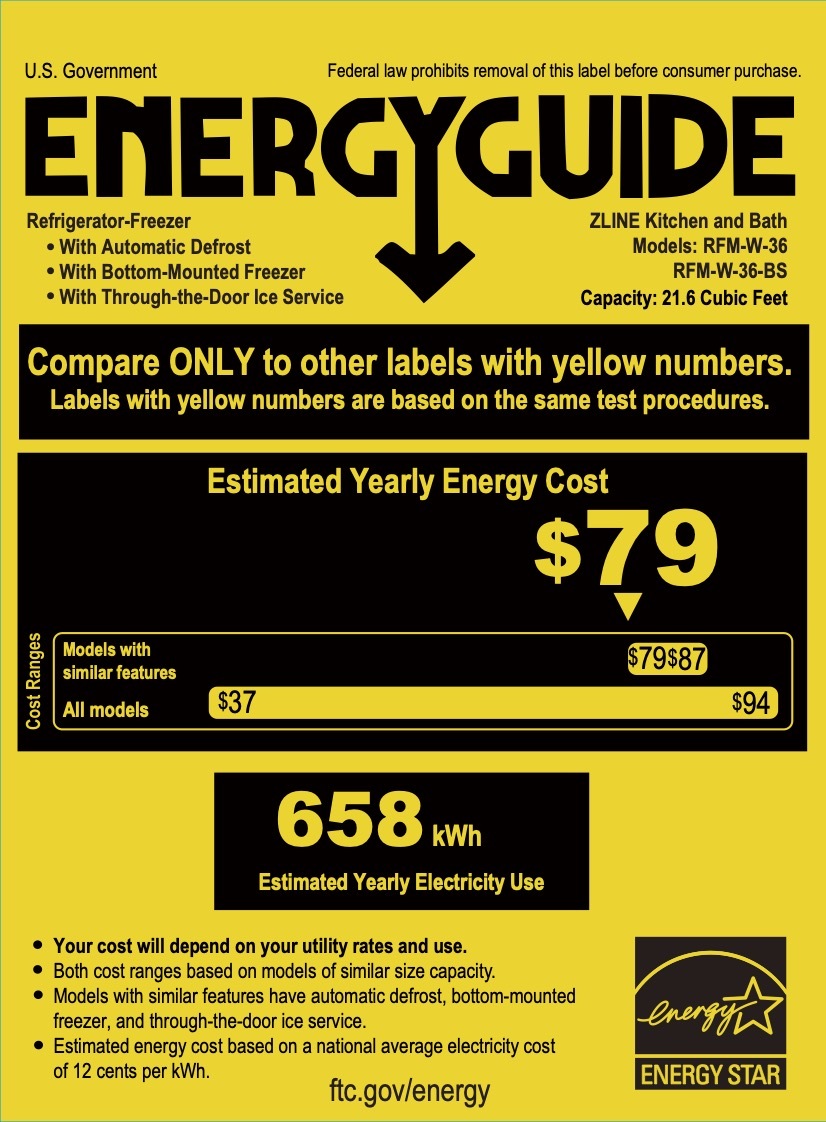

Energy Star: |
Yes |
Energy Consumption (kWh/year) | 658 |
Voltage: | 120V/60Hz |
Amps: | 3 |
Noise Level: | 43 Decibels |

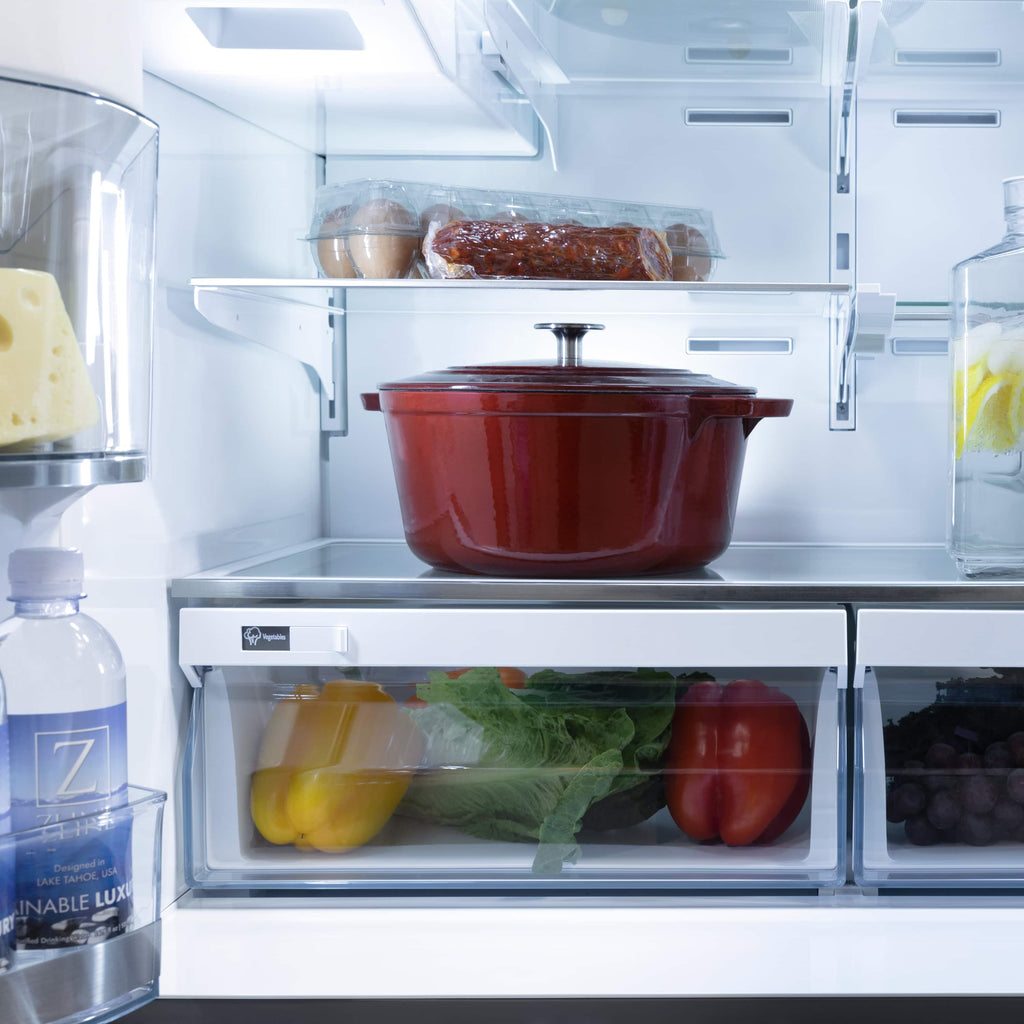

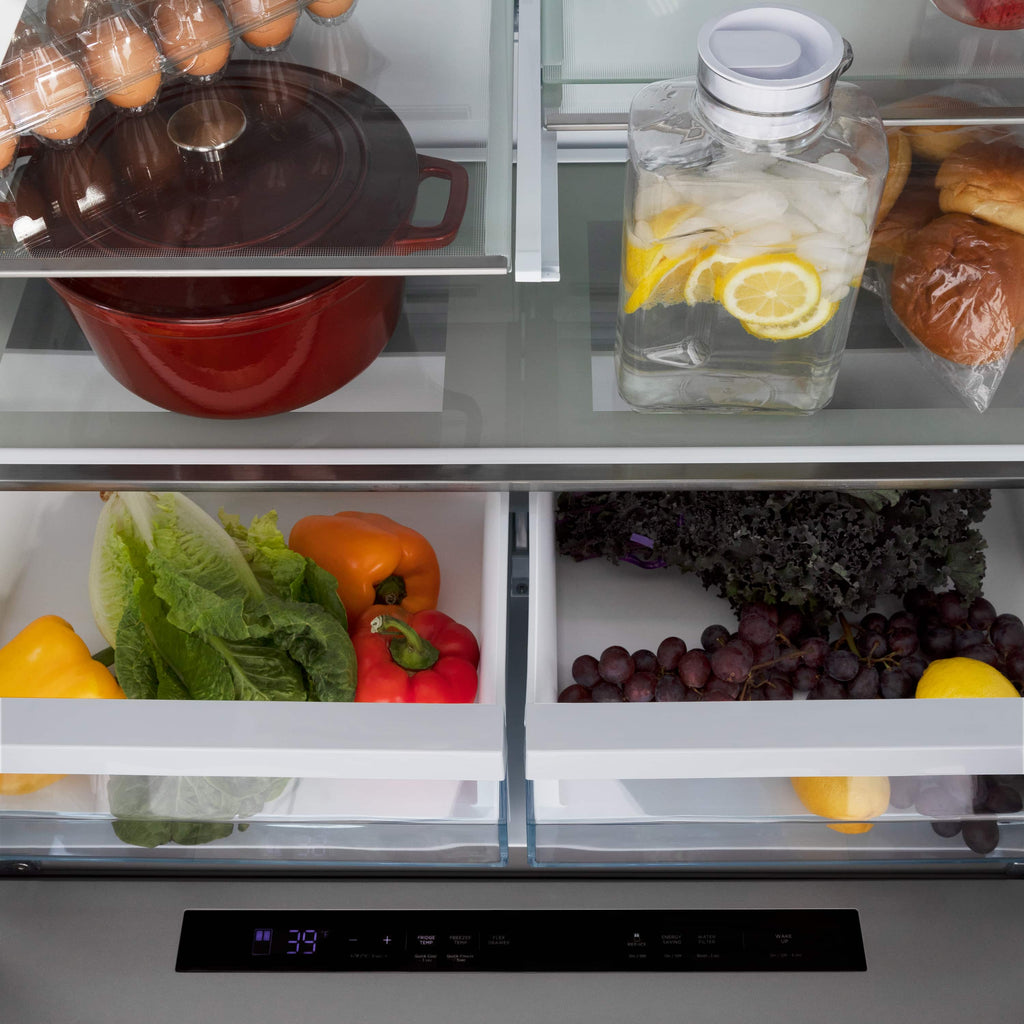

Humidity-Controlled Crispers: | 2 |
Freezer Drawer Bins: | 2- Pull Out Drawers |
Door Shelves: | 4 |
Number of Fridge Shelves: | 4 |
Mount Type: | Freestanding |
Certifications: | ETL Listed, ENERGY STAR certified |
Material: | Stainless Steel |
Warranty |
1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
Weight | 284.4 lbs |
Luxury isn’t meant to be desired - it’s meant to be attainable.

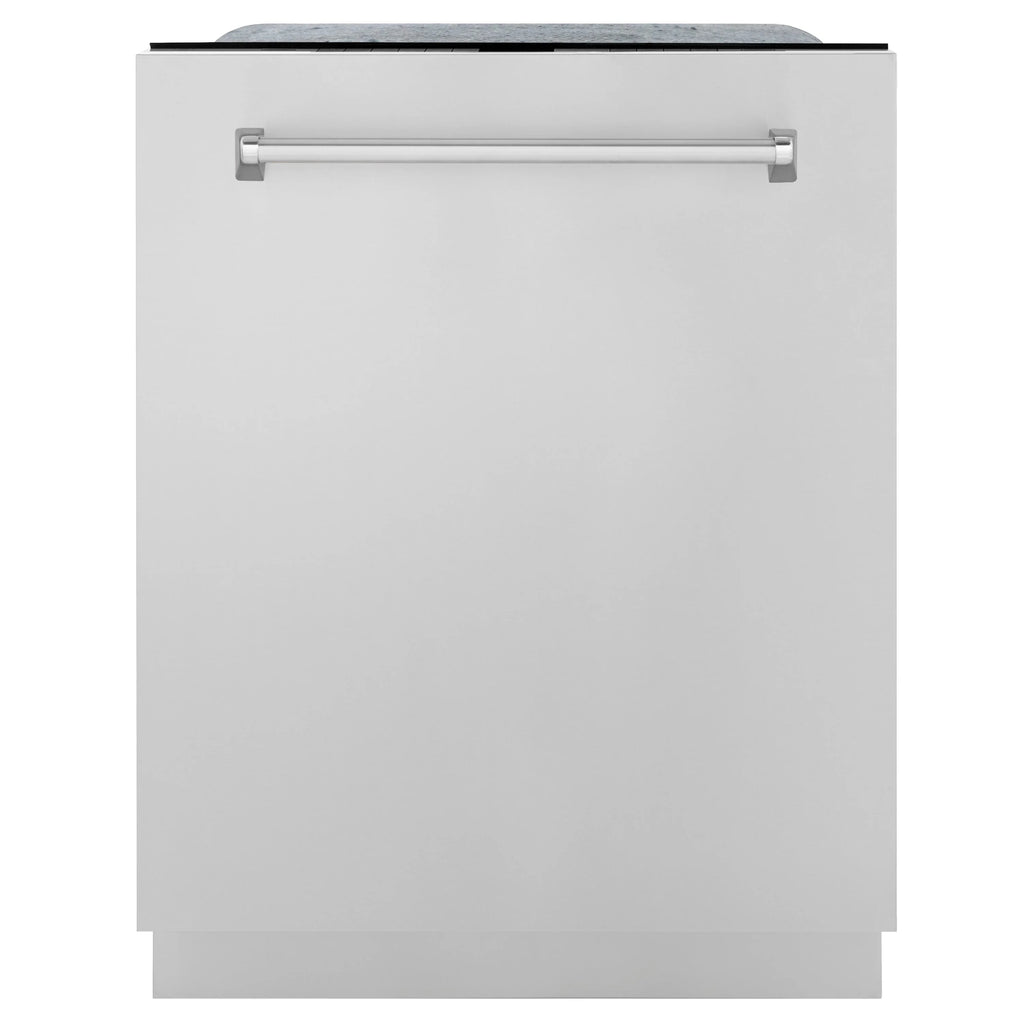

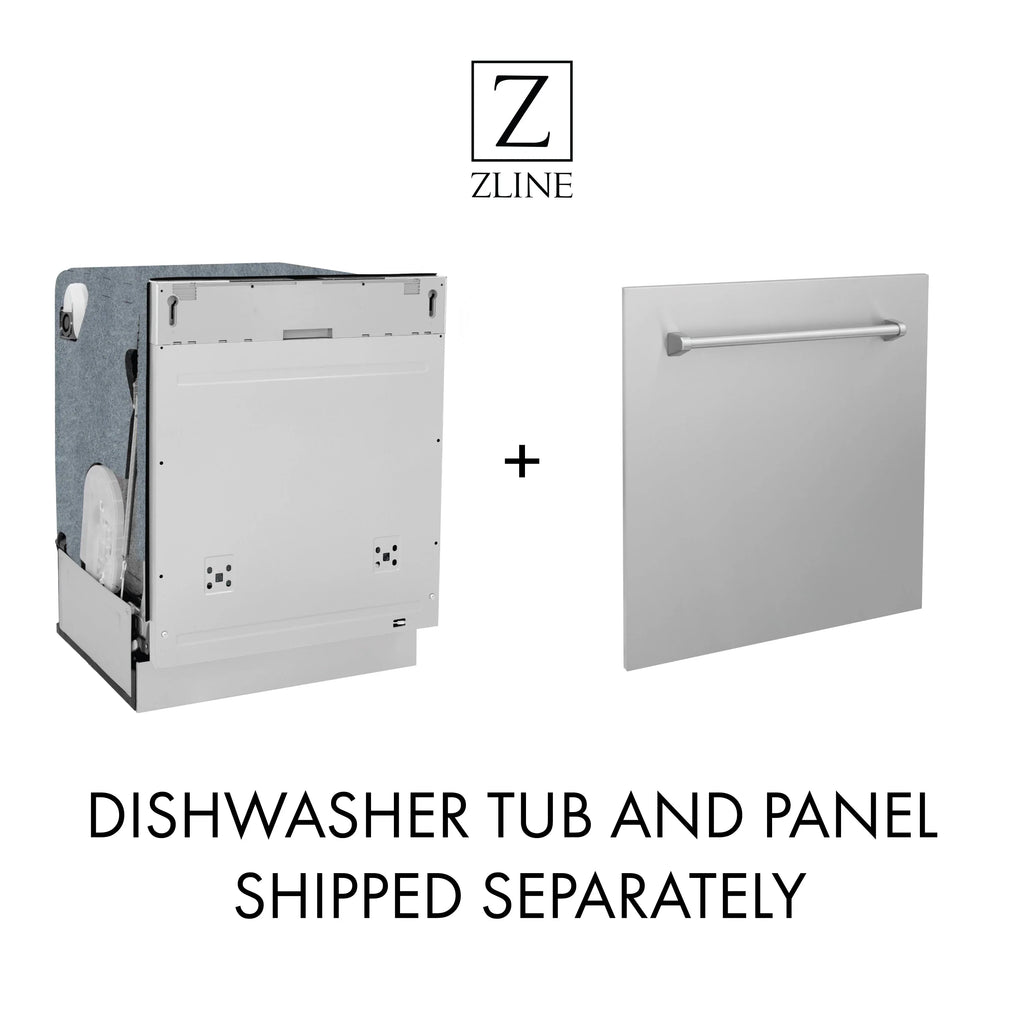

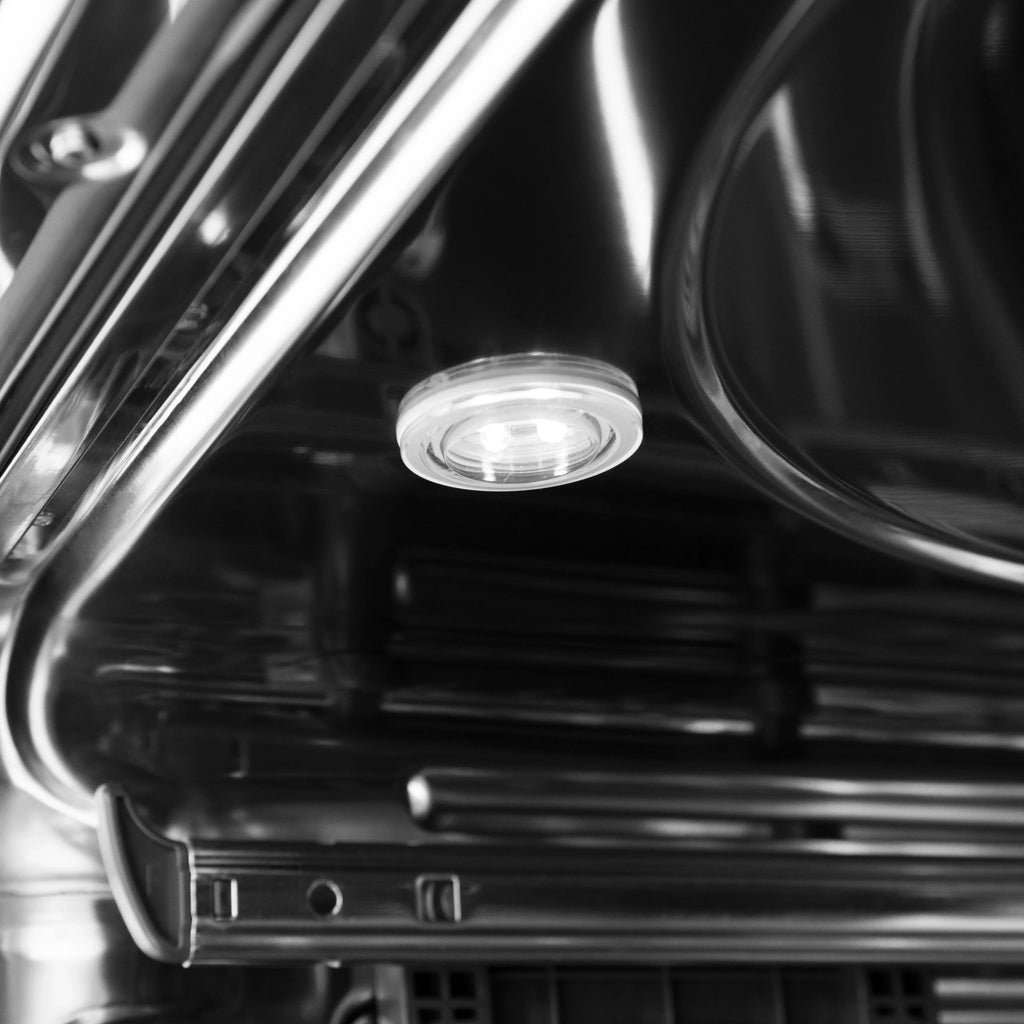

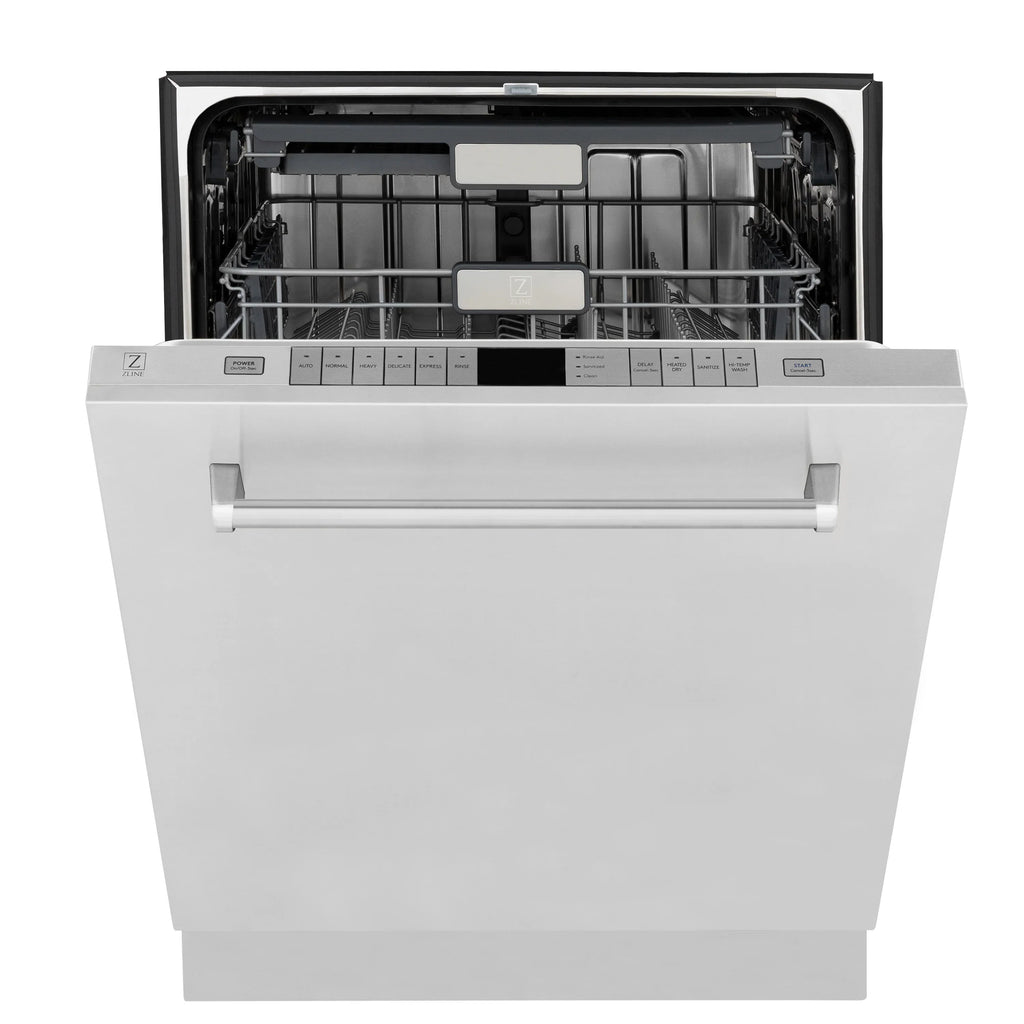

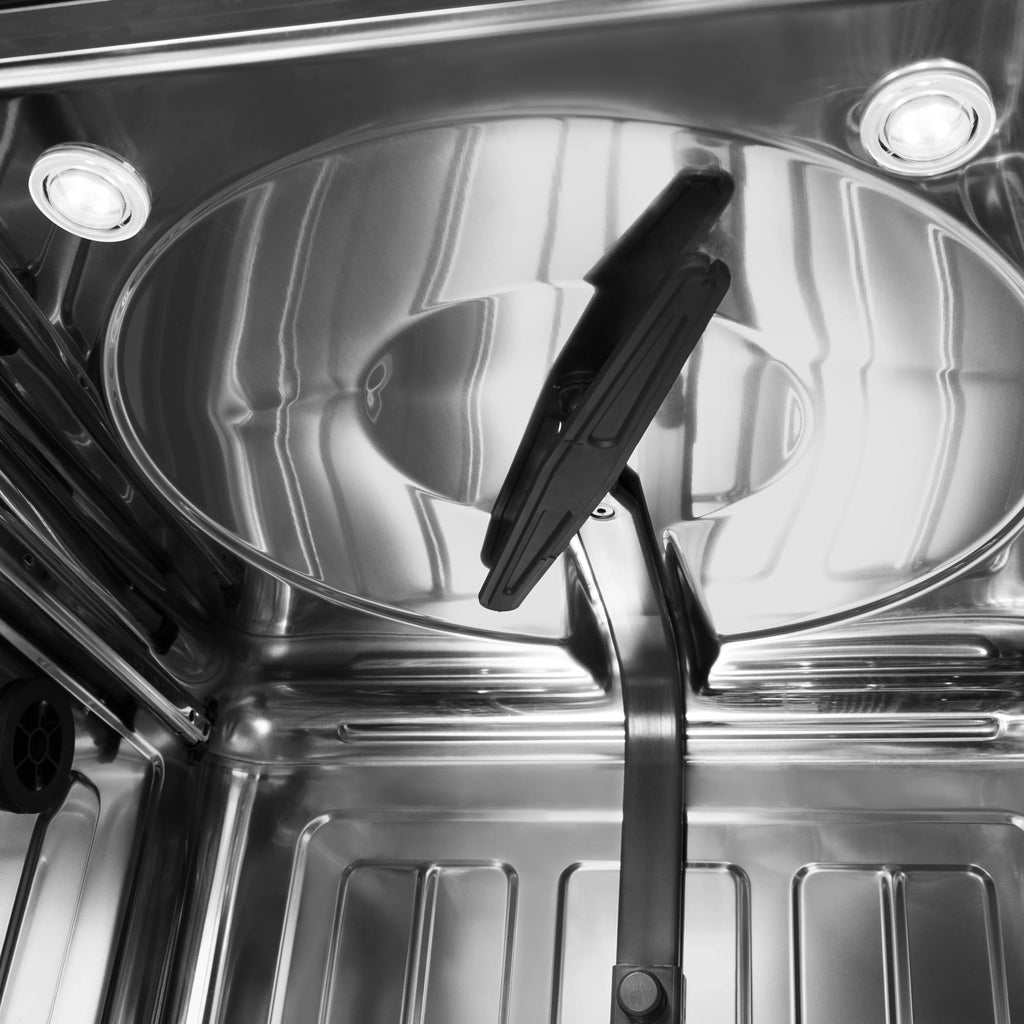

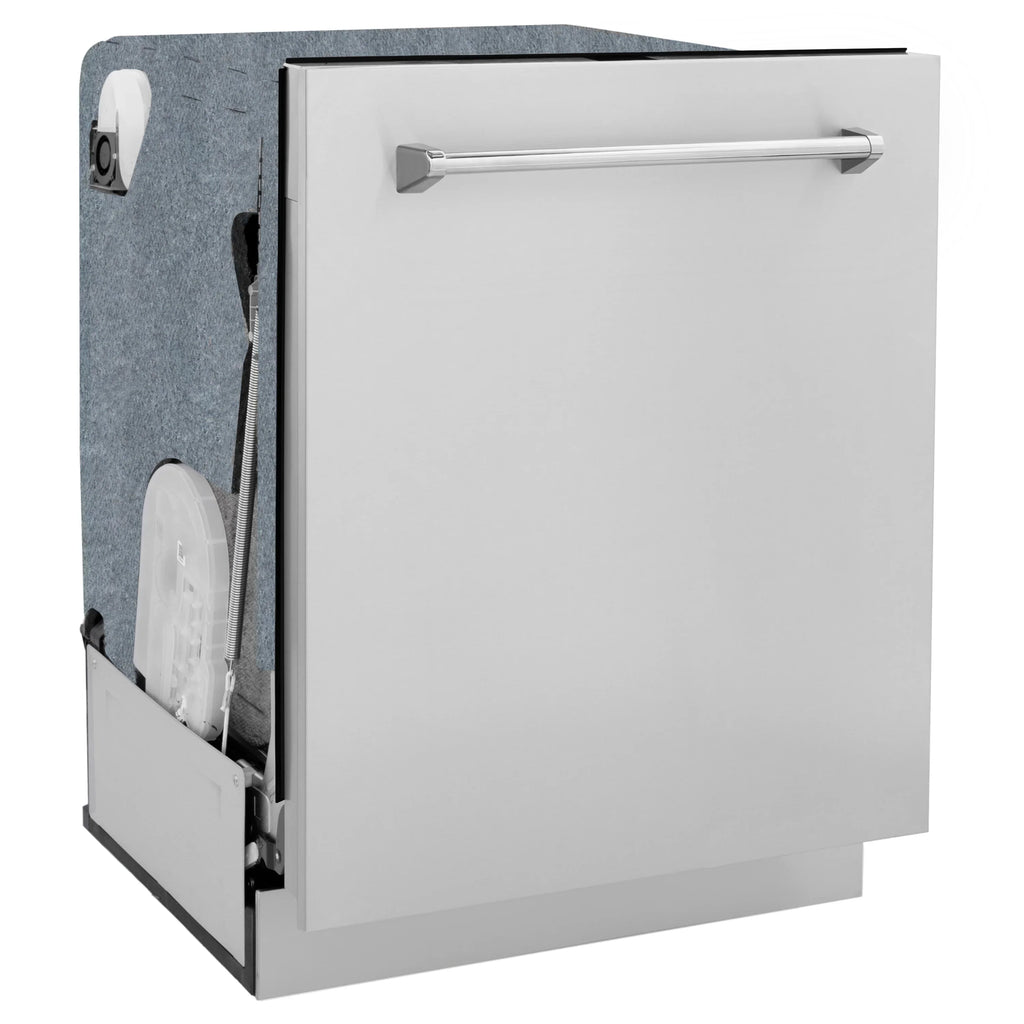

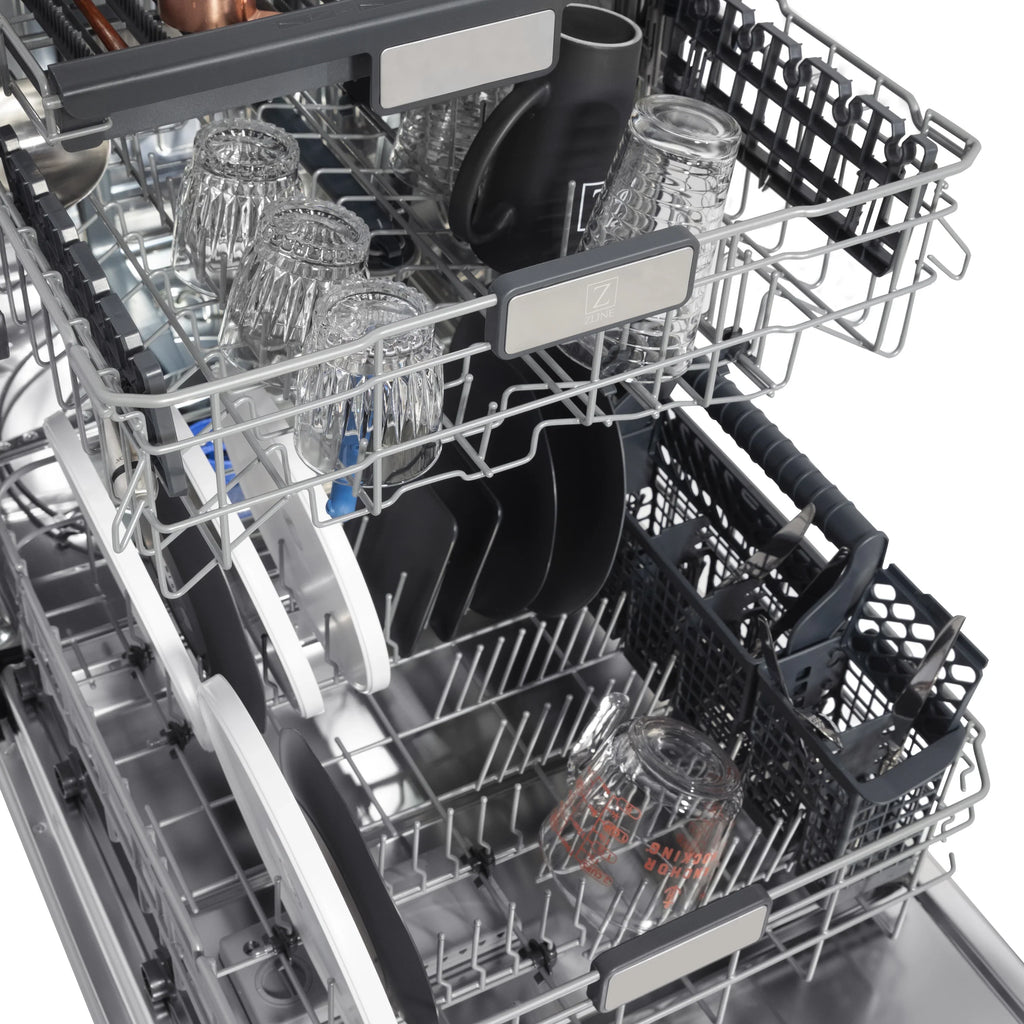

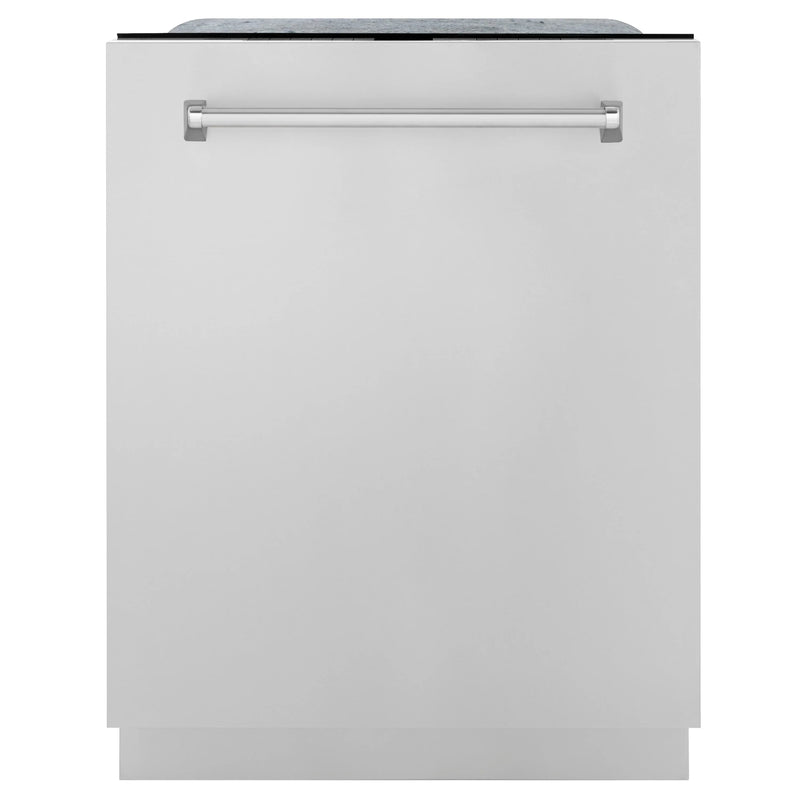

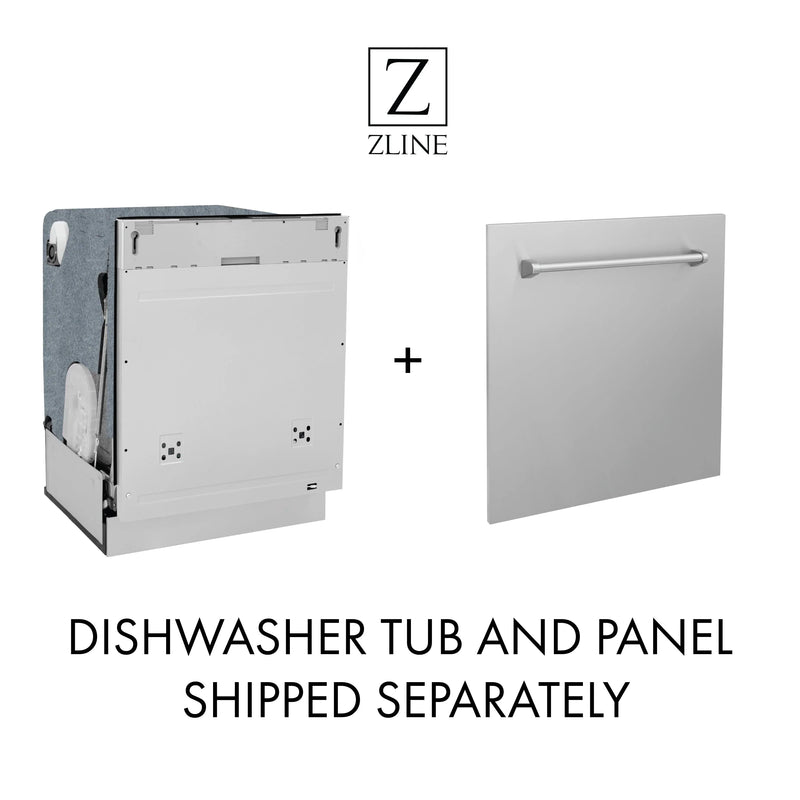

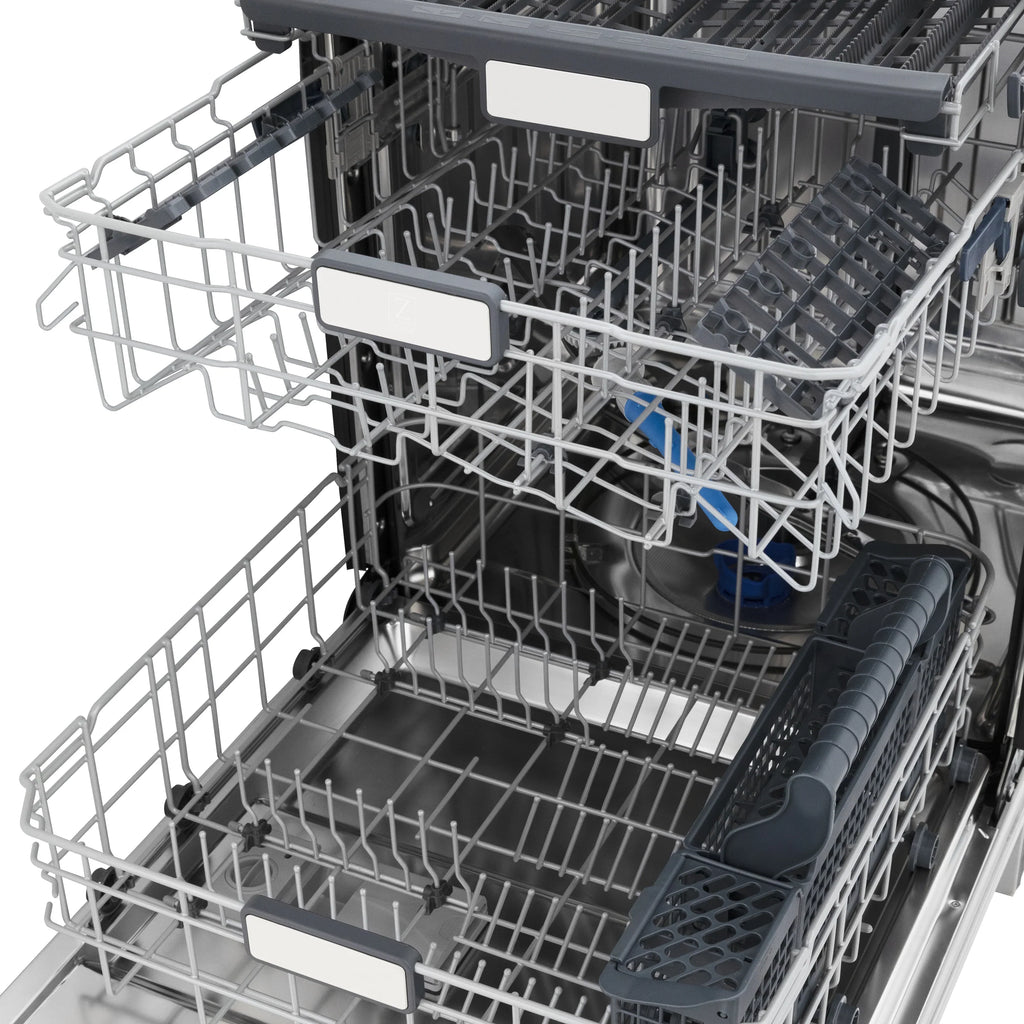

Designed in Lake Tahoe, USA, the ZLINE 24" Monument Series 3rd Rack Top Touch Control Dishwasher in Stainless Steel with Stainless Steel Tub, 45dBa provides a professional culinary experience by pairing unmatched performance with timeless style.
Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
Please Note:
Brand | ZLINE Kitchen and Bath |
Product Type | Tall Tub Style Dishwasher |

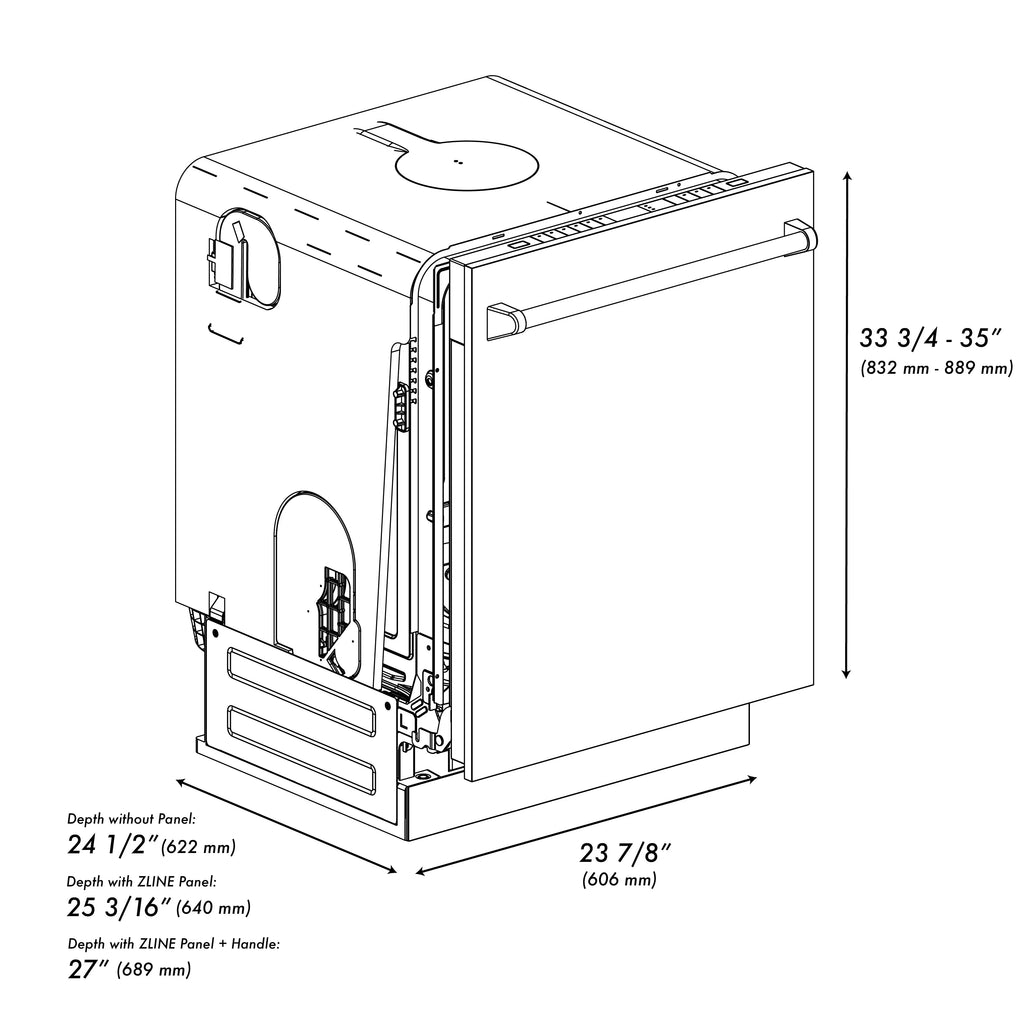

Product Dimensions Minimum Height | 23.875 in. W x27 in. D x 33.75 in. H |
Product Dimensions Maximum Height | 23.875 in. W x27 in. D x 35 in. H |
Cut Out Dimensions | 24 in. W x 25 in. D x 34 in. H |
Weight | 109.6 lbs |
Voltage | 120vac |
Frequency (Hz) | 60Hz |
Dedicated Circuit | 15A |
Rated Current (Amps) | 8.4A |
Motor Wattage | 120 |
Heater Wattage | 888 |
Motor Amperage | 1.0A |
Heater Amperage | 7.4A |

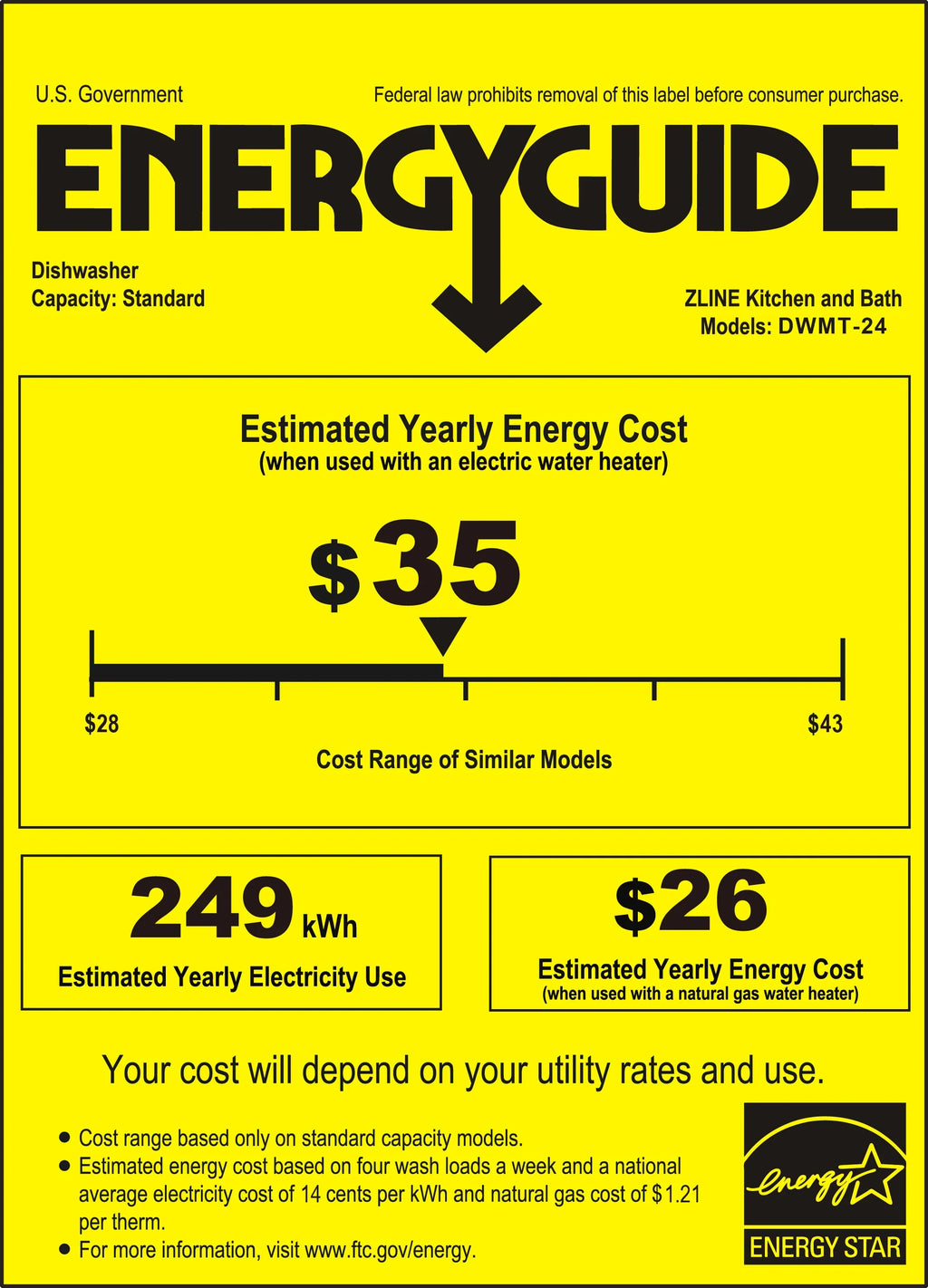

Energy Consumption Per Year (kWh) | 249 |
Water Consumption Per Cycle (Liters/Cycle) | 11.7 |
Water Consumption Per Cycle (Gallons) | 3.1 |
Hose Length (in.) | 56 |
Panel Ready? Y/N | N |
Panel Finish | 304 Grade Stainless Steel |
Handle Finish | Stainless Steel |
Drying System | Residual Heat Dry |
Control Location | Top Control |
Control Type | Touch Control |
Decibels | 45 |
Power Cord | Hardwired - Junction Box Included |
Installation Type | Direct Wired |

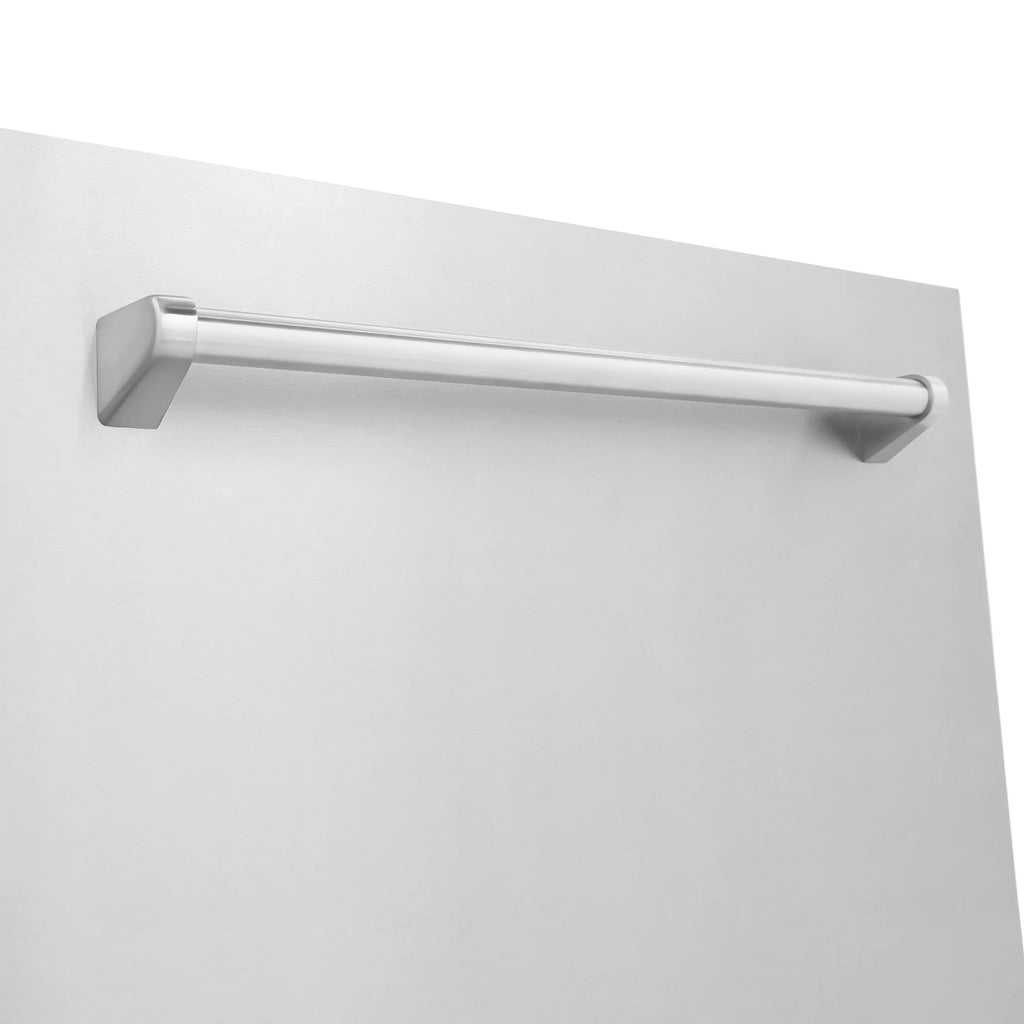

Handle Type | Bar Handle- Traditional Style |
Number of Cycles | 6 |
Programs | |
Number of Place Settings | 14 |
Max Plate Height (in.) | 13 |
Rack Material | Polypropelyne (PP) |

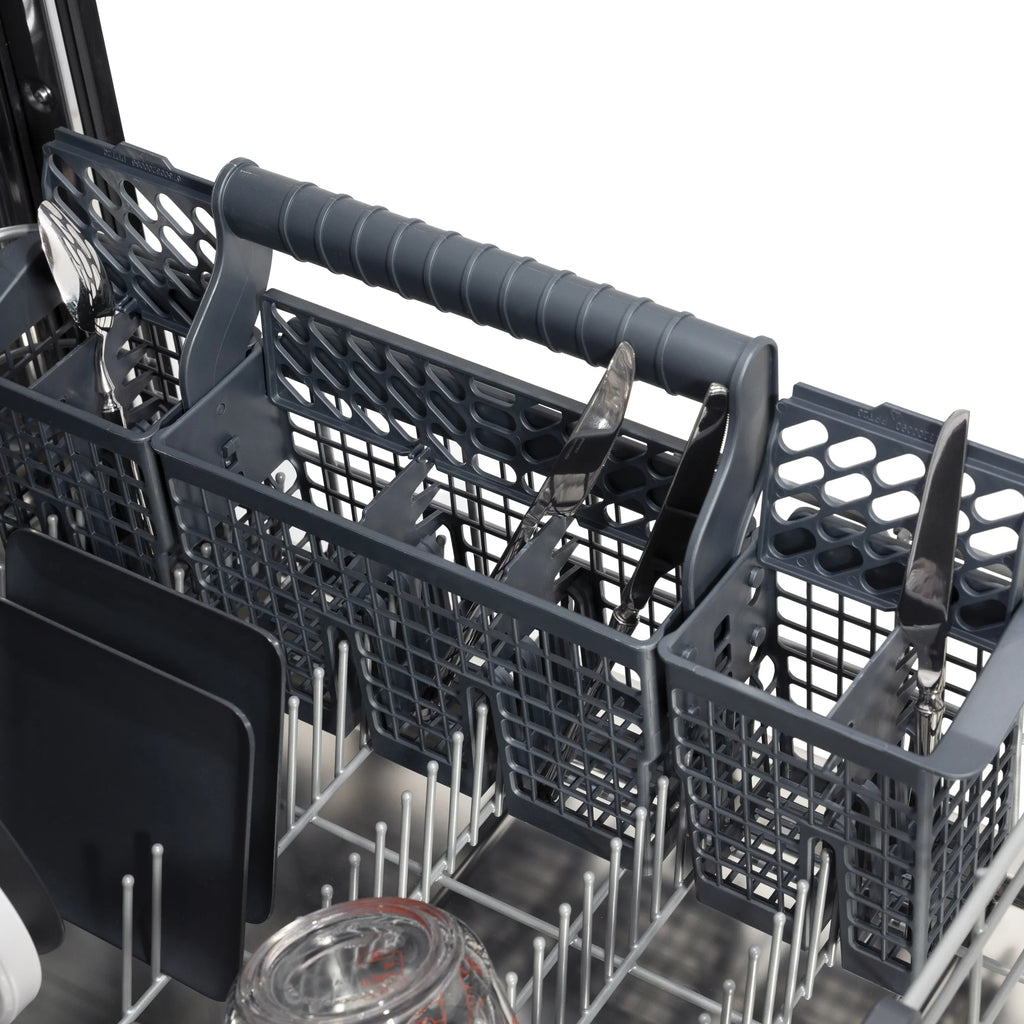

Silverware Basket Location | Bottom Rack Left |
Steam Function | Without Steam |
Tub Material | Stainless Steel Tub |
Certifications | Energy Star, CEC, UL |
Warranty | 1 Year Parts |

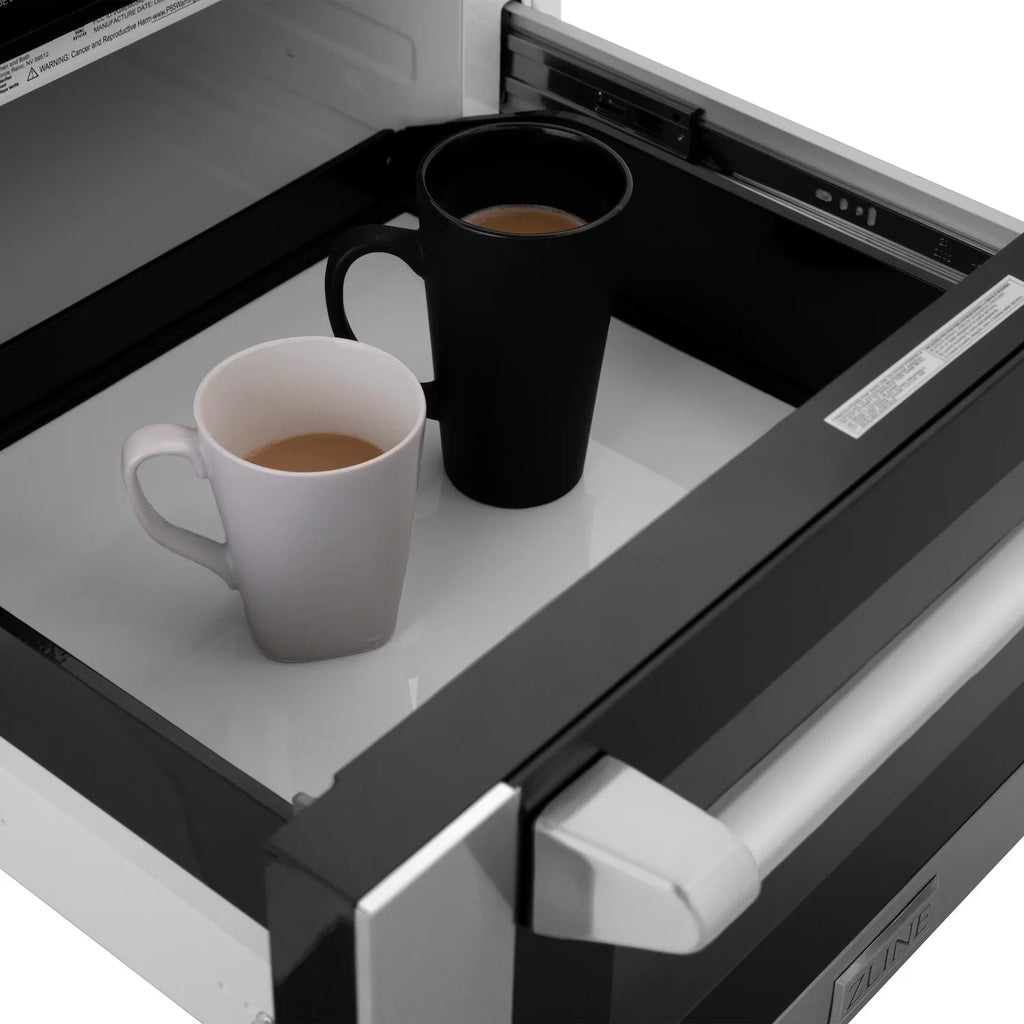

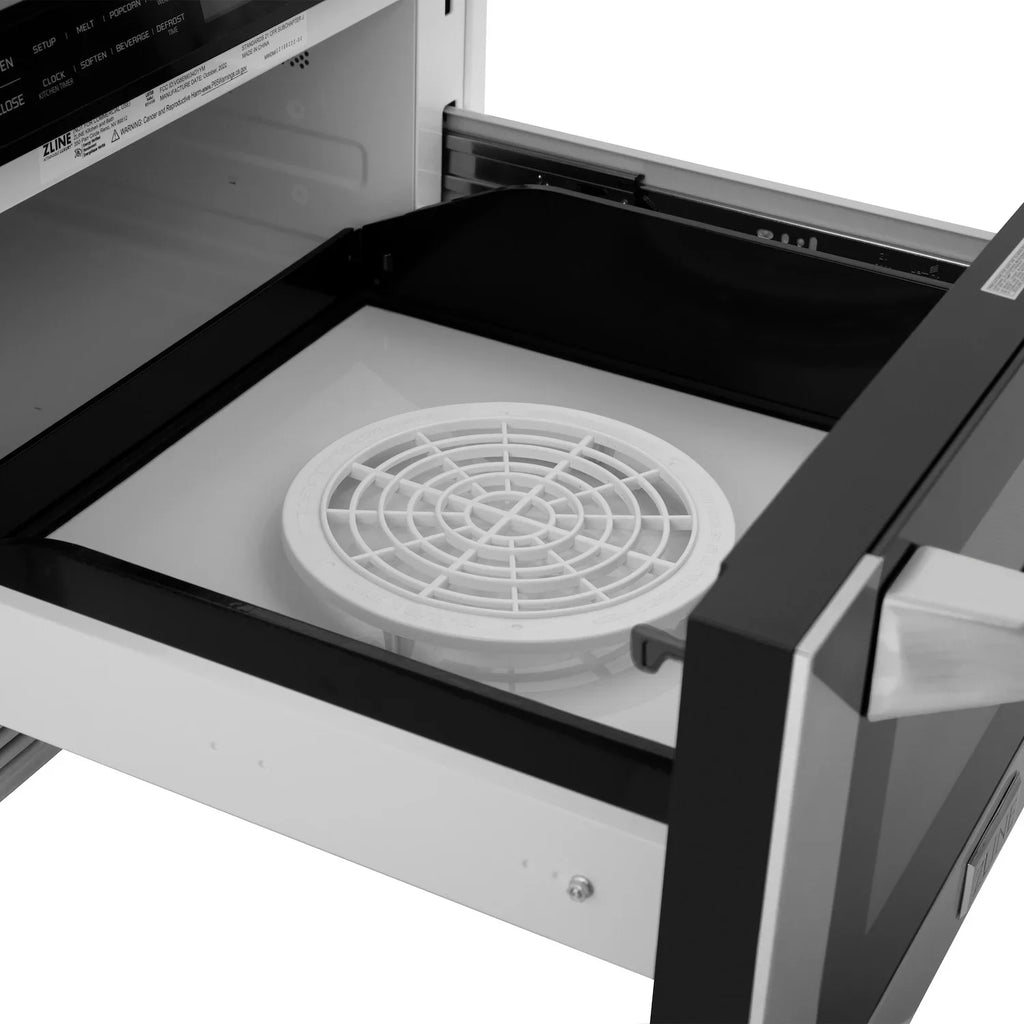

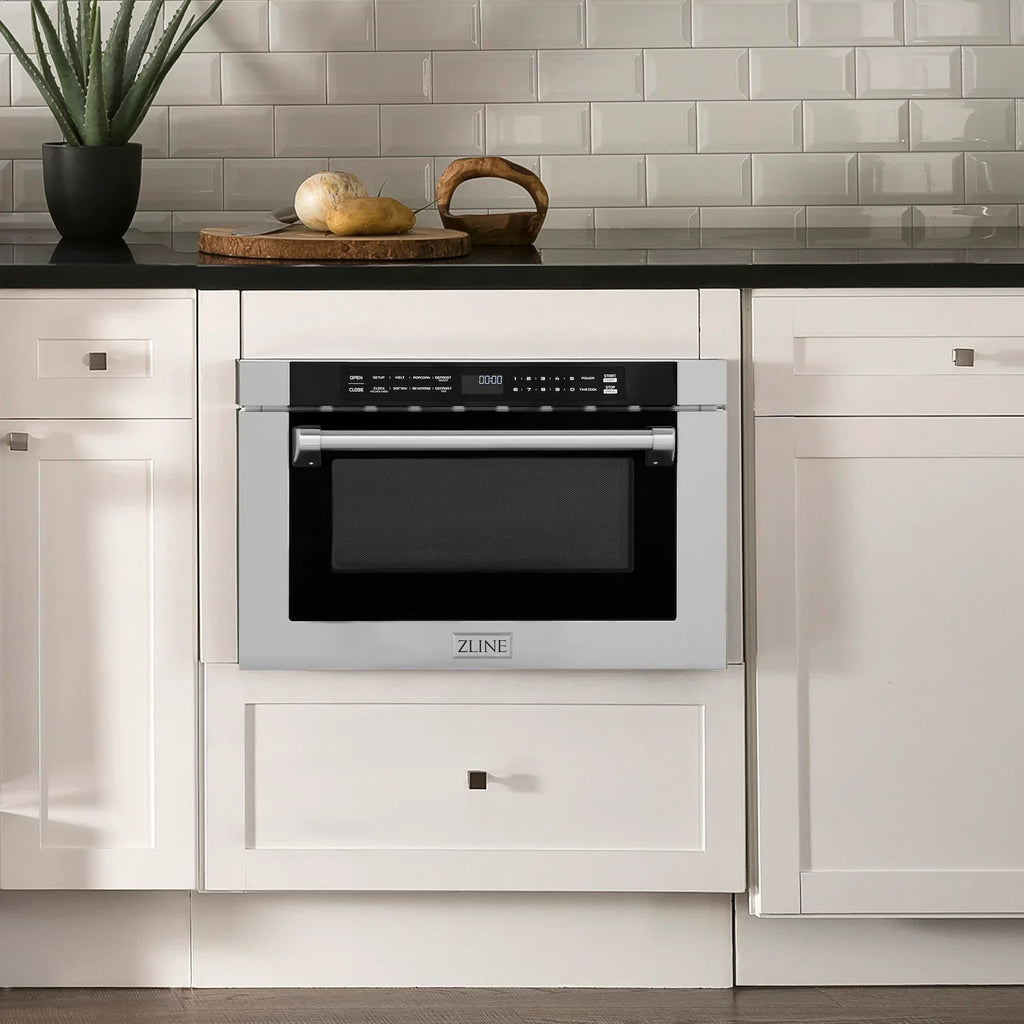

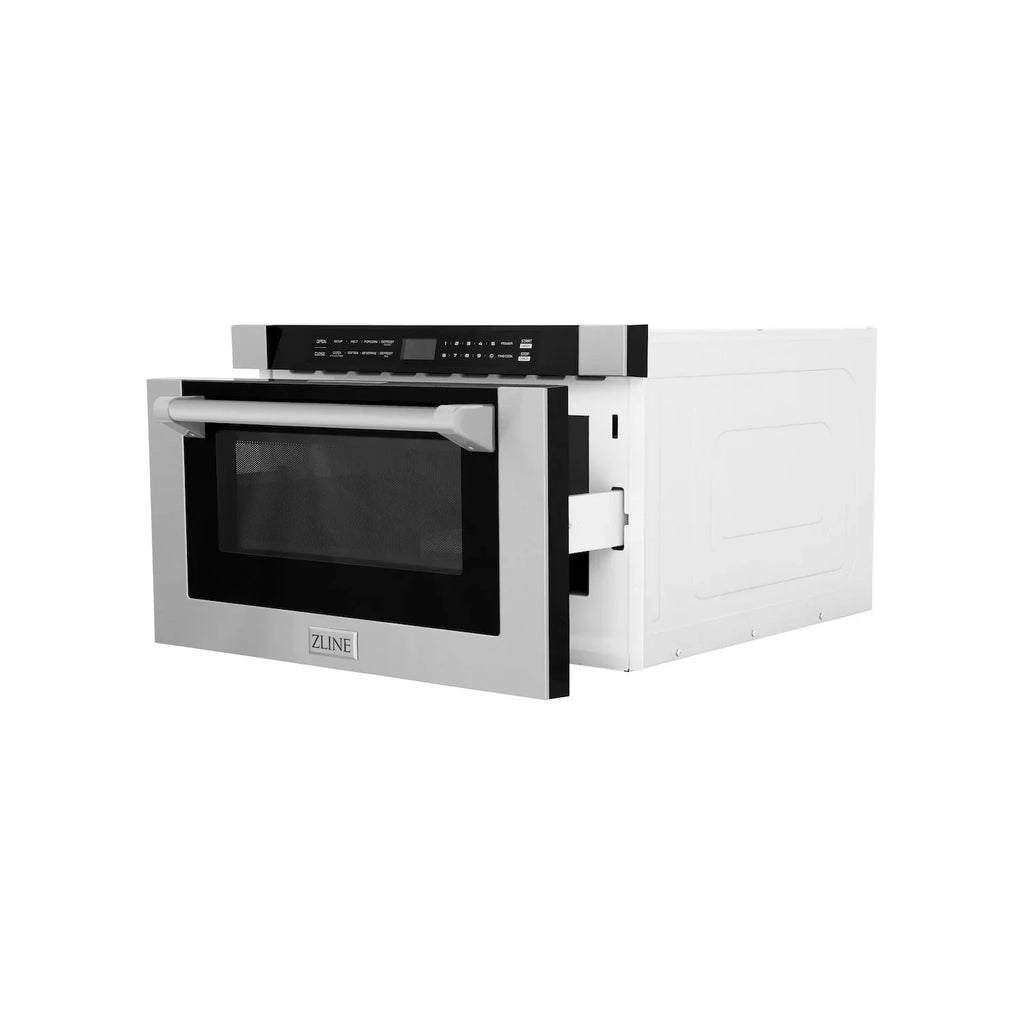

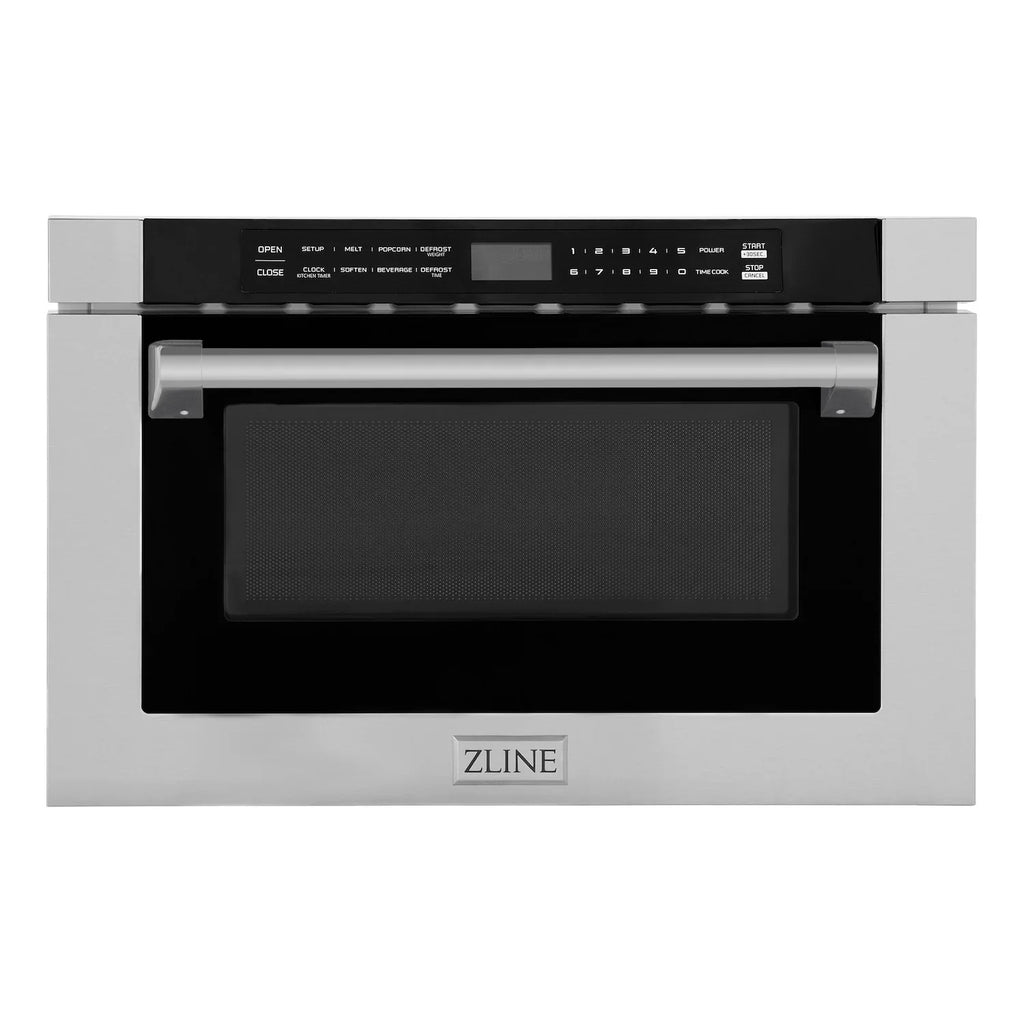

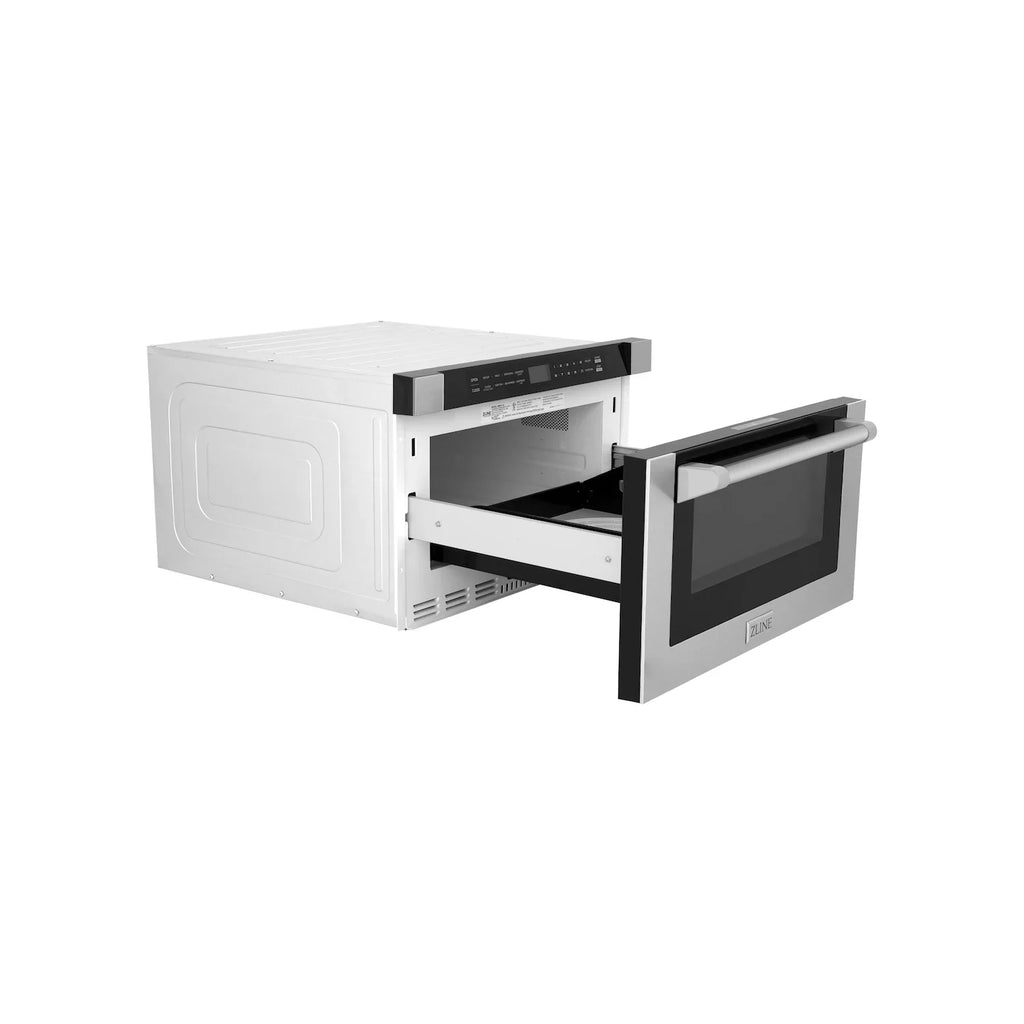

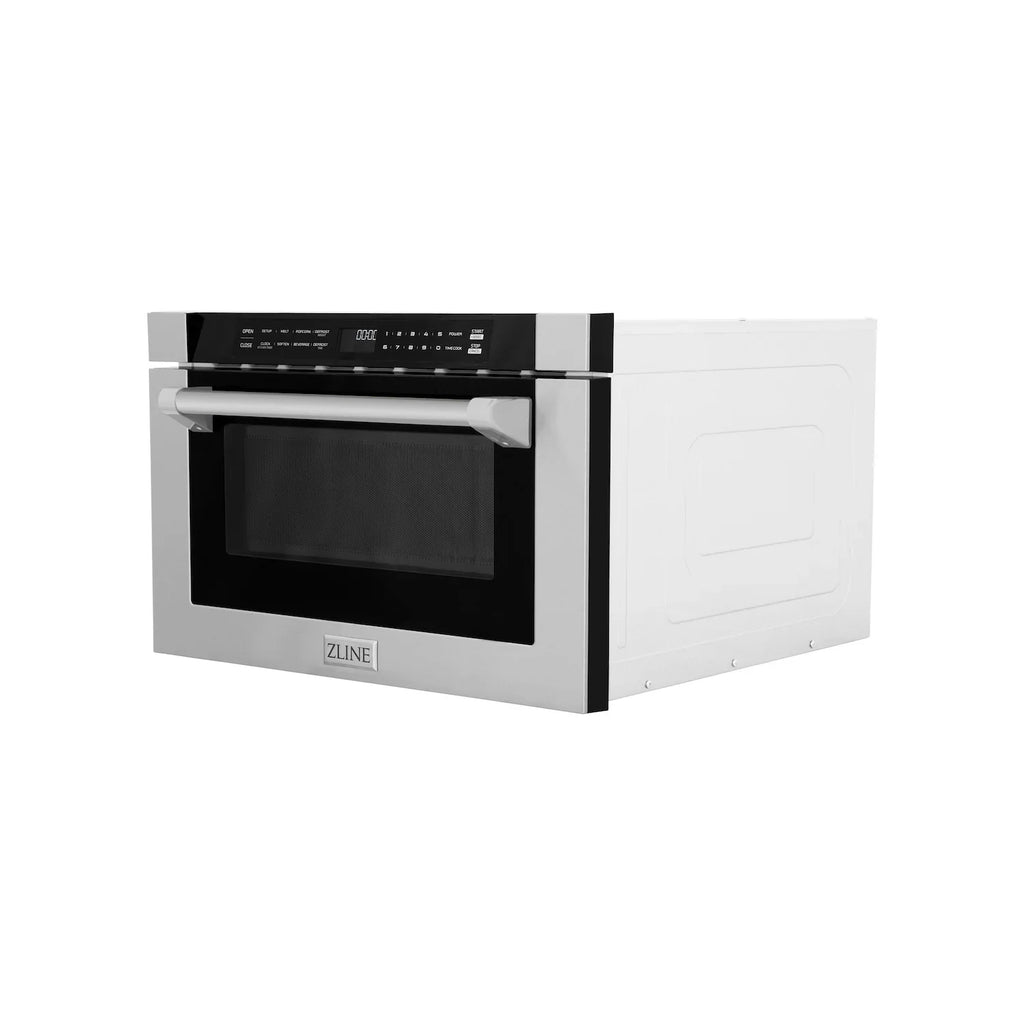

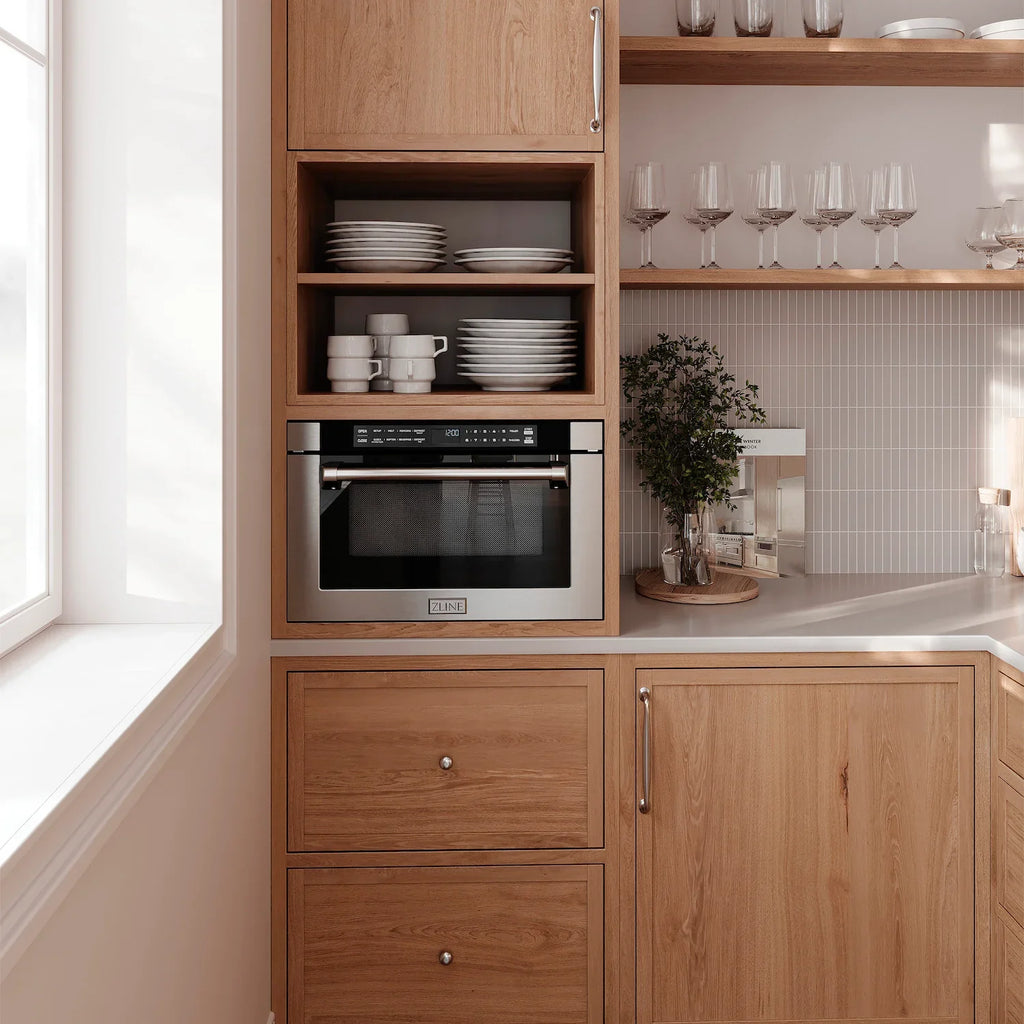

Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer with a Traditional Handle in Stainless Steel provides a professional culinary experience by pairing everyday convenience with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen's capability.
Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power
1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
Manufacturer Warranty - 2 year parts warranty
ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance
Weight & Dimensions | |

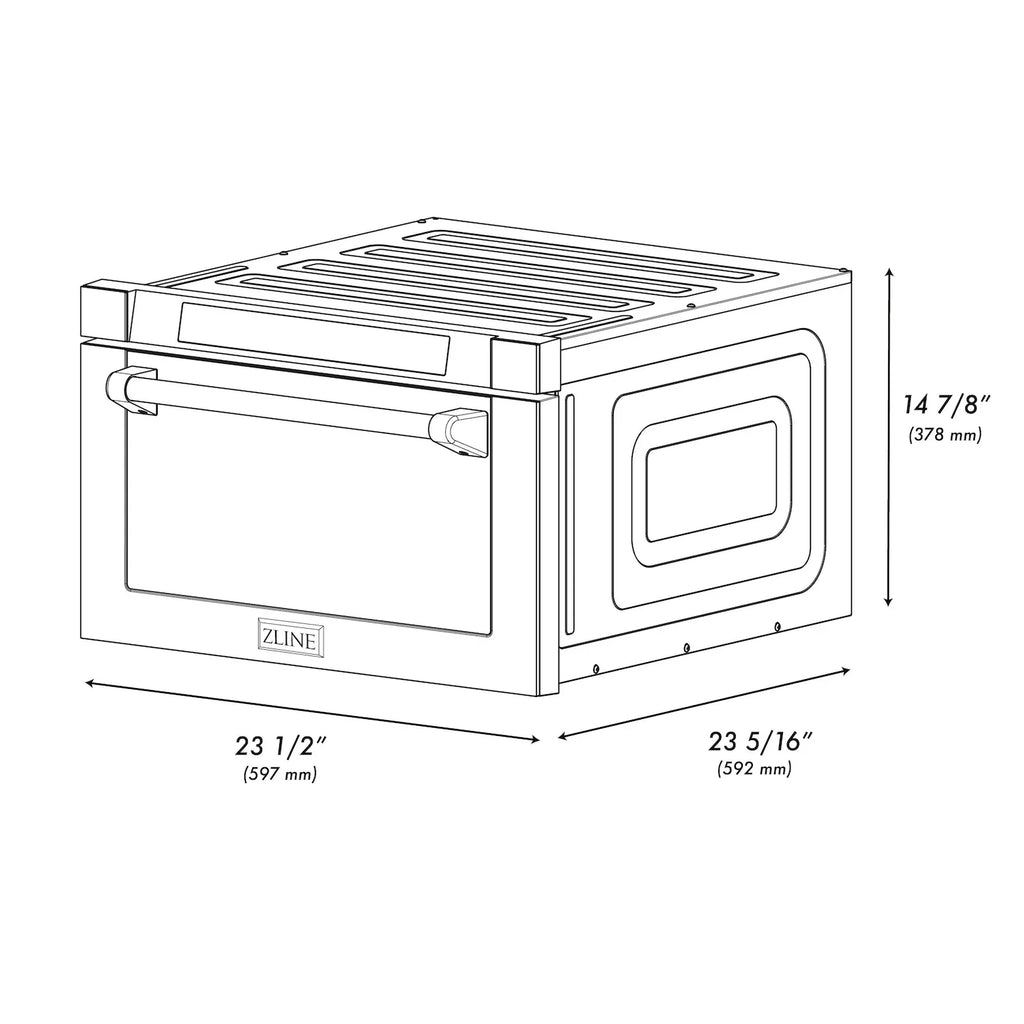

Product Dimensions | 23.5 in W x 23.31 in D x 14.88 in H |
Cutout Dimensions | 22.13 in W x 23.5 in D x 15 in H |
Interior Dimensions | 16" W x 16" D x 7" H |
Depth with Door Open | 38.75" without handle/ 40" with handle |
Weight | 69.9 lbs |
Electrical | |
Voltage | 120vac |
Frequency | 60 Hz |
Rated Current (Amps) | 13A |
Dedicated Circuit | 15A |
Plug Type | 5-15 Nema |
Input Power | 1500W |
Output Power | 1000W |
Details | |
Oven Capacity | 1.2 Cu. Ft. |
Noise Level | 45 Decibels |
Mount Type | Drawer |
Display | LED |
Cavity Material | Painted |
Control Type | Touch Screen |
Certifications | UL, DOE, CEC, NRCan |
Packaging Standard | ISTA 3A |
Warranty | 2 Year Parts |
