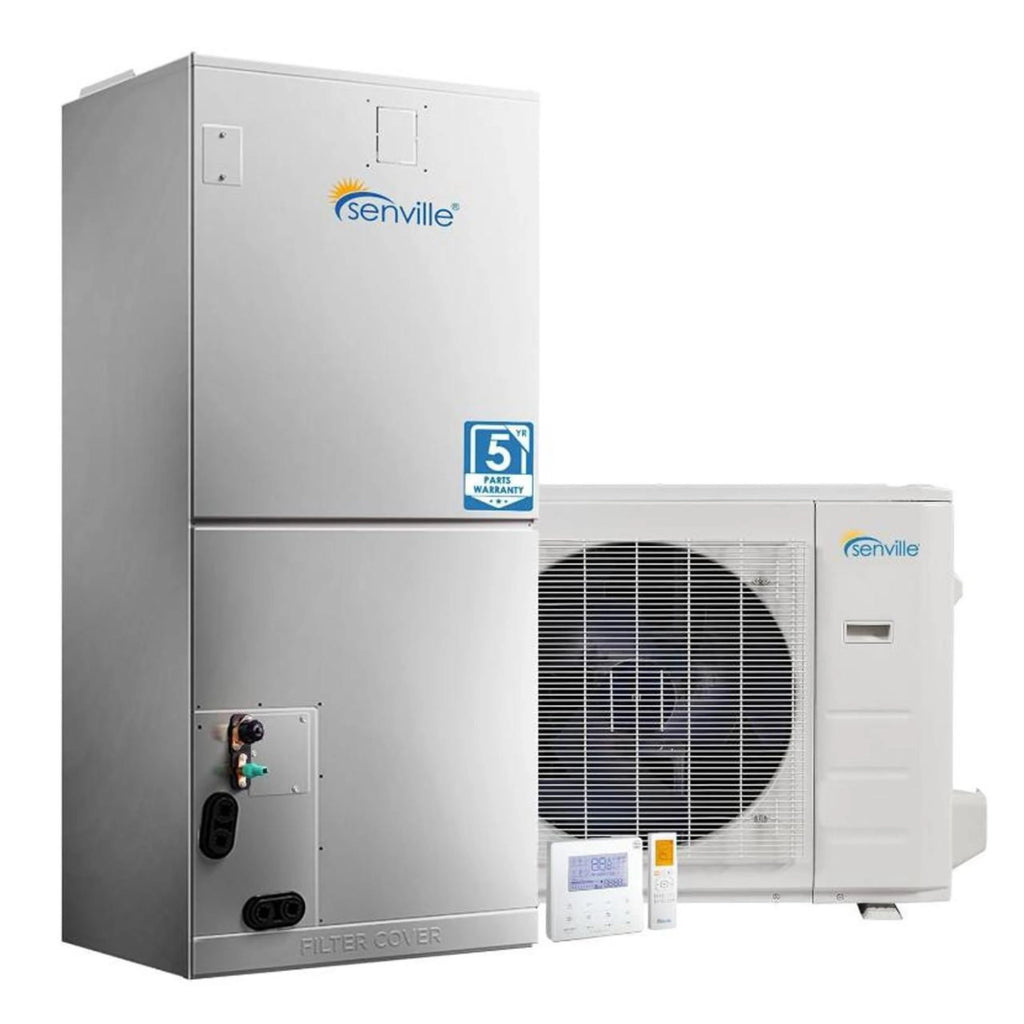

Upgrade your home’s HVAC system with the Senville SENDC-24HF, a powerful 24,000 BTU central air conditioner and heat pump system designed for year-round performance. Featuring advanced inverter technology, this ducted unit delivers exceptional energy efficiency, whisper-quiet operation, and reliable heating and cooling—even in extreme temperatures down to -30°C (-22°F).
Note: Professional installation is required for optimal performance and warranty validation.

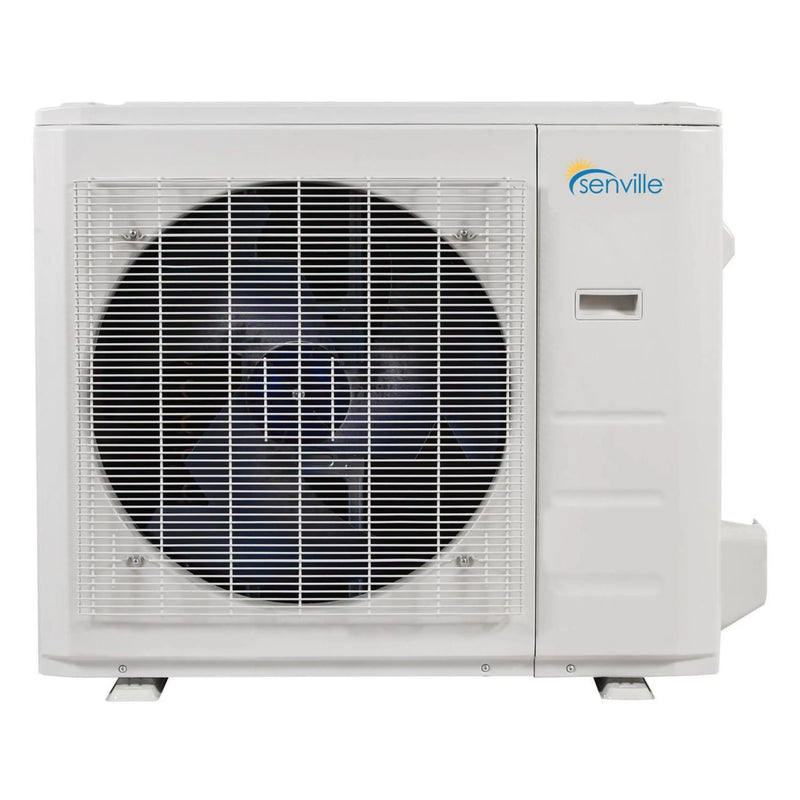

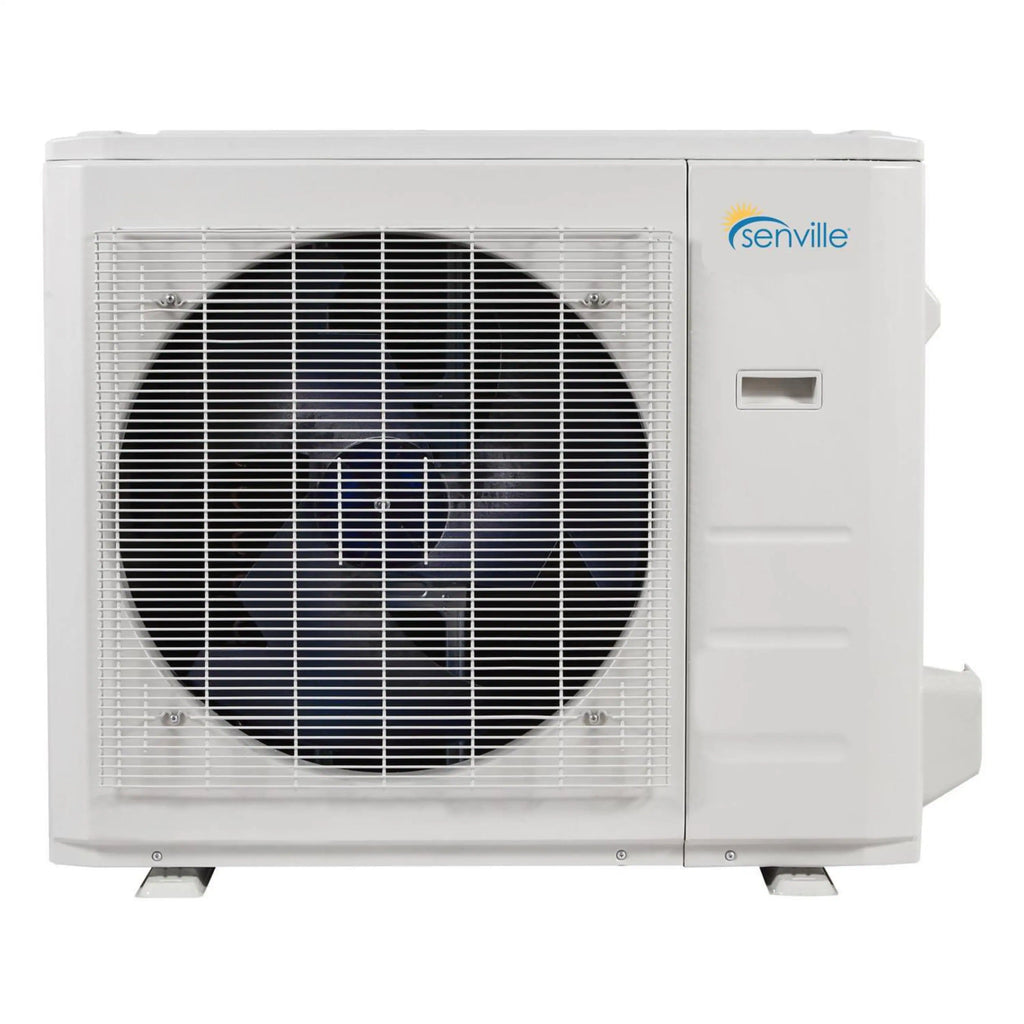

Condenser | |
Dimensions (WxDxH) (in.) | 37.48x16.14x31.89 |
Weight (lbs.) | 136.69 |
Noise Level dB | 62 |
Air flow (Max) CFM | 3000 |

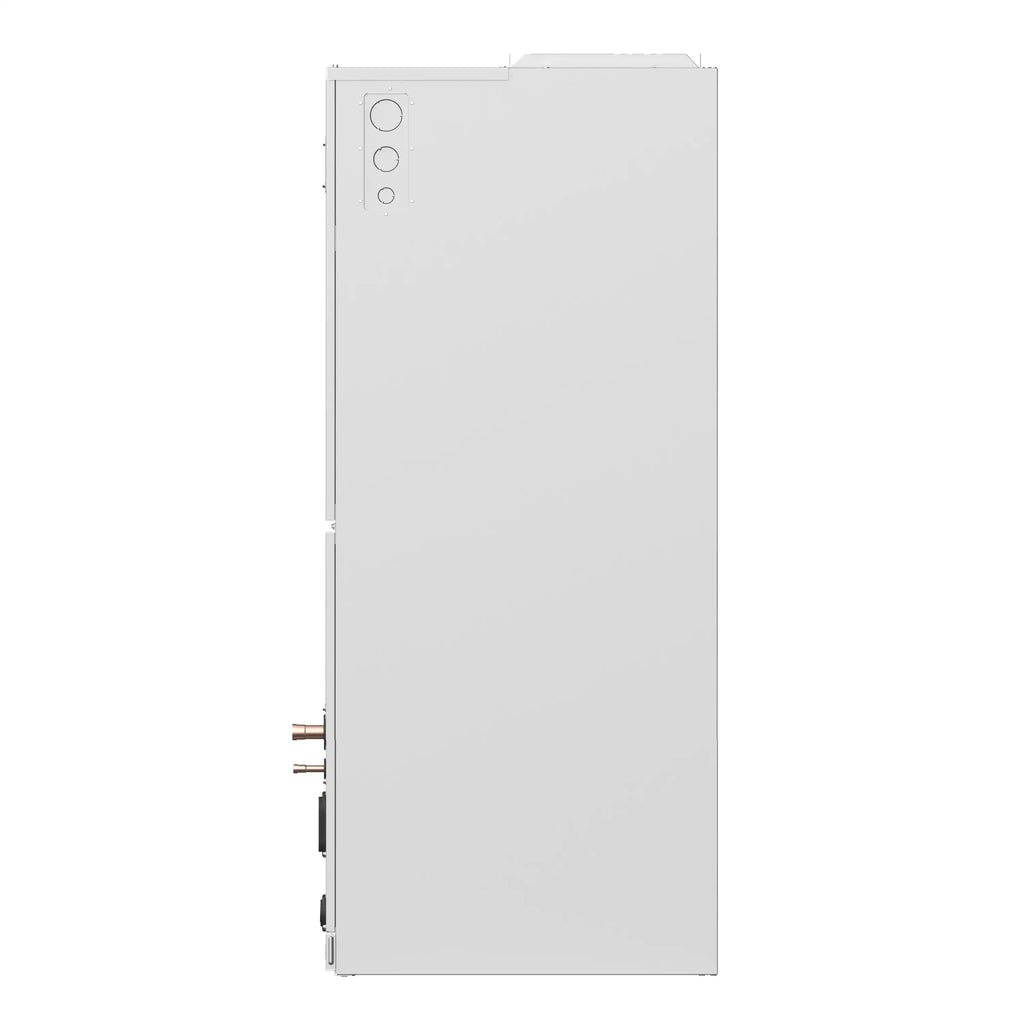

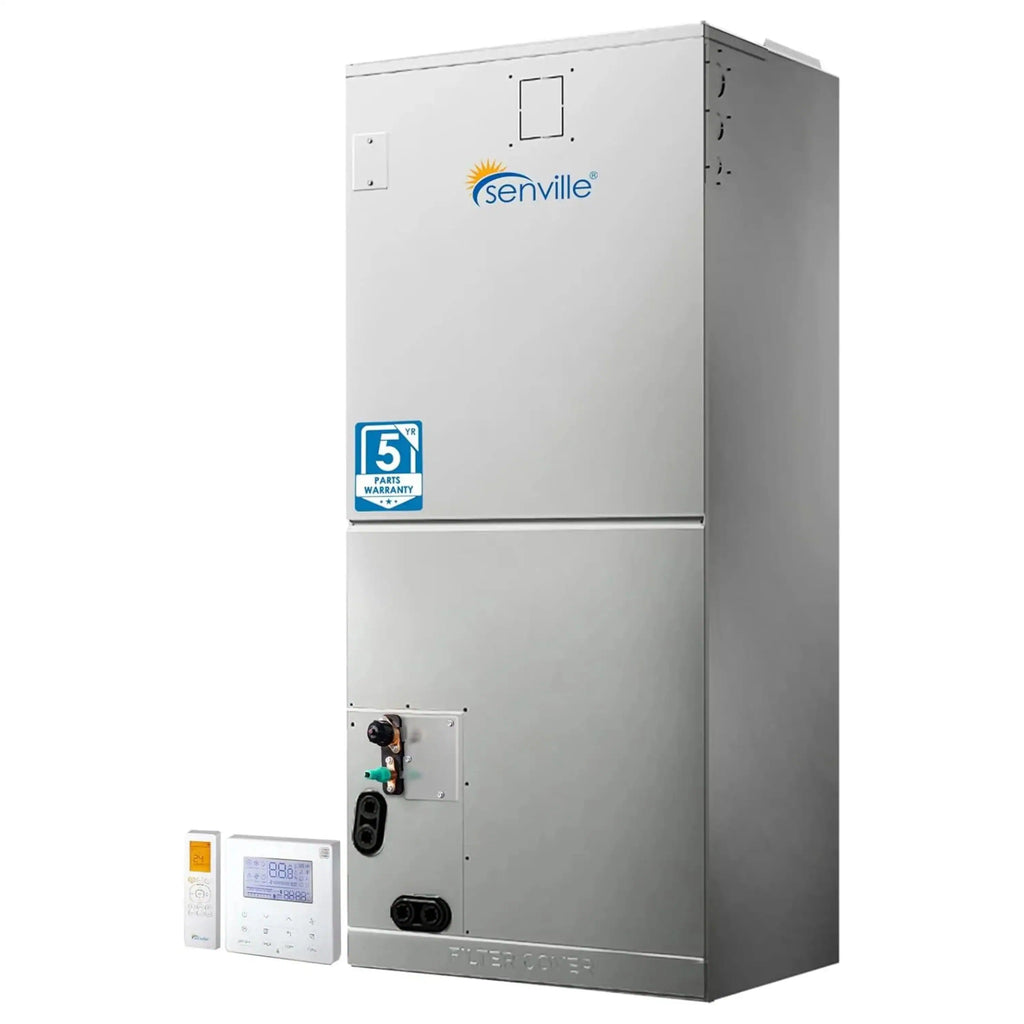

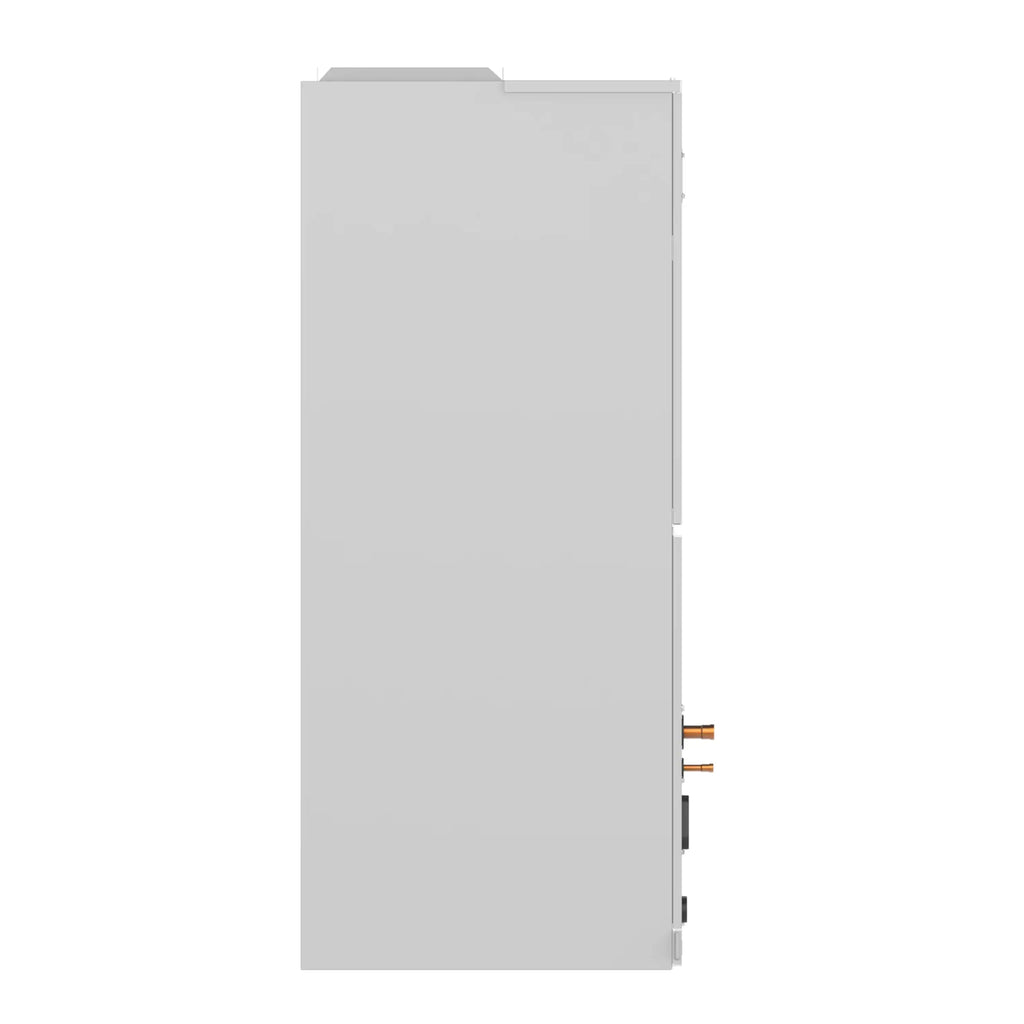

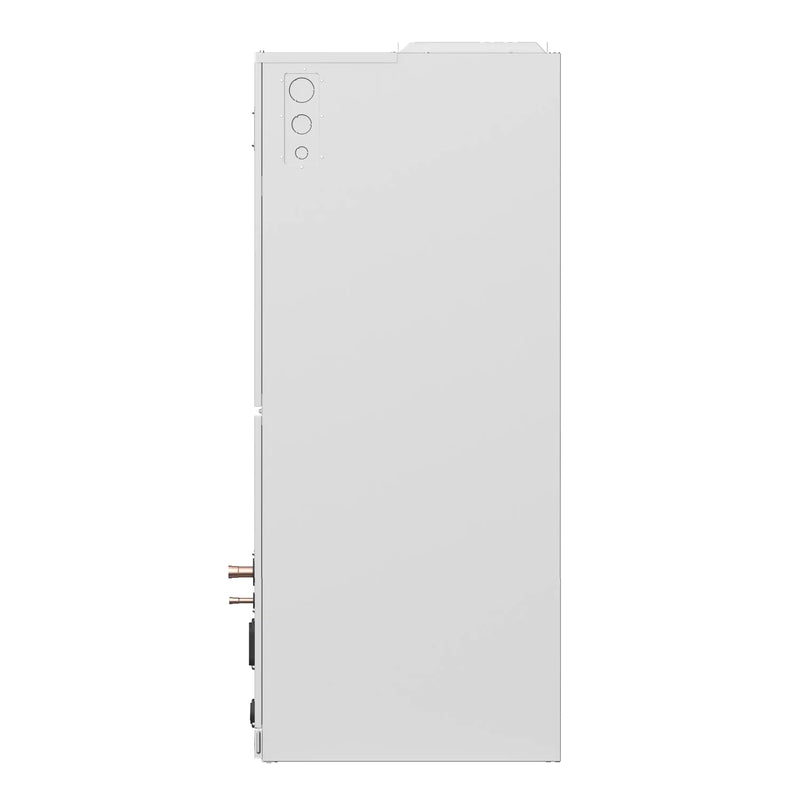

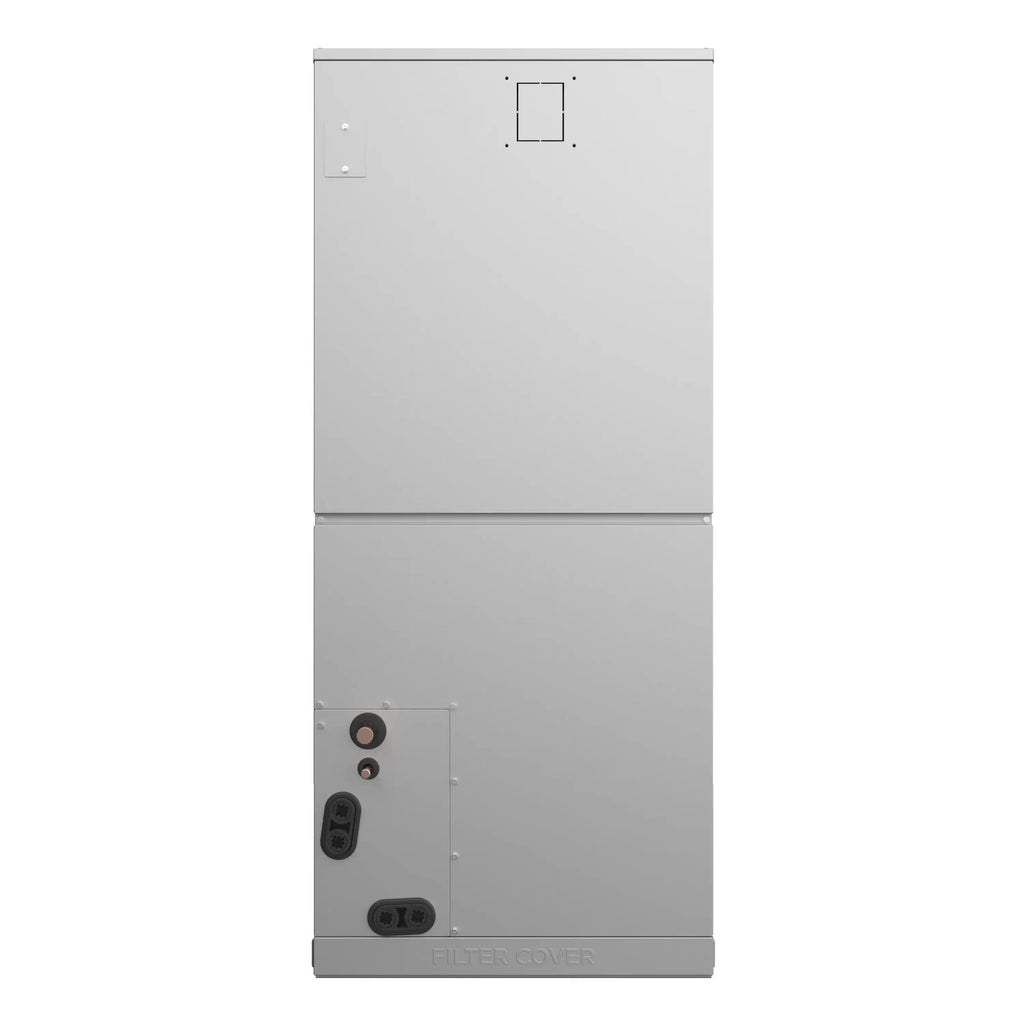

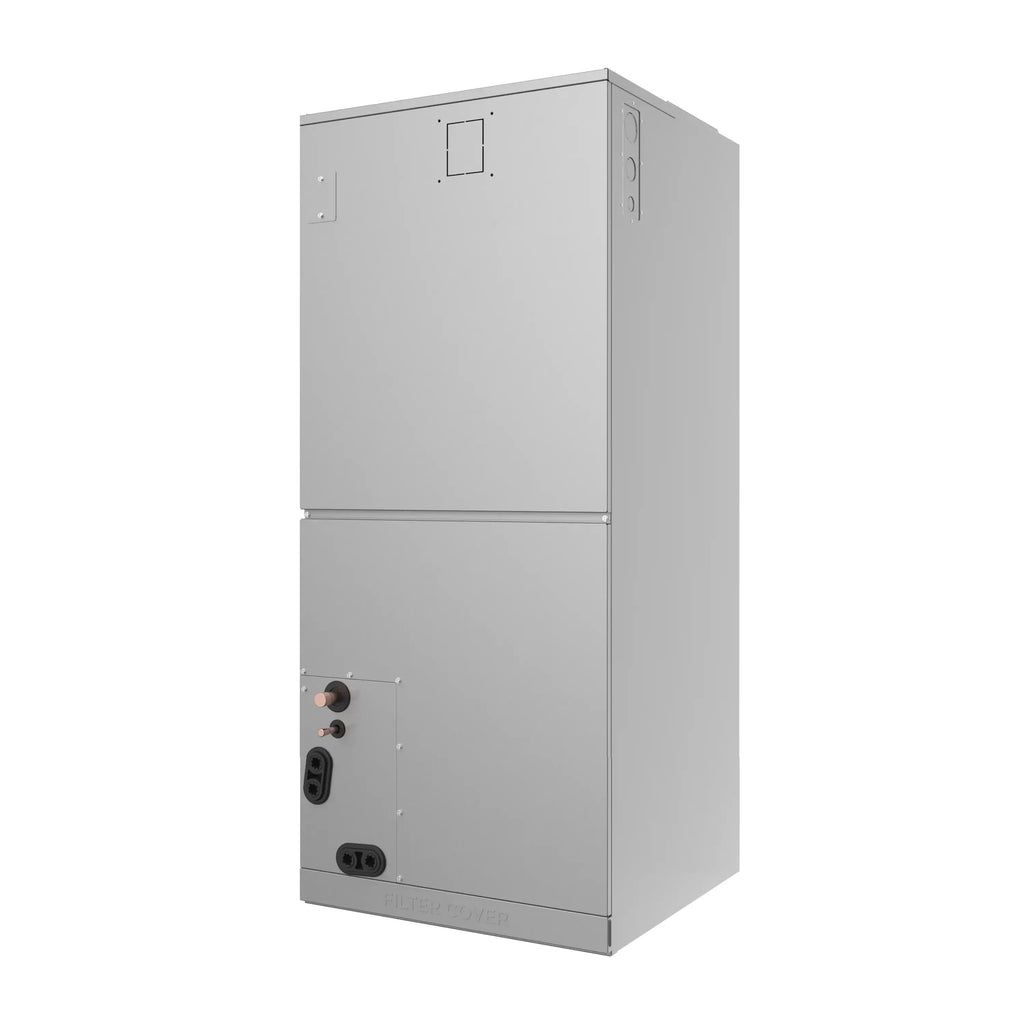

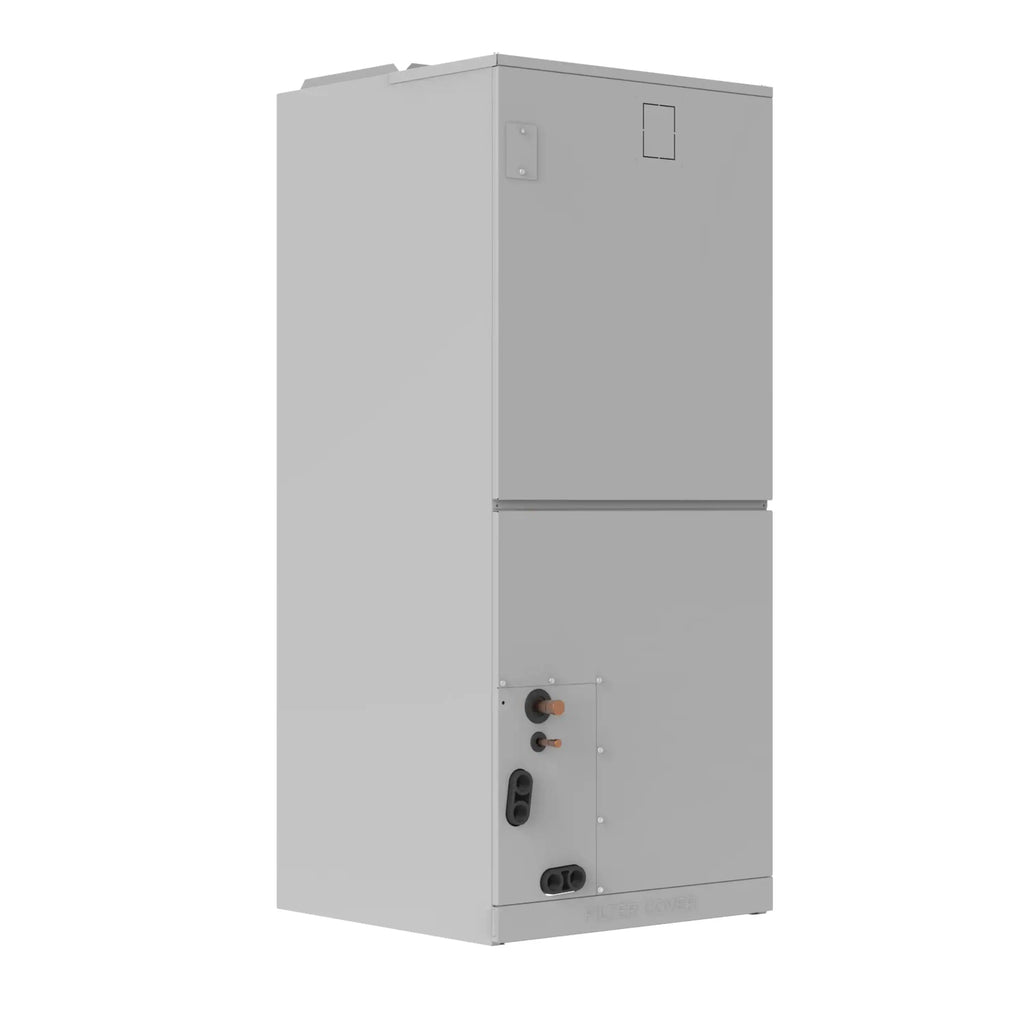

Air Handler | |
Dimensions (WxDxH) (in.) | 21.02x17.52x45 |
Unit Weight (lbs.) | 47.9 |
Air Flow (H/M/L) CFM | 823/758/694 |
Noise Level (H/M/L) dB | 39/36/33 |
Technical Specifications | |
Style | Central Air Conditioner with Heat Pump |
Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
Voltage Range | 187-253 |
SEER2 | 18.3 |
EER2 | 11.7 |
Cooling (Range) | 64000~27000 |
Input (W) | 2050 (740-2450) |
Rated current A | 9.1 |
Heating (Range) | 10100~31000 |
Input (W) | 2100 (660-2900) |
Rated Current (A) | 9.3 |
HSPF2-4 | 10 |
HSPF2-5 | 8 |
COP W/W | 3.35 |
Minimum Circuit Ampacity (A) | 20.5 |
Max. Fuse (A) | 35 |
Refrigerant Type | R410A / 102.32 Oz |
Refrigerant Pre-charge | 25 Ft. |
Connection Wiring | 14AWG*2 Stranded, Shielded |
Thermostat Type | Wall Remote |
Warranty | 10 Years Compressor / 5 Years Parts |
