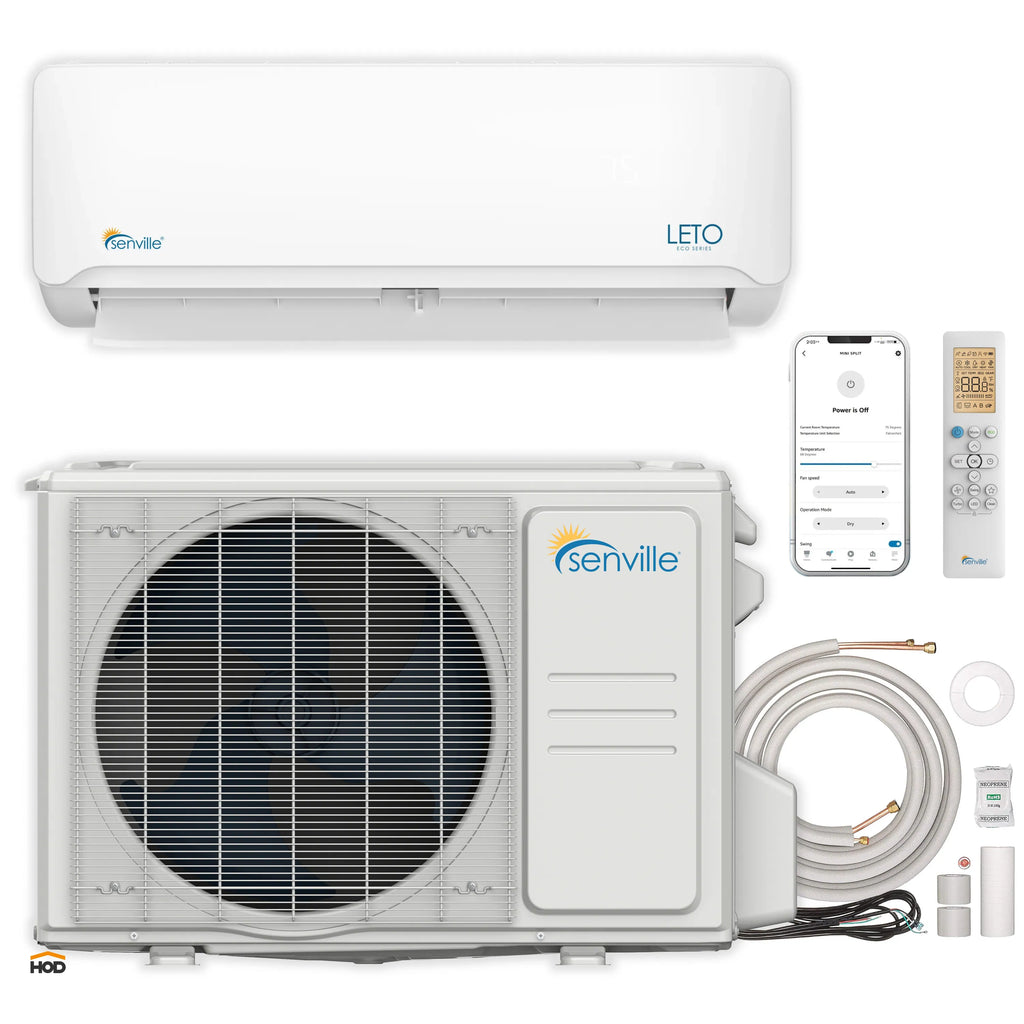

Senville SENL-12CD is a high-efficiency 12000 BTU mini split air conditioner and heat pump that provides versatile, year-round comfort for your home or business.

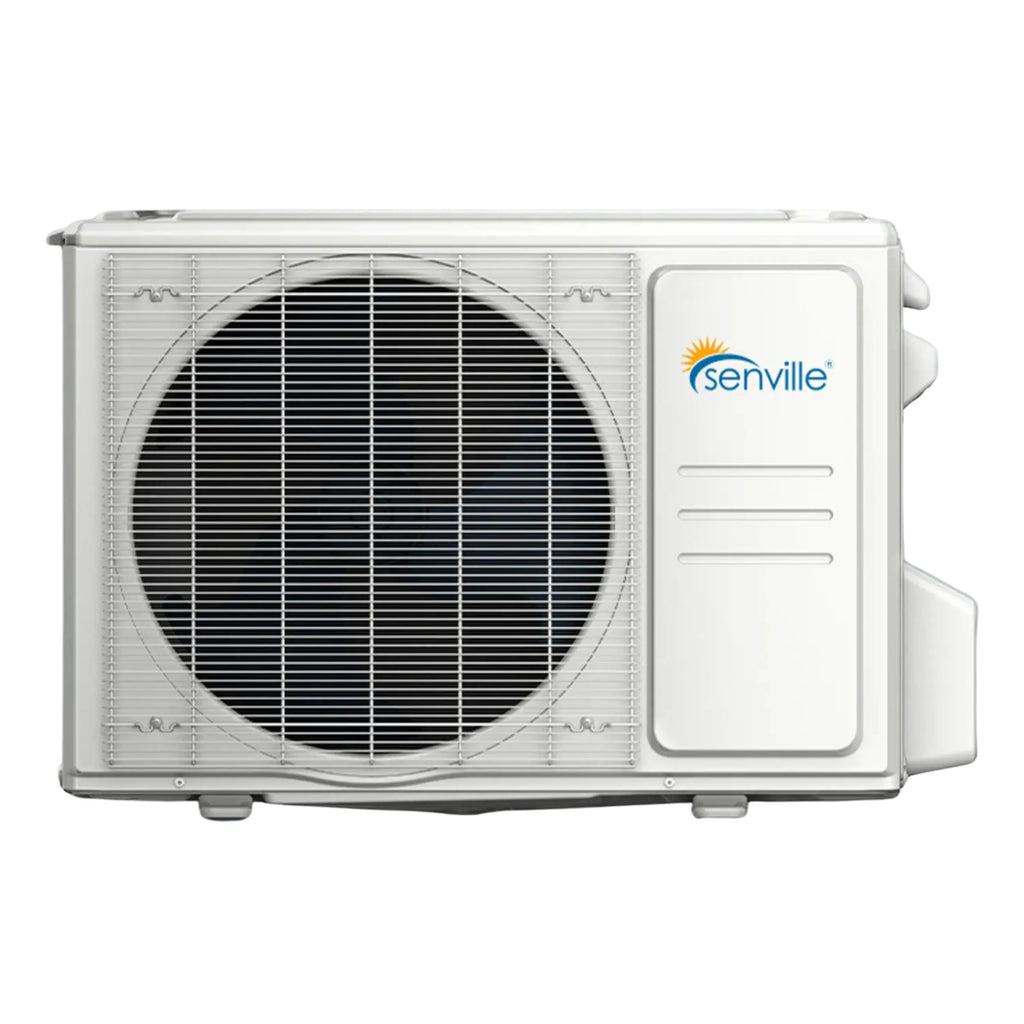

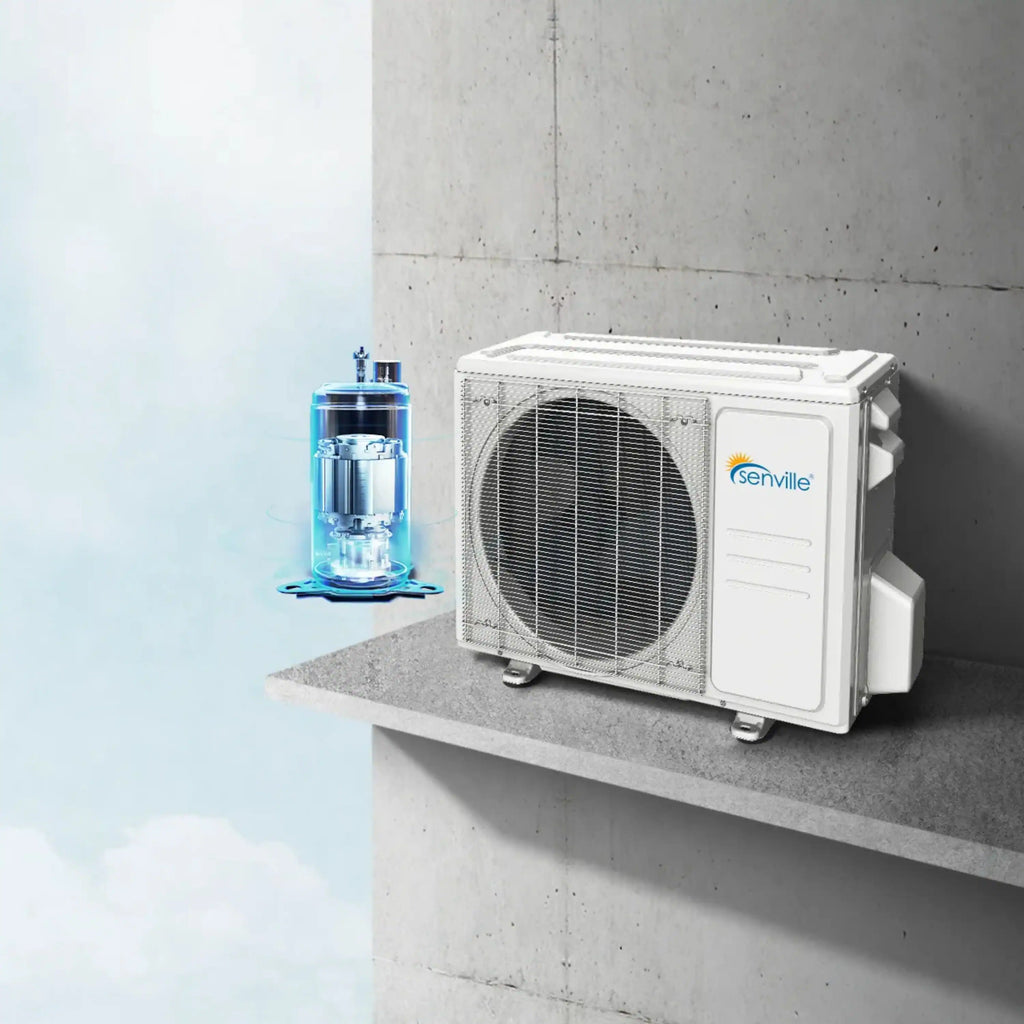

| Condenser | |
| Dimensions (WxDxH) (in.) | 30.12 x 11.93 x 21.85 |
| Weight | 61.29 lbs |
| Air Flow (Max) CFM | 1235.3 |
| Noise Level dB | 54 |

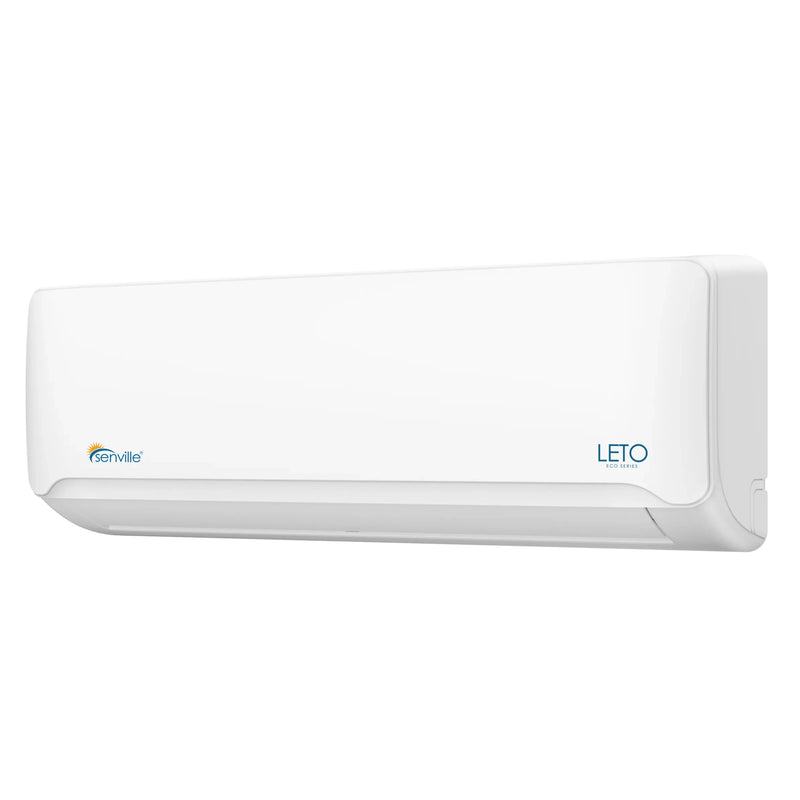

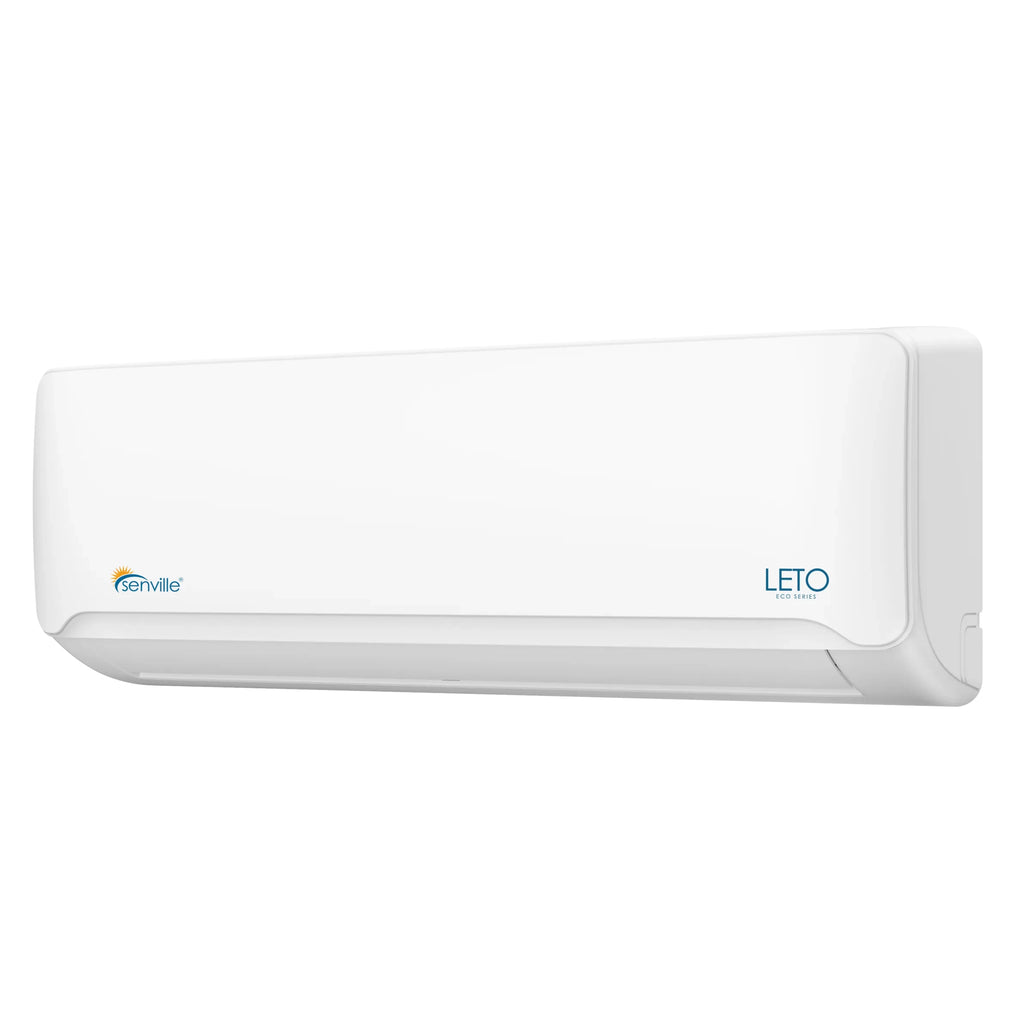

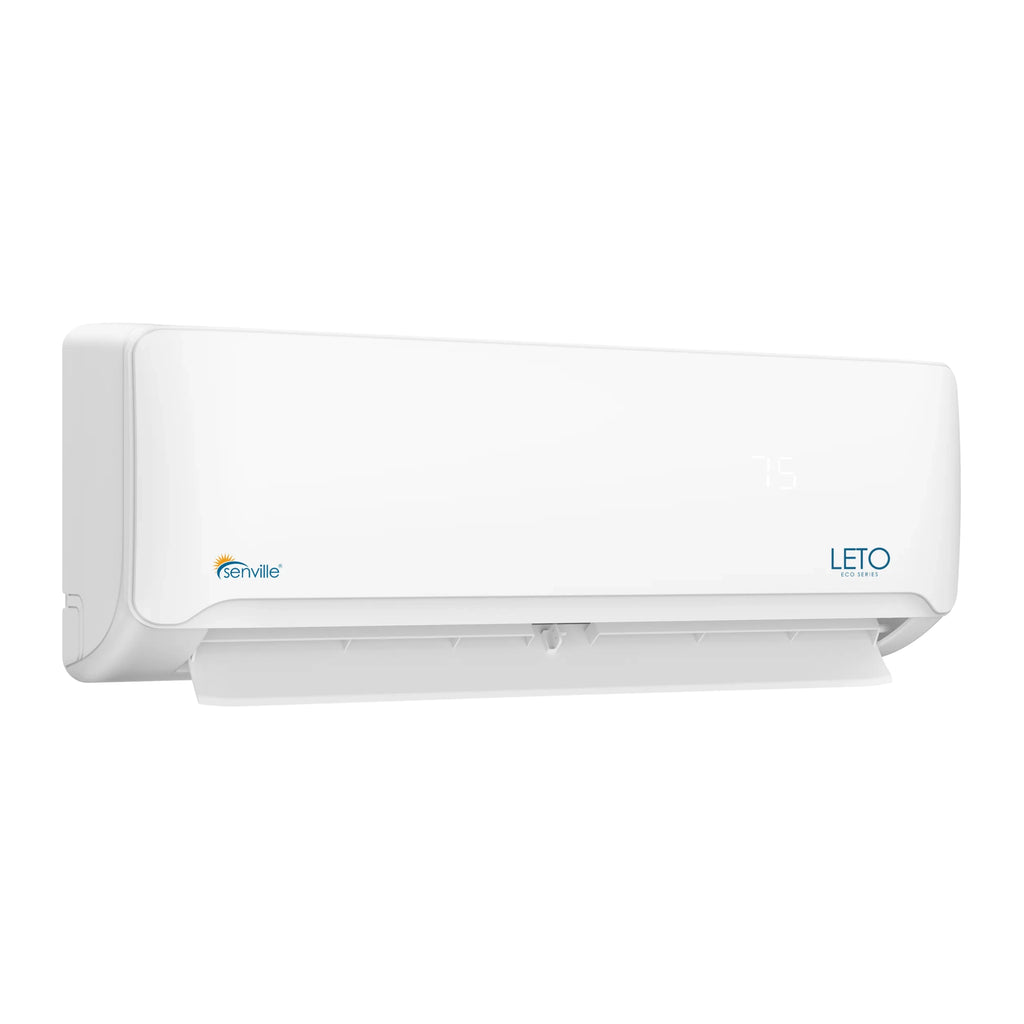

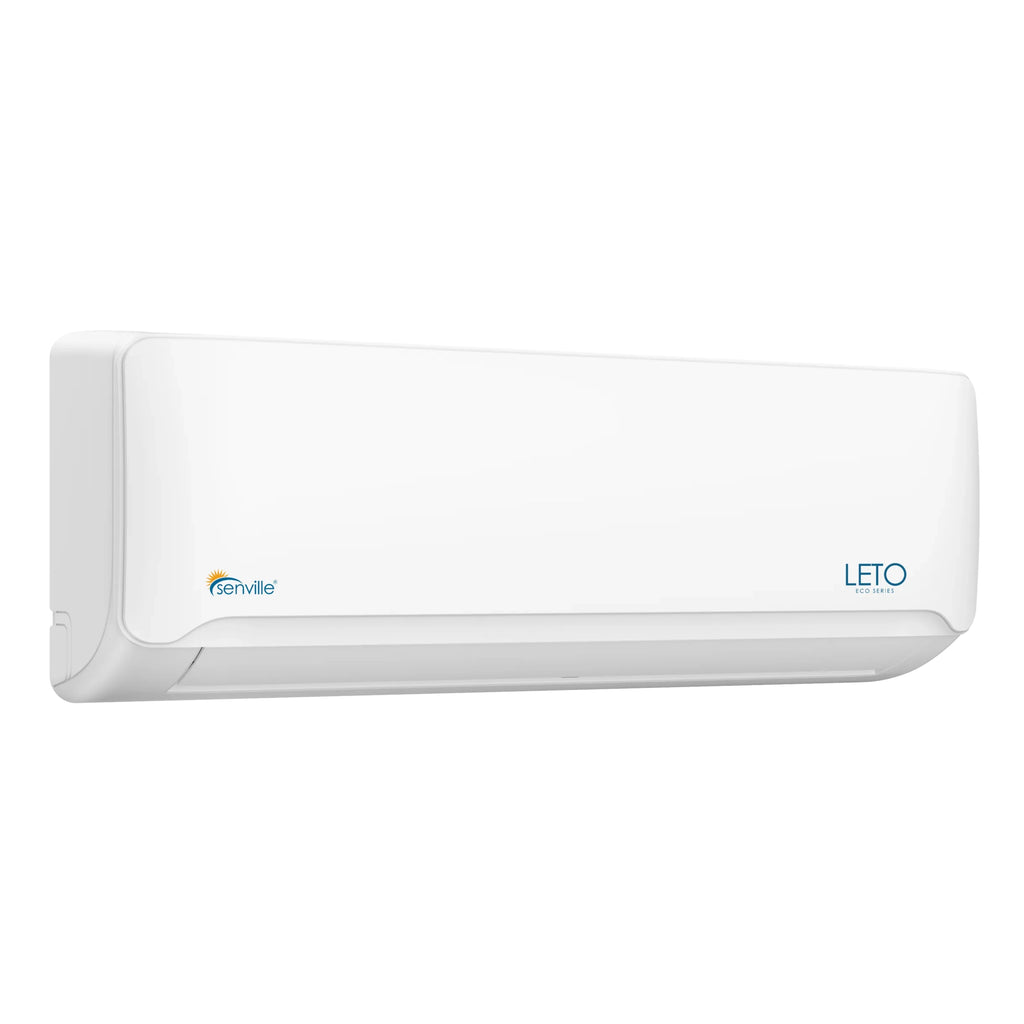

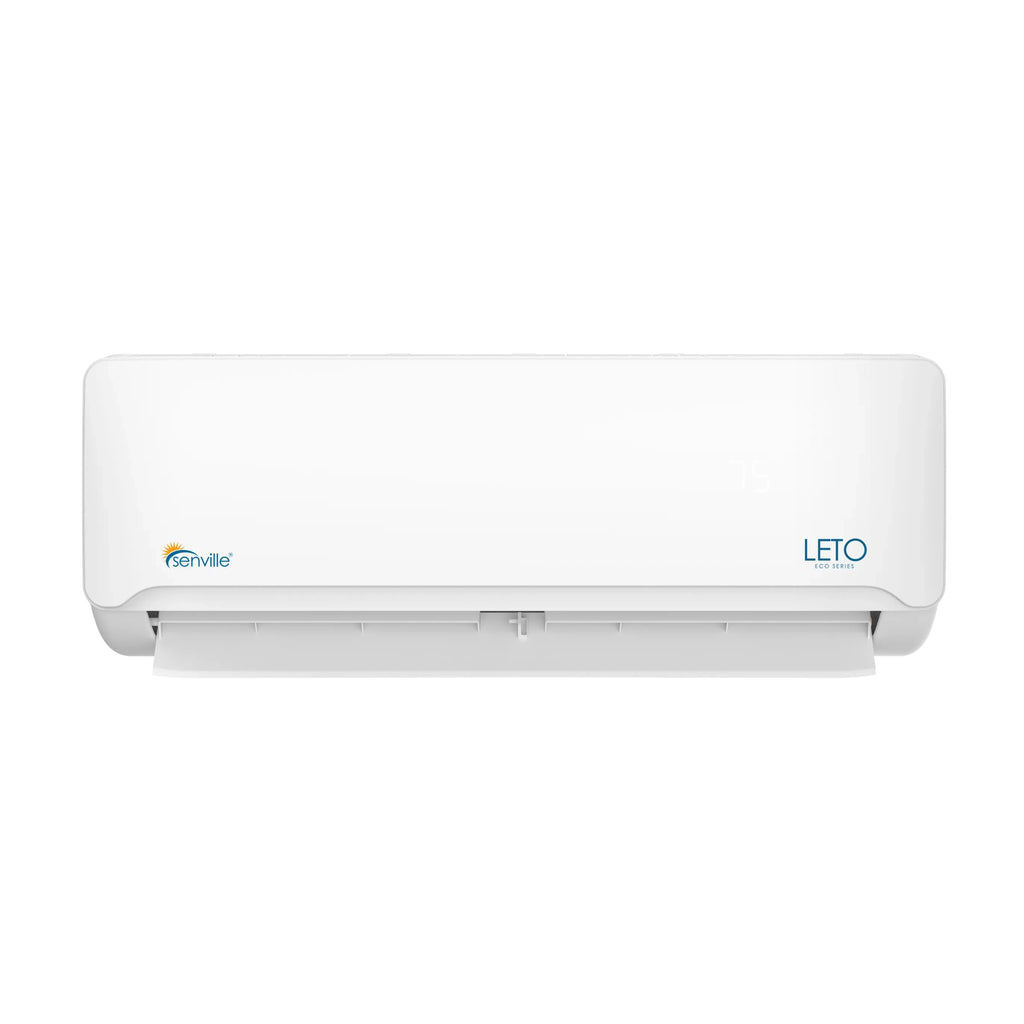

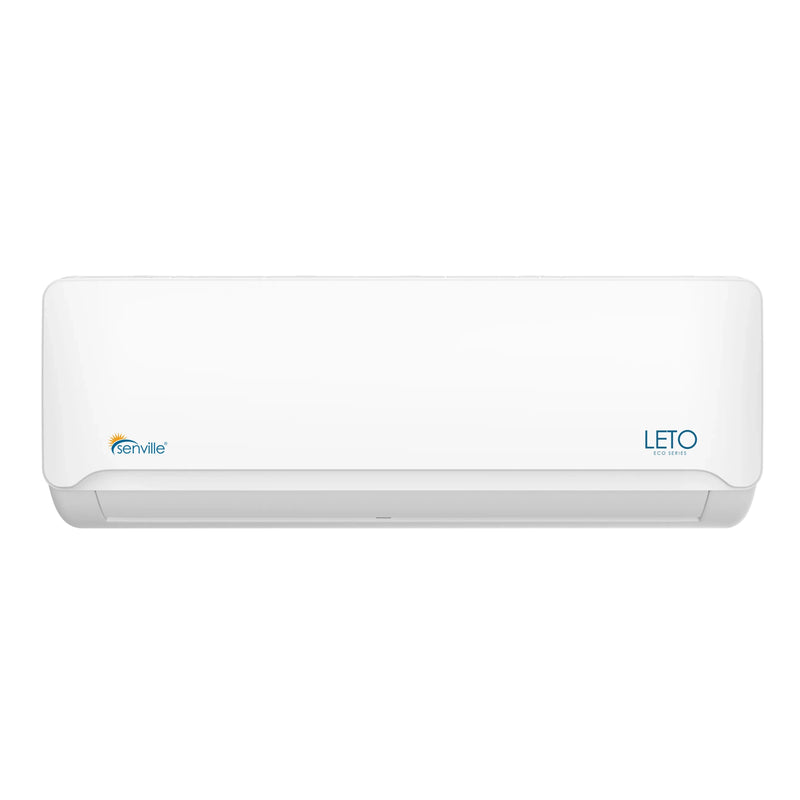

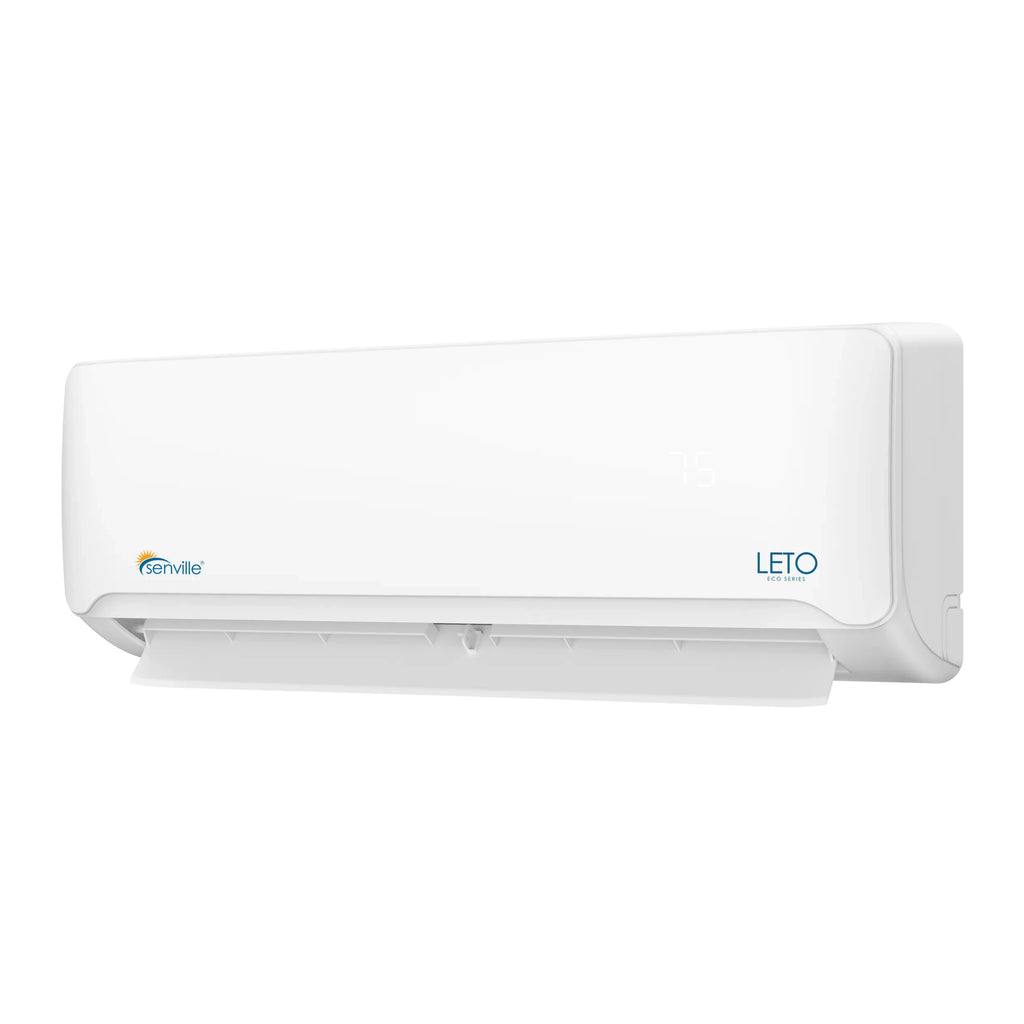

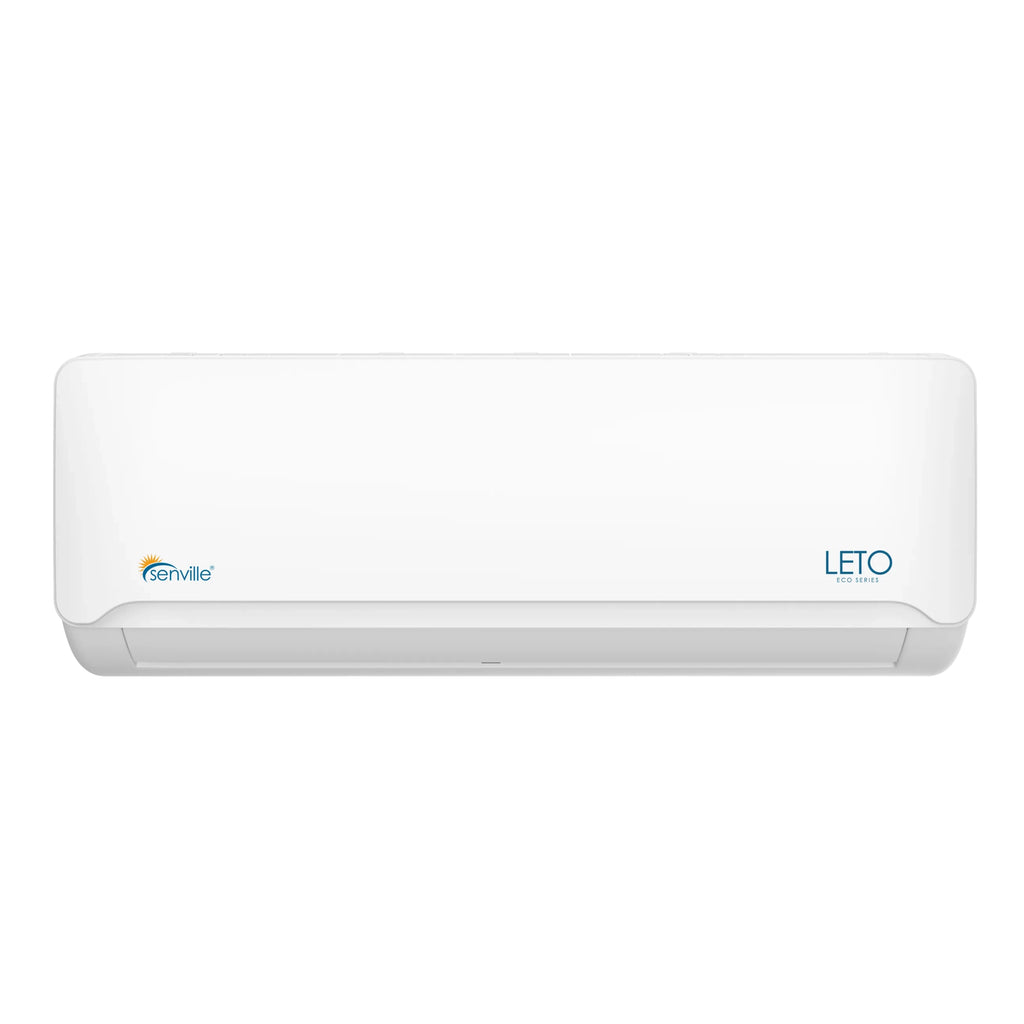

| Air Handler | |
| Dimensions (WxDxH) (in.) | 31.57 x 7.44 x 11.69 |
| Weight | 19.4 lbs |
| Air Flow (Turbo/H/M/L) CFM | 341.4 / 309.0 / 206.0 / 176.6 |
| Noise Level (Turbo/H/M/L) dB | 45.0 / 40.5 / 32.5 / 25.0 / 17.5 |
| Technical Specifications | |
| SEER2 | 21.2 |
| EER2 | 10.1 |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 115V, 1Ph, 60Hz |
| Voltage Range | 103.5-126.5 |
| Cooling Capacity (BTU) | 12000 |
| Cooling Range (BTU) | 2200~12300 |
| Cooling Input Range (W) | 230~800 |
| Cooling Current Range (A) | 1.8~13.0 |
| Heating Capacity (BTU) | 12000 |
| Heating Range (BTU) | 2400~12200 |
| Heating Input Range (W) | 200~1230 |
| Heating Current Range (A) | 1.1~13.2 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.7 |
| COP W/W | 3.3 |
| Minimum Circuit Ampacity (A) | 19 |
| Max. Fuse (A) | 20 |
| Moisture Removal (L/H) | 1.4 |
| Refrigerant Type | R454B |

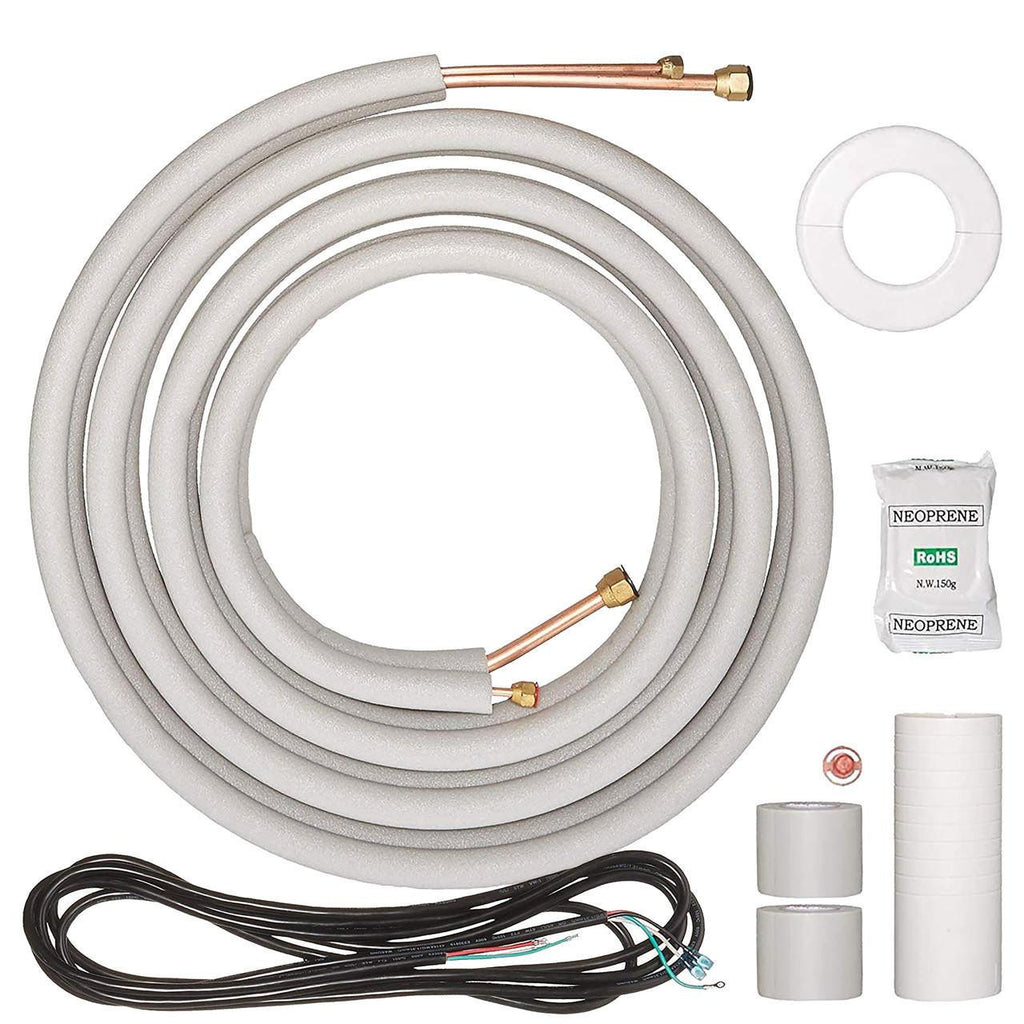

| Refrigerant Pre-charge | 25 ft. |
| Connection Wiring | 14*4 AWG |

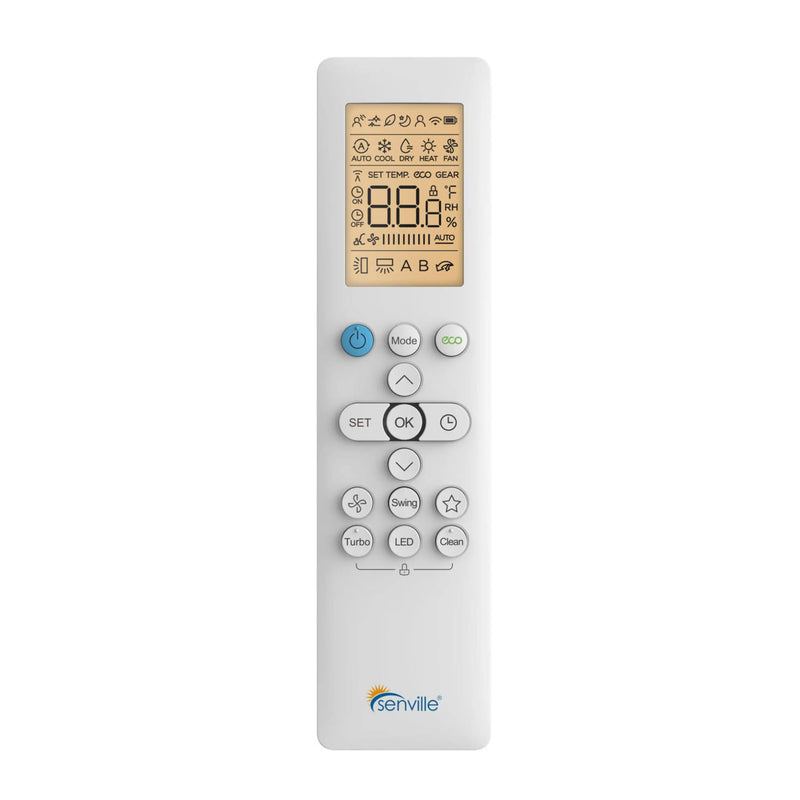

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Certification | ETL Certified/ AHRI Certified |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
