SKU: WYS009AMFI22RL-10
$978.00 $1,149.00
Save 15%

Installation Kit Options: 10 Ft
Estimated restock:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

Overview

Summary

  • Ultra High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 9,000 BTU/H with 22.7 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 9,000 BTU/H with 10.0 HSPF2 / 3.86 COP2 efficiency
  • Voltage: 110~120 V, 60 Hertz, 1 Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $74.00
    • Heating: $221.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit

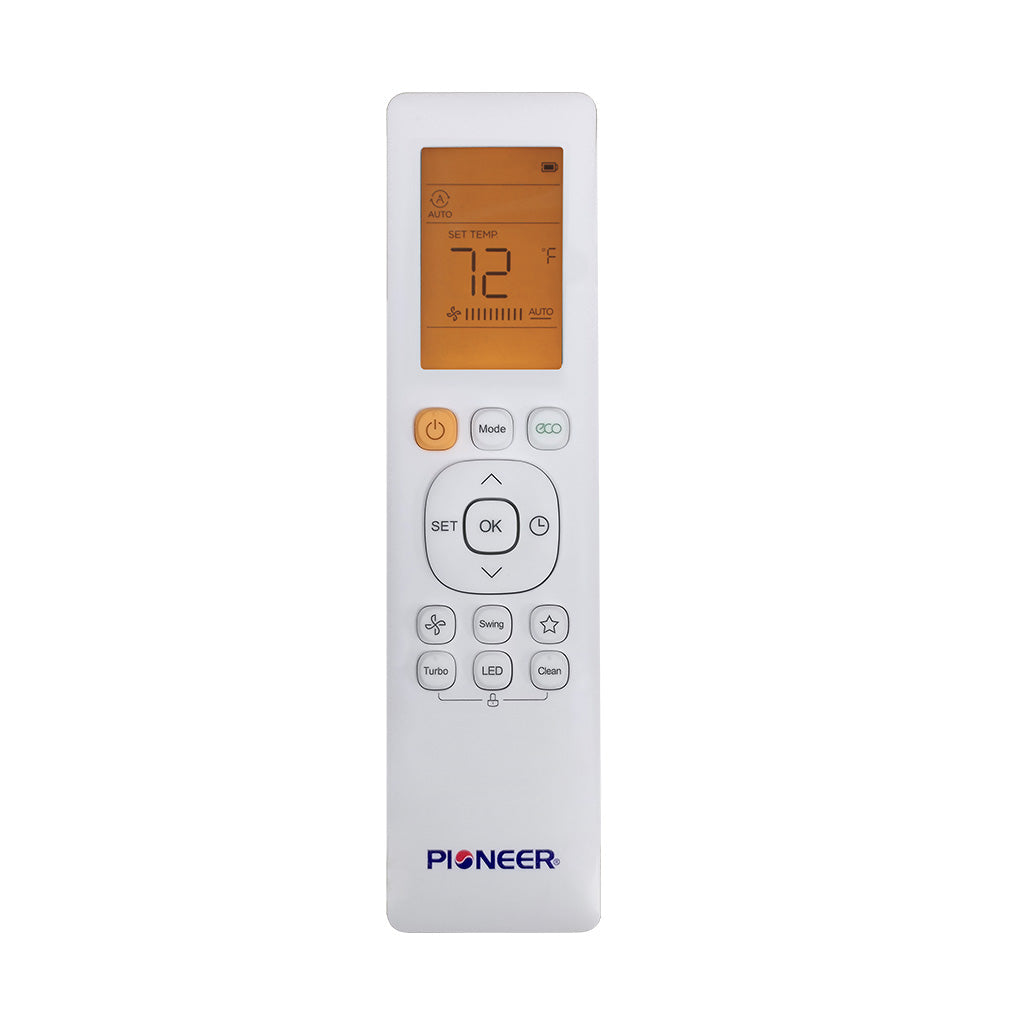

  • Wireless Remote Control

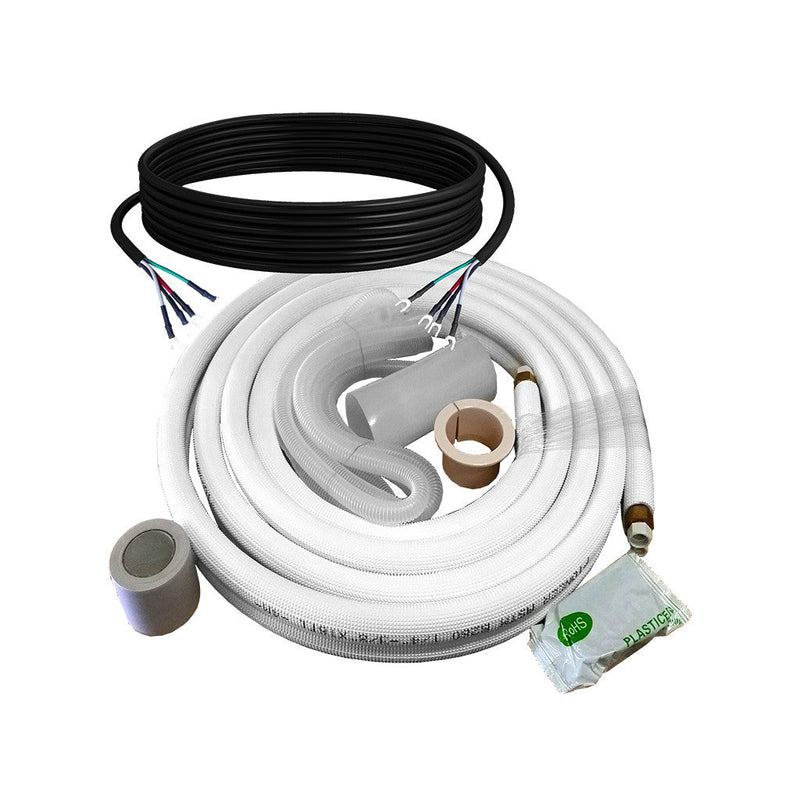

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 3,500~12,150 BTU/h
  • Cooling SEER2: 22.7 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,000 BTU/h
  • Heating Capacity Range: 4,600~12,904 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 7.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.86 / 2.00 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 250~350 Sq.F

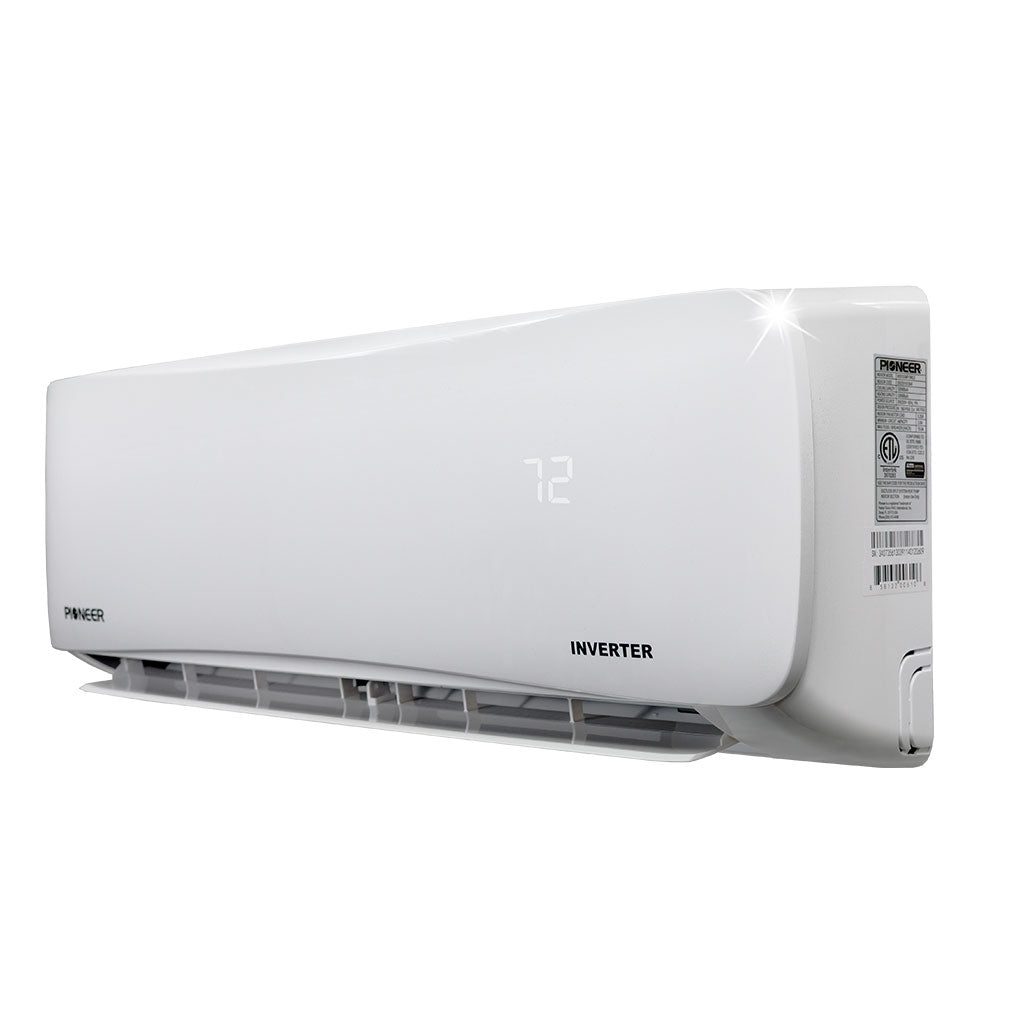

Indoor Unit Data

  • Part Number: WS009AMFI22HLE
  • Air Flow (Hi/Med/Lo): 294 / 212 / 147 CFM
  • Sound Level (Hi/Lo): 37.5 / 23.0 dB(A)
  • Net Dimensions (WDH): 31.5 x 7.3 x 11.6 Inches
  • Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
  • Net / Gross Weight: 18 / 22 Lbs

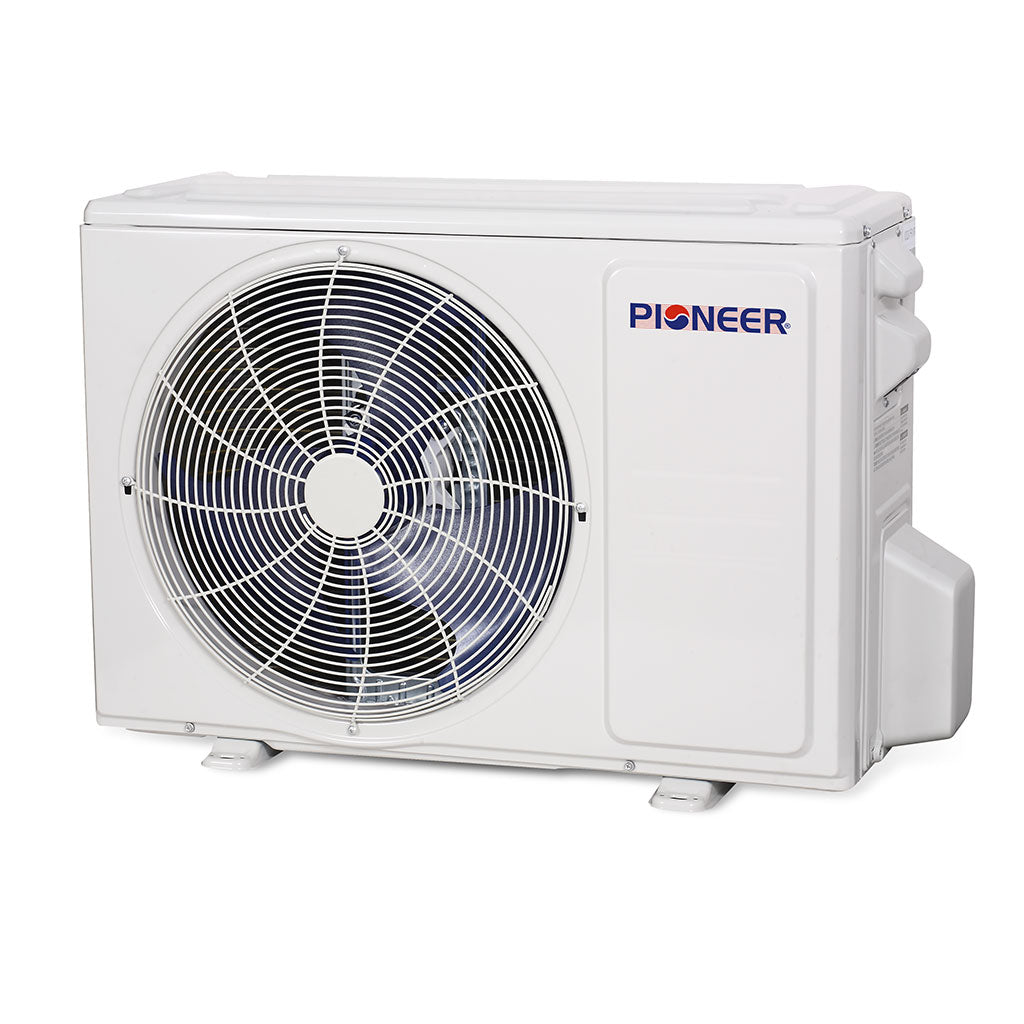

Outdoor Unit Data

  • Part Number: YN009AMFI22RPE
  • Sound Level: 52.5 dB(A)
  • Net Dimensions (WDH): 31.3 x 11.8 x 21.8 Inches
  • Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
  • Net / Gross Weight: 64 / 69 Lbs
  • Breaker Needed: 20A (single-pole)

Manuals & Downloads

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

⁺Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page
