SKU: WYT024GLFI22RL

$1,728.00 $2,348.00

Save 26%

Estimated restock:

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

Build a Custom Mini Split

Pioneer Diamante Ultra Mini Split - 24,000 BTU Ductless Mini-Split Inverter++ Air Conditioner and Heat Pump with 16 Ft. Lineset - 20 SEER2, Energy-Star, Wi-Fi, 230V (WYT024GLFI22RL)

Features:

Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
Cooling capacity: 23,000 BTU/H with 20 SEER2 / 12.5 EER2 efficiency
Heating capacity: 24,000 BTU/H with 9.0 HSPF2 / 3.2 COP efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall Mounted Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Low Ambient Unit (-13°F)
Wireless Internet Access Included (Via Free Smartphone App)
AHRI Estimated Annual Operating Costs:
- Cooling: $152.00
- Heating: $507.00
Refrigerant: R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
IMPORTANT NOTE: The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

More Features:

Enhanced Modern Design - How do you improve upon an air handler that’s already silent? You make the appearance of it silent as well, with a premium encasing and elegant textures. A matte-frost finish ensures less fingerprints and time spent wiping. The curved edges give the system a softer look, and the LED display has been modified to show the set temperature in a more subdued fashion.
Cools like A Crisp Shower - Diamante Ultra drapes the room with a satisying breeze from above, without the mist. Cool air sinks from high to low, so we designed the system to let the conditioned air be “thrown” toward the ceiling, so that is can naturally reach as far as possible horizontally in the room, while also ensuring that the refreshing breeze is felt by all occupants of the room, no matter if they are sitting, standing, or lying down.
Heats like a Nuzzling Blanket - Diamante Ultra also wraps the room in cozy warmth, from floor to ceiling. Just as how cold air sinks, hot air rises - The system can use this quality to its advantage by directing the louver at a sharp downward angle, so that the air throw sweeps across the floor as far out as possible, and swells upward to saturate the room with a comforting blanket of warmth, to all four corners of the room.
Wi-Fi Controlled via Free App - Unlock the full potential of your new Pioneer system by activating the USB module included with your purchase. In 2 minutes you’ll be up and running, and ready to set custom schedules or fully control one or many units from the same app, easily and reliably, from across the world. Now you can pre-condition your home before you arrive, turn off the unit remotely or check that your pets are relaxing in comfort. You can also integrate your new mini split with a Smart Assistant, such as Alexa, Google Assistant, and Apple Siri.
Super Simplified Installation - Enjoy improved accessibility to the Diamante Ultra's crucial components. The bottom side of the air handler unit includes a hidden cover that is easily removable, exposing some handy elements that cut out a lot of the guesswork. Use the viewing window for making both the piping and electrical connections, and gain access to a single-press button to unlatch the unit for an easy removal.
Energy-Star for Efficiency - With its built-in DC inverter technology, the Diamante Ultra series brings big benefits for those looking to cut down on their electric bill. The outdoor unit compressor is soft-start and variable speed between 30% and 110% in both heating and cooling, and the indoor fan draws only a few watts when running. Take advantage of technology that is so power efficient, it is the go-to heating and cooling system for use on solar-powered setups. Silence and efficiency never looked so good together. Switch from your outdated system to the Diamante Ultra series and start saving today!

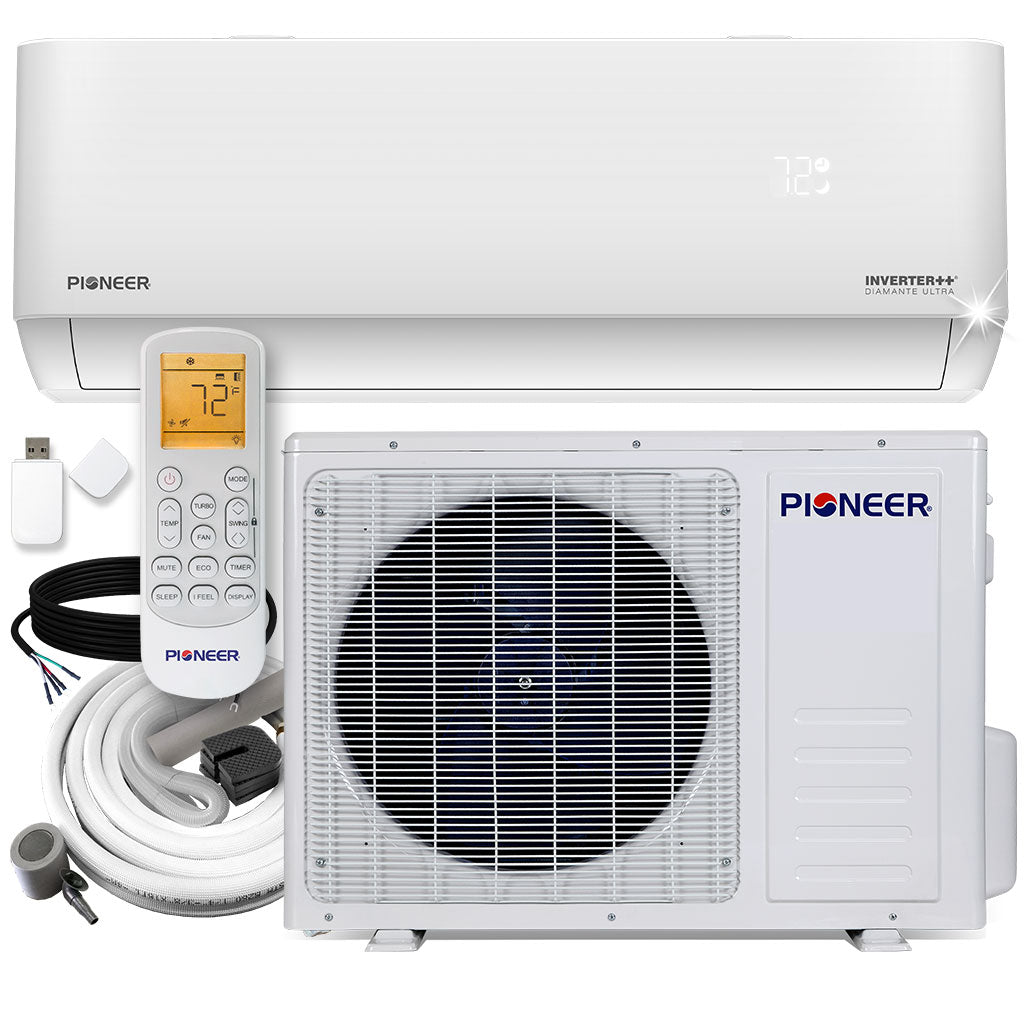

What's Included

Indoor Unit
Outdoor Unit

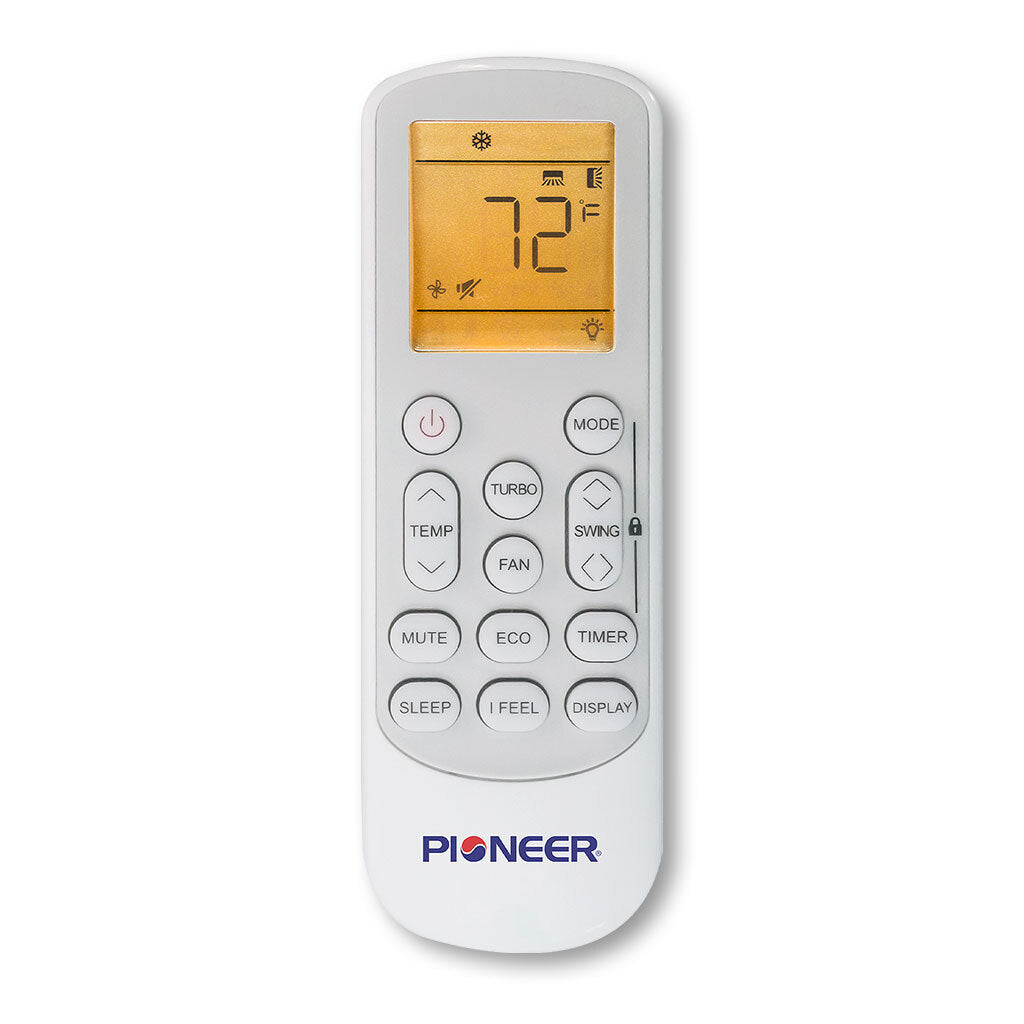

Wireless Remote Control (with wall holder and batteries)

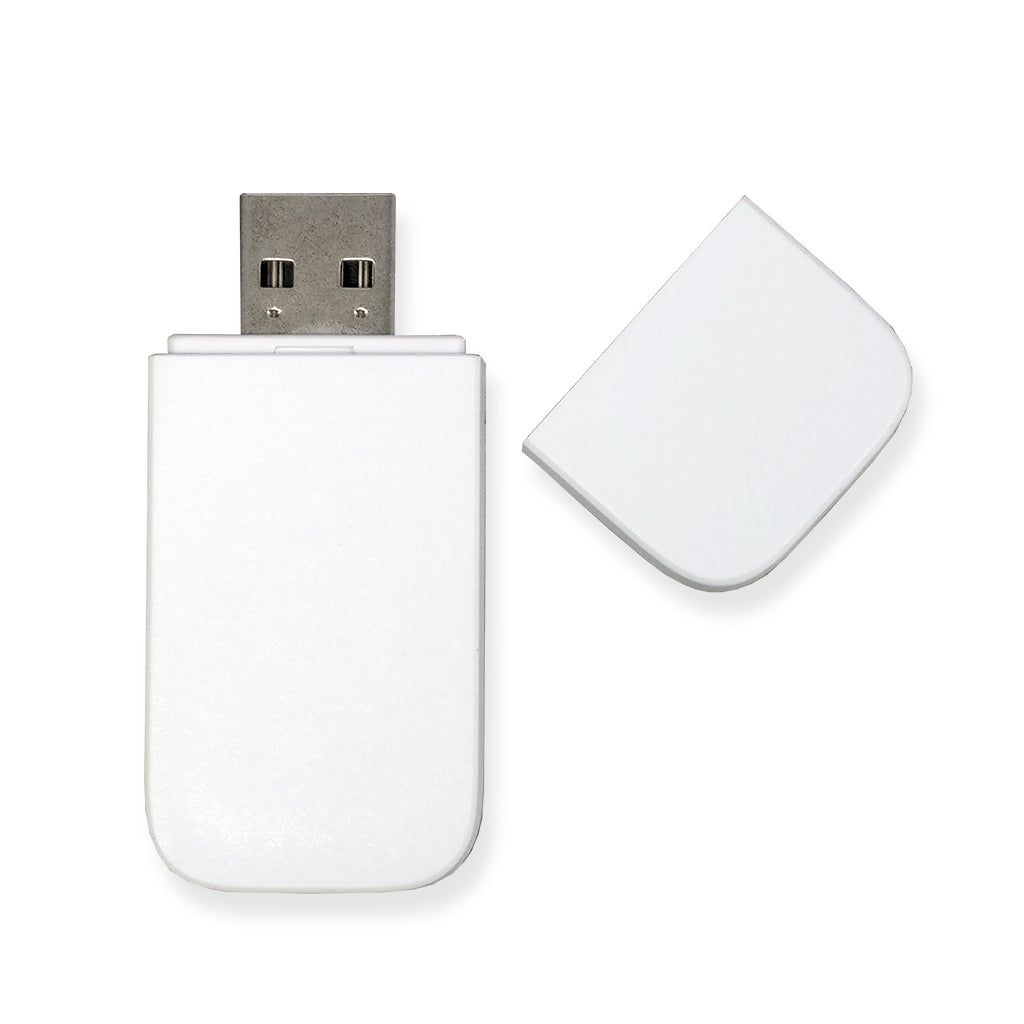

Internet Control Module

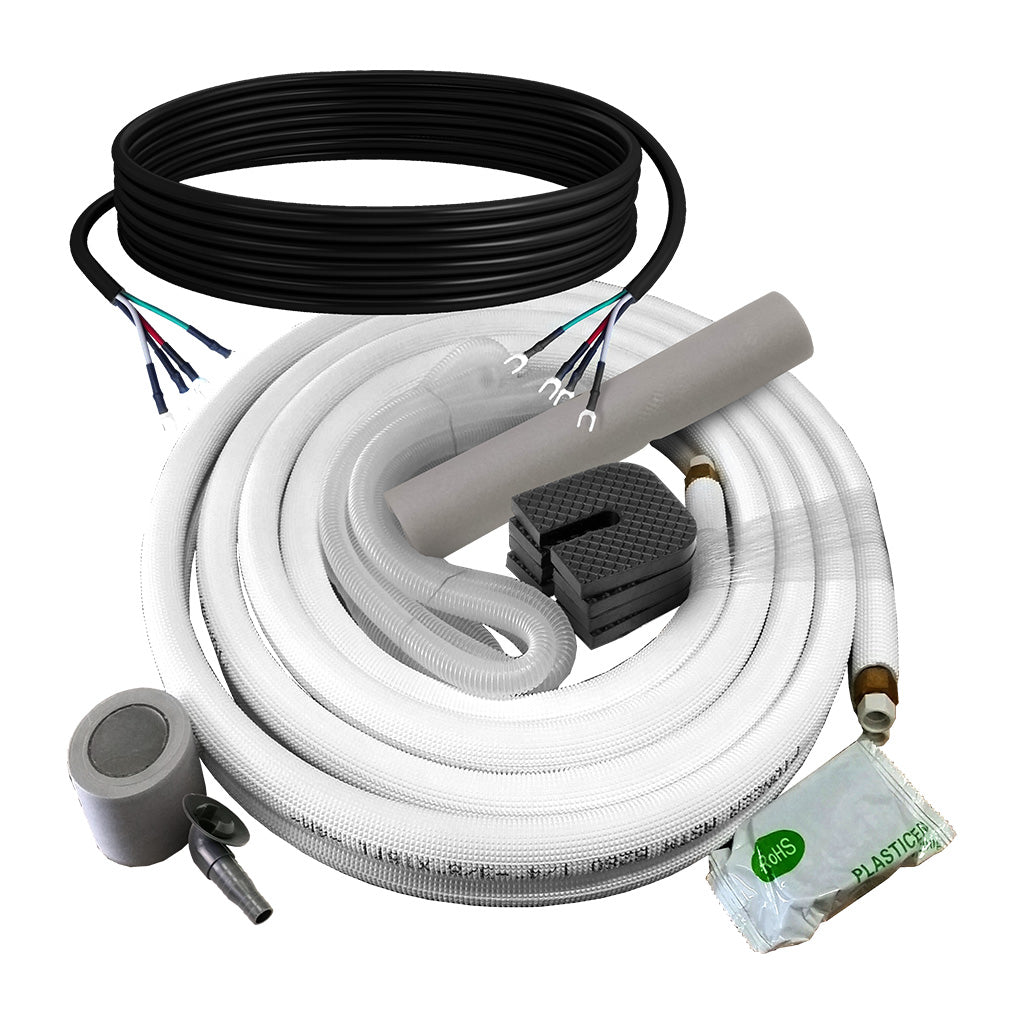

16 Ft. Copper Lines
16 Ft. Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Our Guarantee

5 years Warranty for Parts (Extendable to up to 7 years)
5 years for Compressor (Extendable to up to 10 years)

Performance Data
Power Supply:	230V, 60Hz, 1Ph
Cooling Rated Capacity:	23,000 BTU/h (1.9 Ton)
Rated Power Input (Cooling):	1920W
Cooling SEER2:	20 BTU/W.h
Cooling EER2:	12.5 BTU/W.h
Heating Rated Capacity:	24,000 BTU/h (2 Ton)
Rated Power Input (Heating):	2050W
Heating HSPF2:	9 BTU/W.h
Heating C.O.P.:	3.2 W/W
Refrigerant Type:	R410A
Recommended Application Area:	600~950 Sq.Ft

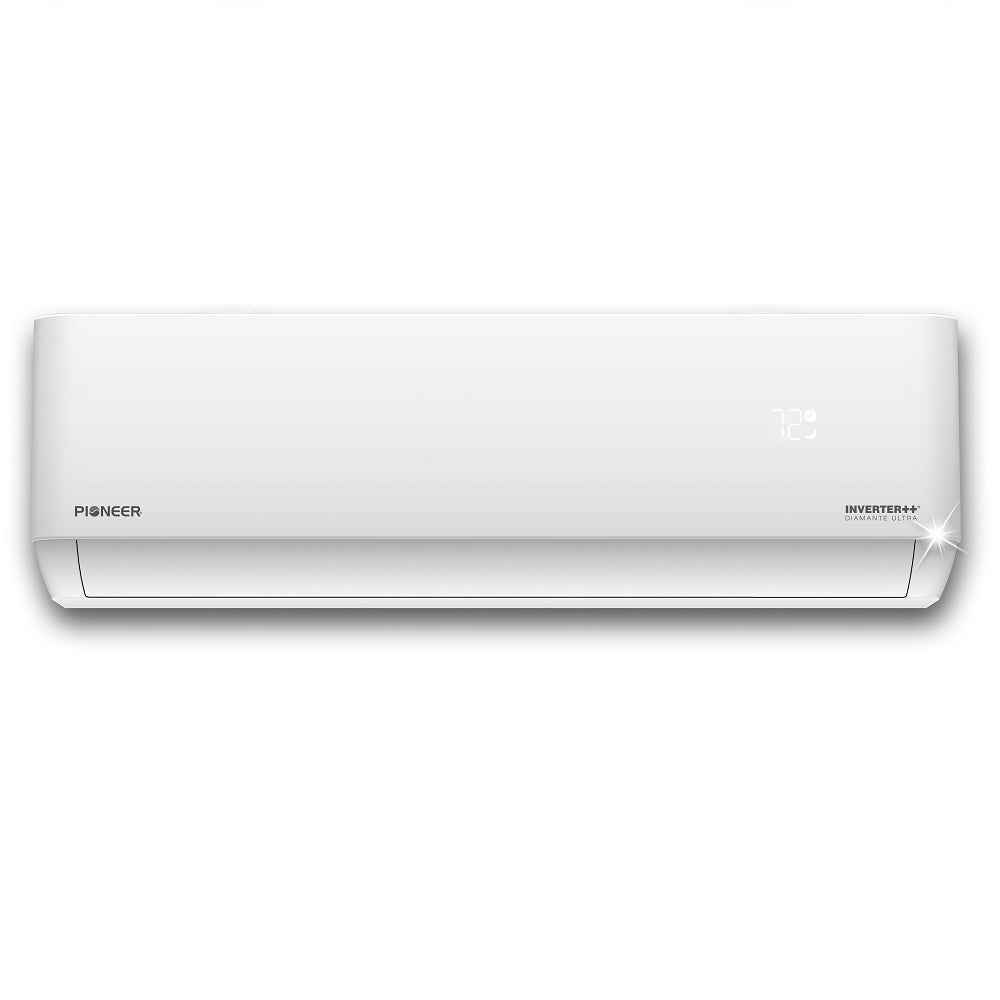

Indoor Unit Data
Part Number:	WT024GLFI22HLD
Air Flow (Hi):	735 / 618 / 529 CFM
Sound Level (Hi/Med/Lo/Mute):	45/40/35/31 dB(A)
Net Dimensions (WDH):	43-3/8 x 8-3/4 x 13-1/8 Inches
Carton Dimensions (WDH):	45-7/8 x 11-5/8 x 16 Inches
Net / Gross Weight:	30.9 / 35.3 Lbs

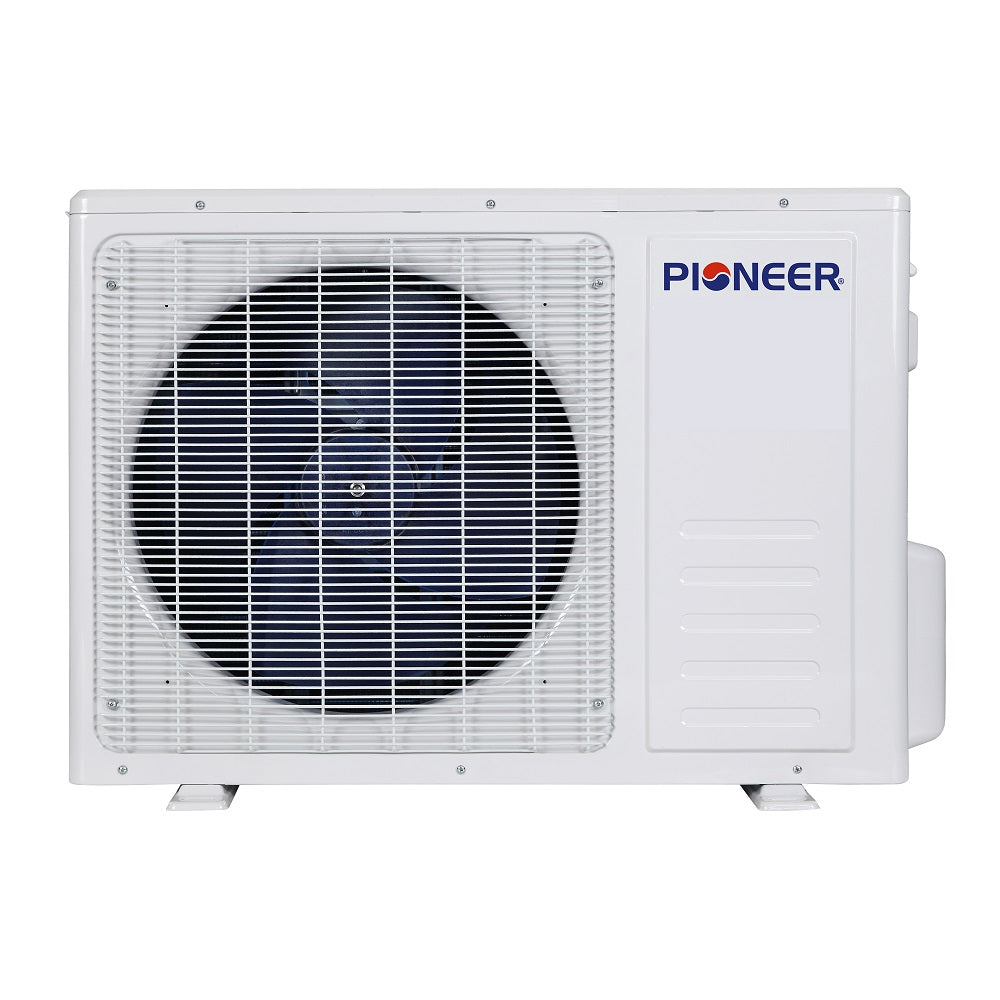

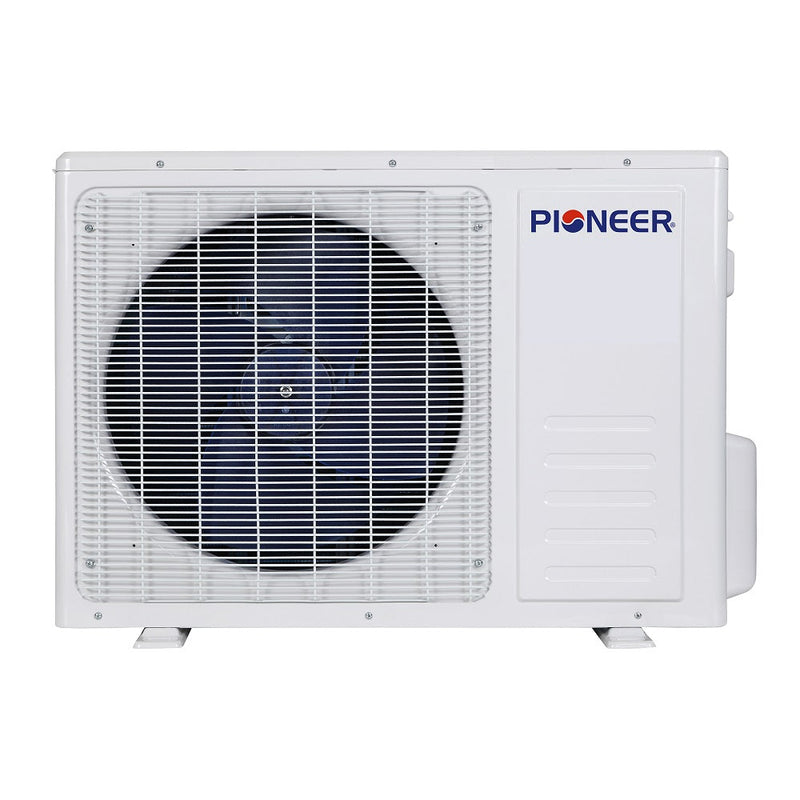

Outdoor Unit Data
Part Number:	YN024GLFI22RPD
Sound Level:	58 dB(A)
Net Dimensions (WDH):	35-7/8 x 15-5/8 x 31-5/8 Inches
Carton Dimensions (WDH):	40-1/2  x 19-1/8 x 33-1/2 Inches
Net / Gross Weight:	104.7 / 119.1 lbs
Electrical Circuit Size:	20A (double-pole)

Technical Brochure

Submittal Sheet

User & Installation Manual

WiFi Pairing Instructions

AHRI Certificate

What BTU rating should I choose for my air handler?

This depends on the coverage area/room size you are trying to heat/cool
An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area

Air Handler BTU	Coverage Area/Room Size (Sq Ft.)*
9K BTU	Up to 375 Sq. ft
12K BTU	Up to 500 Sq. ft
18K BTU	Up to 750 Sq. ft
24k BTU	Up to 1000 Sq. ft
36k BTU	Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
