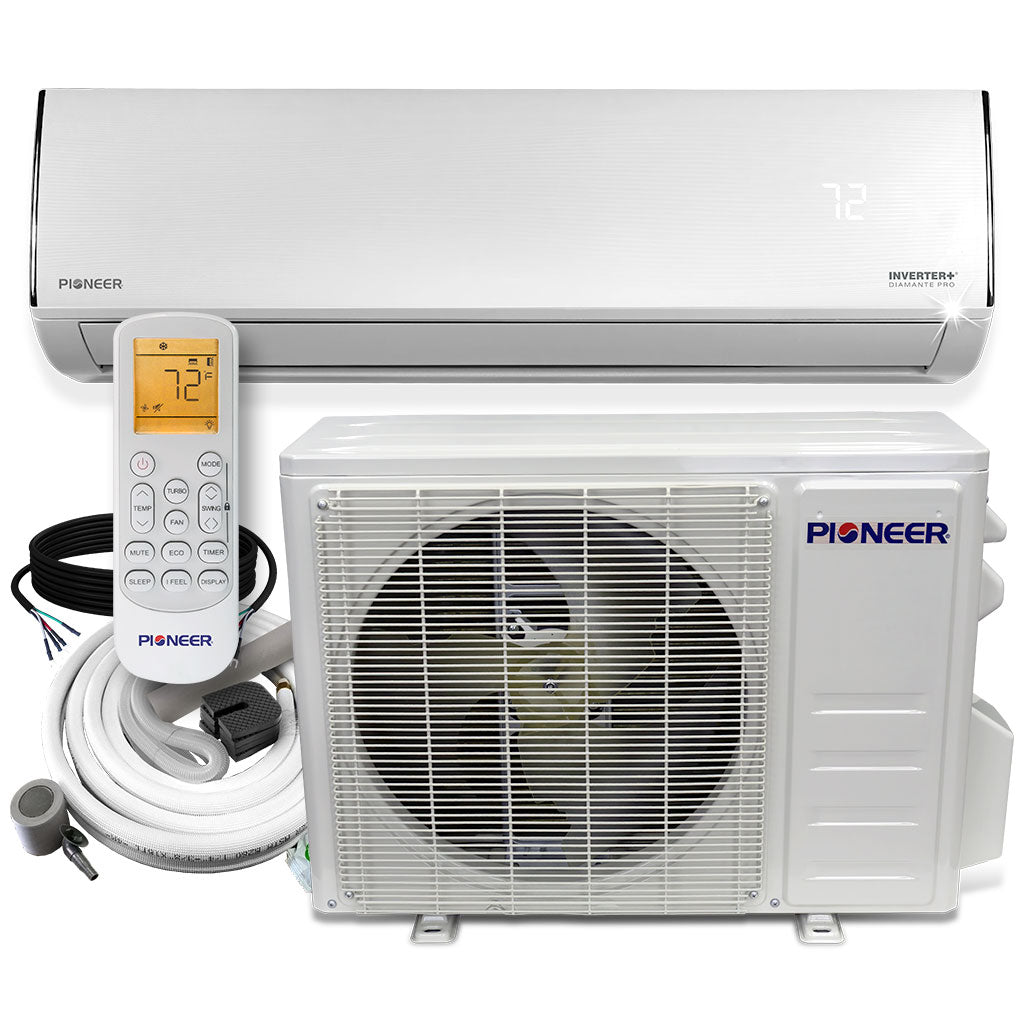

Pioneer Diamante Pro Mini Split - 18,000 BTU Ductless Mini-Split Air Conditioner Inverter+ and Heat Pump - 19 SEER2, 230V with 16 Ft. Lineset, available at Home Outlet Direct
| Power Supply: |
208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: |
18,000 BTU/h |
| Cooling Capacity Range: |
5,400~19,800 BTU/h |
| Cooling SEER2: |
19.0 BTU/W.h |
| Cooling EER2: |
9.4 BTU/W.h |
| Heating Rated Capacity: |
19,600 BTU/h |
| Heating Capacity Range: |
5,880~21,560 BTU/h |
| Heating HSPF2 (Region IV/V): |
8.5 / 7.0 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F): |
3.21 / 1.75 W/W |
| Refrigerant Type: |
R410A/44 |
| Suitable Area: |
350~650 Sq.F |
|
Indoor Unit Data |
|
| Part Number: |
WT018GLFI19HLE |
| Air Flow (Hi/Med/Lo): |
606 / 465 / 429 CFM |
| Sound Level (Hi/Med/Lo): |
45 / 40 / 35 dB(A) |
| Net Dimensions (WDH): |
39-3/4 x 8-5/8 x 12-3/8 Inches |
| Carton Dimensions (WDH): |
43-1/8 x 11-7/8 x 15-3/8 Inches |
| Net / Gross Weight: |
28.7 / 35.3 lbs |
|
Outdoor Unit Data |
|
| Part Number: |
YN018GLFI19RPE |
| Breaker Needed: |
20A (double-pole) |
| Sound Level: |
52 dB(A) |
| Net Dimensions (WDH): |
30-3/4 x 13-3/4 x 23-7/8 Inches |
| Carton Dimensions (WDH): |
35-3/8 x 15-7/8 x 25-3/4 Inches |
| Net / Gross Weight: |
73.8 / 84.9 lbs |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
