Quantum Series Inverter+ (20 SEER) and Inverter++ (22 SEER)

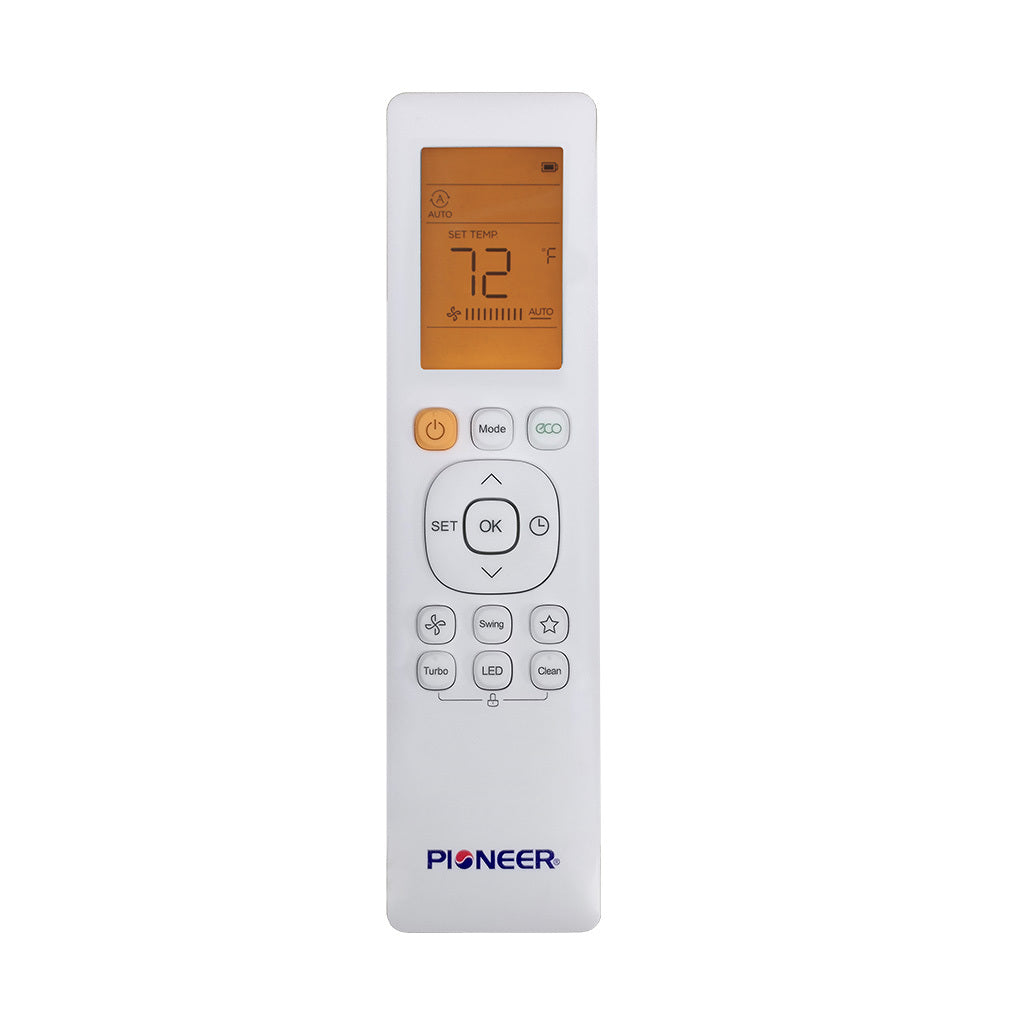

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!
Standard
Optional
| Performance Data | |
| Power Supply: |
208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: |
24,000 BTU/h |
| Cooling Capacity Range: |
6,704~25,300 BTU/h |
| Cooling SEER2: |
18.0 BTU/W.h |
| Cooling EER2: | 9.0 BTU /W.h |
| Heating Rated Capacity: |
24,000 BTU/h |
| Heating Capacity Range: |
6,900~28,100 BTU/h |
| Heating HSPF2 (Region IV/V): |
8.6 / 6.6 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F): |
3.03 / 1.78 W/W |
| Refrigerant Type: |
R410A/63 |
| Suitable Area: |
650~900 Sq.F |
|

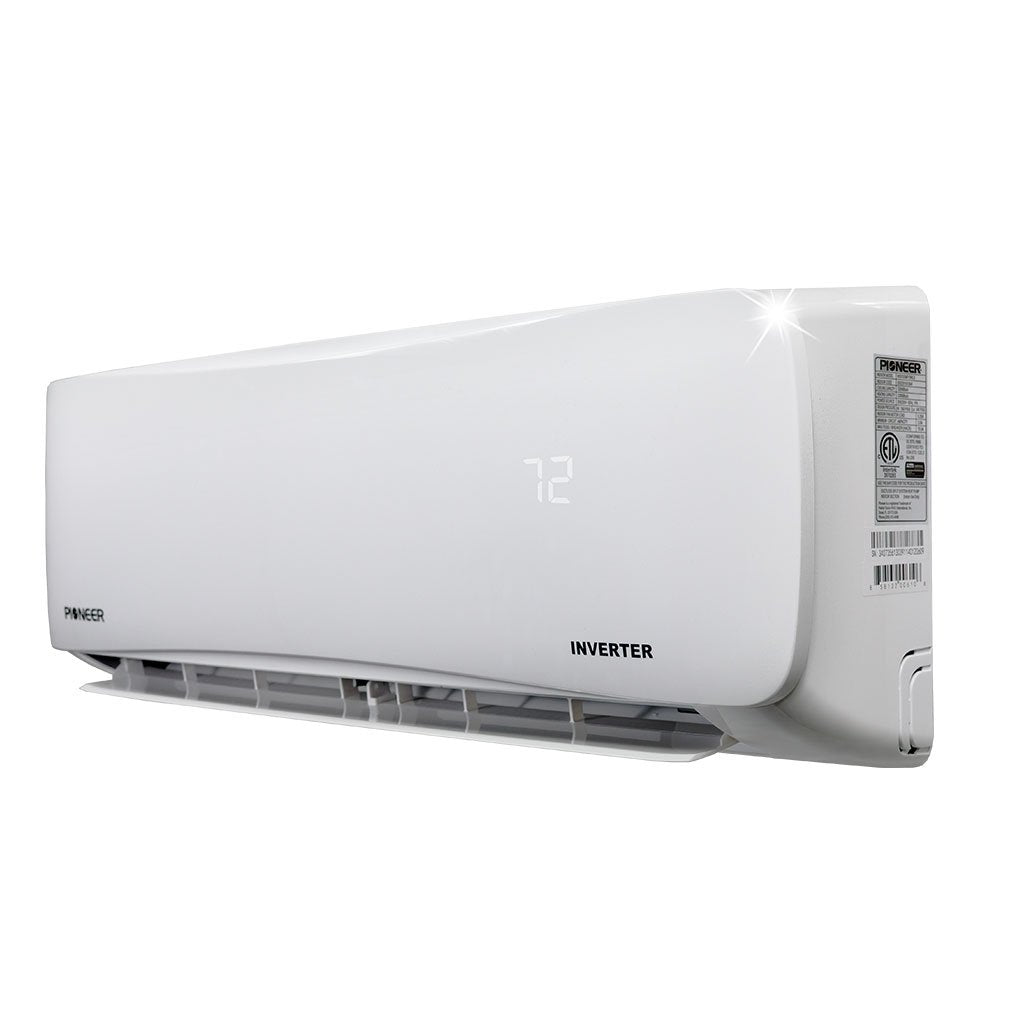

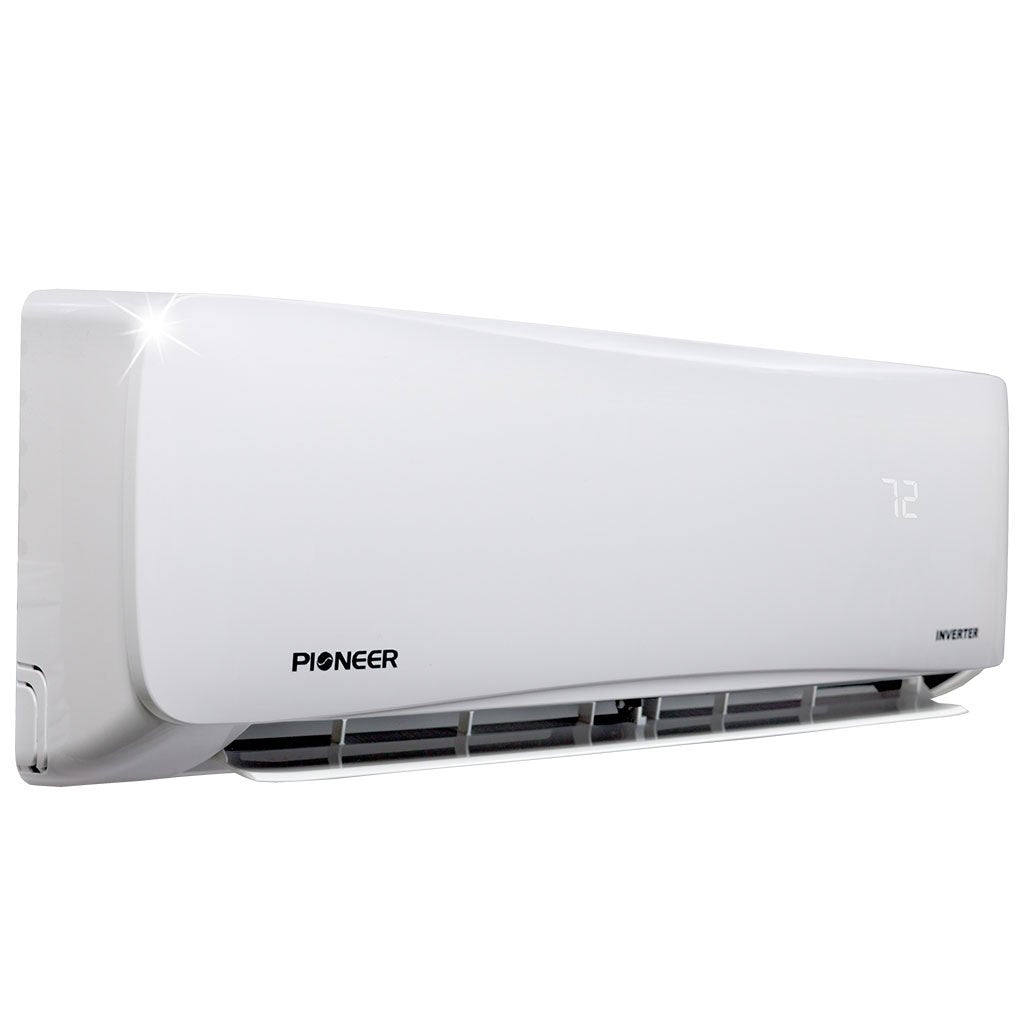

Indoor Unit Data |
|
| Model Number: |
WS024GMFI20HLD |
| Air Flow (Hi/Med/Lo): |
588 / 450 / 353 CFM |
| Sound Level (Hi/Med/Lo): |
45.5 / 39.5 / 35.0 dB(A) |
| Net Dimensions (WDH): |
42"-1/2 x 8"-7/8 x 13"-1/8 Inches |
| Carton/Shipping Dimensions (WDH): |
45"-1/2 x 16"-3/8 x 12"-5/8 Inches |
| Net / Gross Weight: |
30 / 38.6 lbs |
|

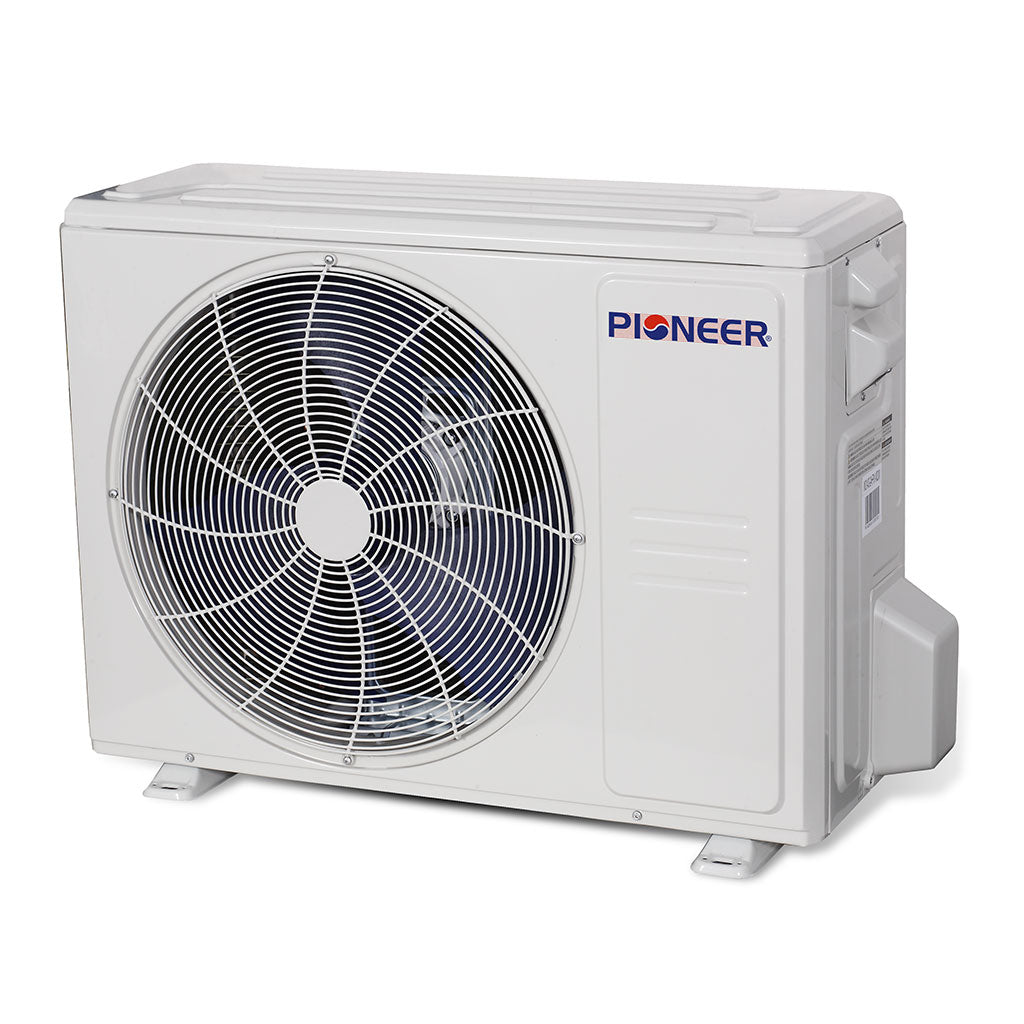

Outdoor Unit Data |
|
| Model Number: |
YN024GMFI20RPD |
| Sound Level: |
60.0 dB(A) |
| Net Dimensions (WDH): |
35" x 13"-1/2 x 26"-1/2 Inches |
| Carton Dimensions (WDH): |
39"-1/8 x 15"-5/8 x 29"-1/8 Inches |
| Net / Gross Weight: |
97.9 / 104.60 lbs |
| Breaker Needed: |
20A (double-pole) |
Certifications
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
