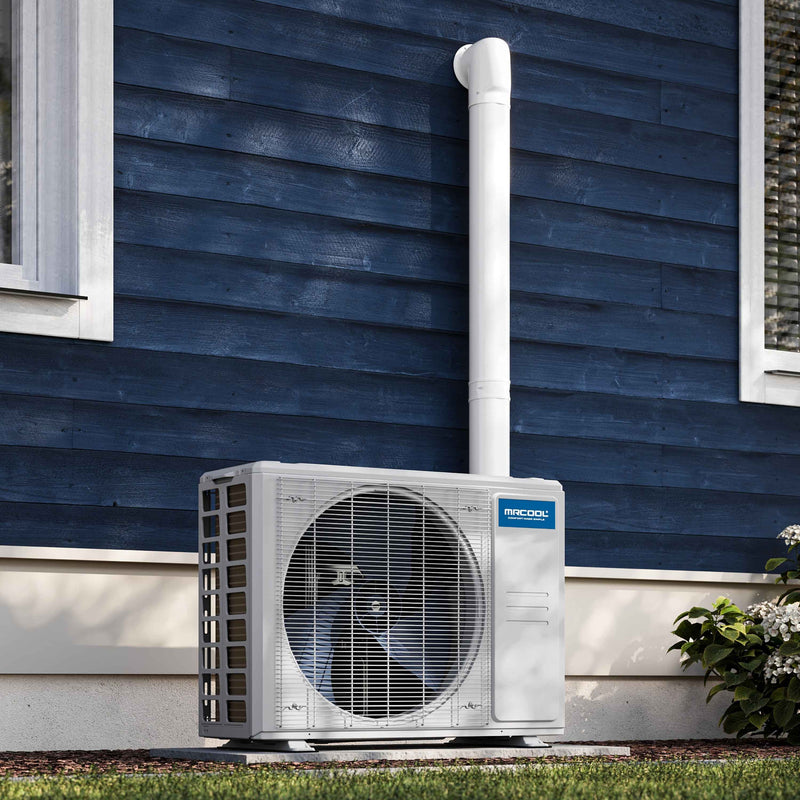

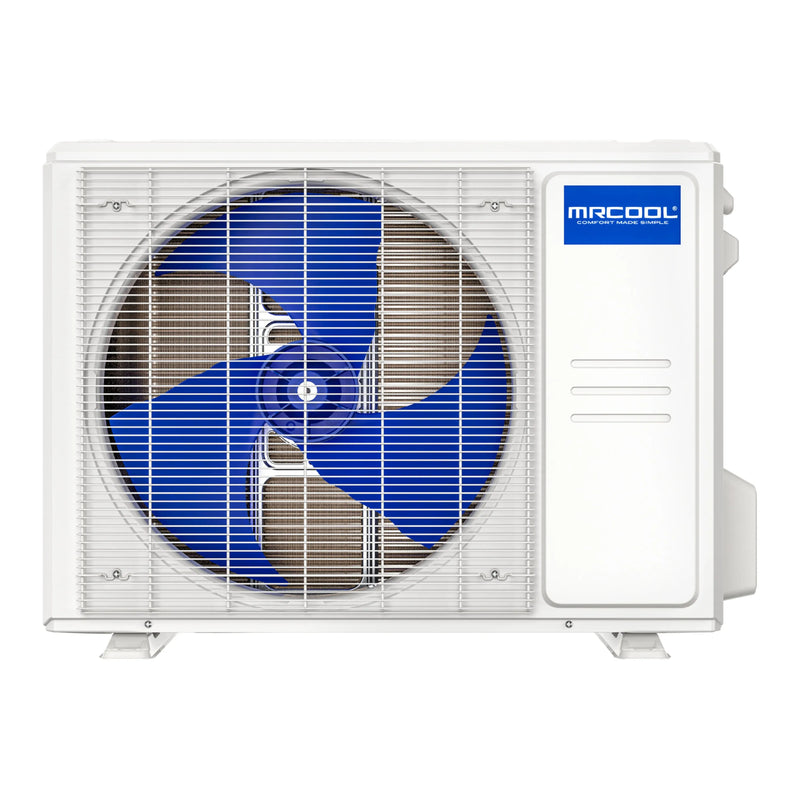

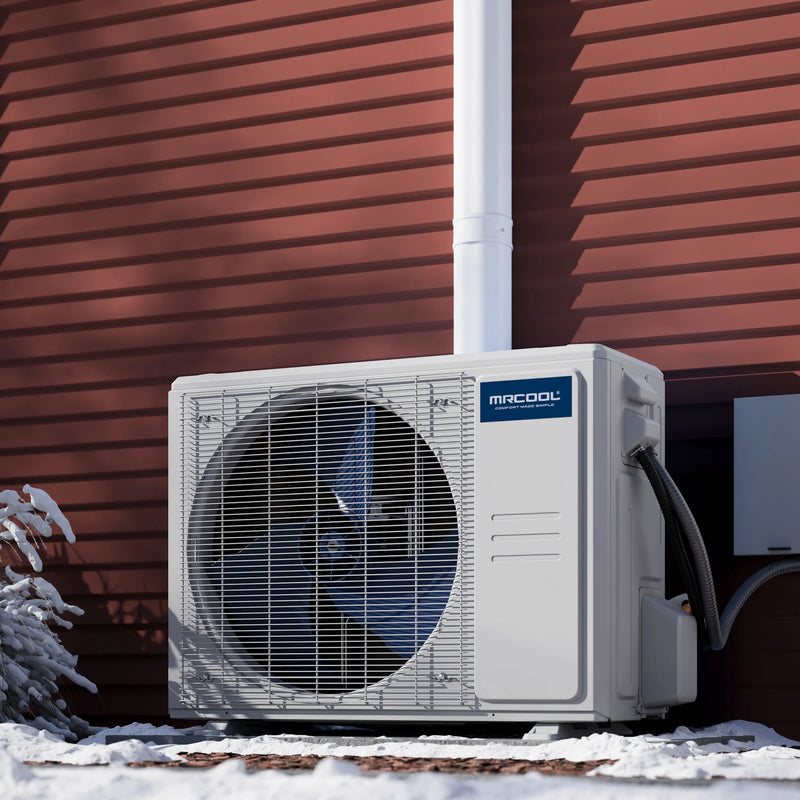

We are thrilled to announce our new 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini Split Condenser, which is the best and most convenient way to get comfortable. You won’t need the services of an HVAC professional to install this unit, because it’s do-it-yourself! Achieving a SEER2 rating of 23.9 and an HSPF2-4 rating of 10, you can rest easy knowing this unit will help you save money as you chill. This condenser can also support up to three air handlers, meaning it can heat and cool three rooms that are a combined 750 square feet in size, making it a perfect option if you have spare bedrooms in need of heating and cooling.
What makes this system different is our patented pre-charged Quick Connect® line sets filled with R-454B, an incredibly efficient and eco-friendly refrigerant. This switch from the previous refrigerant makes the system even more efficient and sustainable than before. The design of these innovative line sets allow you to install the system yourself, saving you time and money.
This condenser is more than just a heating and cooling unit. When operating as a system, you will be able to experience total customization with the unit’s wealth of features. For example, you can integrate your system with Amazon Alexa or Google Home through the Smart HVAC app, allowing you to control your system with your voice and monitor its operation with the touch of a button. You can also set schedules, temperature ranges, and mode of operation through the app. The power of comfort is in your hands with this system. In the unlikely event that something happens to the system, we’ve got you covered. The DIY® series comes with one of the best warranties in the industry - a 7 year compressor warranty, a 5 year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program. Give yourself the best comfort with the DIY®.
| Dimensions | 13.46" D x 26.5" H x 35.04" W |
|
SEER2 |
23.9 |
|
EER2 |
13 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
Tonnage |
1.5 |
|
Cooling Capacity (BTU) |
18000 |
|
Heating Capacity (BTU) |
18000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
20 |
|
Min Circuit Ampacity (A) |
16 |
|
Color |
White |
|
Zone Capacity |
3 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
61.73 |
|
Decibel Rating (DBA) |
60 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
172.2 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
3/8 |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

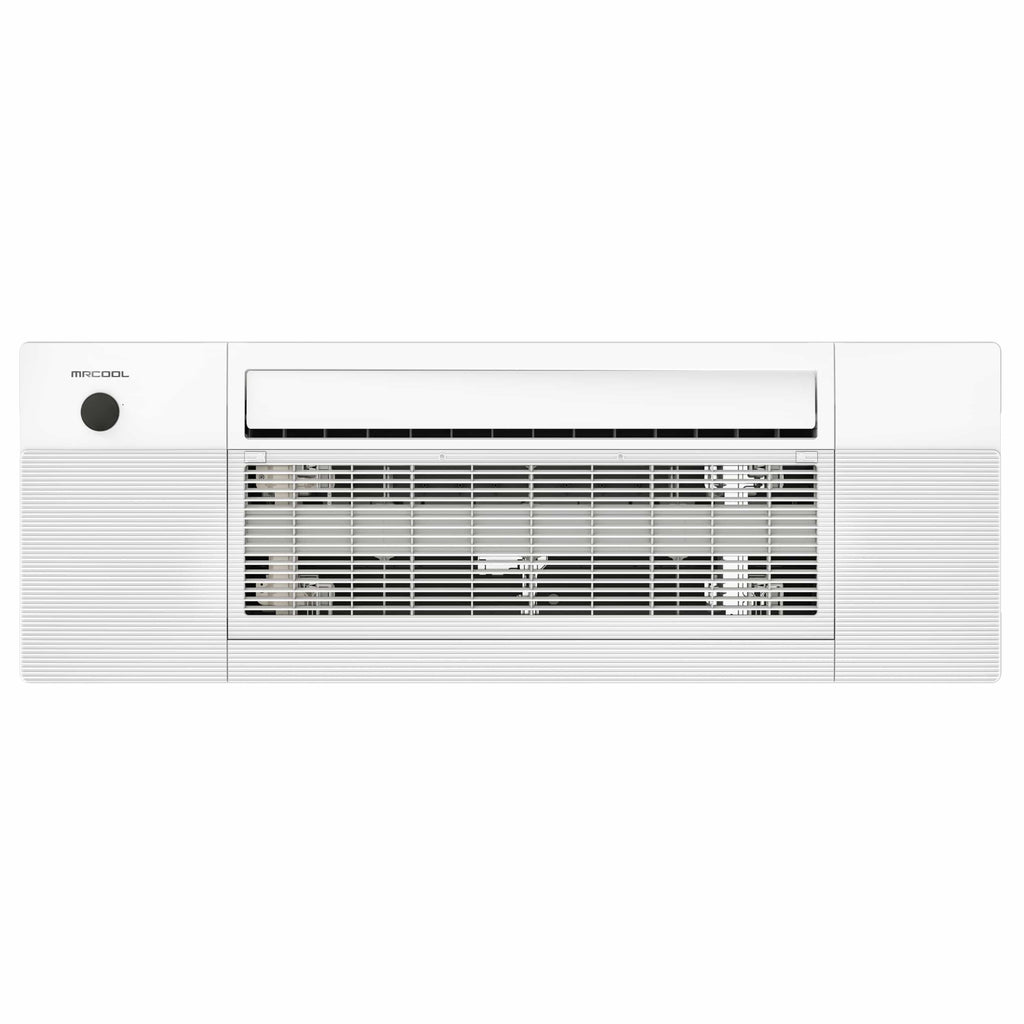

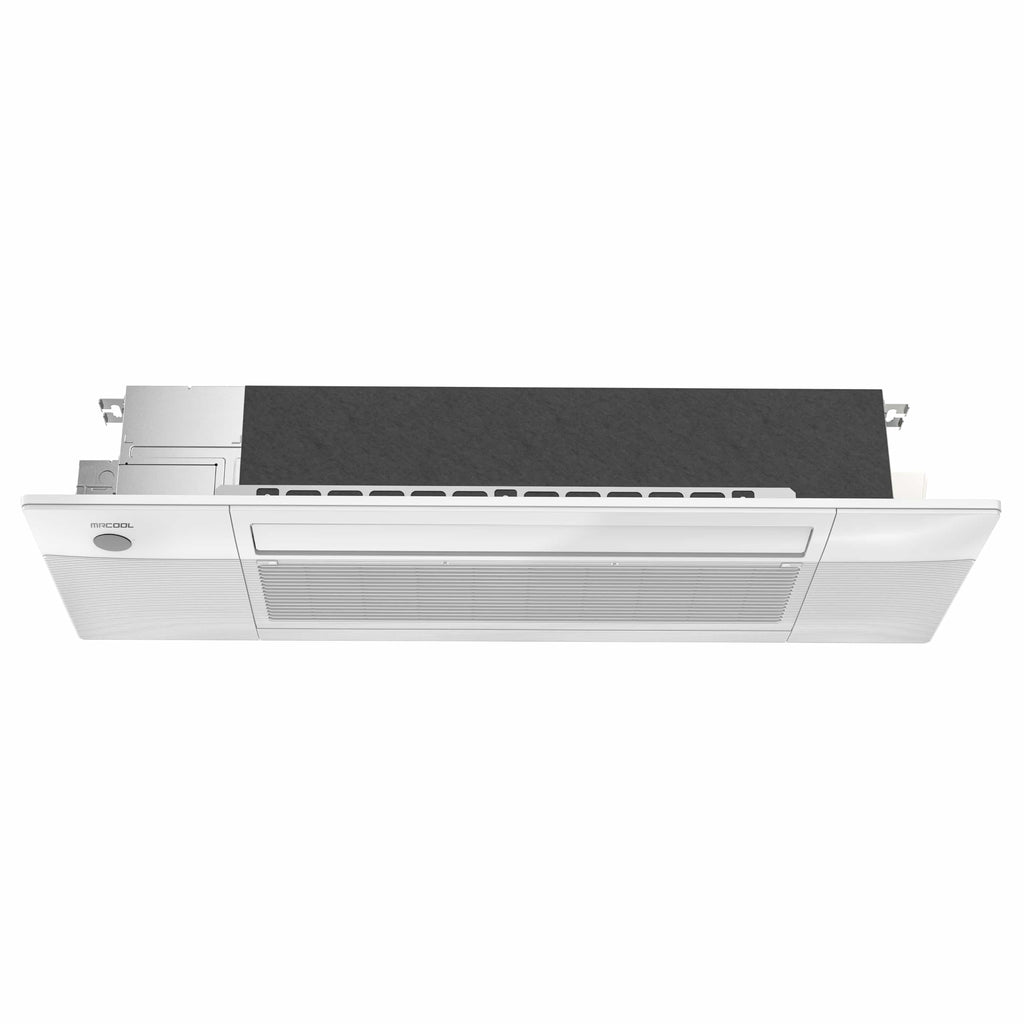

The 5th Generation MRCOOL® DIY® Series OuttaSight® 18K BTU 230V One-Way Ceiling Cassette provides efficient and powerful climate control for areas up to 800 sq. ft.

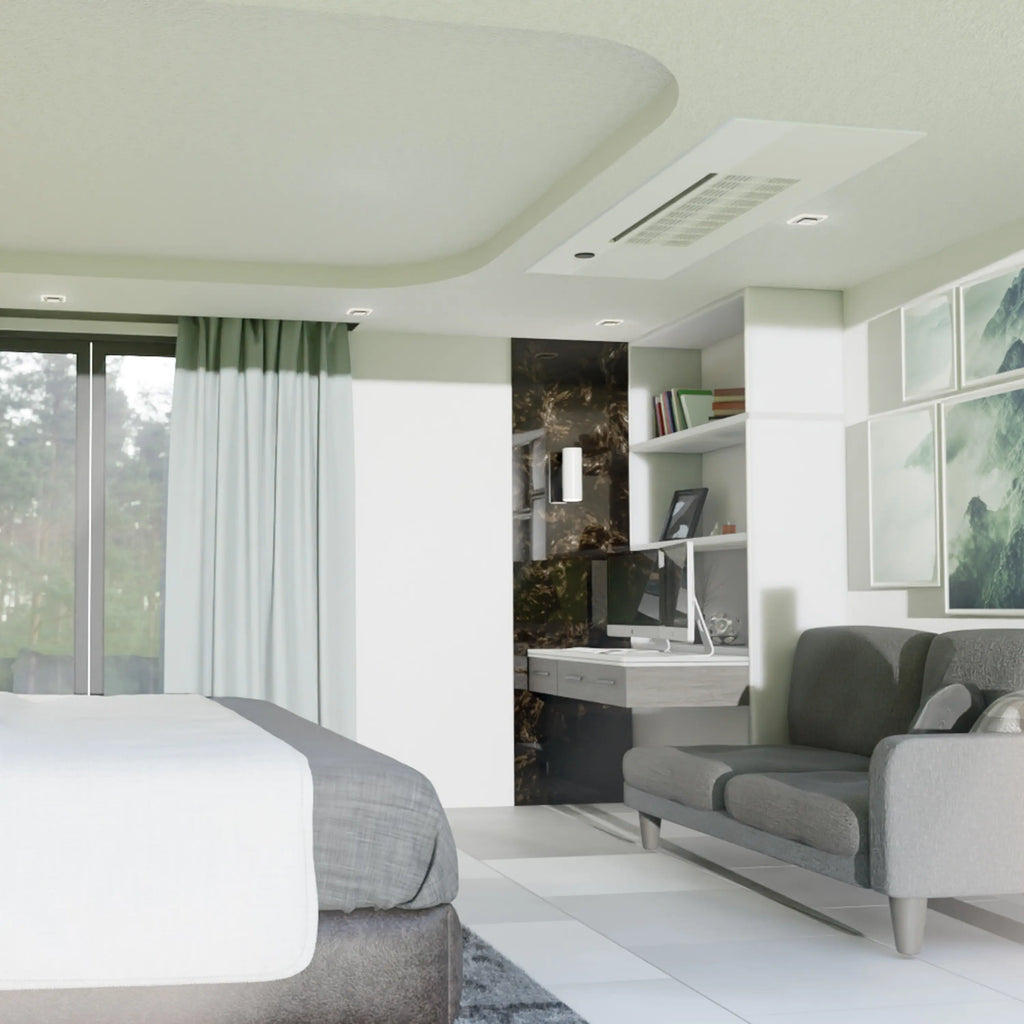

Designed for effortless installation, it eliminates the need for specialized tools, offering a cost-effective and straightforward setup. Ideal for both multi-zone and single-zone applications, this unit fits seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a flush, modern appearance. Unlike conventional ceiling cassettes that require extensive ductwork or valuable wall space, this system provides flexible installation, making it perfect for both new construction and retrofit projects. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, pre-charged with R-454B, an eco-friendly refrigerant, eliminating the need for vacuuming and simplifying the installation process.
Advanced filtration improves indoor air quality, while the Elevation function allows the filter panel to lower for easy maintenance and cleaning. With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and compatibility with Amazon Alexa and Google Assistant—this system ensures customized comfort. Supported by an industry-leading warranty, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® Outtasight® Ceiling Cassette offers reliable performance and year-round comfort.
|
Dimensions |
13.19" D x 8.98" H x 50.31" W |
|
CFM |
400 / 352 / 300 / 207 / 207 |
|
Cooling Capacity (BTU) |
18800 |
|
Heating Capacity (BTU) |
22700 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
3 |
|
Mount Type |
Ceiling |
|
Color |
White |
|
Rated Load |
1.2 |
|
Max Coverage Area |
800 |
|
Refrigerant Type |
R-454B |
|
Decibel Rating (DBA) |
41.5 |
|
Decibel Rating Low (DBA) |
26 |
|
Decibel Rating High (DBA) |
44 |
|
Air Flow Direction |
1-Way |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
1/2 |
|
Blower Motor RPM |
1344/1184/1024 |
|
Filter Type |
Reusable |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Sleep Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
Registered Warranty |
Limited Lifetime Compressor |
|
Base Warranty |
5-Year Part/7-Year Compressor |
|
Bas Parts Warranty |
5 Years |
|
Registered Compressor Warranty |
Limited Lifetime Compressor |
|
Base Compressor Warranty |
7 Years |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU;PR;VI |
|
Net Weight (Lbs) |
45 |
|
Gross Weight (Lbs) |
88 |

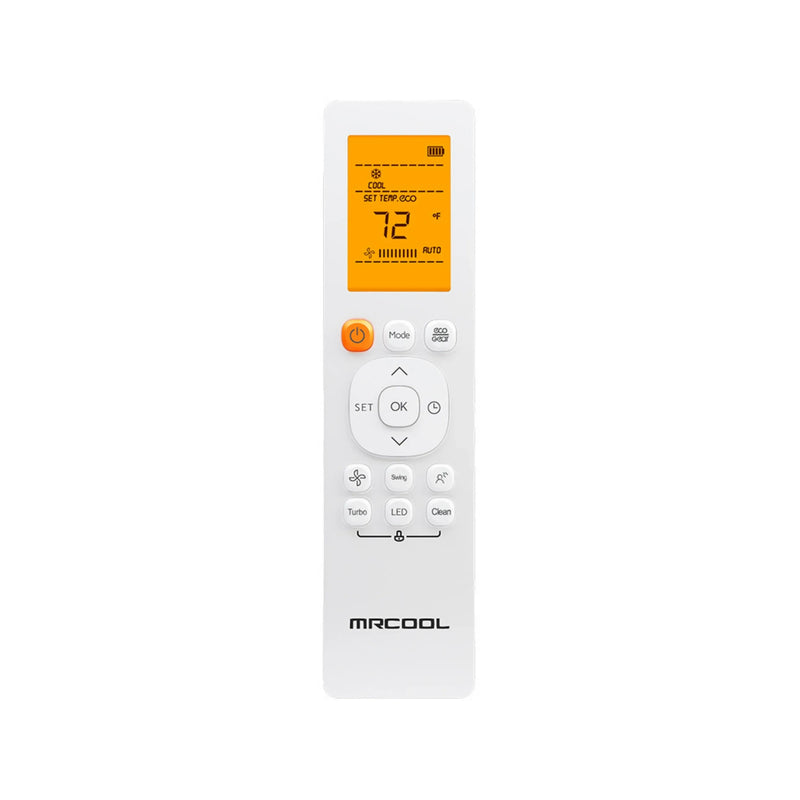

This remote is included with each air handler in MRCOOL's 5th Generation DIY Ductless Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
