The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself
MRCOOL DIY 4th Gen 48K BTU, 5-Zone, 20.5 SEER, Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C)
MRCOOL DIY 4th Gen 24K BTU, 20.5 SEER, Ductless Mini-Split Wall Mounted Air Handler (DIY-24-HP-WMAH-230C25)
MRCOOL DIY 4th Gen 18K BTU, 22 SEER, Ductless Mini-Split Wall Mounted Air Handler (DIY-18-HP-WMAH-230C25)
Condenser |
|
|
Dimensions |
16.34" D x 52.48" H x 37.48" W |
|
Voltage |
208-230 V |
|
SEER |
20.5 |
|
Cooling Capacity |
48K BTU |
|
Heating Capacity |
48K BTU |
|
Min-Max Ambient Cool |
5F ~ 122F |
|
Min-Max Ambient Heat |
5F ~ 75.2F |
|
Refrigerant Type |
R-410A |
|

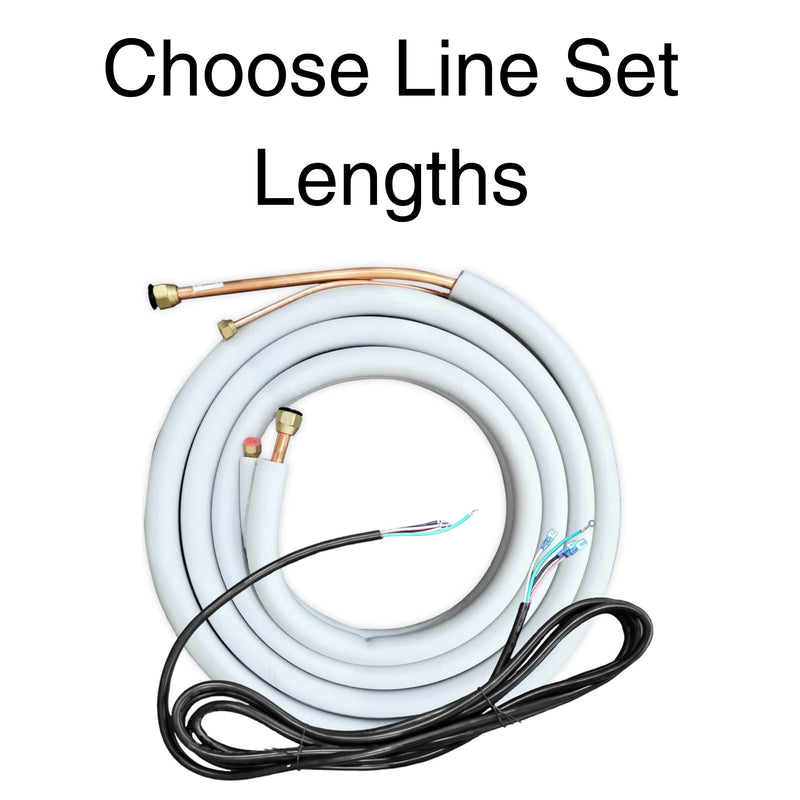

Max Lineset Length |
246.06 ft TOTAL |
24K Air Handler |
|
|
Product Dimensions |
8.90" D x 13.19" H x 42.52" W |
|
Voltage |
208-230 V |
|
Cooling Capacity |
23K BTU |
|
Heating Capacity |
25K BTU |
|
Modes |
|
18K Air Handler |
|
|
Product Dimensions |
8.90" D x 13.19" H x 42.52" W |
|
Voltage |
208-230 V |
|
Cooling Capacity |
18K BTU |
|
Heating Capacity |
18K BTU |
|
Modes |
|
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Overall Great Unit and working with HOD was simple. Unit arrived on time and in good shape.
Install was as stated and works good but struggles at heating house when temperatures are below freezing. I am concerned what will happen once we get to 20 and lower. Over all I like the product but they should be more honest about heating at low temperatures.
