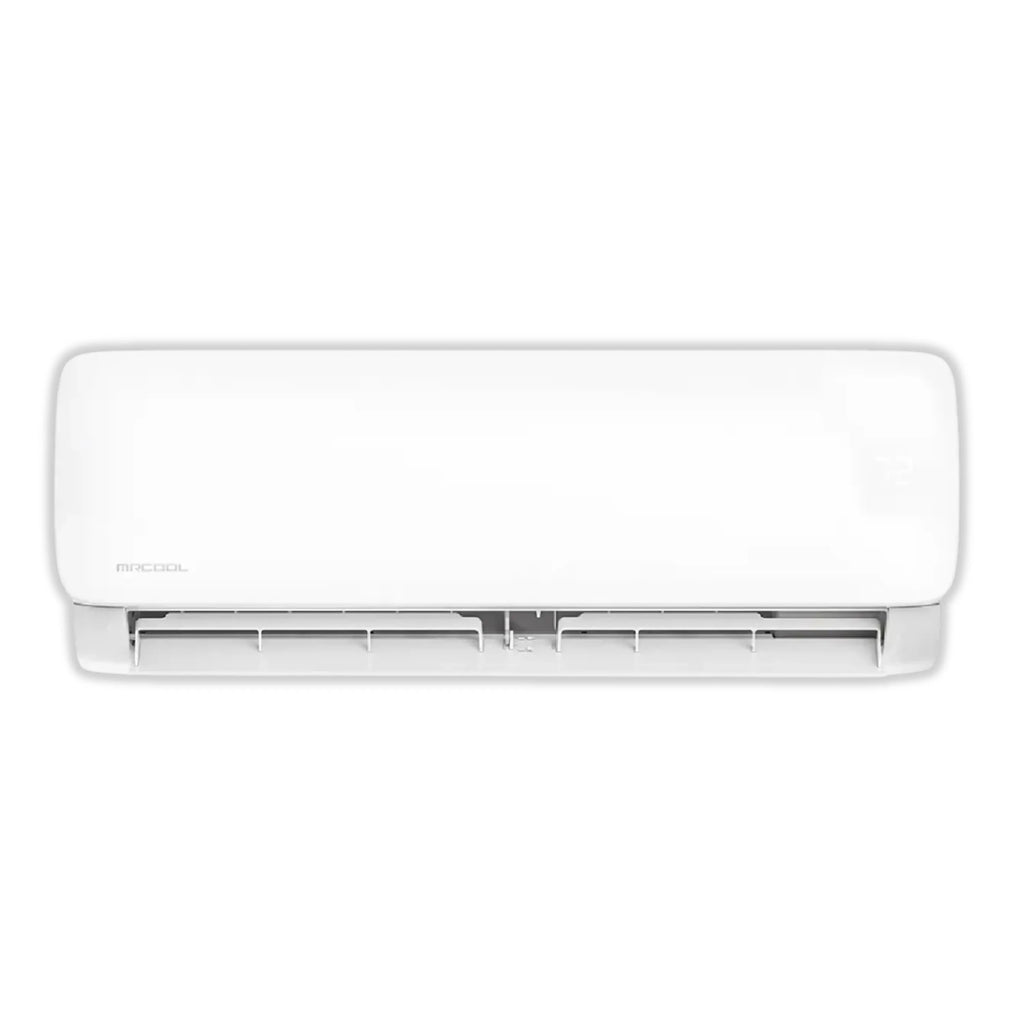

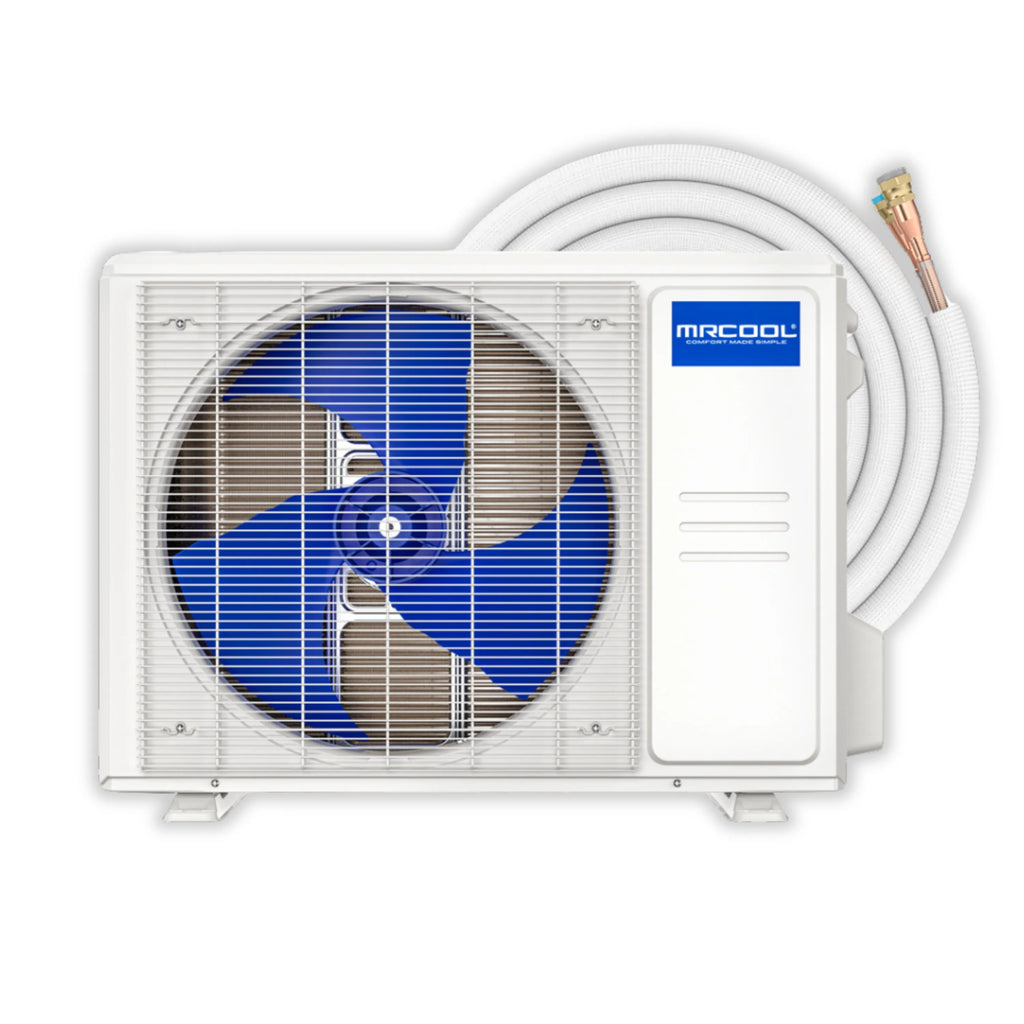

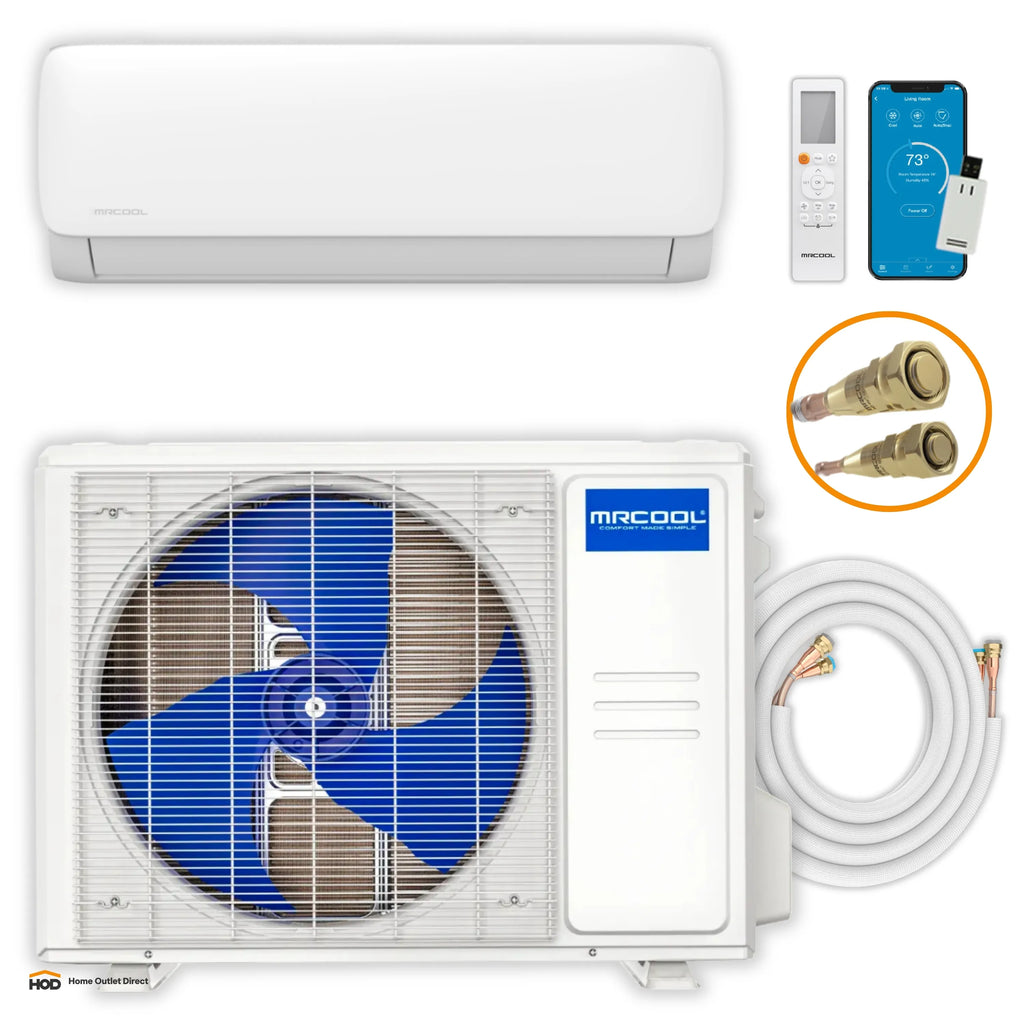

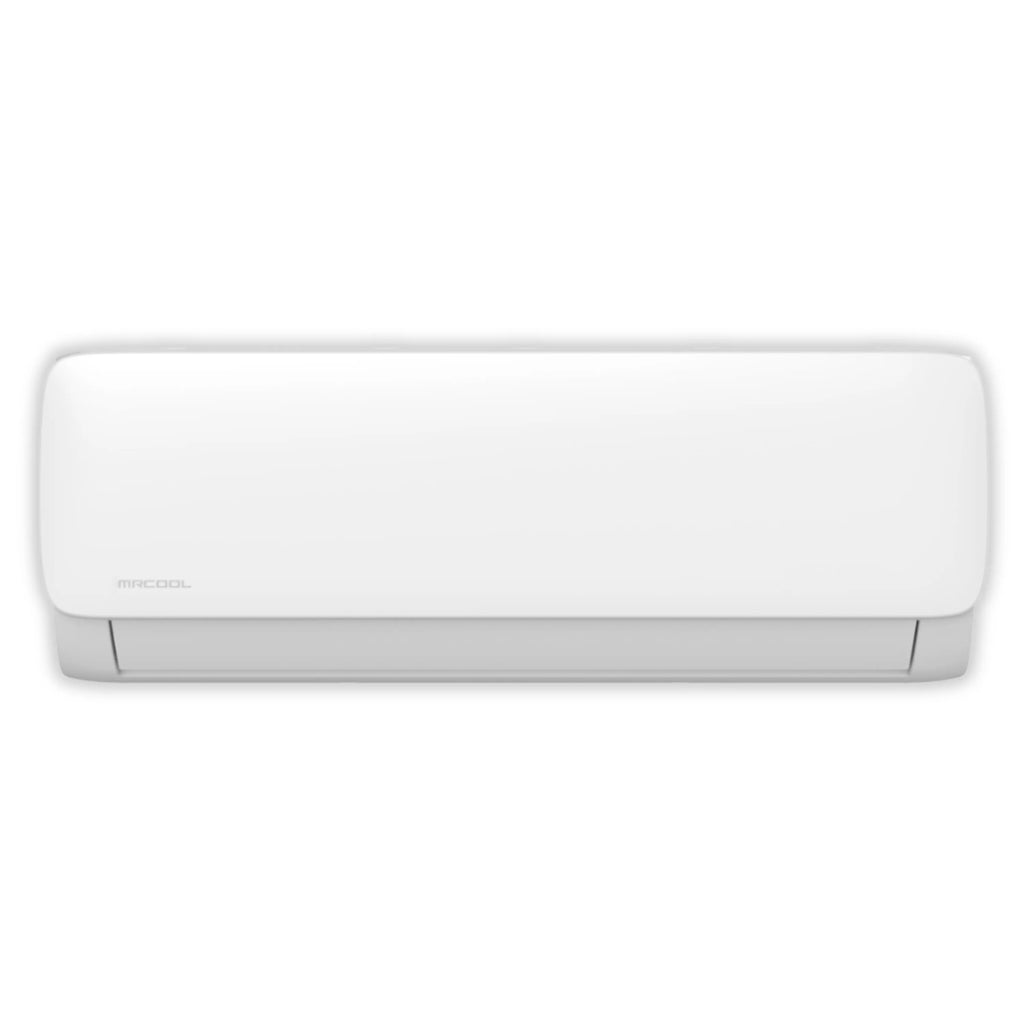

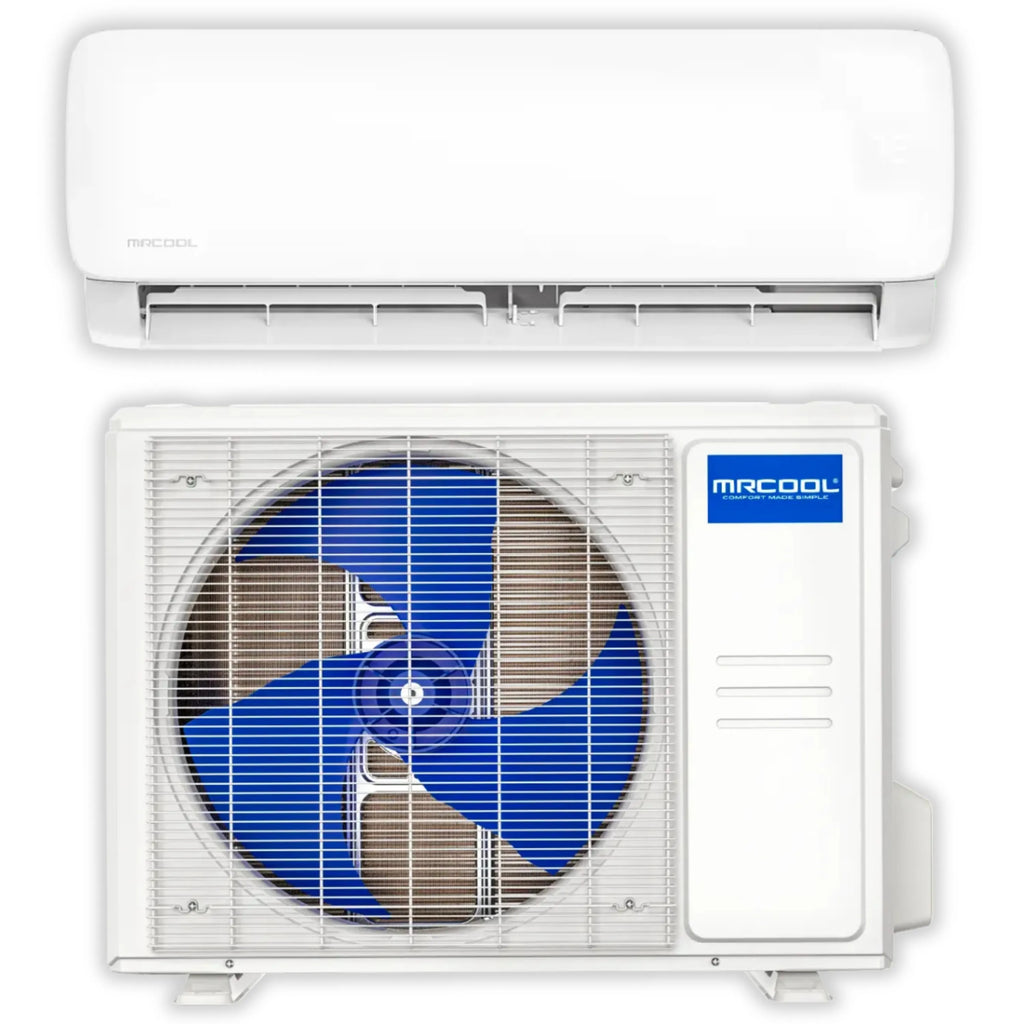

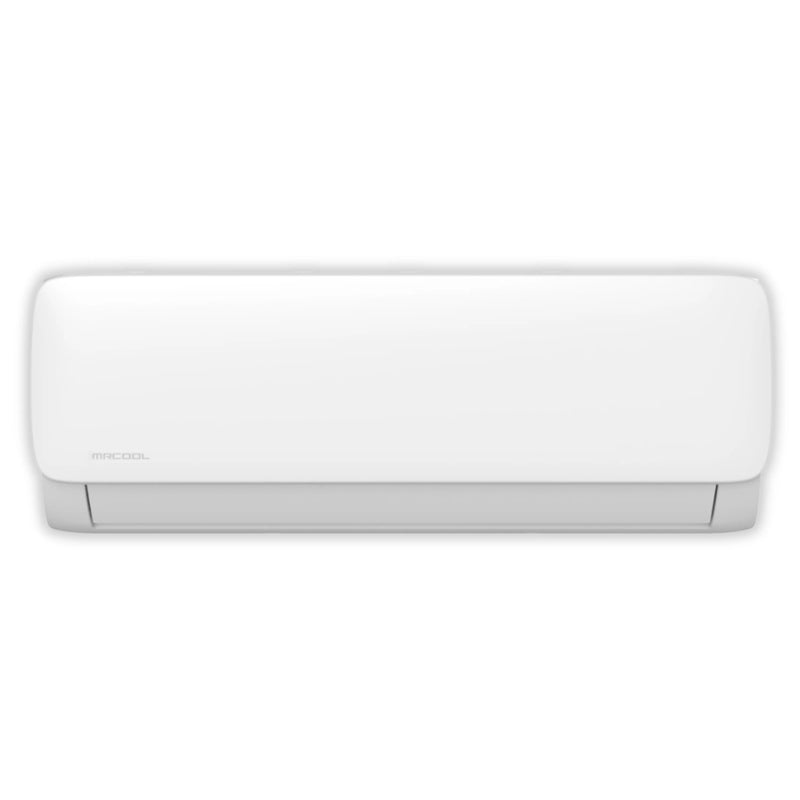

The MRCOOL® Easy Pro™ Mini-Split System delivers powerful, energy-efficient heating and cooling for spaces up to 550 sq. ft.- all with a simple DIY installation. This complete system includes a quiet, WiFi-enabled indoor air handler and a rugged outdoor condenser. Whether for a bedroom, office, or tech space like a server room, the Easy Pro™ system offers smart control, year-round performance, and peace of mind - without breaking the bank.
| Condenser Dimensions | 28.35 W" x 10.63 D" x 19.49 H" |
|---|---|
| Air Handler Dimensions | 31.57 W" x 7.87 D" x 11.61 H" |
| Condenser Weight | 67.24 lbs |
| Air Handler Weight | 24.91 lbs |
| Zone Capacity | 1 |
| Cooling Capacity | 12,000 BTU |
| EER2 | 9 |
| SEER2 | 19.5 |
| Heating Capacity | 12,000 BTU |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7 |
| Coverage Area | Up to 550 sq ft. |
| Condenser Noise Level | 54 dB(A) |
| Air Handler Noise Level (Hi/Mi/Lo) | 44.5/35/17.5 dB(A) |
| Condenser Operating Temperature | -13° to 122° |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19.5A |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 21.52 oz |

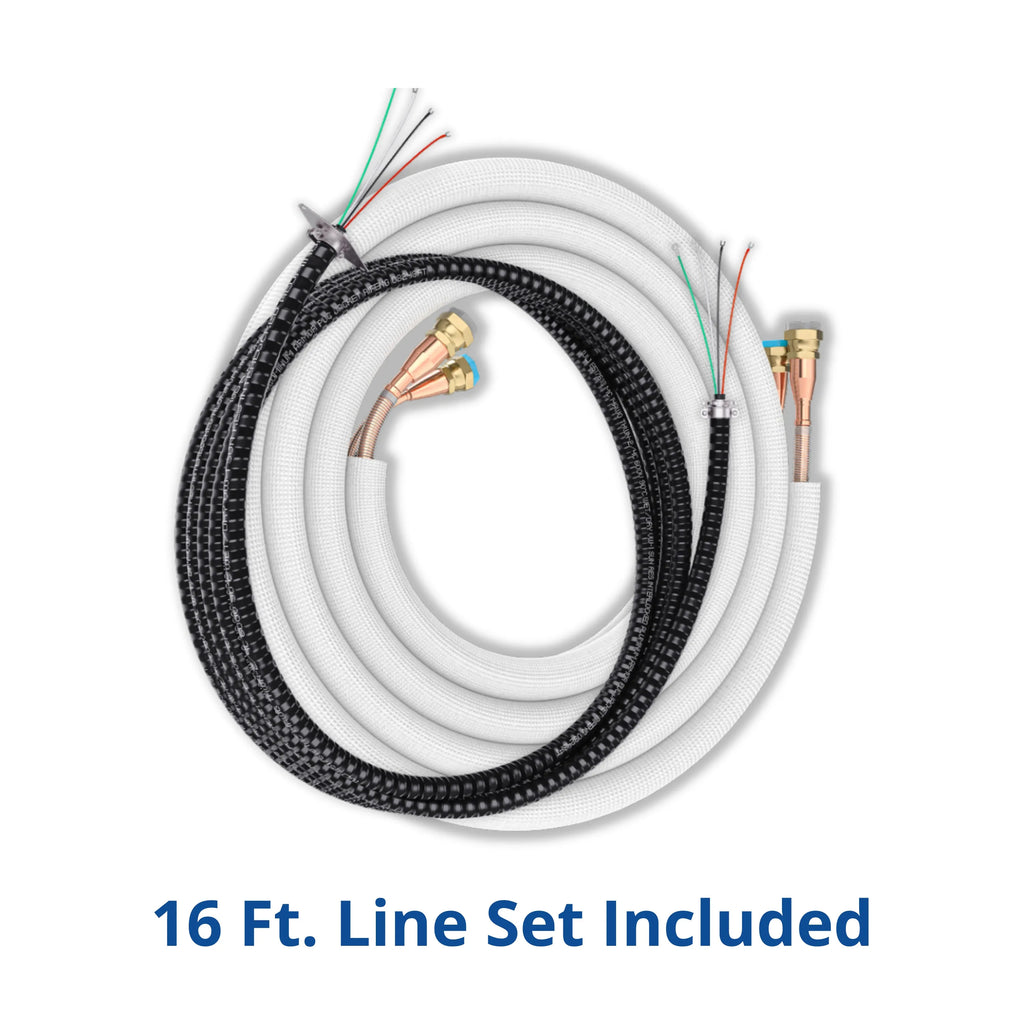

| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 82 ft. |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |

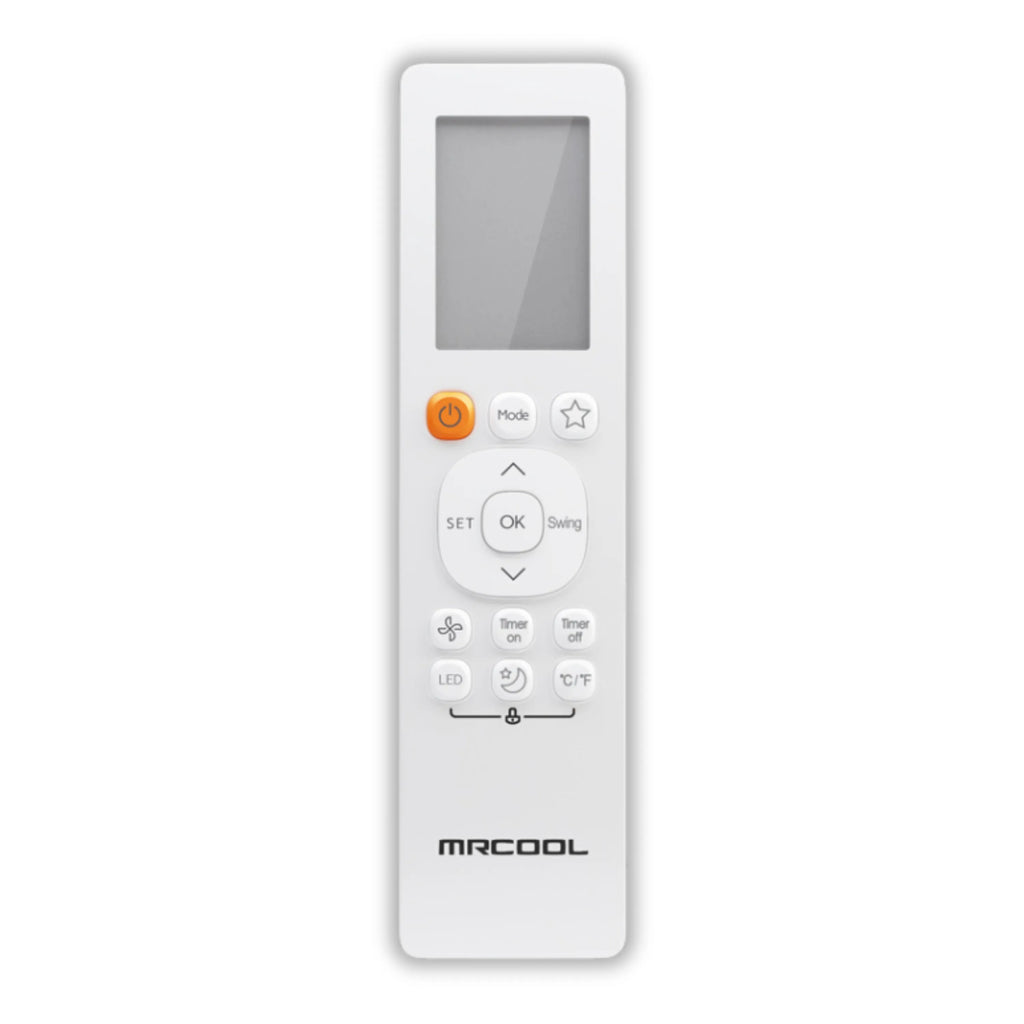

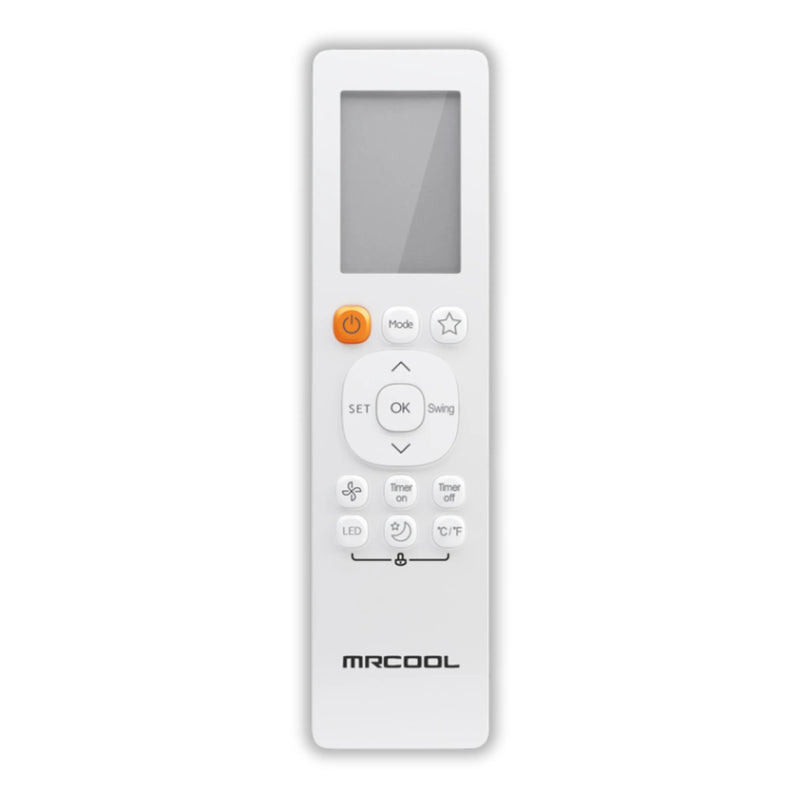

| Remote Control Included | Yes |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 2 Year Parts / 1 Year Compressor |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
