MRCOOL Advantage 5th Gen 12,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-12-HP-230D-O)

Click on image to zoom Click on image to zoom

MRCOOL Advantage 5th Gen 12,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-12-HP-230D-O)

Name: MRCOOL Advantage 5th Gen 12,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-12-HP-230D-O)
Brand: MRCOOL
SKU: A-12-HP-230D-O
Price: 979.0 USD
Availability: InStock
Rating: 4.82 (40 reviews)

| Authorized Dealer

SKU: A-12-HP-230D-O

$979.00 $1,179.00

Save 17%

Voltage:

115V 115V
230V 230V

BTUs

9K 9K
12K 12K
18K 18K
24K 24K
36K 36K

Estimated delivery:

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

Build a Custom Mini Split

Click Here

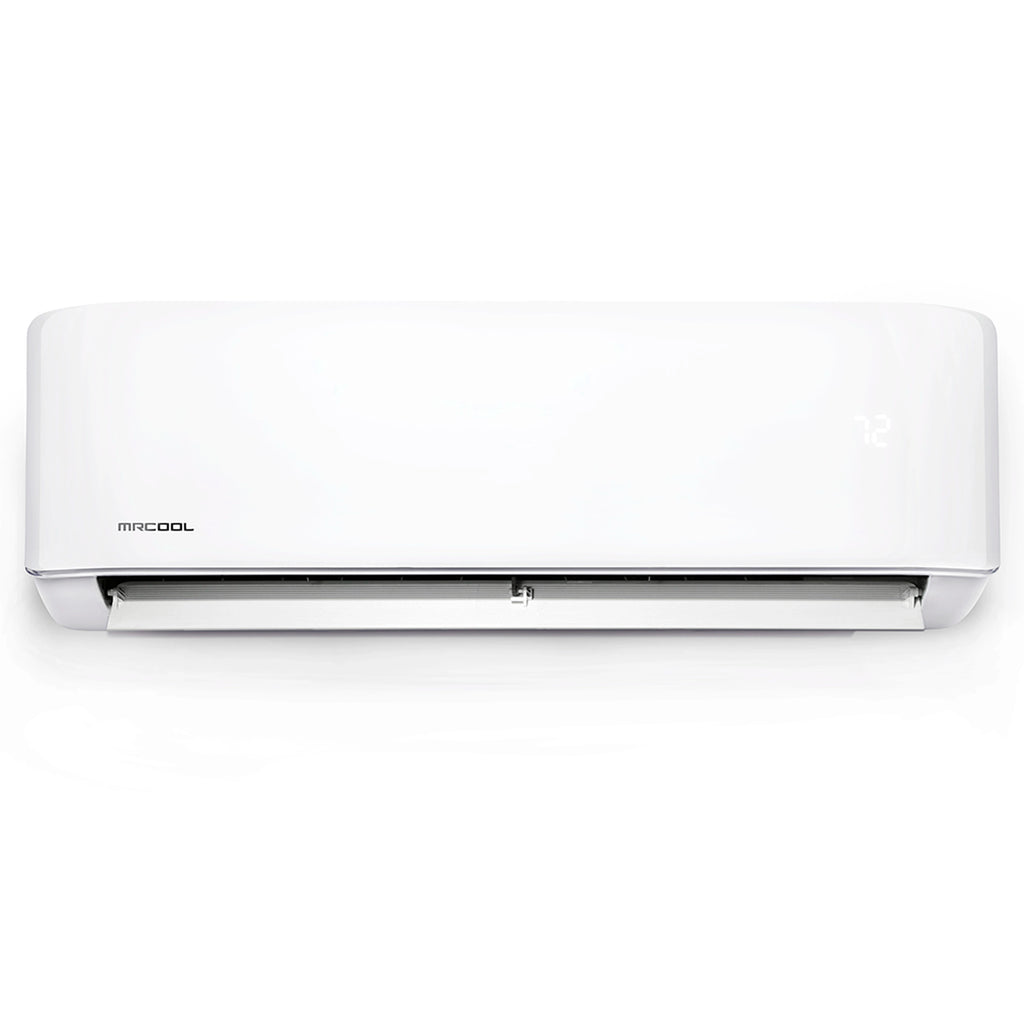

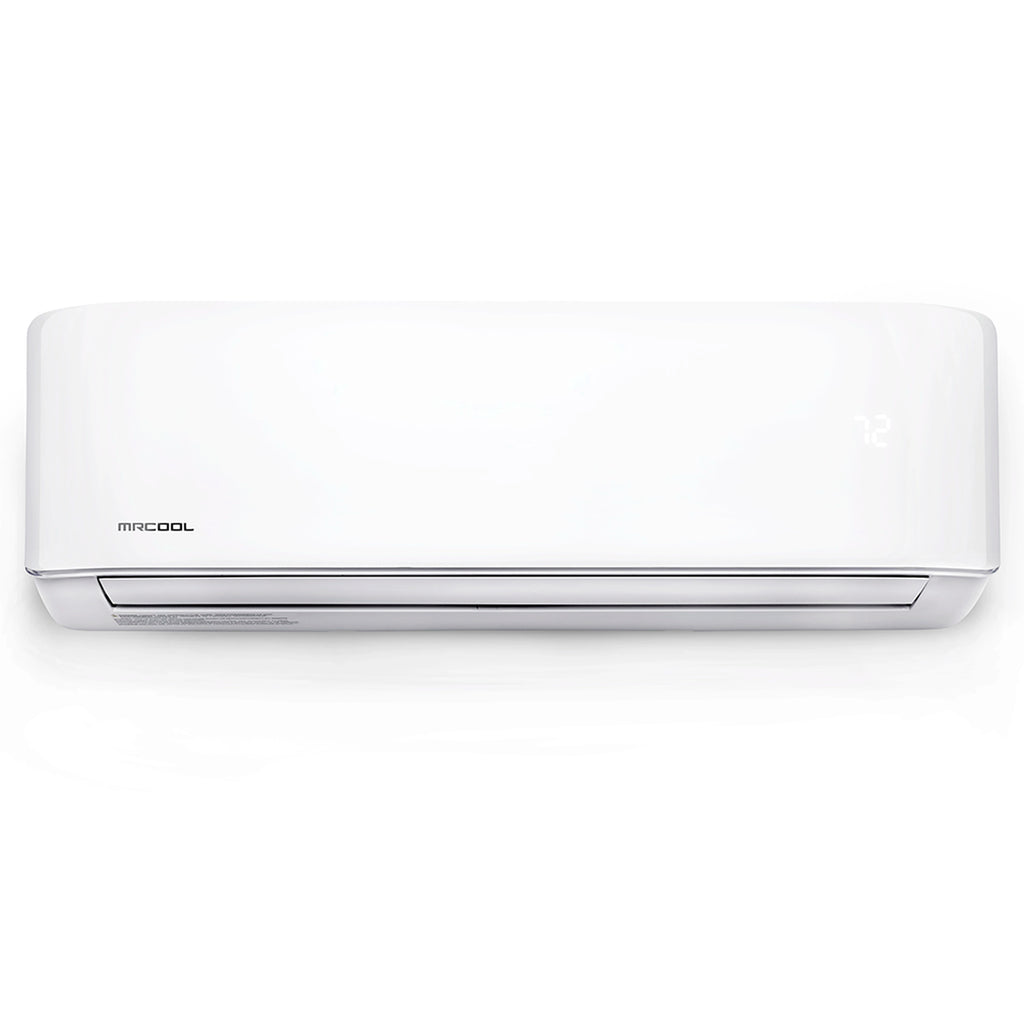

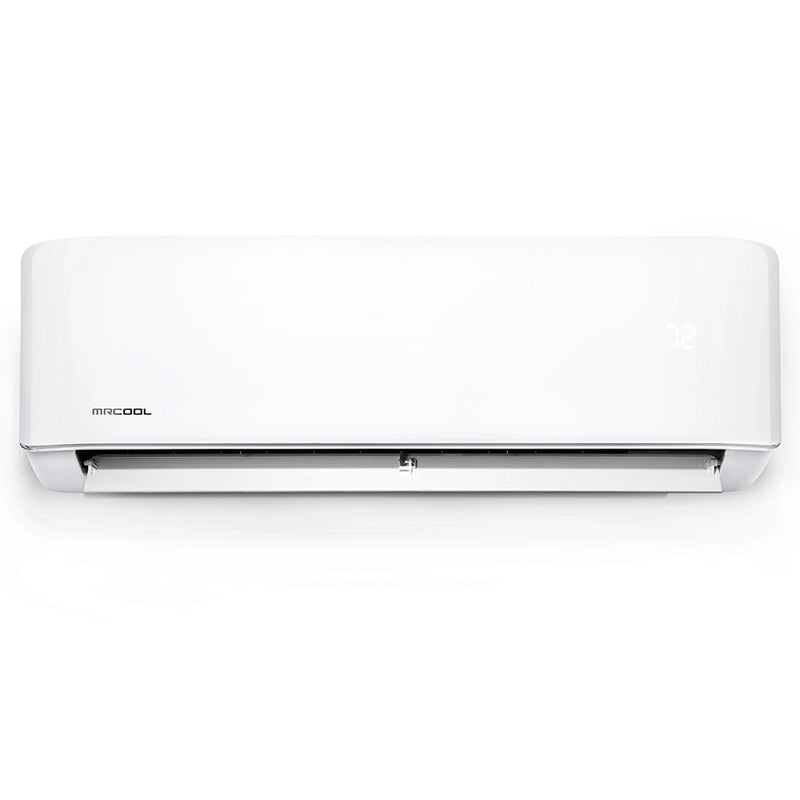

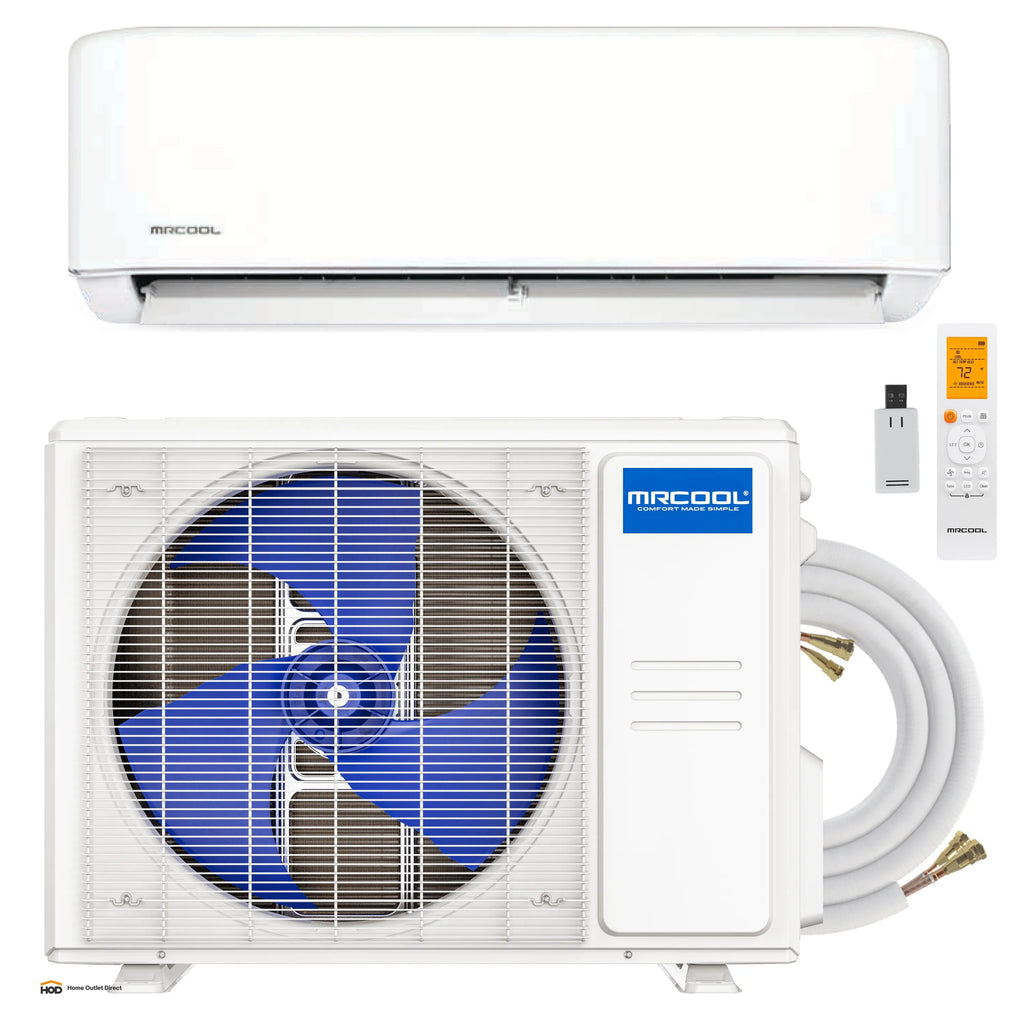

The MRCOOL® 5th Generation 12K BTU Advantage Mini-Split delivers powerful, energy-efficient heating and cooling for spaces up to 500 sq. ft. Ideal for larger rooms, open layouts, or multi-use areas, this system includes a sleek, WiFi-enabled indoor air handler and a high-performance outdoor condenser. With eco-friendly R-454B refrigerant, smart controls, and quiet operation, the Advantage Bundle offers reliable year-round comfort with a professional-grade finish.

Features:

Powerful Coverage: Effectively heats and cools areas up to 500 sq. ft.—ideal for guest rooms, dens, or finished attics
Smart Home Ready: Built-in Wi-Fi connectivity allows control via the MRCOOL® Smart HVAC Controller® app, Amazon Alexa, or Google Assistant for hands-free operation.
Efficient & Eco-Friendly: Operates with R-454B refrigerant, which offers ~80% lower Global Warming Potential (GWP) than previous generations, helping reduce environmental impact.
High Efficiency Ratings: Achieves a SEER2 rating of 21.3 and an HSPF2-4 rating of 9.1 for efficient year-round climate control with lower utility costs.
Quiet Comfort: Designed for low-noise operation to ensure a peaceful environment, even in large living areas or shared spaces.

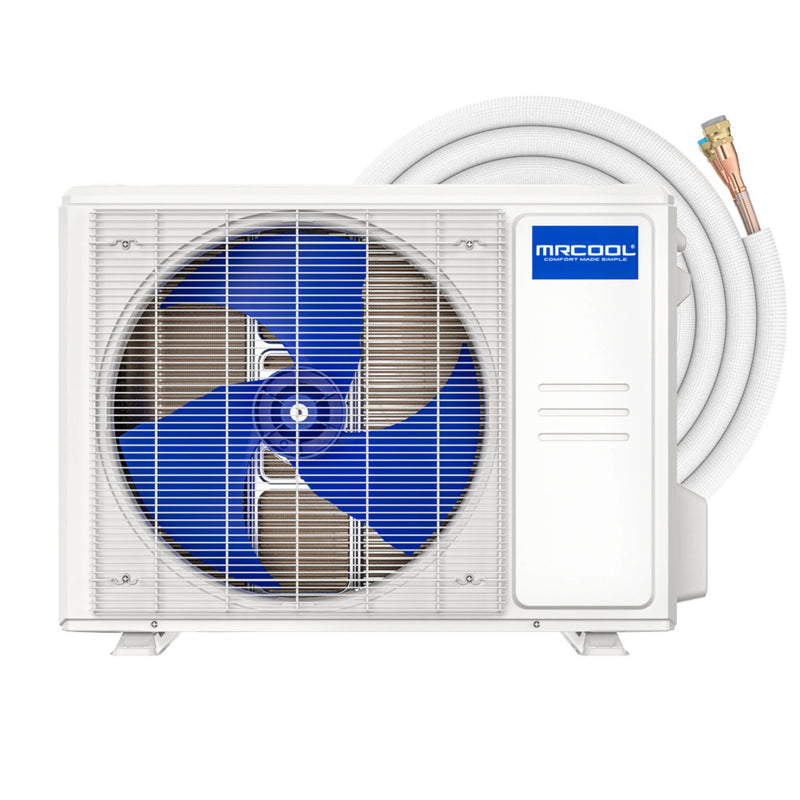

Gold Fin® Protection: Outdoor condenser is coated with corrosion-resistant Gold Fin®—ideal for coastal regions or harsh weather conditions,
Follow Me® Technology: The included remote features MRCOOL’s Follow Me® function, which senses temperature at your location for more personalized comfort.
Built-In Safety & Diagnostics: Features advanced functions like refrigerant leakage detection and timer mode for added protection and convenience.
Low Ambient Cooling: Reliable operation even in temperatures as low as 5°F, making it suitable for year-round use, including server rooms or greenhouses.
Certified Performance: AHRI certified, NEEP ccASHP listed, and CEE Tier 1 - North qualified to meet high standards of performance and efficiency.
Complete Installation Kit: Includes a 16 ft. line set for a streamlined setup by professionals.
Warranty Coverage: Comes with a 1-year warranty on parts and remote, a 2-year compressor warranty, and eligibility for the MRCOOL® Care Program, which includes a Limited Lifetime warranty upon enrollment.
HVAC Pro Installation Required: This is not a DIY unit—must be installed by a licensed HVAC technician for optimal safety and warranty eligibility.

Model	Indoor Unit: A-12-HP-WMAH-230D-O Outdoor Unit: A-12-HP-C-230D-O
Net Dimension (WxDxH) Indoor Outdoor	31.57 x 7.44 x 11.69 inch 30.12 x 11.93 x 21.85 inch
Cooling Capacity	12000 BTU/h
SEER2	21.3 BTU/w
EER2	10.8 BTU/w
Heating Capacity	12000 BTU/h
HSPF2-4	9.1 BTU/h
HSPF2-5	7.0 BTU/h
Max Coverage Area*	Up to 550
Indoor noise level (Turbo/Hi/Mi/Lo/Si)	44.0/38.0/32.0/22.5/21
Outdoor noise level (Hi)	54 dB (A)
Power Supply	208-230V-60Hz. 1Ph
Minimum Circuit (Disconnect)	Indoor - 3.0 A Outdoor - 13.0 A
Maximum Fuse (Breaker)	Indoor - 15.0 A Outdoor - 15.0 A
Net/Gross Weight Indoor Outdoor	19.40/25.13 Lbs 59.08/64.37 Lbs
†Refrigerant R-454B Piping Size Liquid side/Gas side	24.69 1/4”-3/8”

Brochure

What BTU rating should I choose for my air handler?

This depends on the coverage area/room size you are trying to heat/cool
An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area

Air Handler BTU	Coverage Area/Room Size (Sq Ft.)*
9K BTU	Up to 375 Sq. ft
12K BTU	Up to 500 Sq. ft
18K BTU	Up to 750 Sq. ft
24k BTU	Up to 1000 Sq. ft
36k BTU	Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
