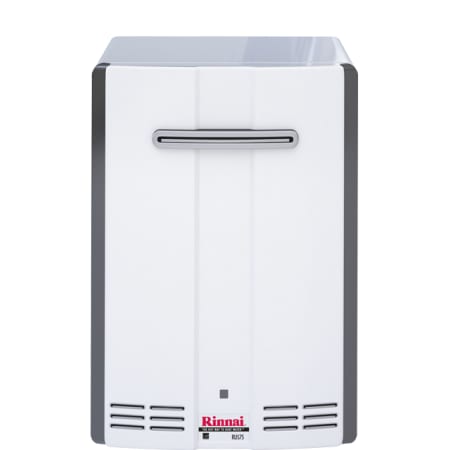

Rinnai 7.5 GPM Residential Outdoor Natural Gas Tankless Water Heater with 160,000 BTU Max Input and Electronic Water Control from the Ultra Series (RUS75eN)

Rinnai 7.5 GPM Residential Outdoor Natural Gas Tankless Water Heater with 160,000 BTU Max Input and Electronic Water Control from the Ultra Series (RUS75eN)

SKU: RUS75eN

Sale price$1,893.00



Estimated restock:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

Rinnai 7.5 GPM Residential Outdoor Natural Gas Tankless Water Heater with 160,000 BTU Max Input and Electronic Water Control from the Ultra Series (RUS75eN)

Rinnai’s Ultra series of condensing tankless water heaters is specifically designed suitable for medium-to large-sized homes; the increased efficiency of a condensing unit gives additional savings while still offering all the upsides of a standard tankless water heater. Never run out of hot water again, and enjoy the space savings, convenience, ease of installation and peace of mind for which Rinnai is famous for.Available at Home Outlet Direct.

Features:

  • Outputs up to 160,000 BTUs of heating power at an continuous 7.5 GPM
  • ENERGY STAR® qualified for increased efficiency and power usage
  • Designed for outdoor use only
  • Certified for installation in mobile homes
  • Electronic ignition removes the need for a pilot light, saving you money in fuel costs
  • Integrated temperature controller provides temperature range control from 120°F to 140°F
  • Runs quietly at 55 dB under use
  • Ultra low NOx emissions compliant
  • Can either be vented with Rinnai's Concentric direct vent system or PVC/CPVC pipe
  • Approved for use in altitudes of up to 5,400 ft
  • Isolation valves sold separately
  • Residential warranty offers 12 years coverage on the heat exchanger, 5 years on parts, and 1 year on labor

Product Technologies:

  • The Efficiency of Condensing Technology: Rinnai’s unique condensing design incorporates two innovative heat exchangers to achieve optimum heating value from every cubic foot of natural gas or propane. The stainless steel system recaptures residual heat from flue gases to pre-heat incoming ground water, which then circulates to the primary copper heat exchanger. Delivering an Energy Factor (EF) up to .96, Rinnai’s tankless condensing units are ideal for residential and commercial applications and can be banked for even greater capacity.

Specifications:

  • Amperage: 2.3 Amps
  • Depth: 8.73"
  • Energy Factor: 0.93
  • Fuel Type: Natural Gas
  • Height: 25.7"
  • Ignition Type: Electronic
  • Max BTU Input: 160000
  • Temperature (Max): 140°F
  • Temperature (Min): 120°F
  • Voltage: 120v
  • Watts: 61W
  • Width: 18.3"
Specification

Dimensions and Measurements

Activation GPM

0.4

Depth

8.73 in.

Gas Connection

3/4"

Height

25.7 in.

Liquid Propane Pressure (Max)

13.5 WC

Liquid Propane Pressure (Min)

8.0 WC

Maximum Flow Rate

7.5 GPM

Maximum Gas Input

160000

Product Weight

63 lbs.

Vent Maximum Run

492 in.

Water Pressure (Max)

150 PSI

Water Pressure (Min)

20 PSI

Water Pressure / Max PSI

150

Water Pressure / Min PSI

20

Width

18.3 in.

Characteristics and Features

Configuration

Tankless Water Heater

Connection Type

NPT

Direct Vent

Yes

Heating Technology

Condensing

Natural Gas Pressure (Max)

10.5

Vent Type

Direct Vent

Water Connection Type

3/4" MNPT

Water Heater Type

Whole House

Manufacturer Technology

Recirculation

No

Electrical and Operational Information

Altitude Certification

5400 ft.

Amperage

2.3

Condensing

Yes

Default Temperature

120 °F

Fuel Type

Natural Gas

Hardwired

No

Ignition Type

Electronic

Max BTU Input

160000

Temperature (Max)

140 °F

Temperature (Min)

120 °F

Voltage

120

Watts

61

Warranty and Product Information

Approved for Commercial Use

No

Country Of Origin

Japan

CSA Approved

Yes

Energy Star

Yes

Heat Exchanger Warranty

12-Years

Manufacturer Warranty

1 Year Labor, 5 Year Parts

Mobile Home Approved

Yes

Outdoor Approved

Yes

Quick Ship

Yes

Series

Ultra

UL Listed

Yes

Uniform Energy Factor

0.9
