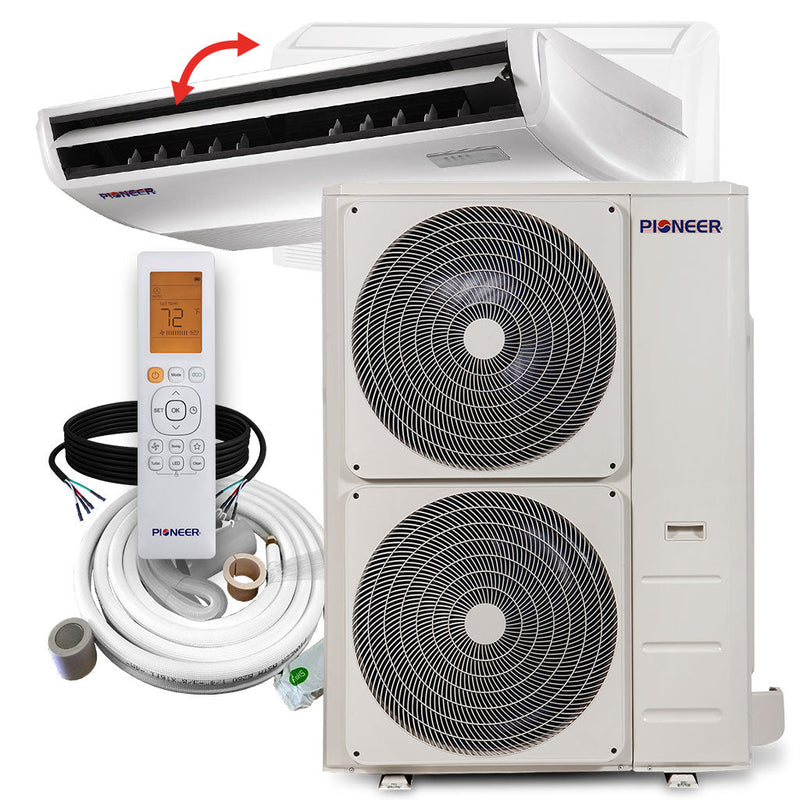

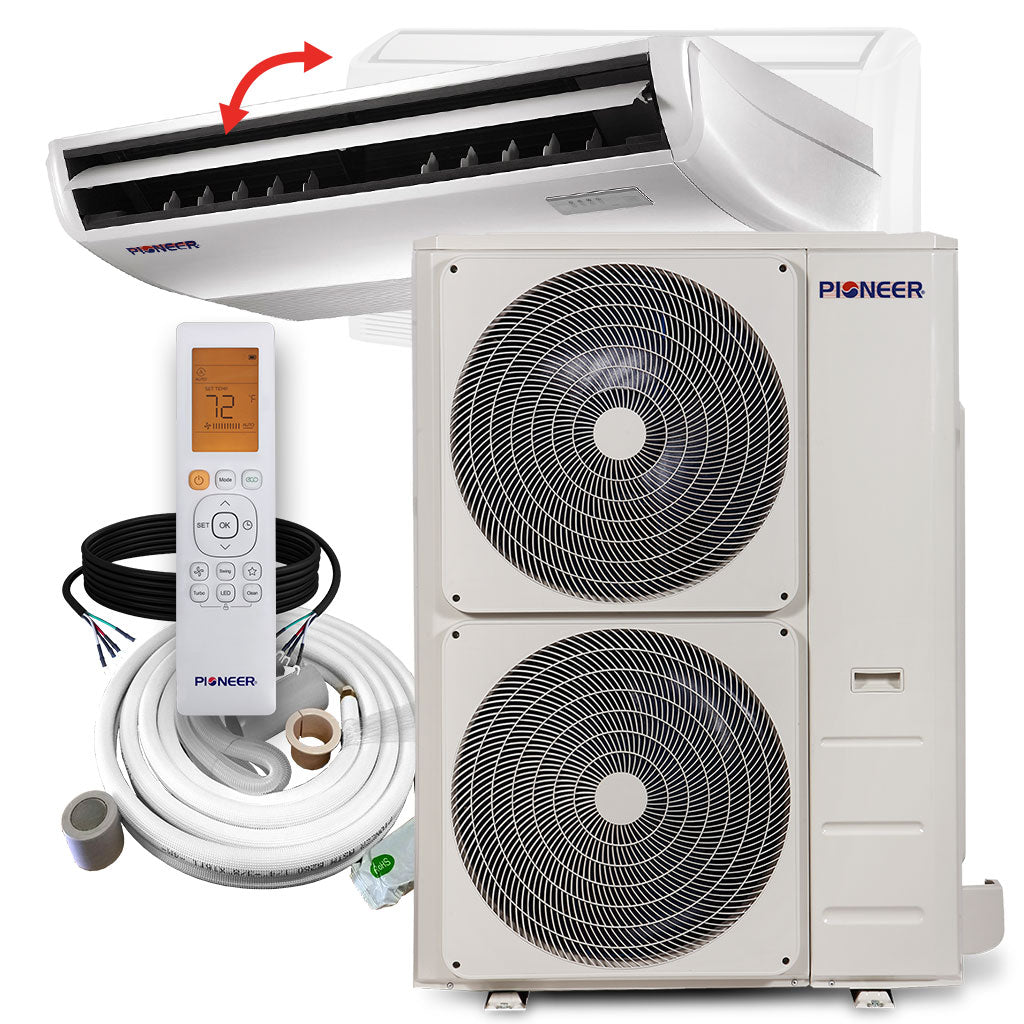

Pioneer Mini Split offers a wide selection of flexible ductless floor-ceiling mini splits that are ideal for homes and commercial properties. These low-mount mini split systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; this allows you to have a ceiling-suspended mini split. Our Pioneer mini split floor mount and ductless air conditioning ceiling mount systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of ductless floor-ceiling mini splits!
Standard
Optional
|
Performance Data |
|
| Power Supply: |
208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: |
48,000 BTU/h |
| Cooling Capacity Range: |
15,861~48,000 BTU |
| Cooling SEER2: |
18.9 BTU/W.h |
| Cooling EER2: |
9.3 BTU/W.h |
| Heating Rated Capacity: |
50,000 BTU/h |
| Heating Capacity Range: |
21,780~57,300 BTU/h |
| Heating HSPF2 (Region IV/V): |
10.0 / 7.5 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F): |
2.5 / 1.85 W/W |
| Refrigerant Type: |
R410a |
| Suitable Area: |
1,350~1,800 Sq.F |
|

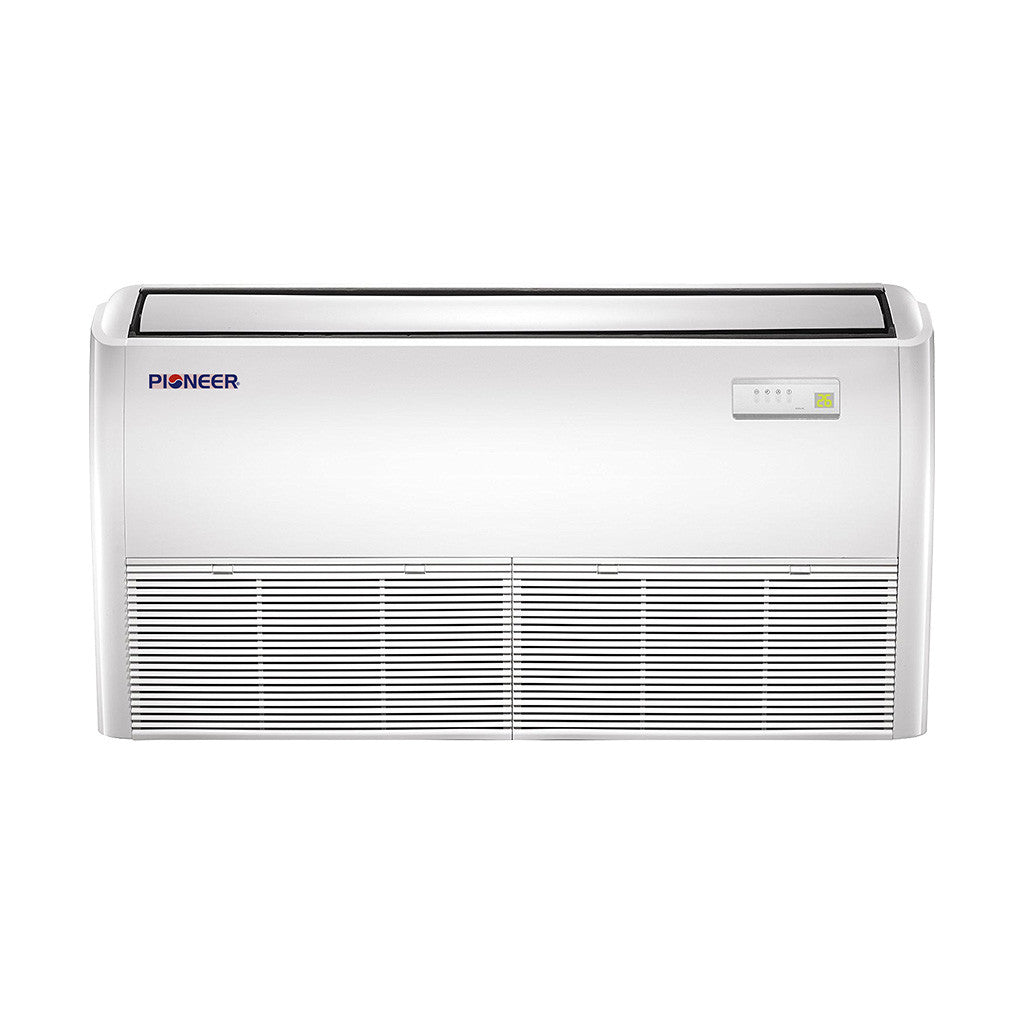

Indoor Unit Data |
|
| Model: |
UB048GMFILCFHD |
| Air Flow (Hi/Med/Lo): |
1,320 / 1,200 / 1,120 CFM |
| Sound Level (Hi/Med/Lo): |
55.0 / 49.5 / 44.5 dB(A) |
| Net Dimensions (WDH): |
65.0 x 26.5 x 9.3 Inches |
| Carton Dimensions (WDH): |
68.0 x 29.8 x 12.4 Inches |
| Net / Gross Weight: |
87.7 / 102.3 Lbs |
|

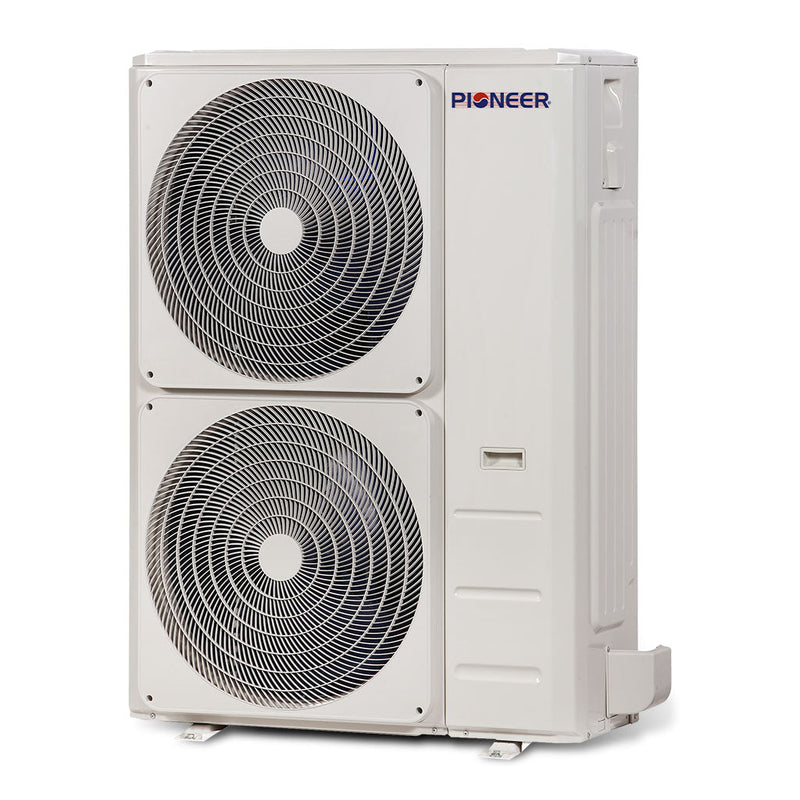

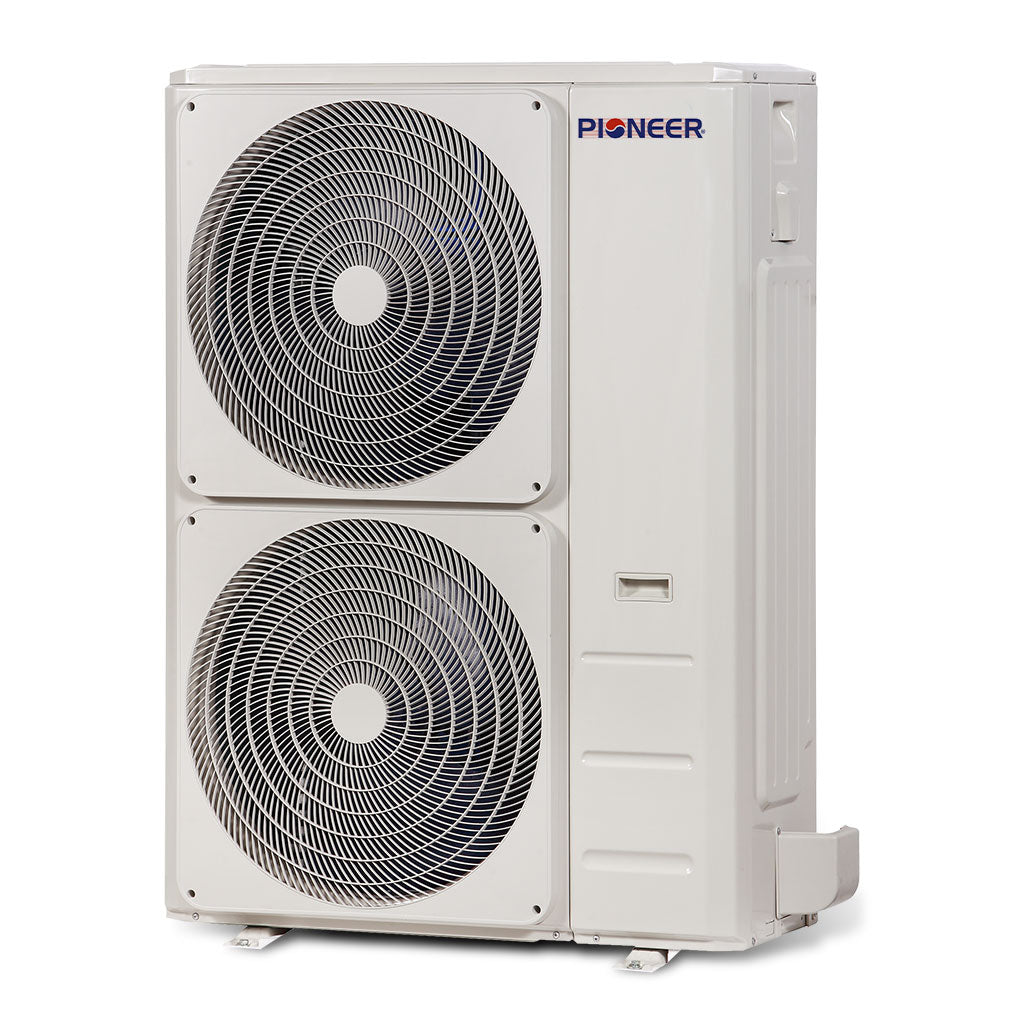

Outdoor Unit Data |
|
| Model: |
YN048GMFI18RUE |
| Breaker Needed: |
40A (double-pole) |
| Sound Level: |
65.0 dB(A) |
| Net Dimensions (WDH): |
37.5 x 16.4 x 52.5 Inches |
| Carton Dimensions (WDH): |
43.2 x 19.8 x 58.5 Inches |
| Net / Gross Weight: |
219.1 / 249.1 Lbs |
Certifications
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
