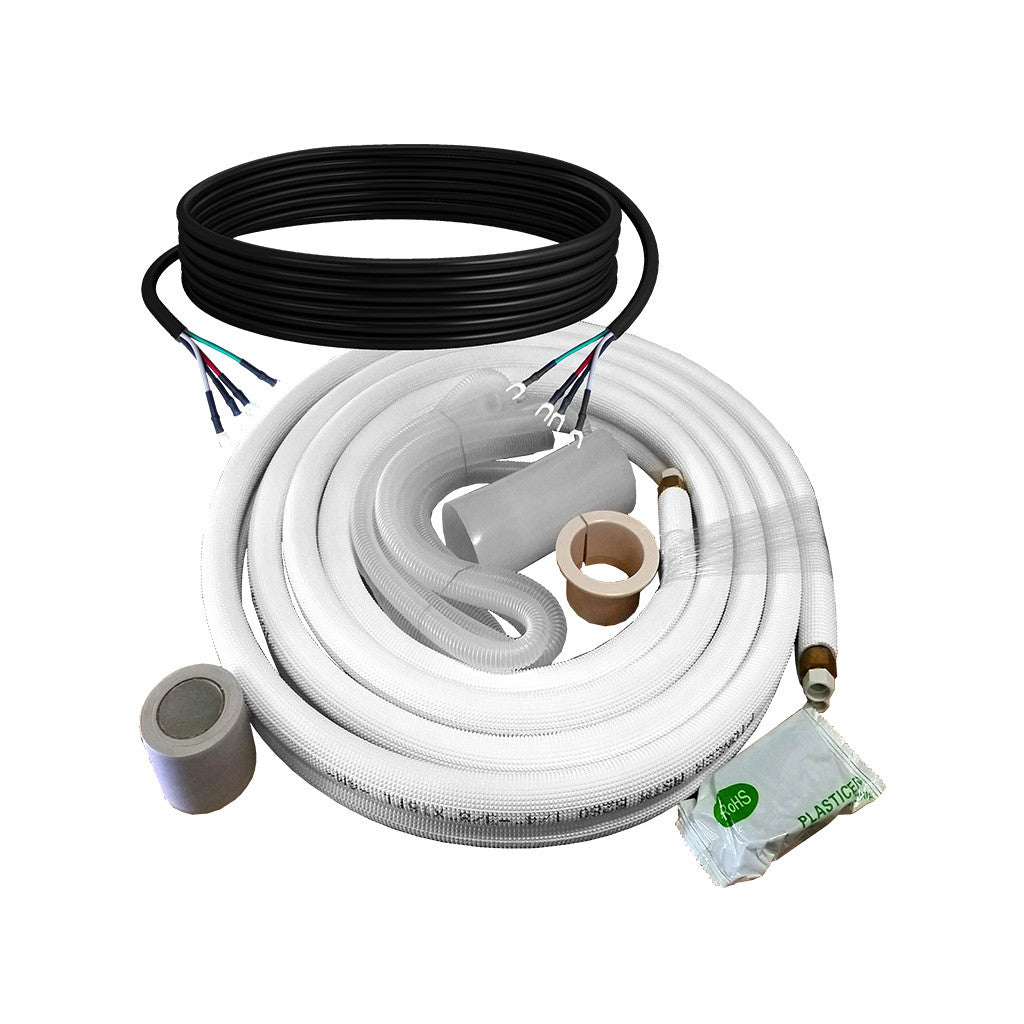

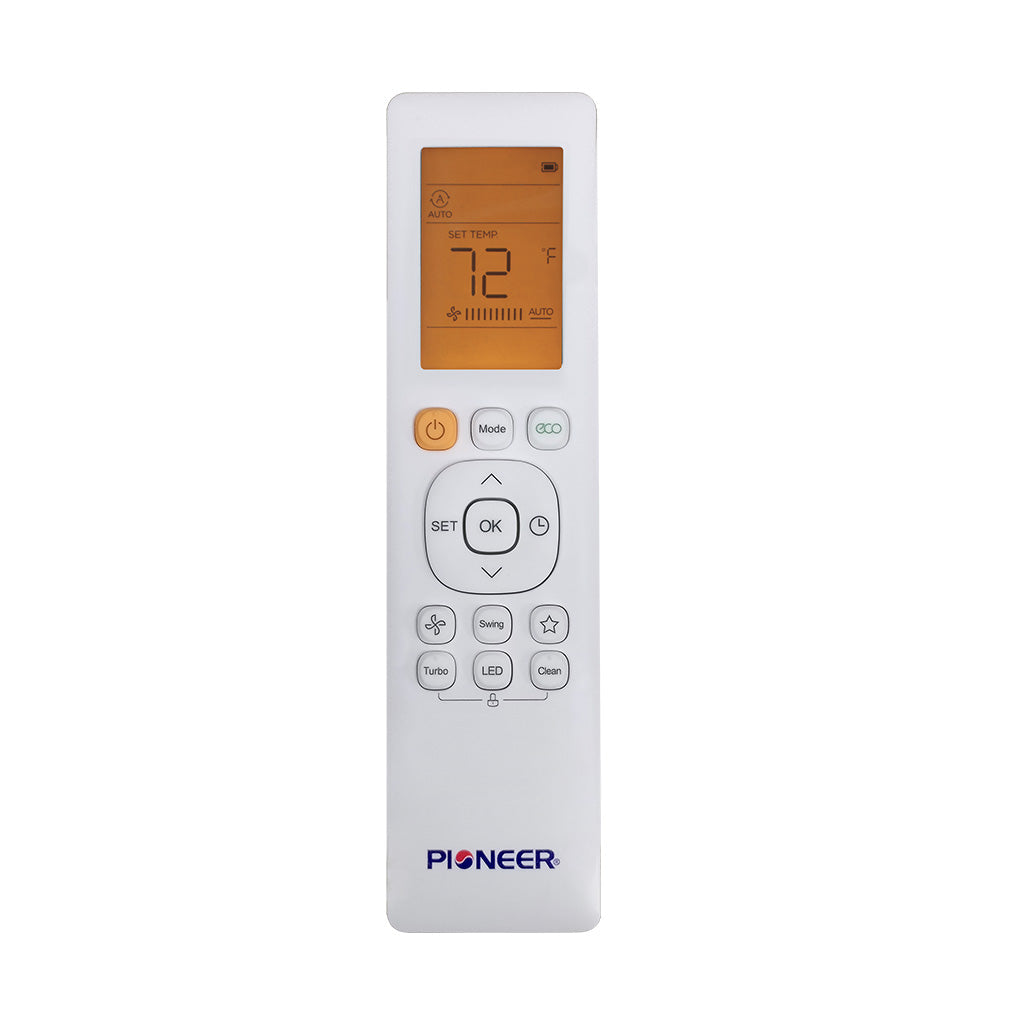

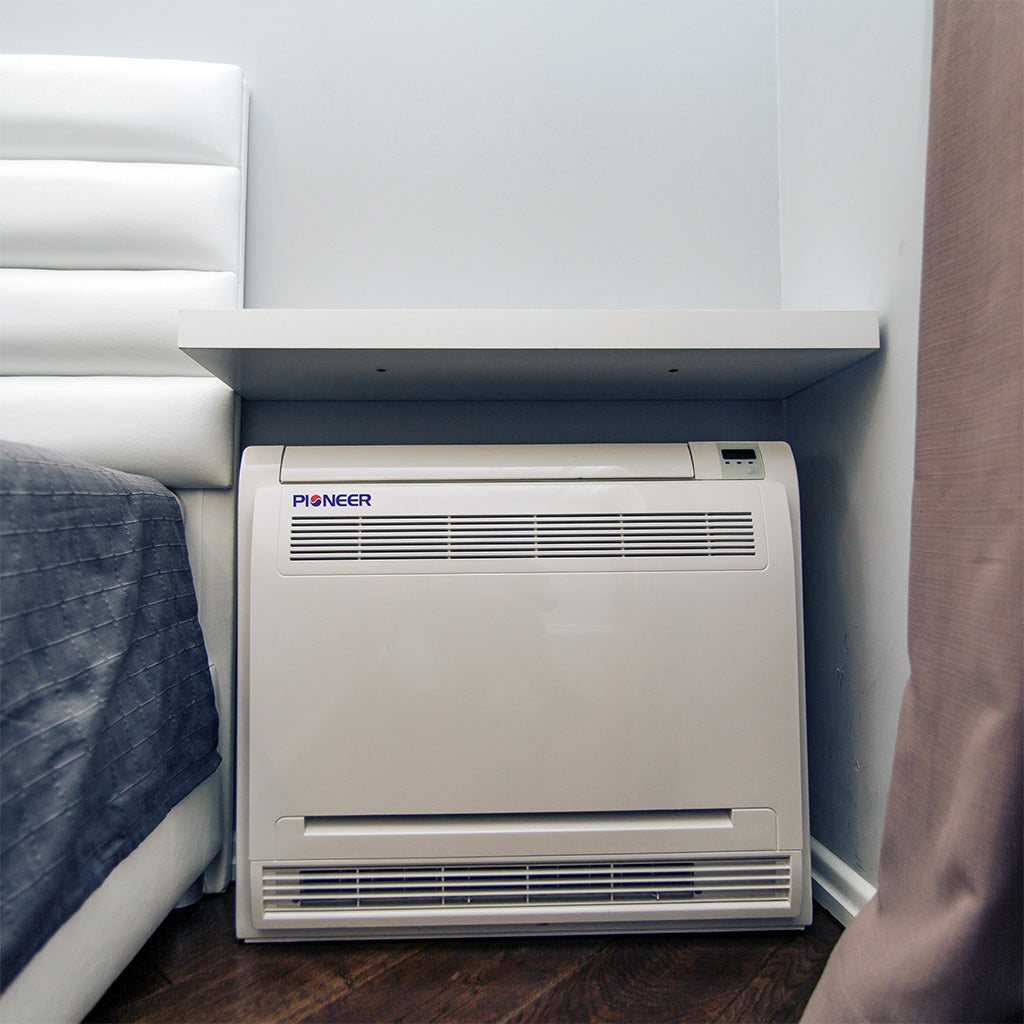

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini split systems are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor-mount AC options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer floor-mount mini splits are easy and convenient to install; our floor-mounted mini split heat pumps include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!
| Performance Data | |
| Power Supply: |
208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: |
12,000 BTU/h |
| Cooling Capacity Range: |
2,850~13,000 BTU/h |
| Cooling SEER2: |
22.7 BTU/W.hr |
| Cooling EER2: |
13.0 BTU/W.hr |
| Heating Rated Capacity: |
12,000 BTU/h |
| Heating Capacity Range: |
2,250~14,800 BTU/h |
| Heating HSPF: |
10.0 BTU/w |
| Refrigerant Type: |
R410a |
| Suitable Area: |
200~450 Sq.F |
|

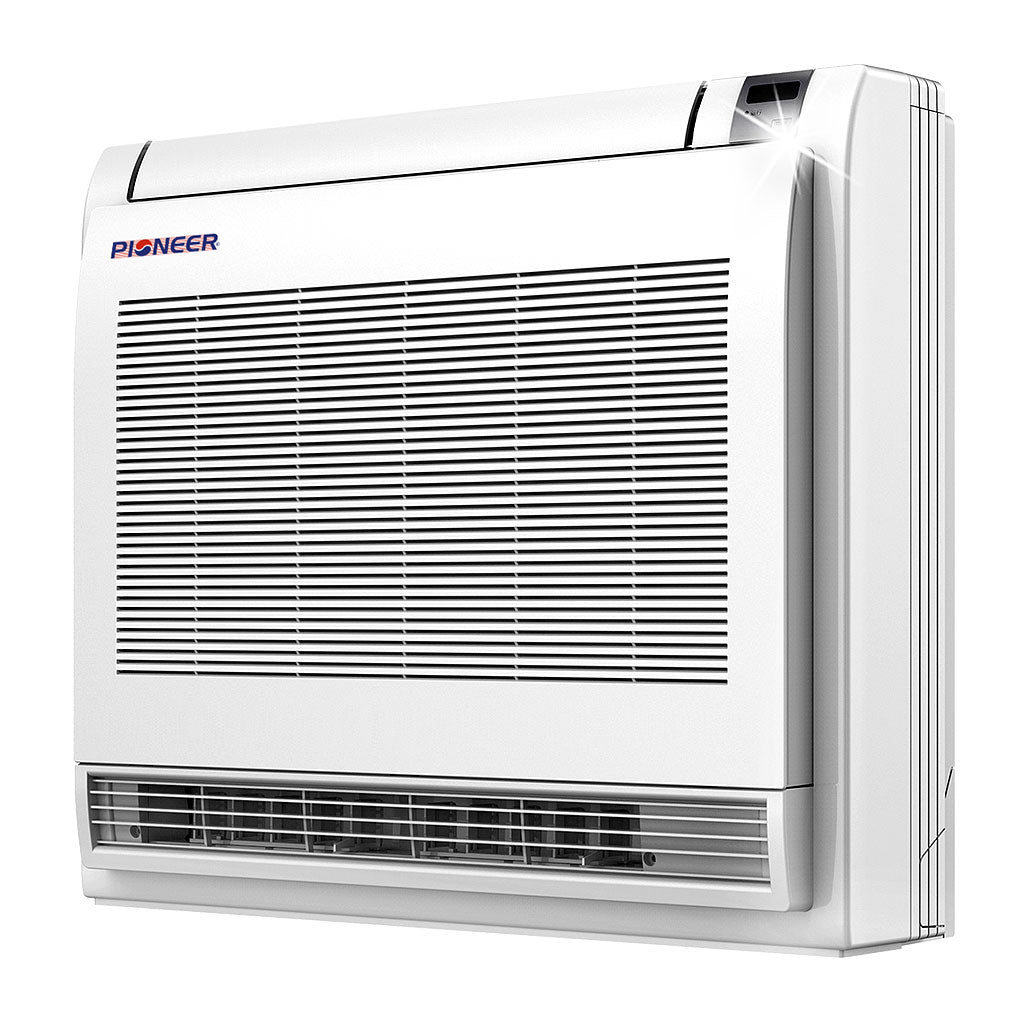

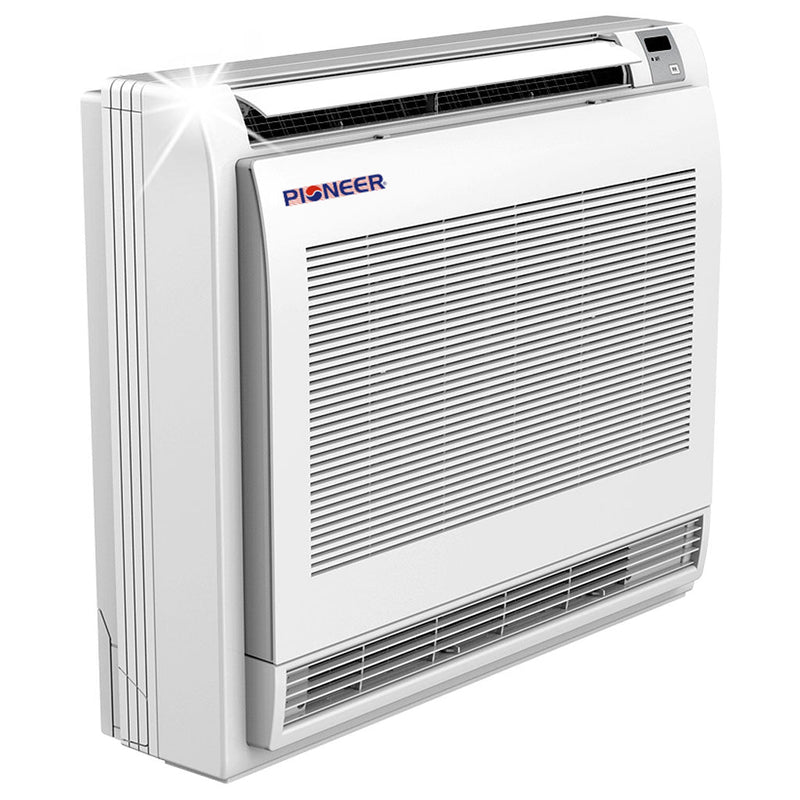

Indoor Unit Data |
|
| Model Number: |
FB012GMFILDFHE |
| Air Flow (Hi/Med/Lo): |
365 / 318 / 248 CFM |
| Sound Level (Hi/Med/Lo): |
43.0 / 39.0 / 33.0 dB(A) |
| Net Dimensions (WDH): |
31-1/4 x 7-7/8 x 24-1/2 Inches |
| Carton Dimensions (WDH): |
34 x 11 x 28-1/4 Inches |
| Net / Gross Weight: |
32.8 / 41.5 Lbs |
|

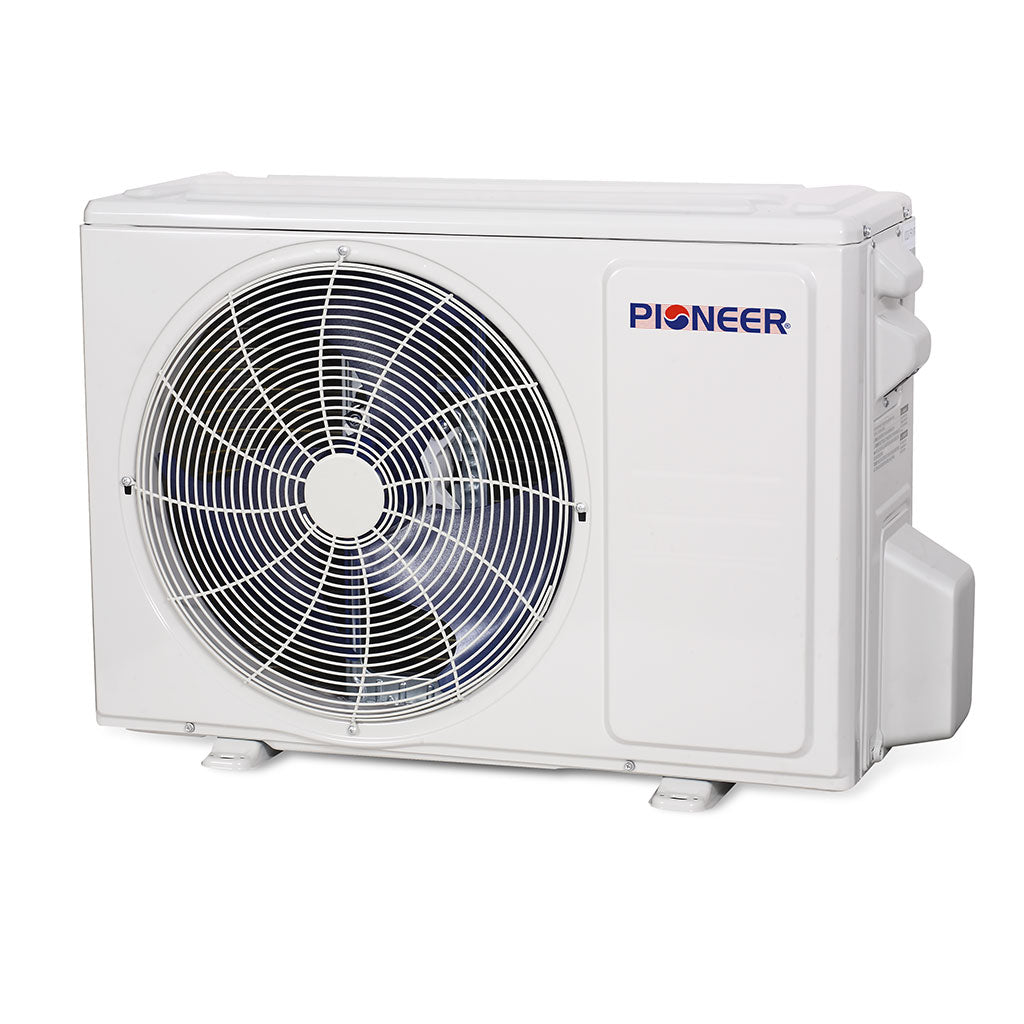

Outdoor Unit Data |
|
| Model Number: |
YN012GMFI22RPE |
| Sound Level: |
53.5 dB(A) |
| Breaker Needed: |
15A (double-pole) |
| Expansion Device Type: |
EXV |
| Net Dimensions (WDH): |
30-1/8 x 11-7/8 x 21-7/8 Inches |
| Carton Dimensions (WDH): |
34-7/8 x 13-1/4 x 24 Inches |
| Net / Gross Weight: |
63.7 / 69 Lbs |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
