This item only includes a Condenser. Browse our complete Mini Split systems here.

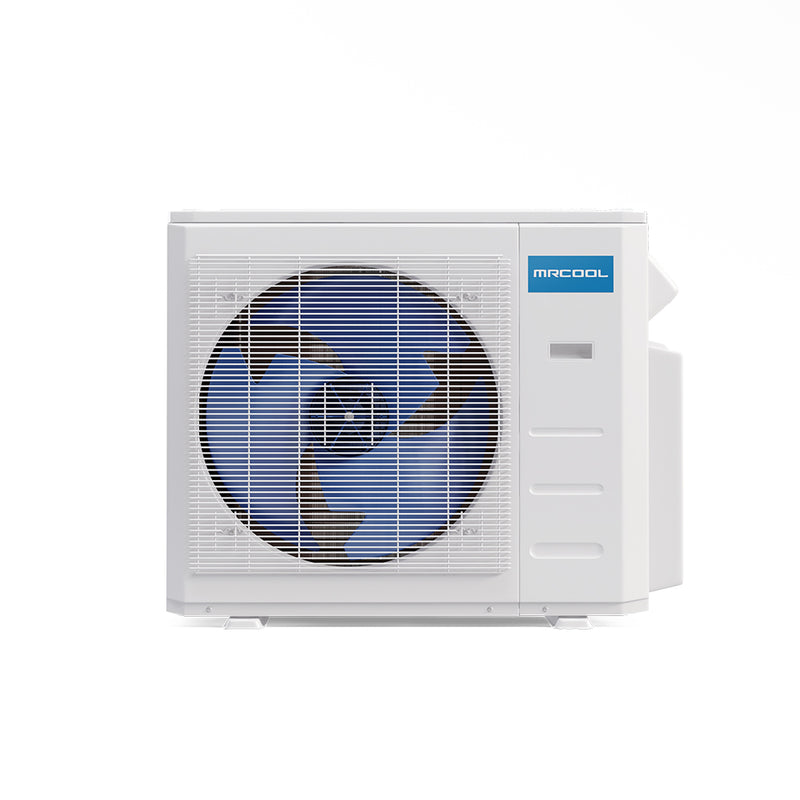

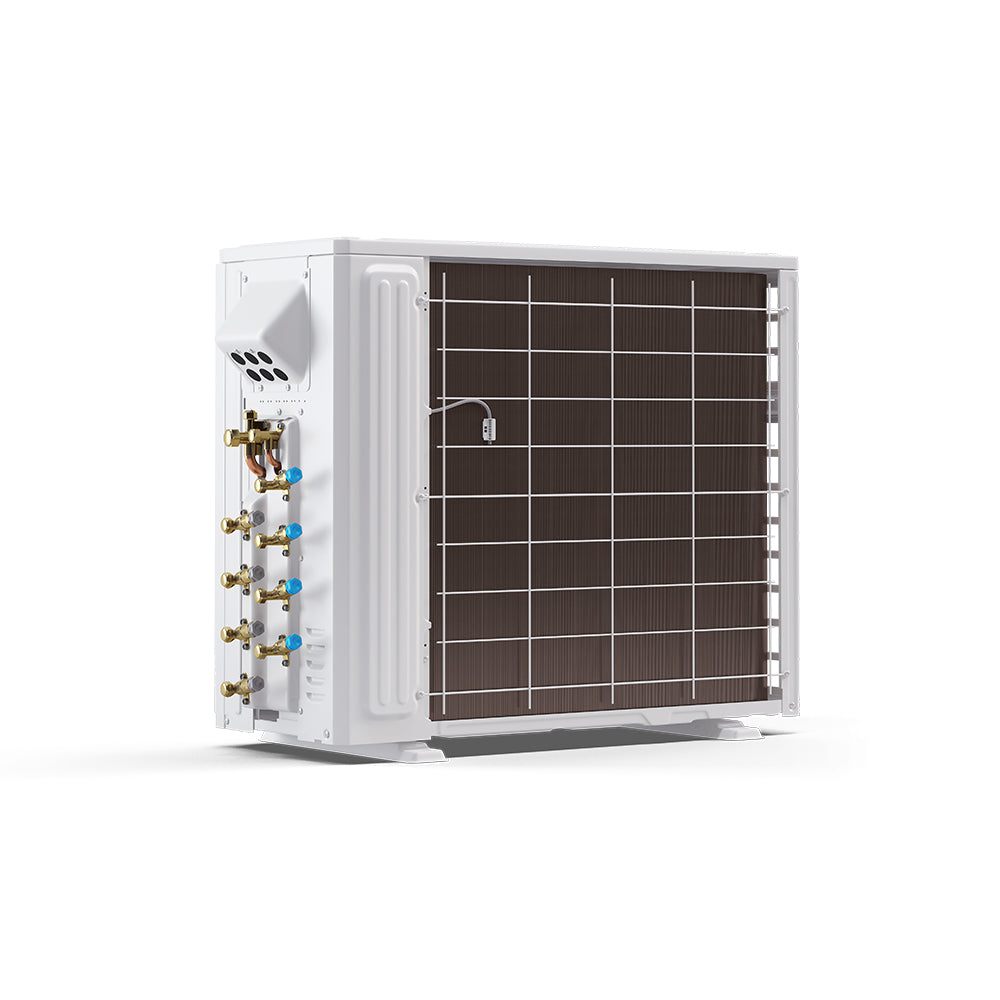

DIY 36,000 BTU 3 Ton 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz
If you’re in need of whole-home comfort but you don’t have ductwork, or you want the best and most efficient solution to discomfort without the stress and cost of a professional installation, then this DIY 36k BTU 3 Ton 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser is the perfect choice for you.
This sturdy unit allows you to connect up to four DIY air handlers to it using pre-charged DIY line sets in order to cover as much space as possible in your home with clean, efficient, and comforting air. The best part about all of this is that you can install it yourself!
This condenser possesses an impressive temperature range, as it can provide you comfort from -13° to 122°F. It’s also extremely well-built with a Gold Fin® condenser coating that will protect it from rust and water damage. You’ll also be able to enjoy the peace of mind from a 5 year parts warranty and a 7 year compressor warranty when you register your unit online.
You’ll feel economic, comfortable, and handy once this DIY 36k BTU 3 Ton 4-Zone Ductless Mini-Split Heat Pump Condenser is working to bring you total climate contentment.
|
Dimensions |
16.14" D x 31.89" H x 37.24" W |
|
SEER |
21.5 |
|
EER |
10.5 |
|
COP 47 |
3.4 |
|
HSPF |
11 |
|
Tonnage |
3 |
|
Cooling Capacity |
36000 BTU |
|
Heating Capacity |
36000 BTU |
|
Voltage |
208-230 V |
|
Phase |
1 |
|
Cycle |
60 Hz |
|
Max Fuse Breaker |
45 A |
|
Min Circuit Ampacity |
30 A |
|
Mount Type |
Condenser |
|
Color |
White |
|
Color Family |
White |
|
Max Coverage Area |
1500 sq ft |
|
Zone Capacity |
4 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
102.3 oz |
|
Decibel Rating |
64.5 dBA |
|
Decibel Rating Low |
64.5 dBA |
|
Decibel Rating High |
64.5 dBA |
|
Inverter |
Yes |
|
Min Ambient Cool |
-13 - 122 F |
|
Min Ambient Heat |
-13 - 122 F |
|
Max Lineset Length |
262ft Max |
|
Liquid Line Size |
1/4in (x4) |
|
Suction Line Size |
1/2in (x4) |
|
Control Type |
LED |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
UL Reconized |
No |
|
UL Listed |
No |
|
CSA Listed |
Yes |
|
CSA Certified |
Yes |
|
ETL Listed |
No |
|
ETL Certified |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
5-year Parts/7-year Compressor/1-year Remote |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU PR;VI |
|
Net Height |
31.89 |
|
Net Width |
37.24 |
|
Net Weight |
162 LBS |
|
Gross Depth |
19.69 |
|
Gross Height |
34.06 |
|
Gross Width |
42.91 |
|
Gross Weight |
179.7 LBS |
|
Freight Class |
92.5 |
