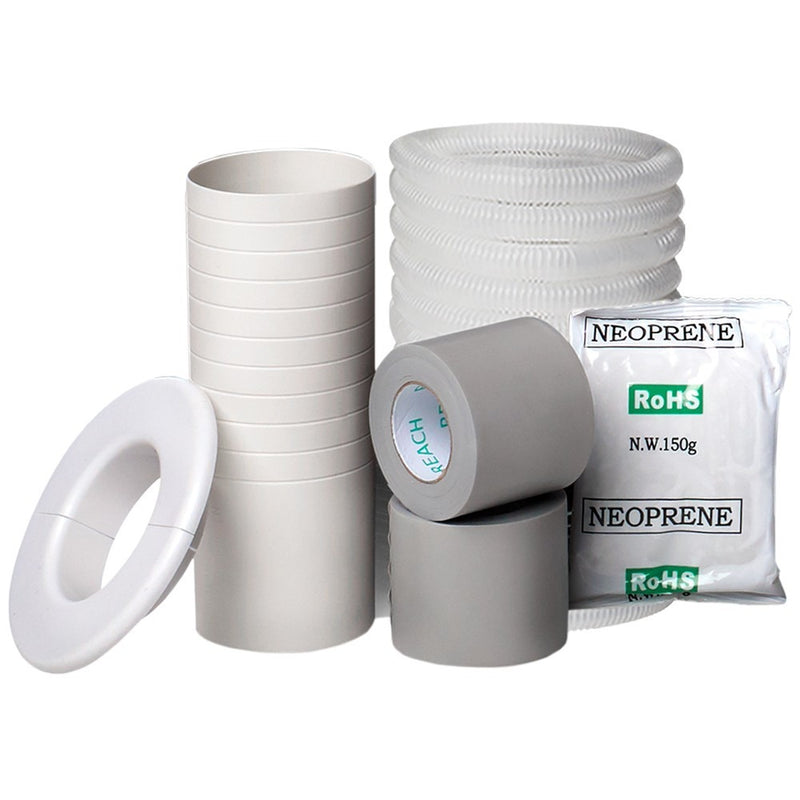

Includes a 16 foot line set.
| Model | A-36-HP-C-230B |
|---|---|
| AHRI Number | 205415982 |
| UPC | 810035931510 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 10 |
| Line Set Connection Type | Flared |
| Line Set Length | 16 ft. |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Product Height (in) | 49.41 |
| Product Length (in) | 37.4 |
| Product Width (in) | 95.67 |
| Refrigerant | R-410a |
| Cooling Efficiency | 16 SEER |
| Series | Advantage |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 2 Year Parts, 1 Year Compressor |
| Weight (lbs) | 208.82 |
| Region Compatibility | Nationwide |
| California Residents | See Prop 65 WARNING |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good customer service will be buying from them again
Was easy to install. Directions were easy to follow and unit is working great
